approx_topk

This page provides instructions on using the approx_topk() function and explains its performance benefits compared to the traditional GROUP BY method.

What is approx_topk?

The approx_topk() function returns an approximate list of the top K most frequently occurring values in a specified field. It uses the Space-Saving algorithm, a memory-efficient approach designed for high-cardinality data and distributed processing, providing significant performance benefits.

To find the top K values based on the number of distinct values in another field, use the approx_topk_distinct() function.

Query Syntax

SELECT approx_topk(field_name, K) FROM "stream_name"
Here:

  • field_name: The field for which top values should be retrieved.
  • K: The number of top values to return.
  • stream_name: The stream containing the data.

Example

SELECT approx_topk(clientip, 10) FROM "demo1"
This query returns an approximate list of the top k most frequently occurring values in the clientip field from the demo1 stream.

Result of approx_topk
The result is returned as an array of objects, where each object includes the value and its corresponding count. For example:

{
  "item": [ { "value": "192.168.1.100", "count": 2650 }, { "value": "10.0.0.5", "count": 2230 }, { "value": "203.0.113.50", "count": 2210 }, { "value": "198.51.100.75", "count": 1979 }, { "value": "172.16.0.10", "count": 1939 } ]
}

Use approx_topk With unnest

To convert these nested results into individual rows, use the unnest() function.

SELECT item.value as clientip, item.count as request_count
FROM (
    SELECT unnest(approx_topk(clientip, 20)) as item
    FROM "demo1"
    )
ORDER BY request_count
DESC
Result of approx_topk() with unnest() This provides a flat output as shown below:

{ "value": "192.168.1.100", "count": 2650 }
{ "value": "10.0.0.5", "count": 2230 }
{ "value": "203.0.113.50", "count": 2210 }
...

GROUP BY Versus approx_topk

How GROUP BY Works

The traditional way to find the top values in a field is by using a GROUP BY query combined with ORDER BY and LIMIT.
For example:

```sql

SELECT clientip AS x_axis_1, COUNT(*) AS y_axis_1
FROM cdn_production
GROUP BY x_axis_1
ORDER BY y_axis_1 DESC
LIMIT 10
```
This query counts how many times each unique `clientip` appears and returns the **top 10** based on that count.
Why Traditional GROUP BY Breaks in Large Datasets

In large datasets with high-cardinality fields, the query is executed across multiple querier nodes. Each node uses multiple CPU cores to process the data. The data is split into partitions, and each core handles a subset of partitions.

Consider the following scenario:

  • Dataset contains 3 million unique client IPs.
  • Query runs using 60 querier nodes.
  • Each core processes 60 CPU cores, with each core processing one partition.

This results in:

3 million values × 60 nodes × 60 cores or partitions = 10.8 billion data entries being processed in memory.

This level of memory usage can overwhelm the system and cause failures.

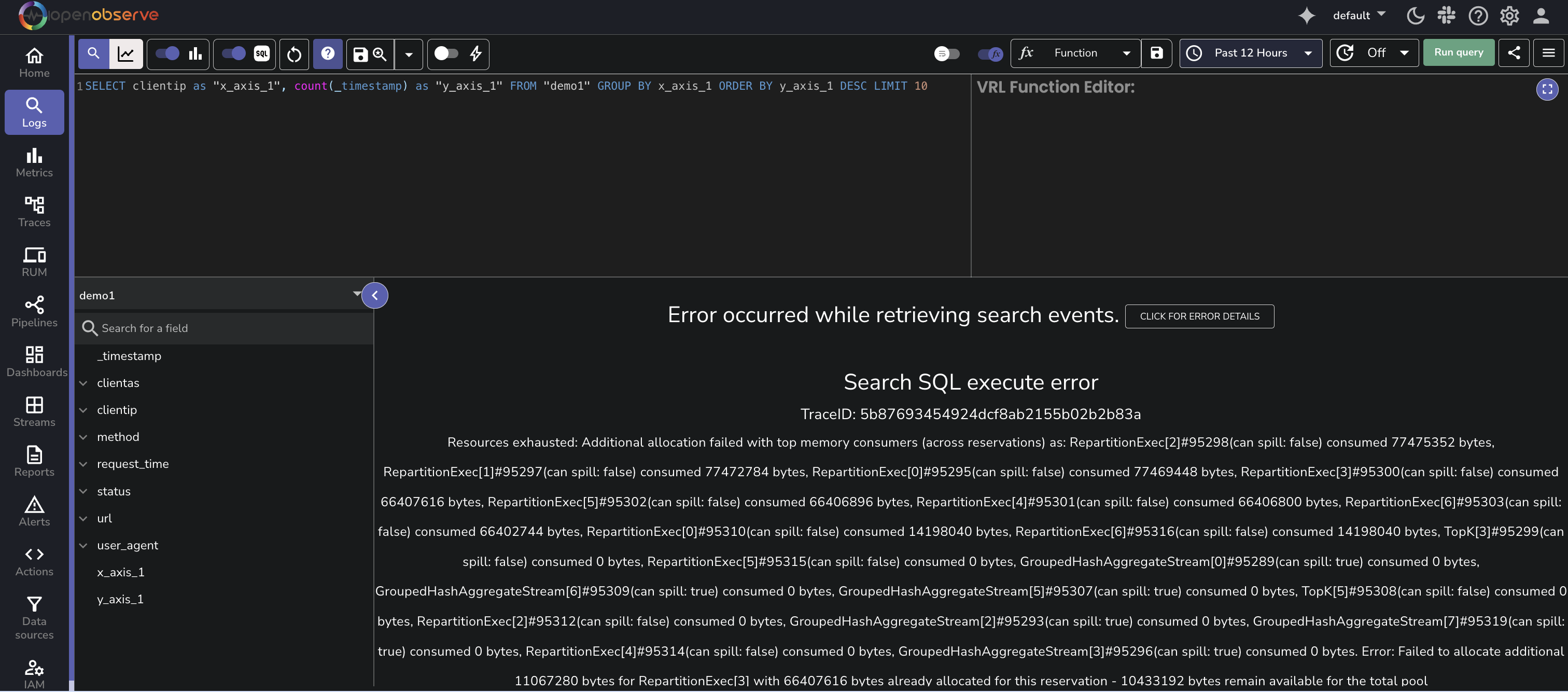

Typical Failure Message

Resources exhausted: Failed to allocate additional 63232256 bytes for GroupedHashAggregateStream[20] with 0 bytes already allocated for this reservation - 51510301 bytes remain available for the total pool
Typical Failure Message This is a common limitation of using traditional GROUP BY with high-cardinality fields in large environments.

How approx_topk Works

When you run a query using approx_topk(), each query node processes a subset of the dataset and computes its local approximate top K values. Each node sends up to max(K * 10, 1000) values to the leader node rather than just K values. This provides buffer capacity to prevent missing globally frequent values that may not appear in the local top K lists of individual nodes.

Despite this optimization, approx_topk() still returns approximate results because the function uses a probabilistic algorithm and the query execution is distributed across nodes.

Note

This method improves performance and reduces memory usage, especially in production-scale environments. It is a trade-off between precision and efficiency. View the performance comparison shown in the following section.

Performance Comparison

When querying high-cardinality fields like clientip in large datasets, performance becomes critical. This section compares the execution performance of a traditional GROUP BY query with a query that uses the approx_topk() function.

Use Case
You want to identify the top 20 most frequent client IP addresses in the demo1 stream based on request volume.

Query 1: Using GROUP BY and LIMIT

SELECT clientip as "x_axis_1", count(_timestamp) as "y_axis_1"
FROM "demo1"
GROUP BY x_axis_1
ORDER BY y_axis_1 DESC
LIMIT 20

Query 2: Using approx_topk()

SELECT item.value as clientip, item.count as request_count
FROM (
  SELECT unnest(approx_topk(clientip, 20)) as item
  FROM "demo1"
)
ORDER BY request_count DESC

Results

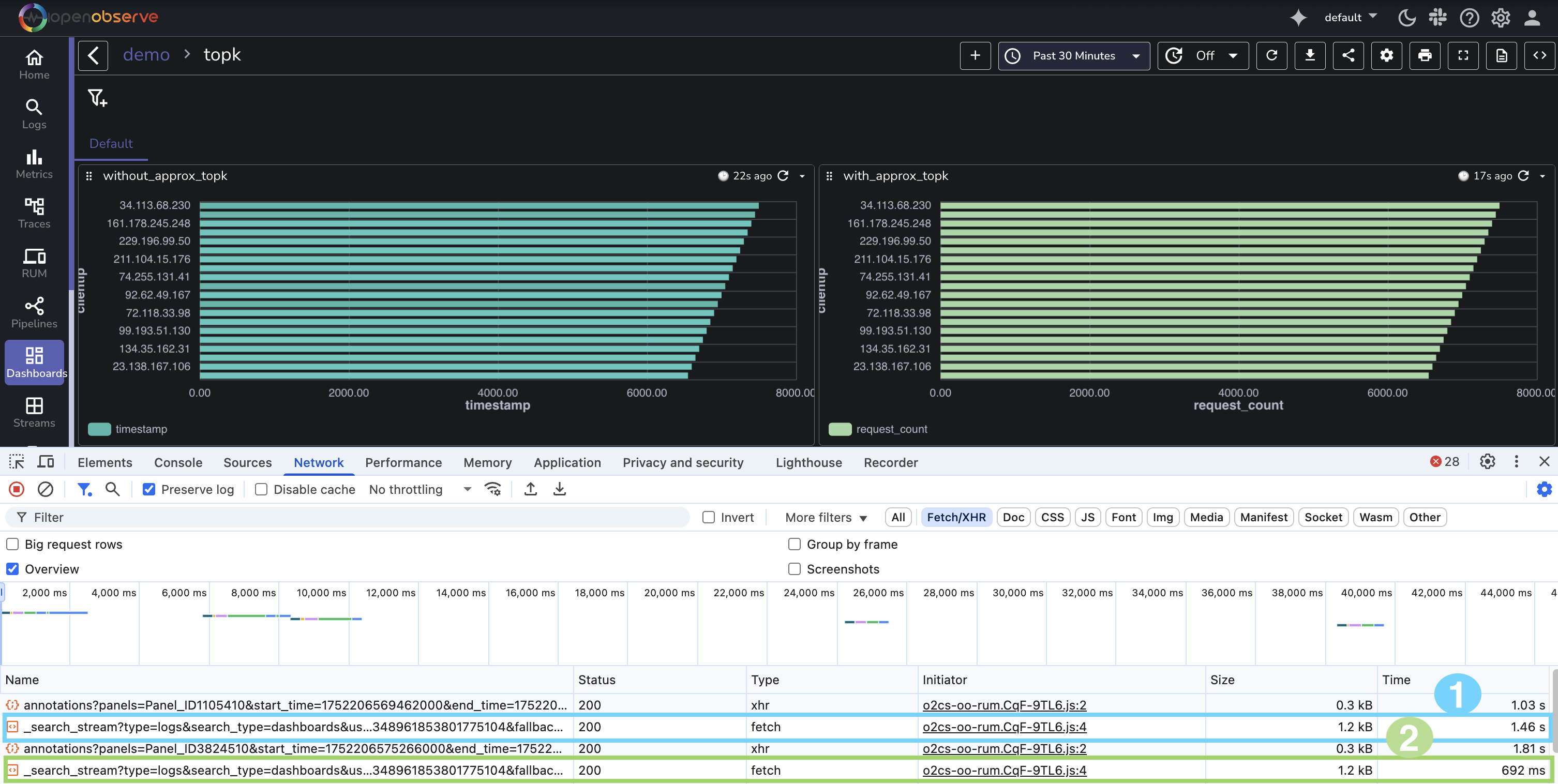

Performance Difference Between GROUP BY and `approx_topk()
Both queries were run against the same dataset using OpenObserve dashboards. Here are the observed query durations from the browser developer tools:

  • The GROUP BY query without approx_topk took 1.46 seconds to complete.
  • The query using approx_topk completed in 692 milliseconds.

This demonstrates that approx_topk executed more than twice as fast in this scenario, delivering a performance improvement of over 50 percent.

Limitations

The following are the known limitations of approx_topk() function:

  • Results are approximate, not guaranteed to be exact. Not recommended when exact accuracy is critical for analysis or reporting.
  • Accuracy depends on data distribution across partitions.

Frequently Asked Questions

Q. Can I use a WHERE clause with approx_topk()?
A. Yes. You can apply a WHERE clause before calling the approx_topk() function to filter the dataset. This limits the scope of the top K calculation to only the matching records.

SELECT item.value as clientip, item.count as request_count
FROM (
    SELECT unnest(approx_topk(clientip, 5)) as item
    FROM "demo1"
    WHERE status = 401
)
ORDER BY request_count DESC

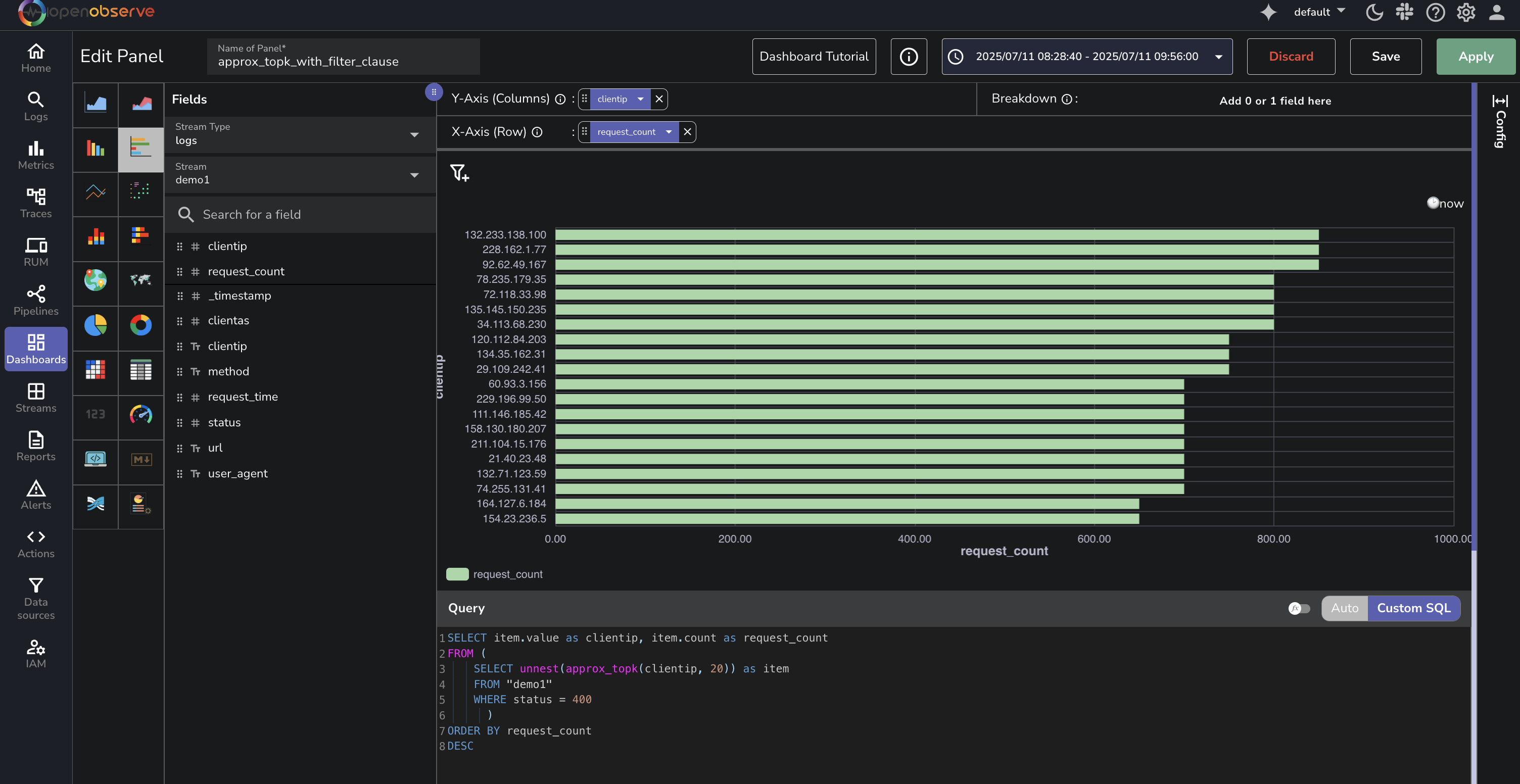

WHERE clause with approx_topk
