Create and Use Real-time Actions

Real-time Actions in OpenObserve are user-defined Python scripts that are executed immediately when triggered, either manually by a user through the Logs UI or automatically when an alert gets triggered.

This guide provides instruction on how to create Real-time Actions.

Prerequisite

Create a Service Account and Assign a Role

A Service Account in OpenObserve is a way to give specific identity access to system features and data. When you create a service account:

  • OpenObserve generates a secure token (like a password).
  • You assign explicit permissions to that account. For example, access to:
    • Action Scripts
    • Logs
    • Alerts

The first step to using Actions is to ensure that there is a service account that has the permission to fetch Action Scripts.

To create and assign Service Accounts for Actions:

  1. From the left navigation bar, go to IAM > Service Accounts > Add Service Account.

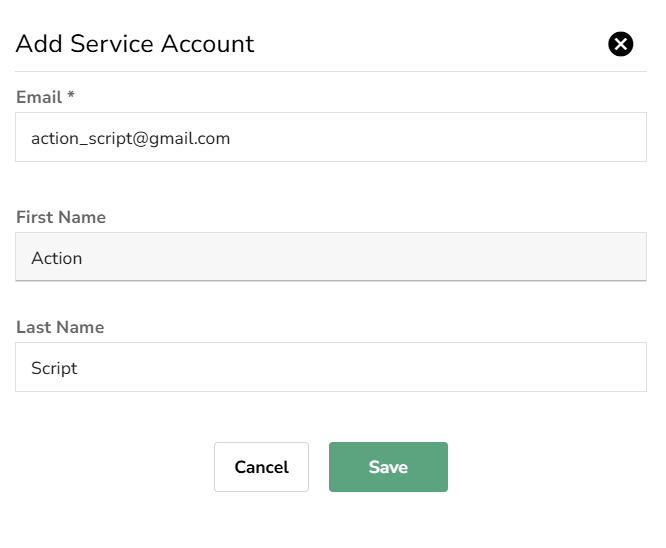

  2. Creates a Service Account with an email ID. Example: action_script@gmail.com. create service account

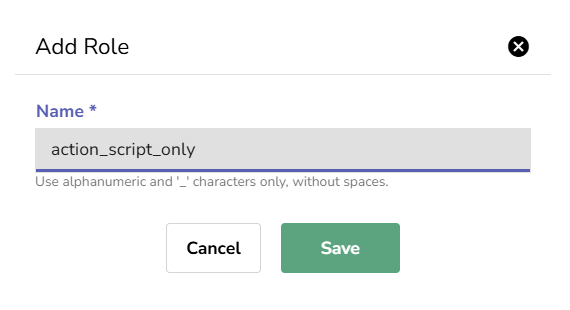

  3. Go to IAM > Roles and assign a role to the Service Account. This can either be:

    • An existing role
    • A newly created role tailored to the specific use case

    add role to the service account

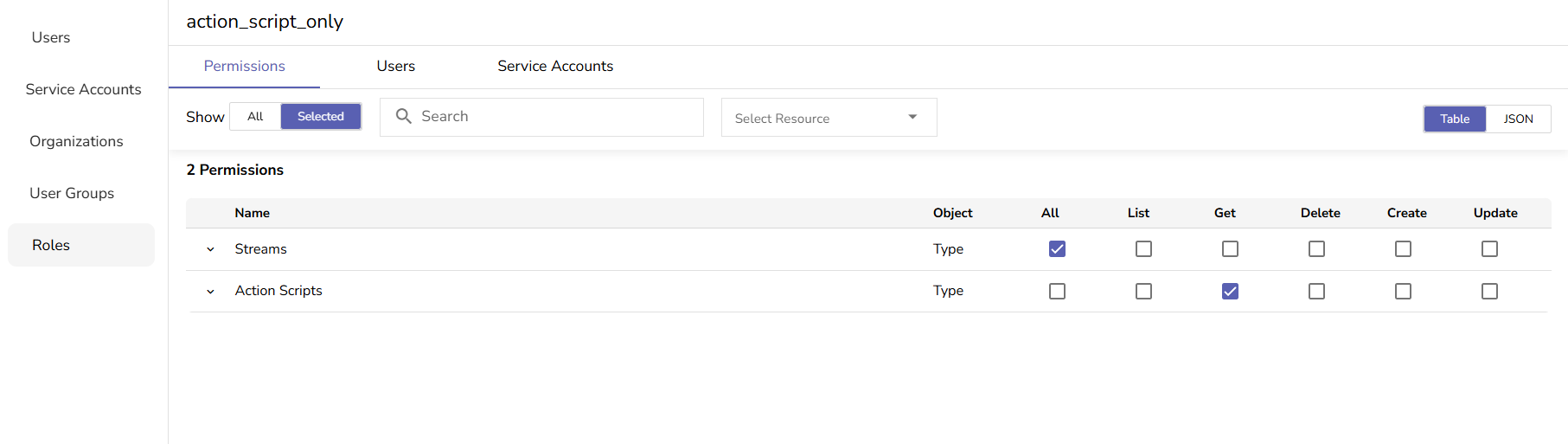

  4. Edit the role and grant the appropriate permission to the role to enable Action execution. edit the role assigned to the service account

Note:

  • The role must include at least GET permission for Action Scripts. This allows OpenObserve to retrieve and run the uploaded script.
  • If your script needs access to other OpenObserve services (such as Streams), make sure the Service Account also has permission for those services.
  • You may use an existing Service Account if it already has the required role and permissions.

Step 1: Create the Action Script

Based on your requirements, create the Python script that needs to get executed when the Action executes.

Key Points

  • All Action scripts must define a main() function. This is the expected entry point for execution.
  • Inputs such as data and logger are provided to main() during execution:

  def main(data, logger):

The main() function takes two inputs:

  1. data: A list of log records, an Alert Template, or a JSON template.

    • In case of logs: Use the following format: List[Dict[str, Any]], a list of dictionaries, where each dictionary represents a log entry.
    • In case of Alerts: Use the following format: List[lAert Template]. The Alert Template should be a valid JSON.
  2. logger: A logger object provided by OpenObserve so your script can write logs. Use it like standard Python logging.Logger.

Additionally, you can break the logic of the script into reusable components and import them into the main script using Python modules, as shown below:

Example
File 1: main.py
This script converts the strings from lowercase to uppercase and calculates the distinct elements in the list and appends the result into the stream data.

import logging
from typing import List, Dict, Any
from distinct import distinct  # helper function in another file

def main(data: List[Dict[str, Any]], logger: logging.Logger) -> List[Dict[str, Any]]:
    logger.info("Starting transformation")

    result = []
    for item in data:
        updated_item = {
            key: (value.upper() if isinstance(value, str) else value)
            for key, value in item.items()
        }
        result.append(updated_item)

    pod_names, pod_count = distinct([item['kubernetes_pod_name'] for item in data])
    docker_ids, docker_count = distinct([item['kubernetes_docker_id'] for item in data])
    pod_ids, pod_id_count = distinct([item['kubernetes_pod_id'] for item in data])

    logger.info(f"Distinct pod names: {pod_count}, docker IDs: {docker_count}")

    return [{
        "distinct_pod_names": pod_names,
        "distinct_pod_count": pod_count,
        "distinct_docker_ids": docker_ids,
        "distinct_docker_count": docker_count,
        "distinct_pod_ids": pod_ids,
        "distinct_pod_id_count": pod_id_count
    }]
File 2: distinct.py
def distinct(lst):
    unique_elements = set(lst)
    return list(unique_elements), len(unique_elements)
File 3: pyproject.toml (for dependency management)

[project]
name = "openobserve_action"
version = "0.1.0"
requires-python = ">=3.8"
dependencies = []
If you are using external libraries, list them in the dependencies section.
Note: OpenObserve supports two ways to manage dependencies for your Action scripts:

  • pyproject.toml File
  • dependencies Folder

Learn more about declaring Python dependencies in Actions.

Step 2: Compress the Script Folder into a ZIP File

  • All Python scripts, including the dependency declaration file must be packaged into a ZIP file before uploading. The ZIP file structure may look like the following:
real_time_action_script/
├─ main.py              # Required entry script
├─ distinct.py          # Optional helper functions
├─ pyproject.toml or dependencies   # (if dependencies exist)

Step 3: Configure the Real-time Action

configure the action

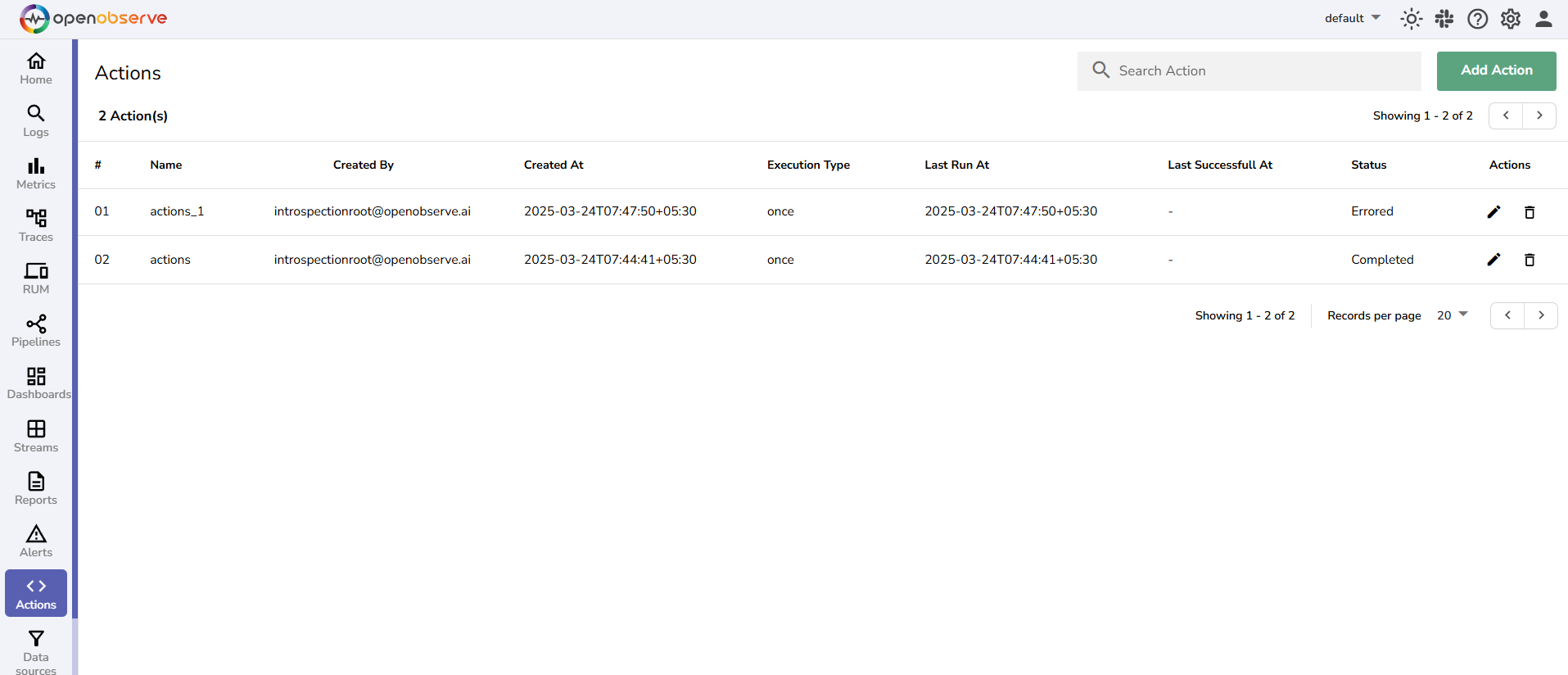

  1. Go to Actions in the OpenObserve UI.
  2. Click Add Action. add action

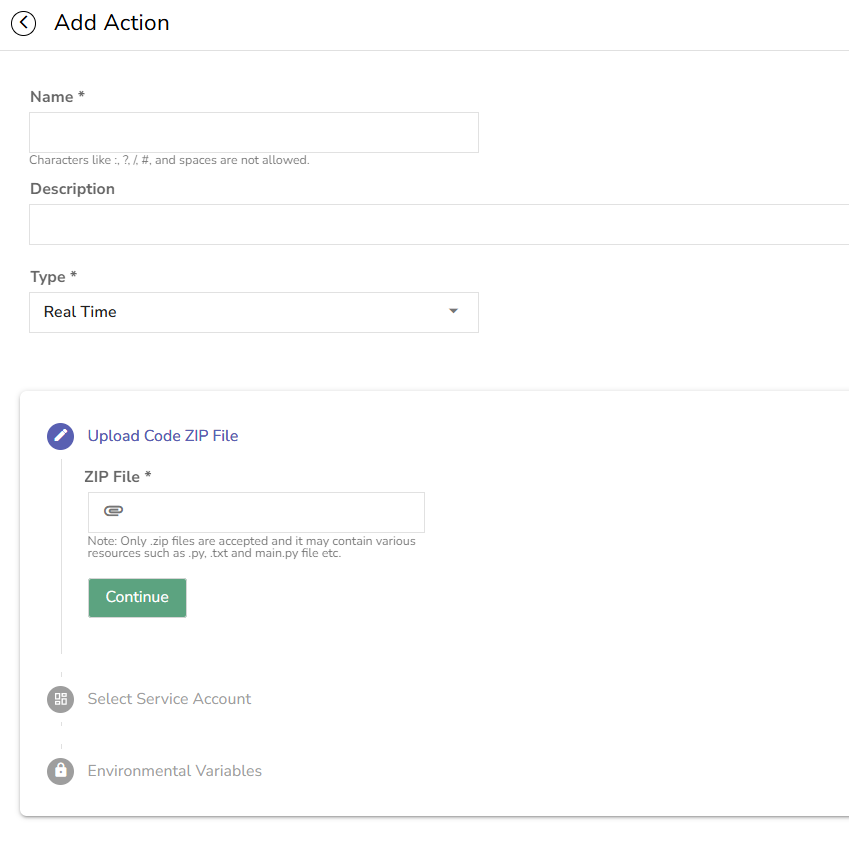

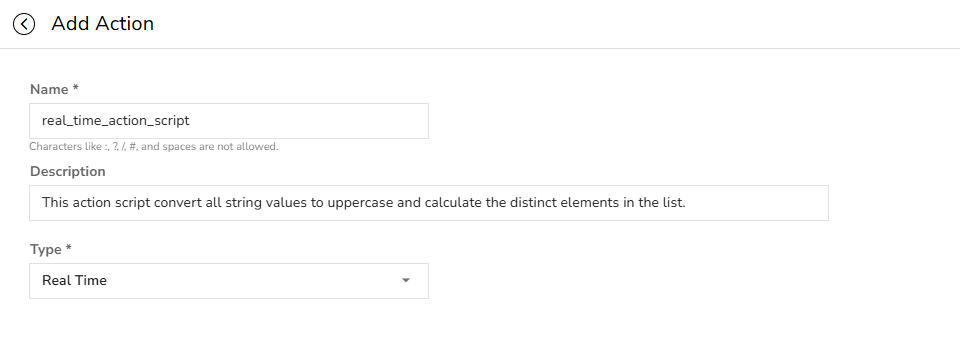

  3. In the Add Action page:

    • Name: Provide a name for your Action. Note that characters like :, ?, /, #, and spaces are not allowed.
    • Description: Enter an appropriate description.
    • Type: Select Real-time. add action screen

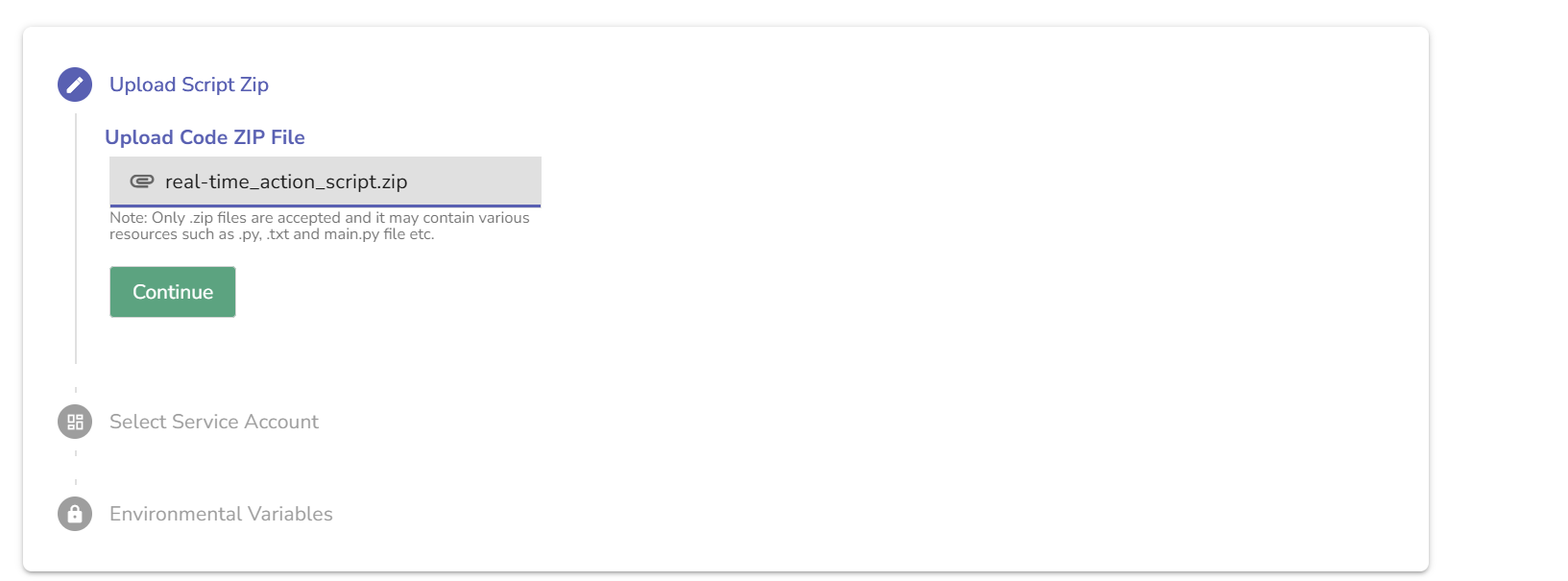

  4. In the Upload Script Zip section, upload the Action script package in .zip format and click Continue. OpenObserve stores the ZIP file in object storage.
    Note: Only .zip files are accepted and it may contain various resources such as main.py, .txt etc.

The file is now securely stored and tied to that Action configuration. Note that the Actions scripts are not executable yet.

Step 4: Select the Service Account

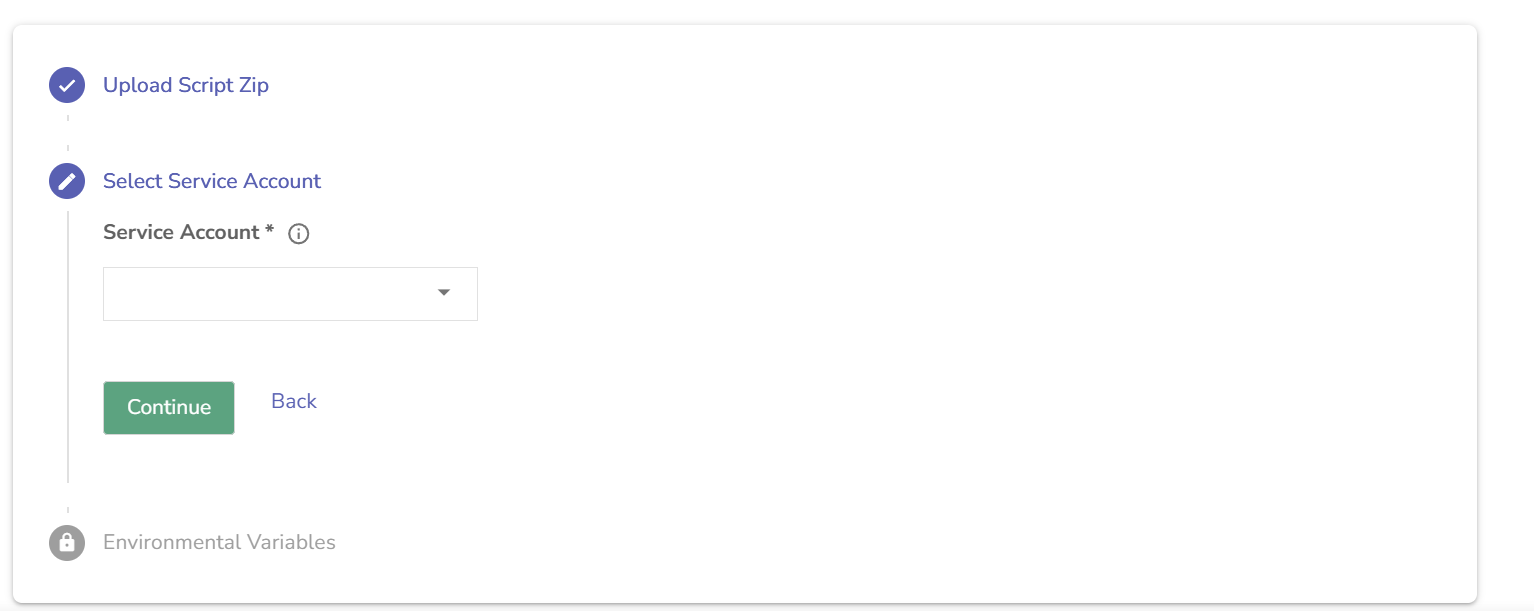

Under Select Service Account, select a service account that the Action should use for credentials or identity.
Note: Now, OpenObserve knows which token to use when it needs to run the Action.
select the service account

Step 5: Add Environment Variables (optional)

You can use environment variables to pass information into your script, without writing it directly in the Python script. Learn how to use environment variables in Actions.

Step 6: Click Save

After you save the Real-time Action, it becomes ready for execution.

Action Execution Phase

The following steps describe what happens when an Action gets executed:

  1. Starts Action Runner: OpenObserve runs an isolated execution environment (called an Action runner).
  2. Authenticates with the Service Account: OpenObserve uses the selected service account action_script@gmail.com. It looks up the permissions you assigned to that service account.
  3. Fetches the Script: OpenObserve checks if action_script@gmail.com hasGET access to Action Scripts:

    • If Yes, OpenObserve uses the service account’s token to access object storage and download real_time_action_script.zip.
    • If No, OpenObserve logs a permission error and stops. The script is never run.
  4. Runs the Script: OpenObserve extracts the zipped file that the user uploads while configuring the Action and runs the main.py file inside it.

Use Real-time Action to Transform Logs

  1. From the left navigation menu, select Logs.
  2. Select the stream on which you want to apply the logs transformation.
    select stream to apply the action
  3. From the toolbar, use the Transform Type dropdown to select Action.
  4. Select the appropriate Action to apply. For example, real_time_action_script that converts the strings from lowercase to uppercase and calculates the distinct elements in the list and appends the result into the stream data.
  5. Select the time period for which you want to transform the data.
  6. Click Run Query.

Result

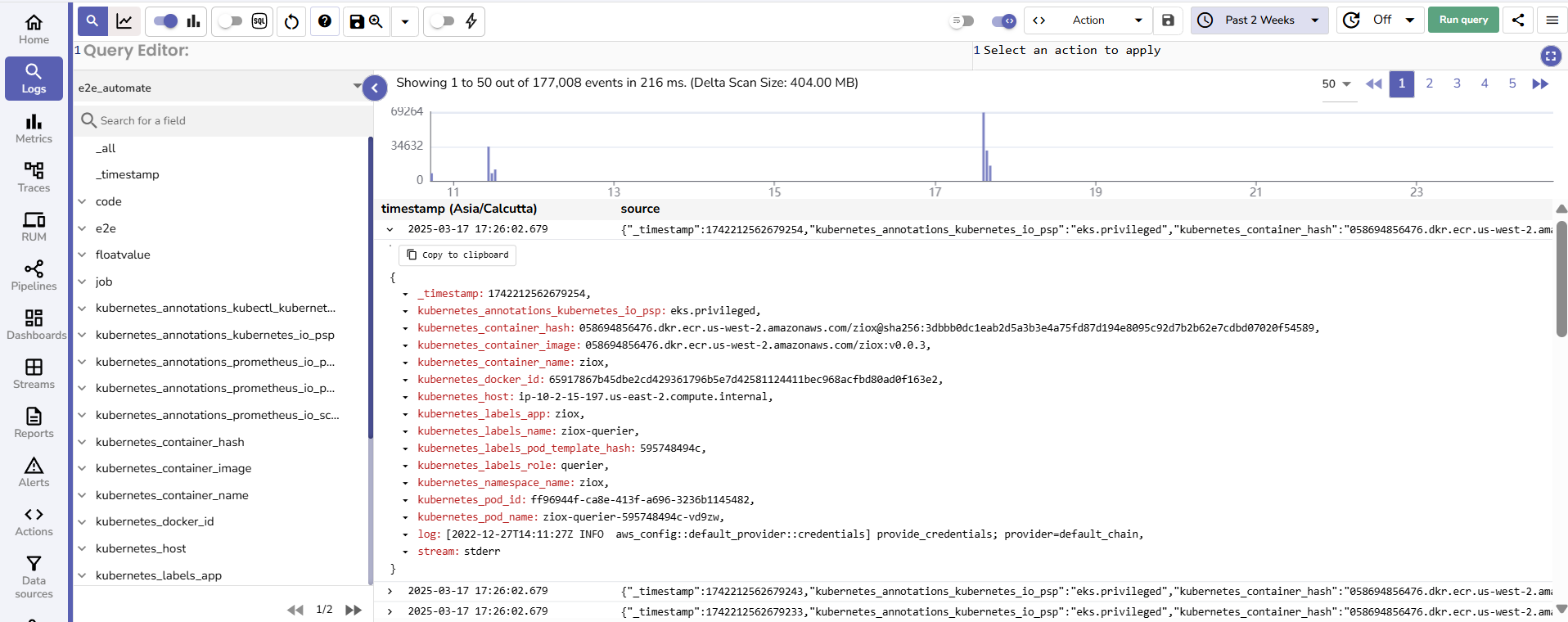

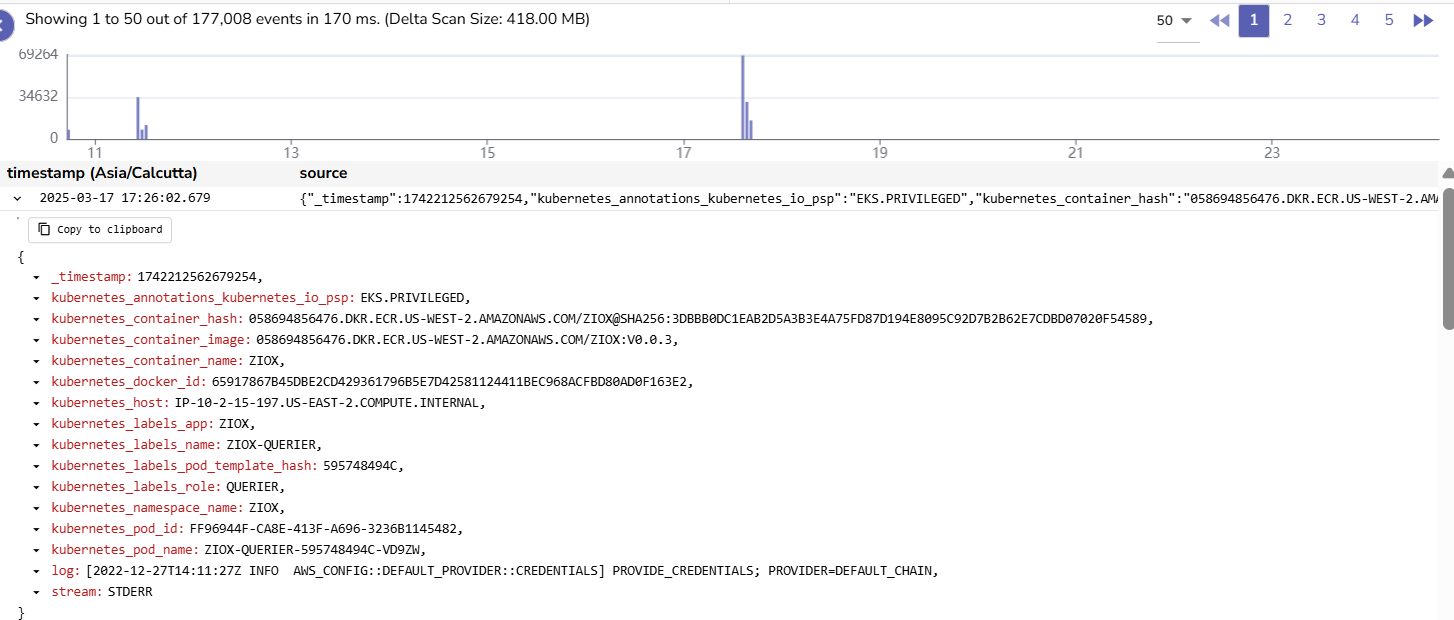

Expand the logs to view the result. In this example, the Action converts the log strings get into uppercase, as shown below:
result after applying real-time action on logs
Also, the calculation gets appended at the end of the logs as shown below:
result after applying real-time action on logs
