Trellis Layout

This guide explains how to use the Trellis Layout option under the Config tab to split a single chart into multiple consistently formatted panels based on a selected breakdown field.

What is Trellis Layout?

Trellis Layout creates a separate chart panel for each unique value in a selected breakdown field. All panels use the same X-axis and Y-axis scales, making it easier to visually compare metric trends across different values.

For example, if the breakdown field is k8s_app_instance, Trellis Layout generates one panel for each application instance.

Supported Chart Types

Trellis Layout supports:

  • Area
  • Bar
  • Horizontal bar
  • Line
  • Scatter

Apply Trellis Layout to a Panel

Follow these steps:

  1. Open or create a panel.
  2. Click Add Panel to create a new panel and choose a supported chart type. Alternatively, select Edit Panel from the dropdown menu on an existing panel.
  3. Under Fields, choose a stream type and a stream name.
  4. By default, the system set the X-axis as histogram(_timestamp). Modify if needed.

  5. Under Fields, select Y-axis and Breakdown.

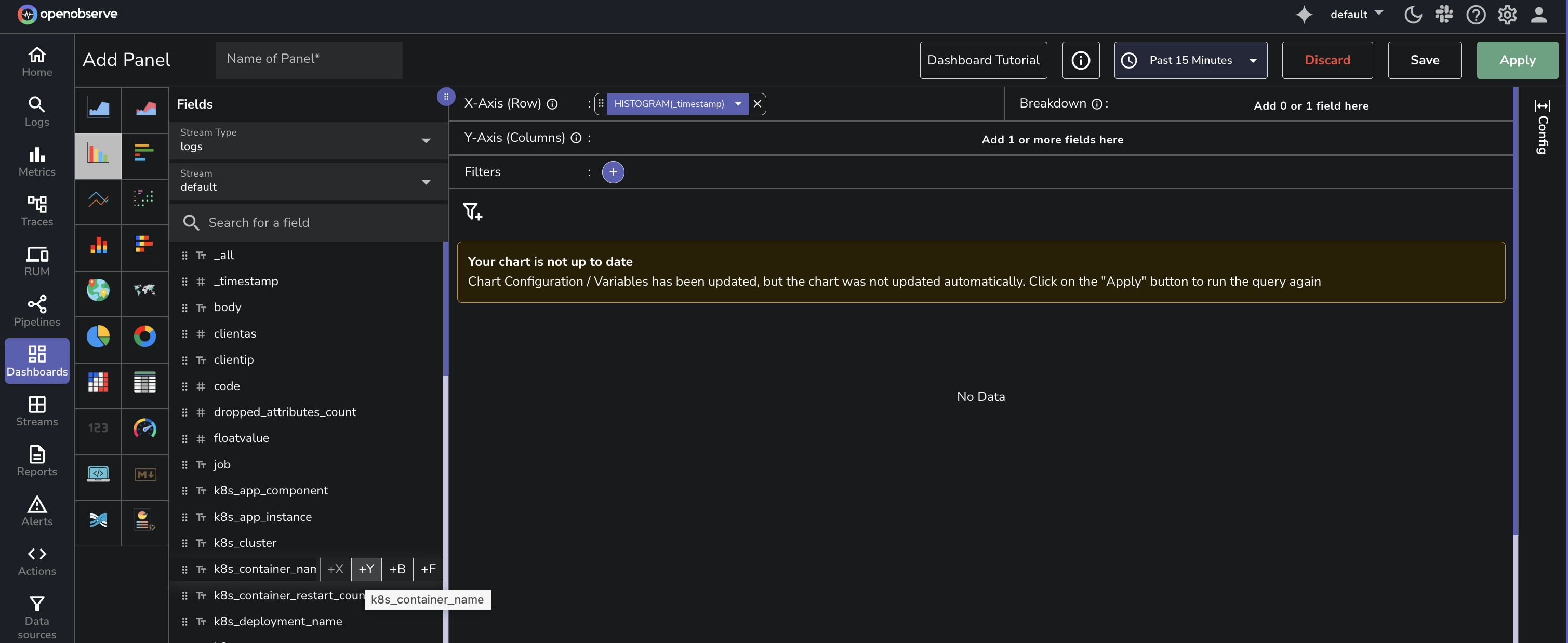

    • To select a Y-axis field, hover over a field and click the +Y icon. For example, k8s_container_name.

      Note: You can select more than one Y-axis fields.

      Select Y-axis

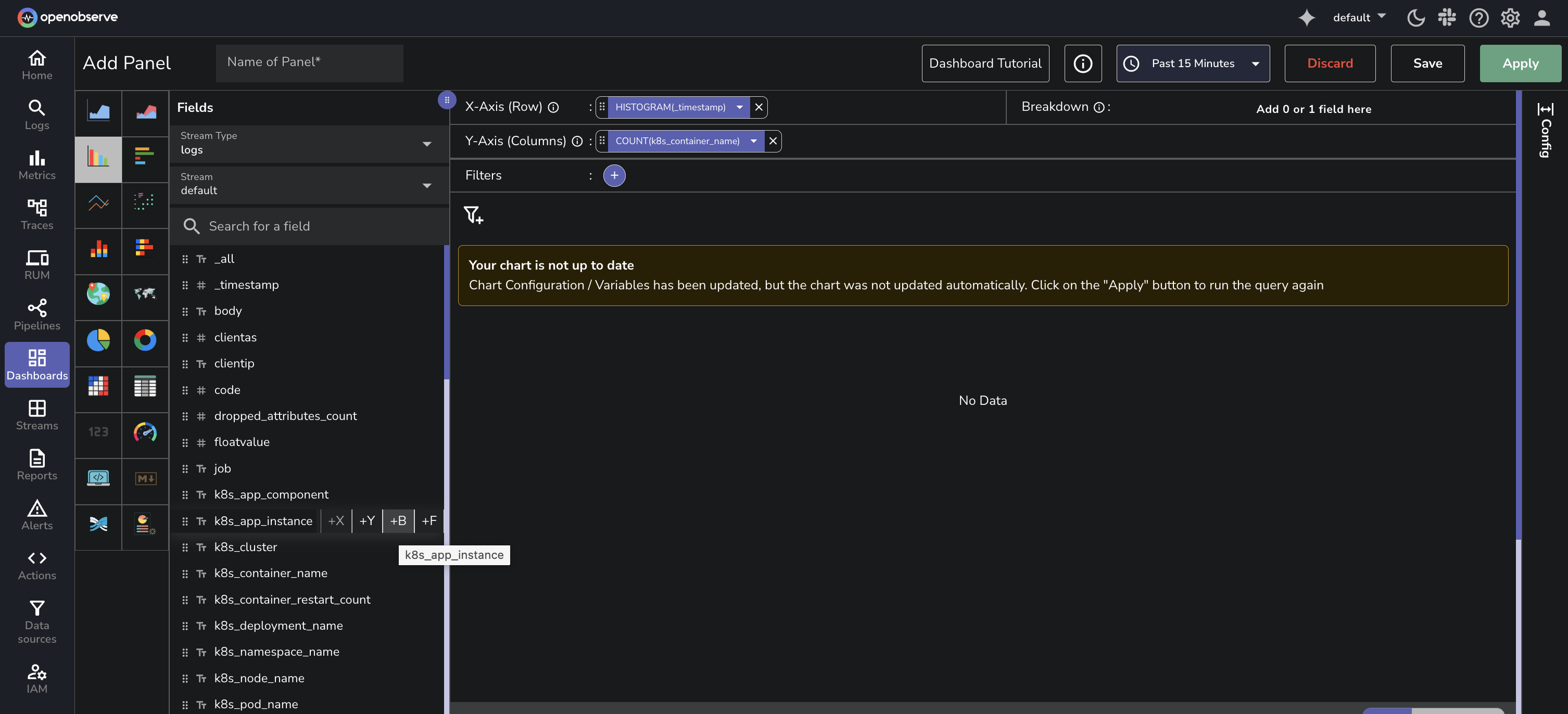

    • To select a Breakdown field, hover over a field and click the +B icon. Choose a groupable field. For example, k8s_app_instance.
      Select Breakdown This enables the Trellis Layout configuration options in the Config tab.

  6. Click the Config tab, to configure Trellis Layout.

  7. Under Trellis Layout, choose how panels should be arranged:

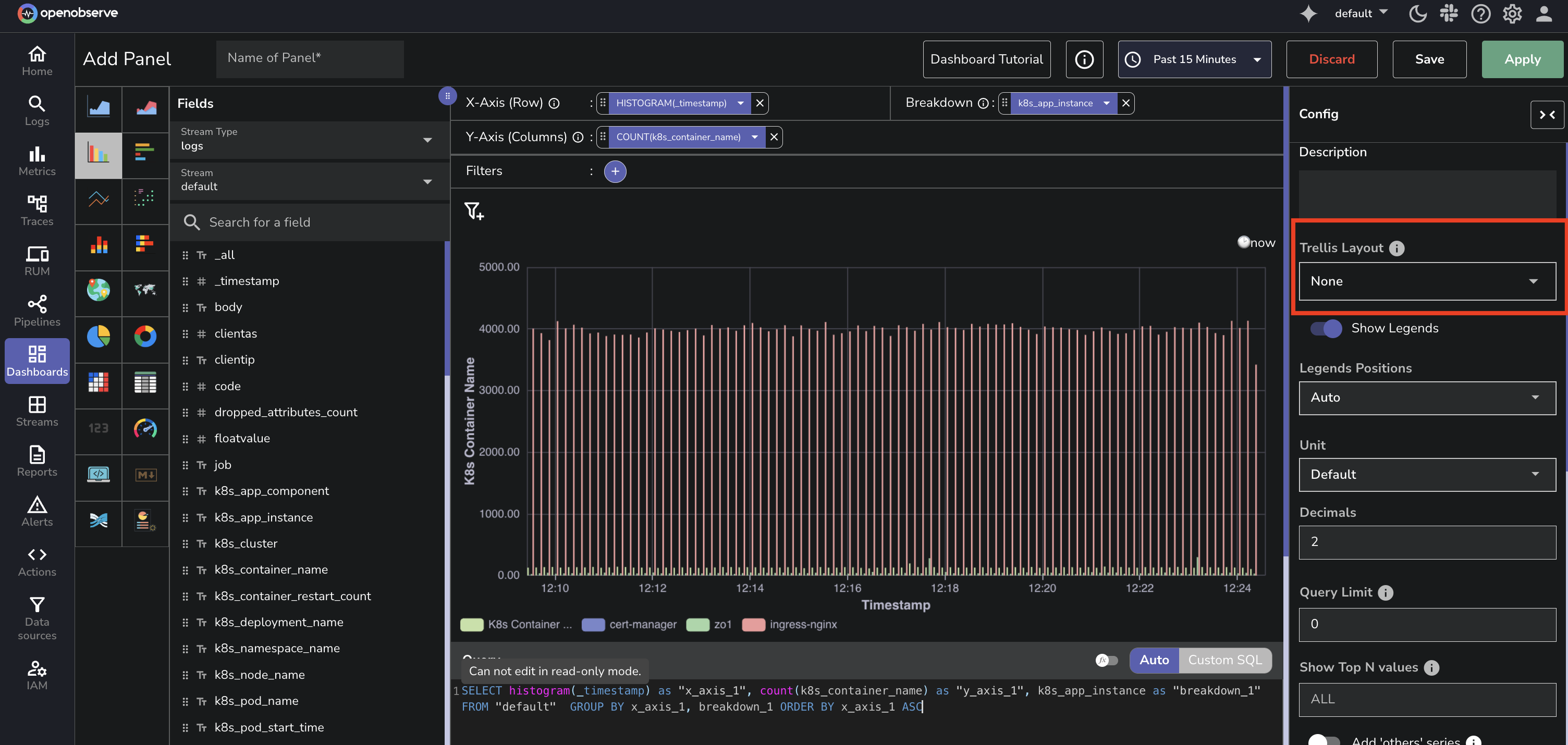

    • None: No panel splitting Trellis Layout

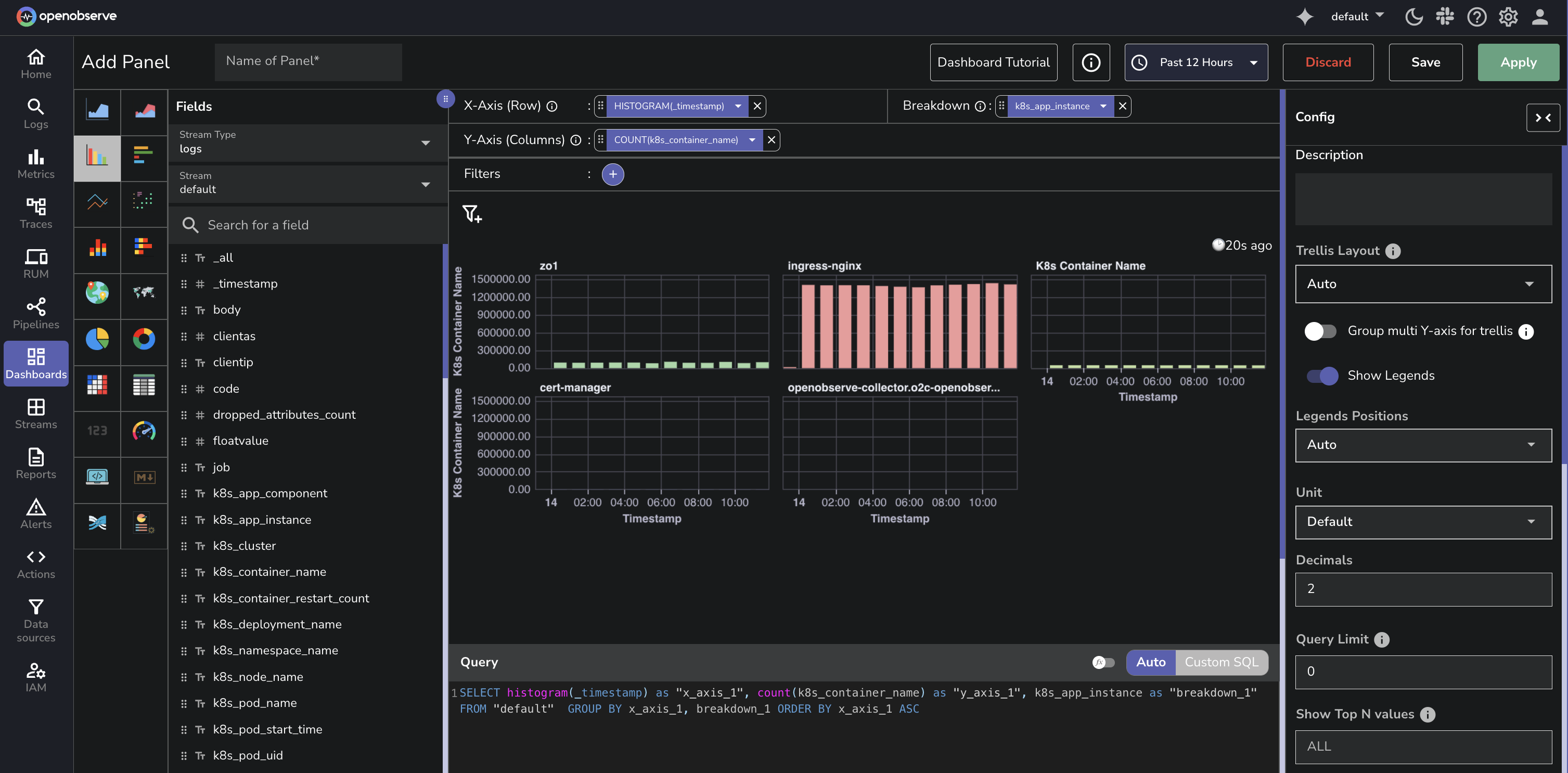

    • Auto: Automatically arranges the layout Trellis Layout Auto

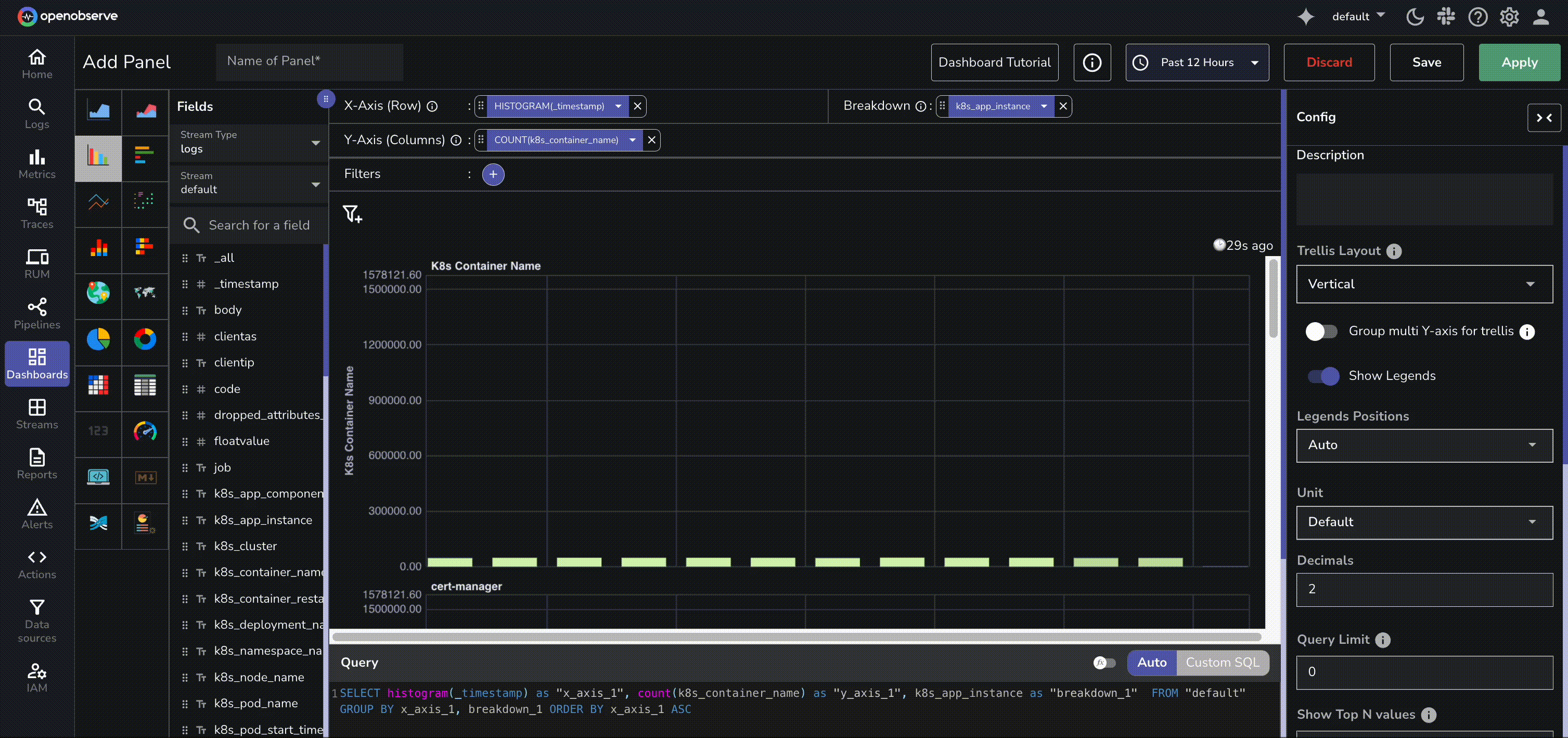

    • Vertical: Stacks panels vertically Trellis Layout Vertical
    • Custom: Allows you to specify the number of panels per row

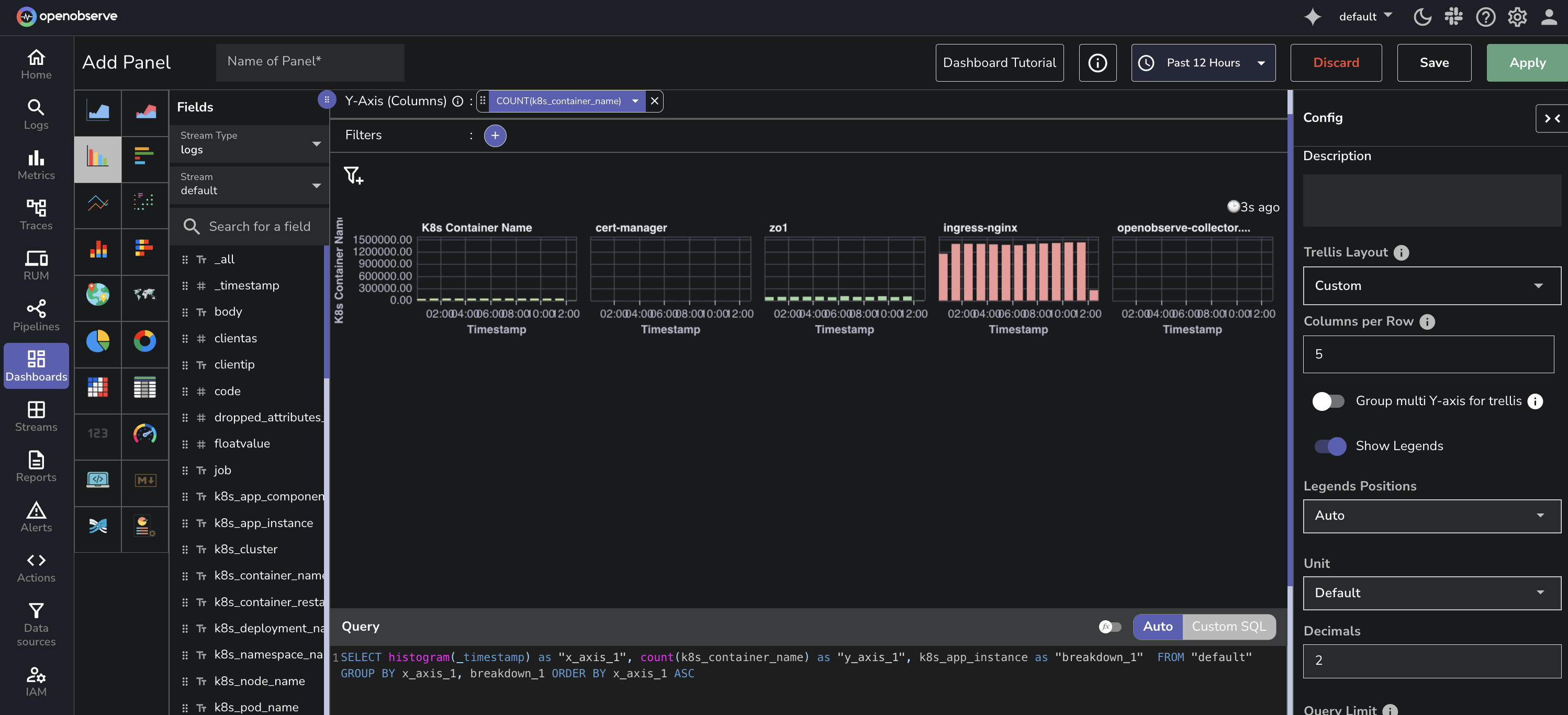

  8. If you choose Custom, enter a number in the Columns Per Row field to control how many charts appear in each row. Trellis Layout Custom

  9. Click Apply to view the updated layout.
  10. Click Save to preserve the changes.

Multiple Y-axis Grouping

If your panel includes multiple Y-axis fields and a Breakdown field, use the Group multi Y-axis for trellis toggle to control how panels are created:

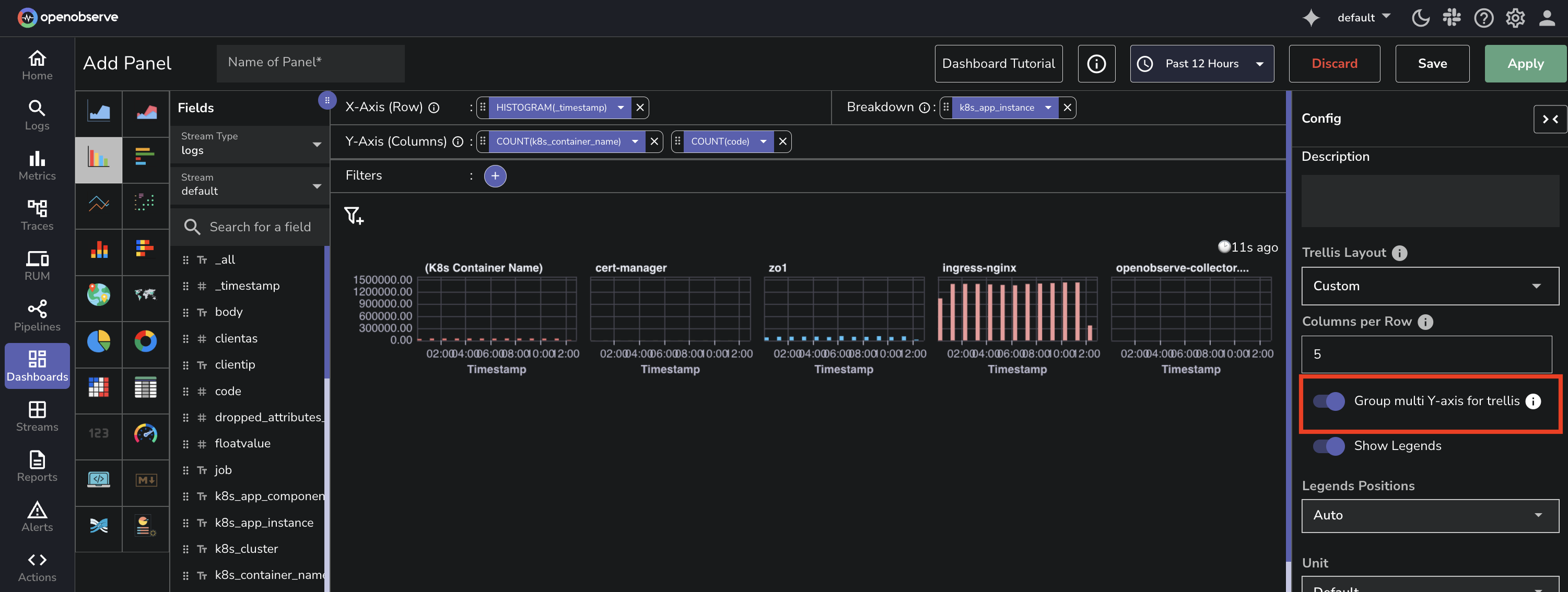

Disabled: Creates separate panels for each combination of Y-axis field and breakdown value.

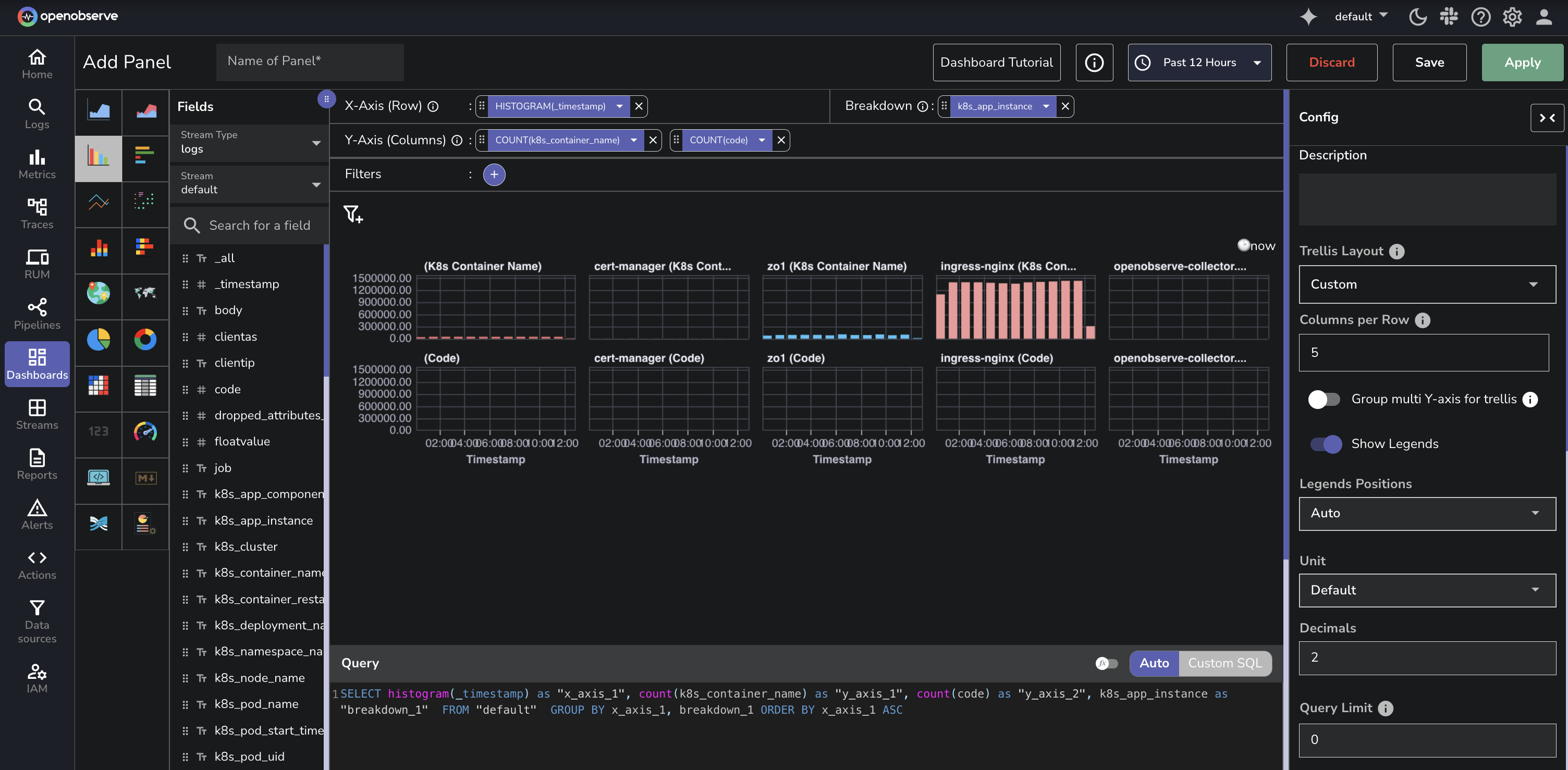

Trellis Multiple Y-axis Enabled: Creates one panel per breakdown value, showing multiple Y-axis series in each panel.
Trellis Multiple Y-axis
