Event Handlers and Custom Functions

This guide shows how to make your custom charts interactive using event handlers and reusable custom functions (customFn).

What Are Event Handlers

Event handlers let you define what happens when a user interacts with the chart, such as clicking or hovering over a data point. Use event handlers in the custom chart logic to display messages, log actions, or apply filters based on user input.

Common event handlers:

  • click: Clicking a chart element
  • mousemove: Hovering over a data point
  • legendchanged: Selecting or unselecting a legend item

Before you begin, note the following:

  • Charts in OpenObserve use an option object.
  • Use the o2_events block to specify the event type, such as click.
  • Associate the event with a function that will run when the event occurs.

How to Create Event Handlers

Step 1: Create a basic chart with labels and values

1
2
3
4
5
6
7
8
option = {
  xAxis: { type: "category", data: ["A", "B", "C"] },
  yAxis: { type: "value" },
  series: [{
    type: "bar",
    data: [10, 20, 30]
  }]
};
At this point, clicking on the chart does nothing.

Step 2: Add the o2_events block to the chart logic

This tells the chart what kind of user action (event) you want to respond to.
Here, we want to respond to a click event:

1
2
3
4
5
6
7
8
option = {
  xAxis: { type: "category", data: ["A", "B", "C"] },
  yAxis: { type: "value" },
  series: [{ type: "bar", data: [10, 20, 30] }],
  o2_events: {
    click: handleClick
  }
};
To make the above code snippet work, you need to define the handleClick function.

Step 3: Write the event handler function

This function runs every time the user clicks a bar.

function handleClick(params, chart) {
  console.log("You clicked:", params.name, params.value);
}

What is params?

params contains information about the thing the user clicked, such as:

  • name: The label of the bar (for example, A)
  • value: The number shown on the bar (for example, 10)

What is chart?

This is a reference to the whole chart. You can use it to access other parts of the chart configuration such as to call custom functions.

Step 4: Apply and test

Click Apply in the OpenObserve custom chart editor.
Then click on a bar and check the browser console.
You should see something like:

You clicked: A 10

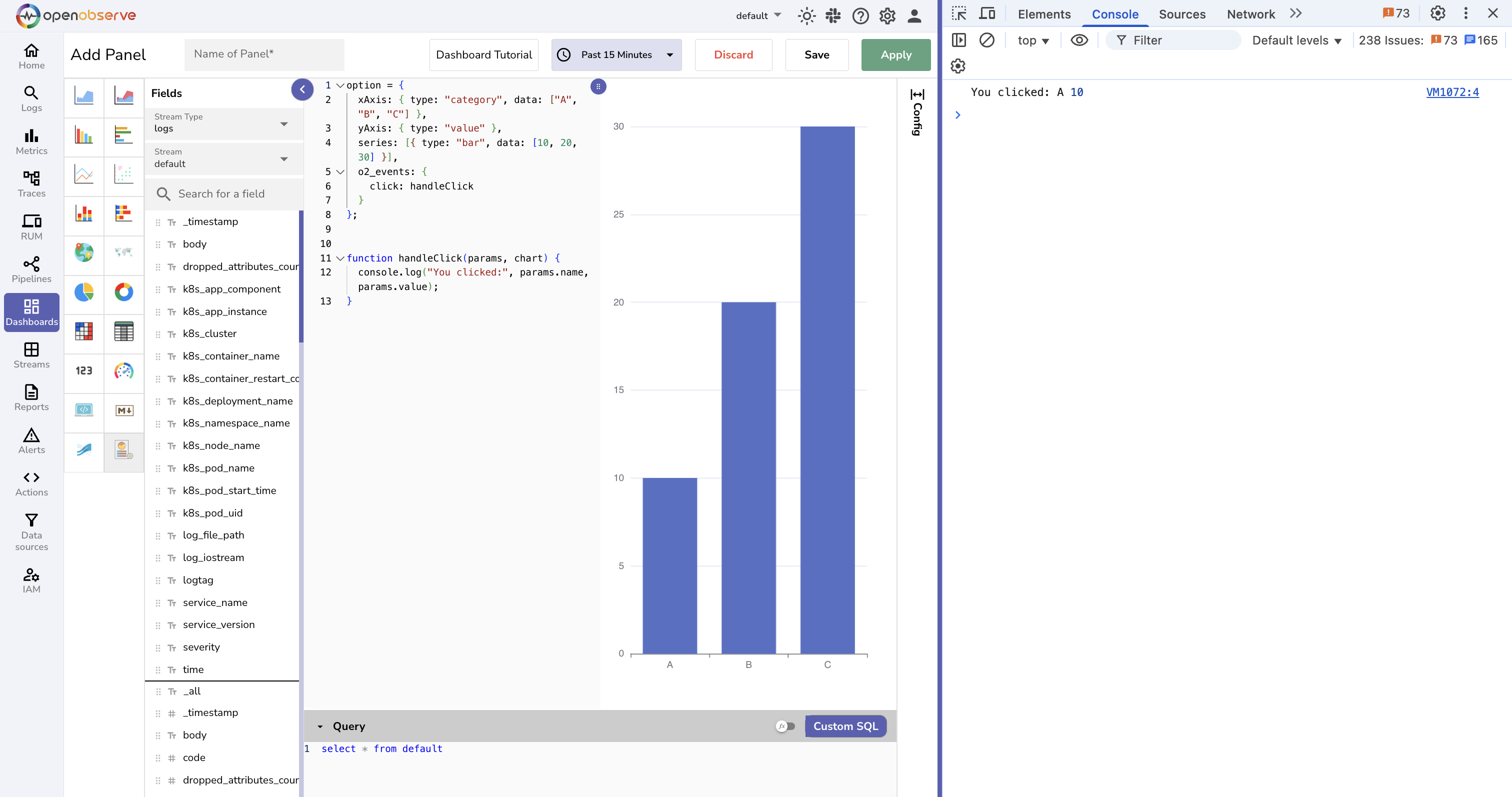

custom-charts-event-handlers

Step 5 (optional): Add more events

Further, you can add more event handlers such as mousemove, legendchanged like this:

1
2
3
4
o2_events: {
  click: handleClick,
  mousemove: handleHover
}

What Are Custom Functions

Custom functions (customFn) are special sections inside the chart’s option object where you can define reusable functions.

These functions can be used:

  • To format messages
  • To apply logic such as filters
  • To keep your event handlers simple

How to Create Custom Functions

Example: You have a chart showing bars for A, B, and C. When the user clicks on a bar, you want to format the output like:

You selected A with value 10
You can write that logic as a custom function and call that function from the click event handler.

Step 1: Add a customFn block inside your chart’s option object

option = {
  xAxis: { type: "category", data: ["A", "B", "C"] },
  yAxis: { type: "value" },
  series: [{ type: "bar", data: [10, 20, 30] }],
  o2_events: {
    click: handleClick
  },
  customFn: {
    formatMessage: formatMessage
  }
};

Note: formatMessage is the name of your reusable function.

Step 2: Write the custom function

This function takes a label and value, and returns a readable message.

function formatMessage(label, value) {
  return `You selected ${label} with value ${value}`;
}

Note: You can write this function anywhere in the script, as long as it is available when the chart runs.

Step 3: Update the event handler to use customFn

Update your click handler to call this reusable function:

function handleClick(params, chart) {
  const label = params.name;
  const value = params.value;

  const message = chart._model.option.customFn.formatMessage(label, value);
  console.log(message);
}

How to call a customFn

To call a function you defined in customFn, use the following format: chart._model.option.customFn.formatMessage(...)

Note:
You need to pass in the label and value that the user clicked.
The result is logged to the console.

Step 4: Apply and test

Click Apply.
Then click a bar in the chart.
The browser console will show:

You selected A with value 10

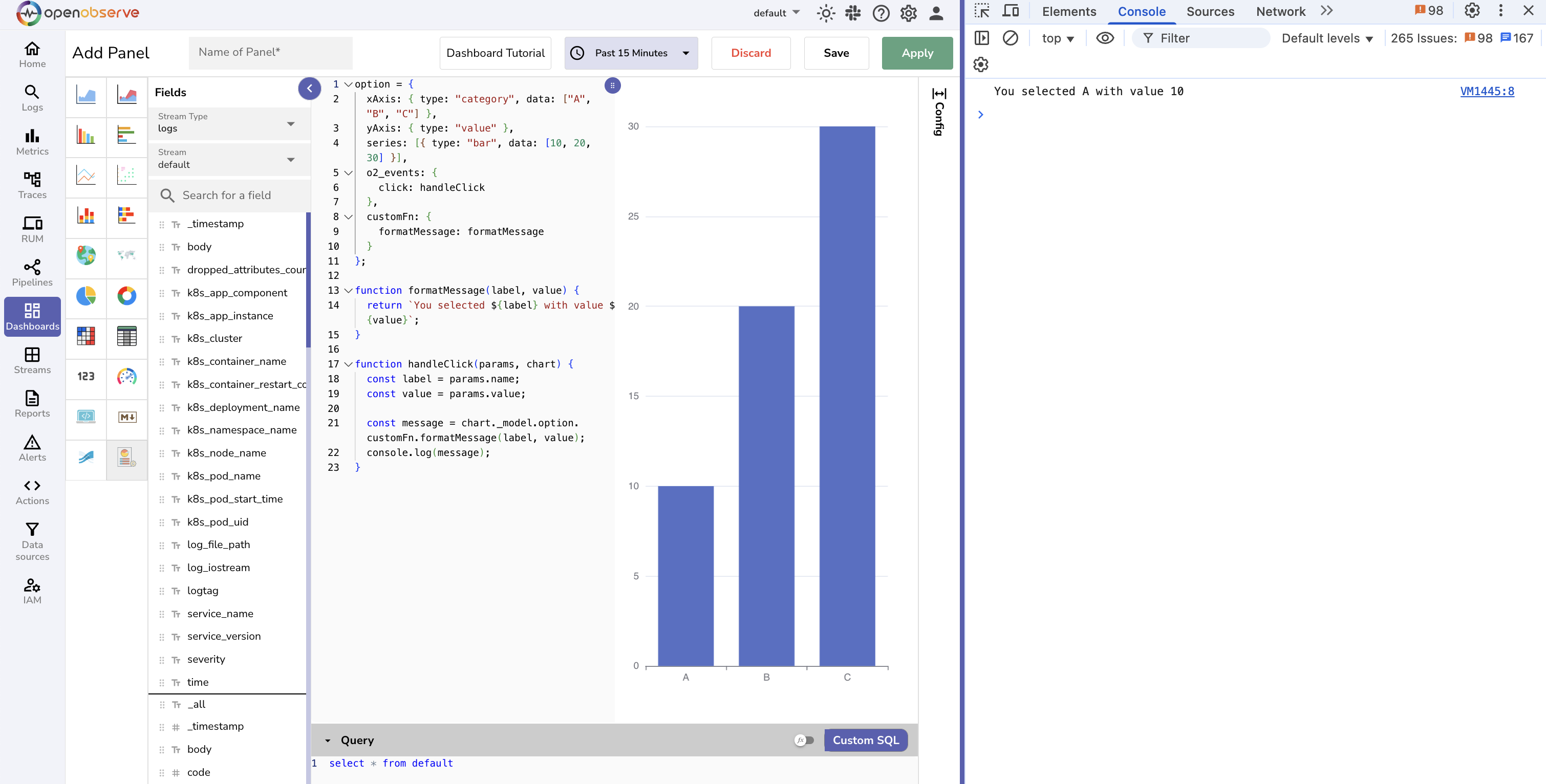

custom-charts-custom-function

Troubleshooting

  • When the chart does not respond to clicks:

    • Ensure o2_events is defined in the option object.
    • Confirm the handler function such as handleClick is defined correctly.
  • When customFn is not a function error occurs:

    • Ensure the function is defined outside the option object.
    • The name in customFn must match the actual function name.
  • When only one event works when multiple are defined:

    • Verify each event uses a uniquely named handler.
    • Ensure all handlers are declared before the chart is rendered.
