Quotas

This guide explains what Quotas are, how to configure them, how to navigate the Quotas interface, and how to set quota limits.

What Are Quotas

Quotas in OpenObserve are rate limiting mechanisms that let you control how many API requests users can make per second.

You can use Quotas to define request-per-second (Req/s) limits for API operations such as List, Get, Create, Update, and Delete. These limits can be applied in two ways:

• Per API module at the organization level
• Per role within an organization

Note: If a user exceeds the defined quota, OpenObserve returns a RateLimitExceeded error.

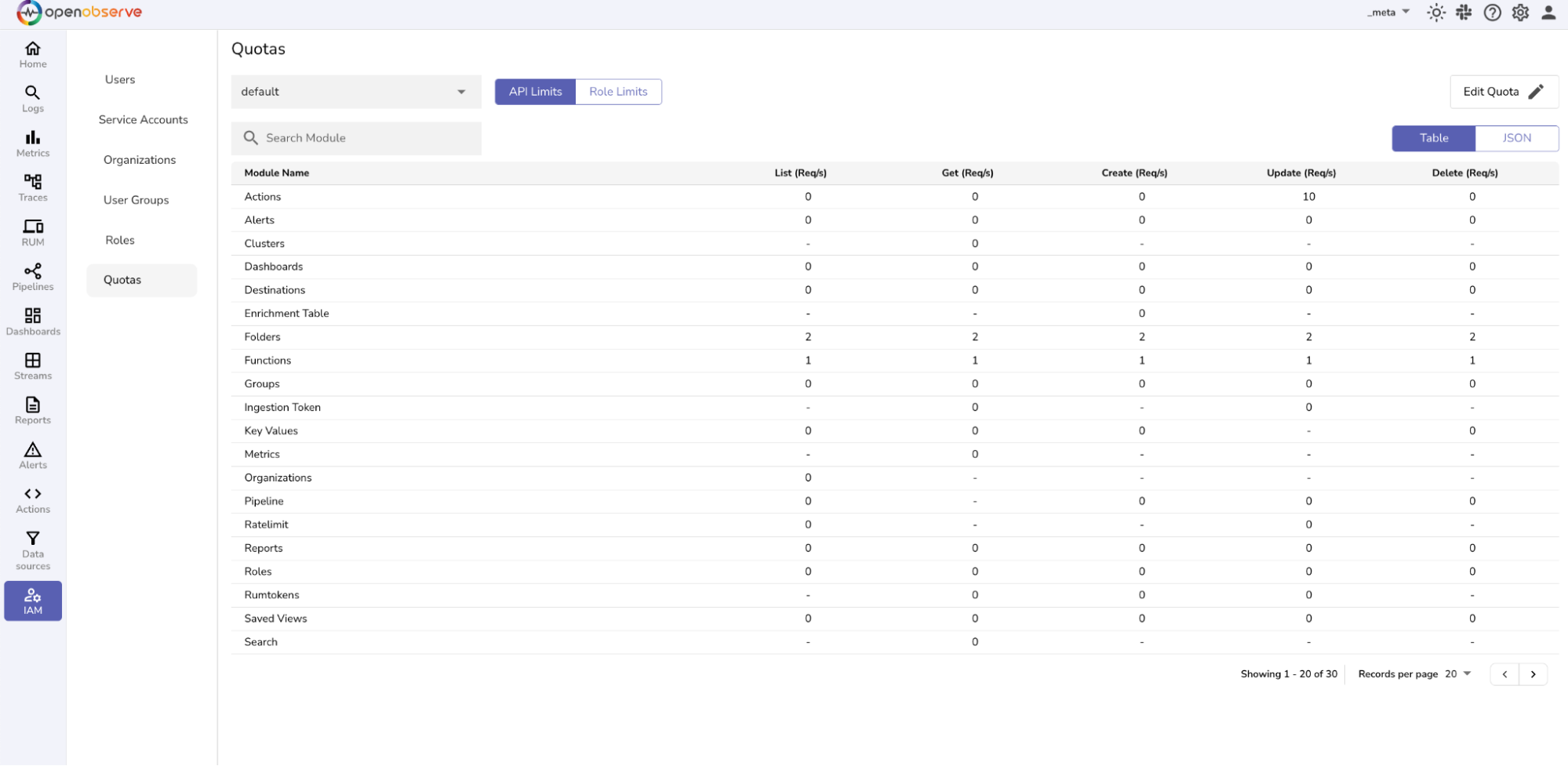

Availability

The Quotas feature is available only in high-availability (HA) deployments.

Access

By default, only root users can access the Quotas settings from the _meta organization. You can grant access to other roles using Role-Based Access Control (RBAC).

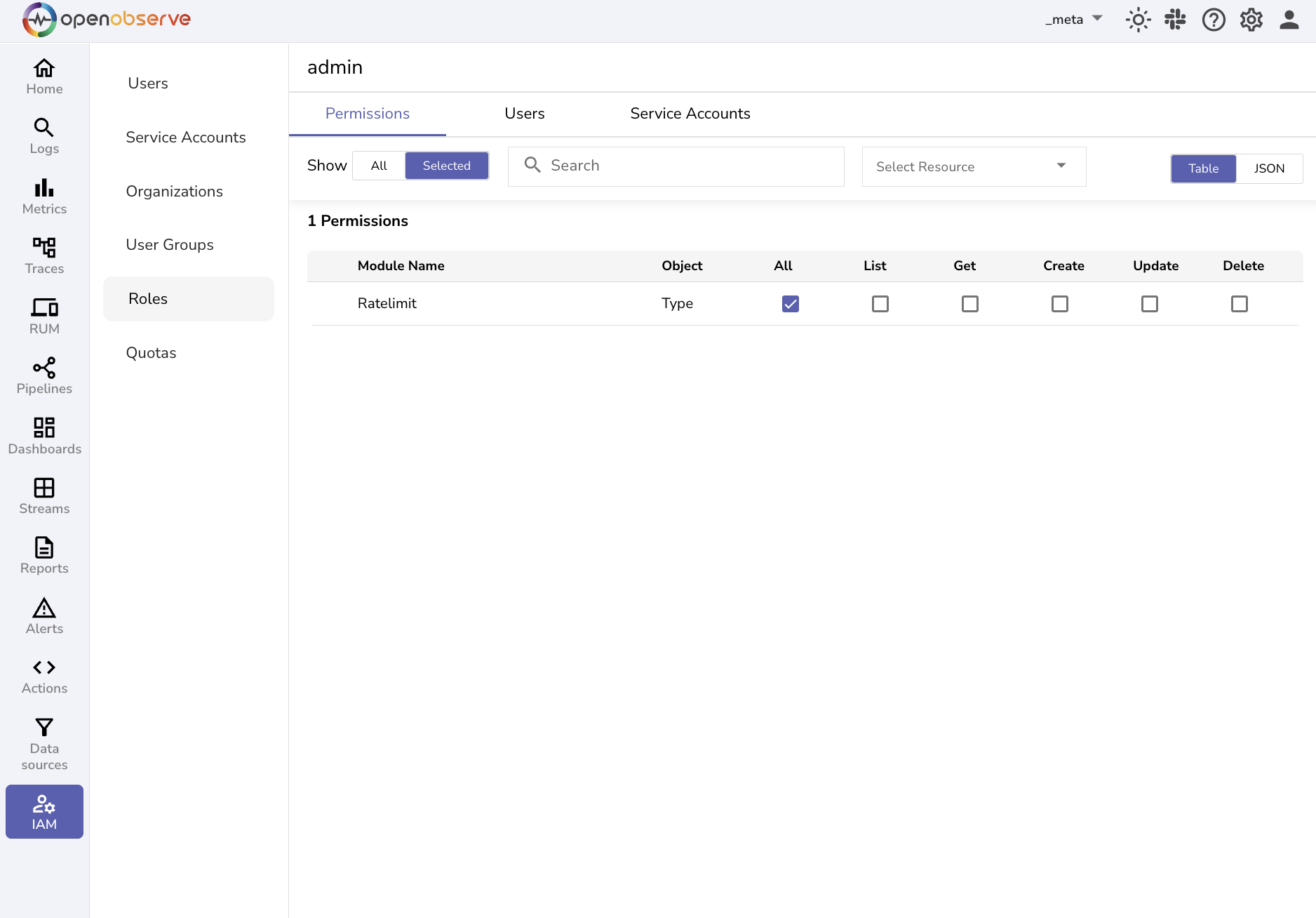

To grant access to other user roles using RBAC:

1. Log in as a root user.
2. Switch to the _meta organization from the top navigation bar.
3. From the left navigation menu, go to IAM.
4. Select the Roles tab.
5. Click the edit icon next to the role you want to update.

6. In the Permissions tab:

7. Locate the Rate Limit section.

8. Select the type of access you want to grant (e.g., read, write, etc.).
9. Review and confirm that the users assigned to the role are correct.
10. Click Save to apply the changes.

How to Configure Quotas Using Environment Variables

Prerequisites

Before you use the Quotas feature, ensure that the following are true:

• You are using the Enterprise Edition in High-Availability mode. Refer to the Enterprise Edition Installation Guide.
• You have access to Quotas.
• You have switched to the _meta organization in the UI.

Step 1: Enable Quotas

Set O2_RATE_LIMIT_ENABLED to true in the enterprise.parameters section of your values.yaml file, as shown below. This activates the Quotas feature in OpenObserve.

enterprise:

  enabled: true

  parameters:

`O2_RATE_LIMIT_ENABLED` : “true”

Step 2: Set the internal queue store to coordinate rate limiting

Set ZO_QUEUE_STORE to “nats” in the config section of the values.yaml file. This enables internal queuing through NATS for coordinating rate limiting.

`config:

`ZO_QUEUE_STORE` : “nats”

Quotas Interface

The Quotas page provides a tabbed interface with two views:

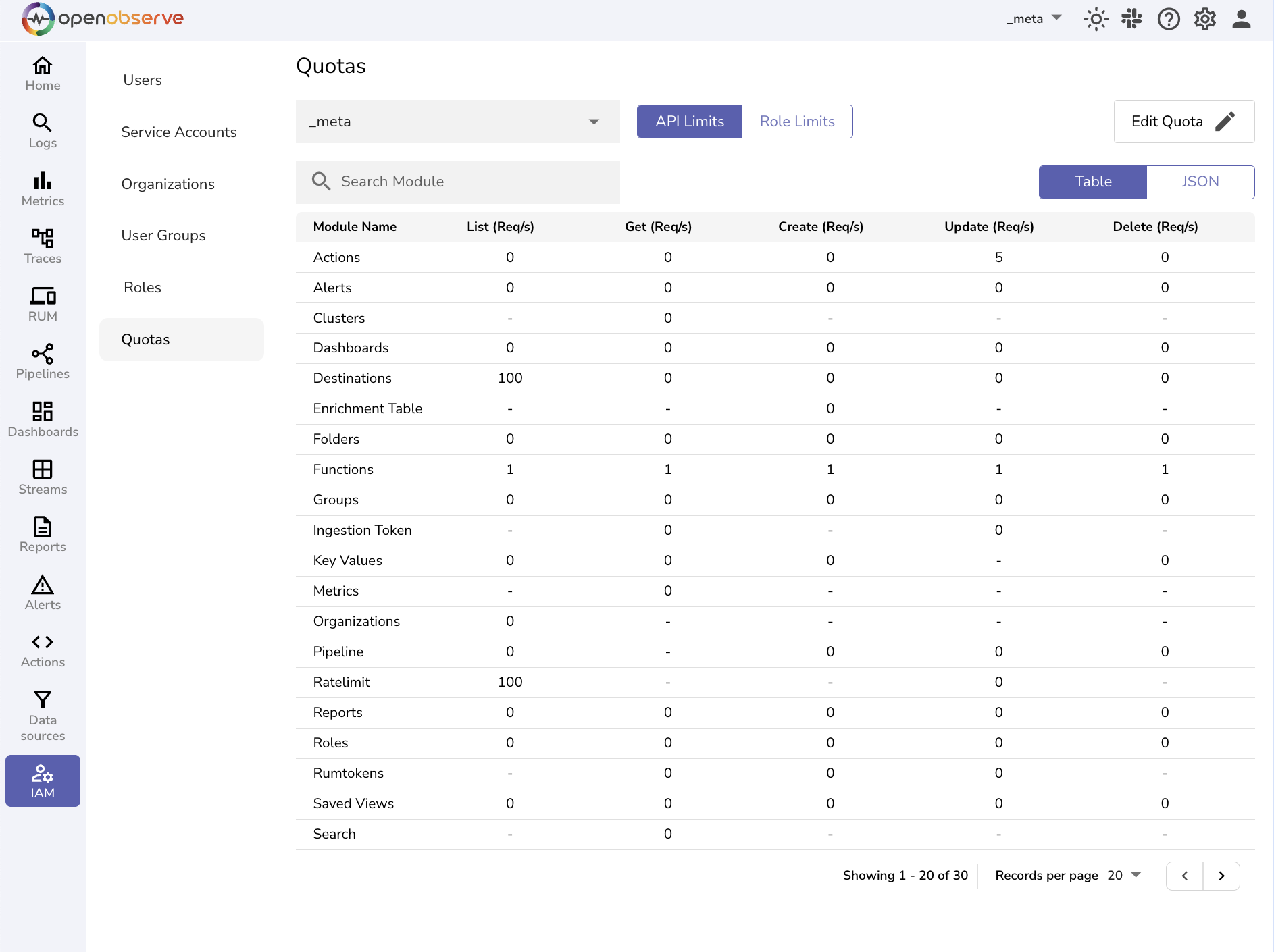

API Limits

Apply API-level quotas across a selected organization for all user roles.

Limits set here apply to all users within that organization for each API module.

You can also apply rules globally by selecting the global rules option under the organization selector dropdown. This applies the limit across all organizations and their respective user roles.

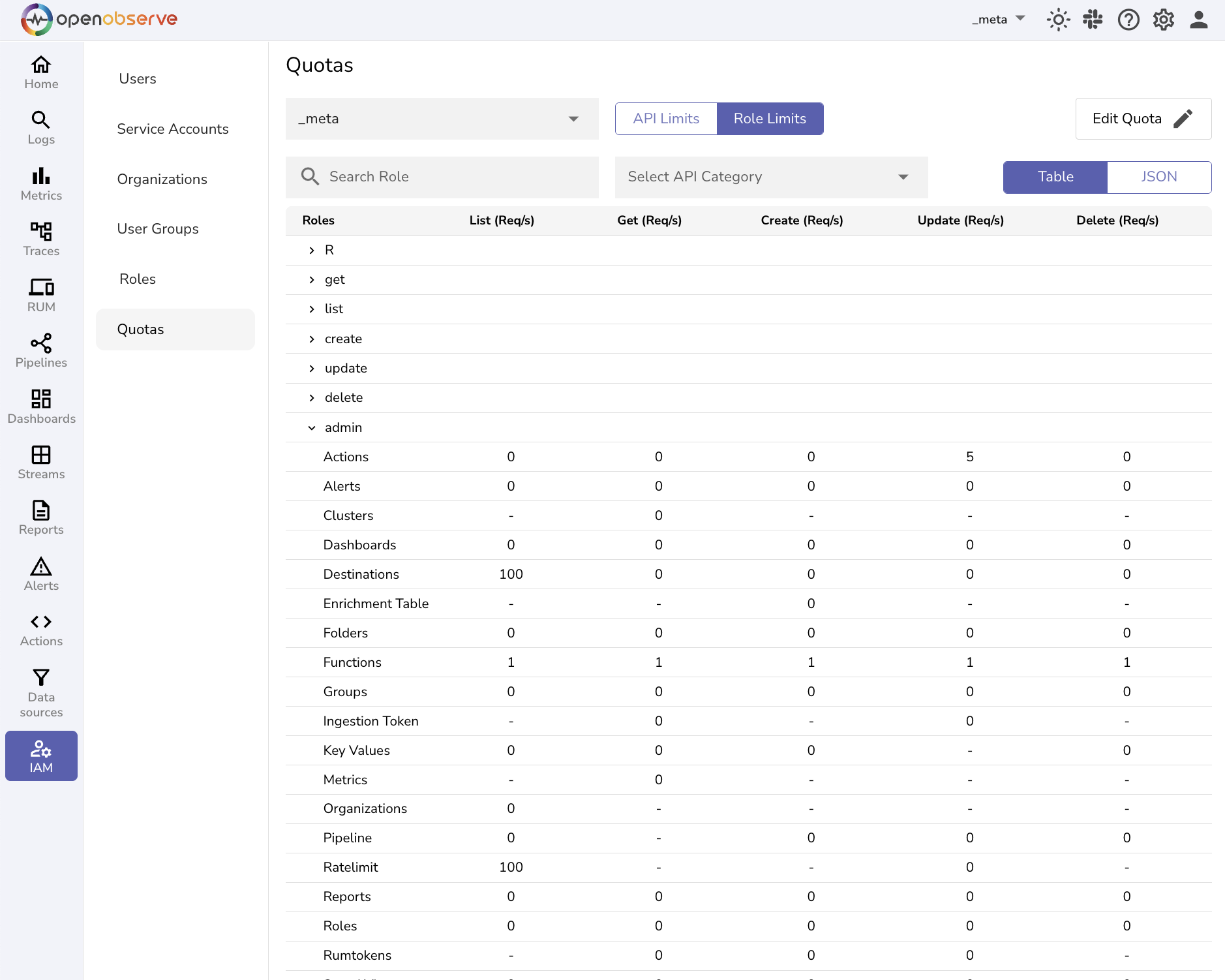

Role Limits

Apply role-level quotas for specific API modules within a selected organization. This allows granular control, where each role can have different limits for the same module.

Each tab displays a table with the following:

• Module: The API module (e.g., Alerts, Dashboards).
• Operations: Columns for List, Get, Create, Update, and Delete.
• Values: Request-per-second (Req/s) limits per operation.

Note:

• A dash (–) means rate limiting is not applicable.
• A value of 0 indicates no rate limit is enforced.

How to Set Quotas

You can configure quotas in two ways:

• By organization using the API Limits tab
• By user role using the Role Limits tab

Set API Limits

1. Go to the API Limits tab.
2. Select the target organization from the dropdown.
3. Click Edit Quota.
4. Enter Req/s limits for each operation against the desired module.
   Note: You can edit quotas in bulk in both Table and JSON formats.
5. Click Save Changes.

Note: API limits apply across all roles in the selected organization.
Important: Rate limiting for the Search module requires special consideration. Learn more.

Set Role Limits

1. Go to the Role Limits tab.
2. Select the organization and role from the dropdowns.
3. Expand the role row to view its module list.
4. Click Edit Quota.
5. Enter limits (Req/s) for each operation.
   Note: You can edit quotas in bulk in both Table and JSON formats.
6. Click Save Changes.

Note: Role limits override API limits if both are defined.

Quota Consideration for Search Module

When you run a search query in OpenObserve, the search query is internally divided into multiple partition-level queries, one for each time-based partition that falls within the selected time range.

This means that a single search from the user can trigger multiple internal search calls, depending on how the data is partitioned.

What is a Partition

A partition in OpenObserve is a time-based chunk of data. It is automatically determined based on:

• The time range selected for the query
• The size of the data in that time range

How to View Partitions for a Selected Time Range

To check how your search query is internally split into partitions:

1. From the left navigation menu, go to the Logs page.
2. Select the target stream from the stream selector.
3. In the SQL editor, write a query to fetch data from the selected stream. For example:


   SELECT * FROM default


4. Select the desired time range from the time range selector (top-right corner).
5. Right-click anywhere on the browser and select Inspect to open your browser’s developer tools.
6. Go to the Network tab.
7. Click Run Query in the OpenObserve UI.
8. Look for a request named: _search_partition?type=logs
9. Click the request and view its Preview tab.
10. In the Preview tab, find the partitions section, which looks like the following:

partitions: [

  [timestamp_1_start, timestamp_1_end],

  [timestamp_2_start, timestamp_2_end]

]

Each pair of timestamps represents one partition.

Example: If your 15-minute query results in 2 partitions, the system makes 2 internal search calls. If your quota > for the Search module is set to 1 request per second (1 Req/s), only one request can be processed at a > time. The second request is blocked, and you may see:

Request limit reached for ratelimit/_search

Quota Planning for Search Module

There is no standard recommendation for setting the minimum quota for the Search module. The appropriate quota depends on your:

• Average query time range
• Expected number of partitions
• Number of concurrent users running queries

To define an effective quota, consider testing the partition behavior for your typical query patterns using the method above.
