Monitor Download Queue Size and Disk Cache Metrics
This guide helps you monitor internal metrics that measure how efficiently the dual queue system in the Download Manager handles file downloads and how often queries are served from disk cache in OpenObserve.
What You Can Monitor
OpenObserve emits four key metrics that track how data files are downloaded and cached:
-
zo_file_downloader_normal_queue_size
: Number of files currently waiting in the normal queue. -
zo_file_downloader_priority_queue_size
: Number of files in the priority queue. -
zo_query_disk_cache_hit_count
: Number of files that were already on disk when the query was executed. -
zo_query_disk_cache_miss_count
: Number of files that were not on disk and had to be downloaded before the query could run.
Note
When OpenObserve runs a query, the querier first checks whether the required Parquet files are already available on the local disk:
- If the file is found locally, it results in a cache hit. The file is immediately read from the disk and used to serve the query.
- If the file is not found, it results in a cache miss. The Download Manager is triggered to fetch the file from object storage and save it to the local disk before query execution can proceed.
Configuration
To use these metrics, you must configure the following environment variables in your values.yaml
file, as shown below:
extraEnv:
- name: ZO_SELF_METRIC_CONSUMPTION_ENABLED
value: "true"
- name: ZO_SELF_METRIC_CONSUMPTION_ACCEPTLIST
value: "zo_query_disk_cache_hit_count,zo_query_disk_cache_miss_count,zo_file_downloader_normal_queue_size,zo_file_downloader_priority_queue_size"
Ensure that you apply this configuration in the correct environment where you want to collect and view the metrics.
Visualize Metrics in Dashboards
This section demonstrates how to plot the zo_query_disk_cache_hit_count
metric to monitor how often queries are served from local disk across pods within a specific namespace and cluster.
After plotting the chart, you will calculate the cache efficiency to evaluate overall cache performance.
Before you begin
Understand Your Cluster Architecture
When OpenObserve high-availability mode or multi-cluster mode is deployed in Kubernetes:
- One cluster may host multiple namespaces.
- Each namespace may include multiple nodes or services with different roles, such as querier, ingester, compactor, router, alert manager, and actions.
- Each node or service may be deployed across multiple pods.
In OpenObserve single node deployment, a single node handles all the roles.
Understand the Nature of Metrics
Each log line (metric entry) contains fields like timestamp
, value
, cluster
, namespace
, and pod_name
. Explore the log line using the Logs page in the UI.
To isolate useful data, we need to filter and group this information accordingly.
Step-by-Step Guide to Plotting the Metrics in Dashboards
Step 1: Create a Panel
- In the top-right corner, select your organization.
- Go to Dashboards from the left navigation menu.
- Open an existing dashboard or create a new one.
- Click Add Panel to start building a chart. Refer to Panels in Dashboards if needed.
Step 2: Choose a Chart Type
From the chart type panel, choose a visualization type suitable for time-series data. Line Chart is recommended for tracking values over time.
Step 3: Select Stream Type
From the Stream Type dropdown, select Metrics. This enables access to the internal metrics.

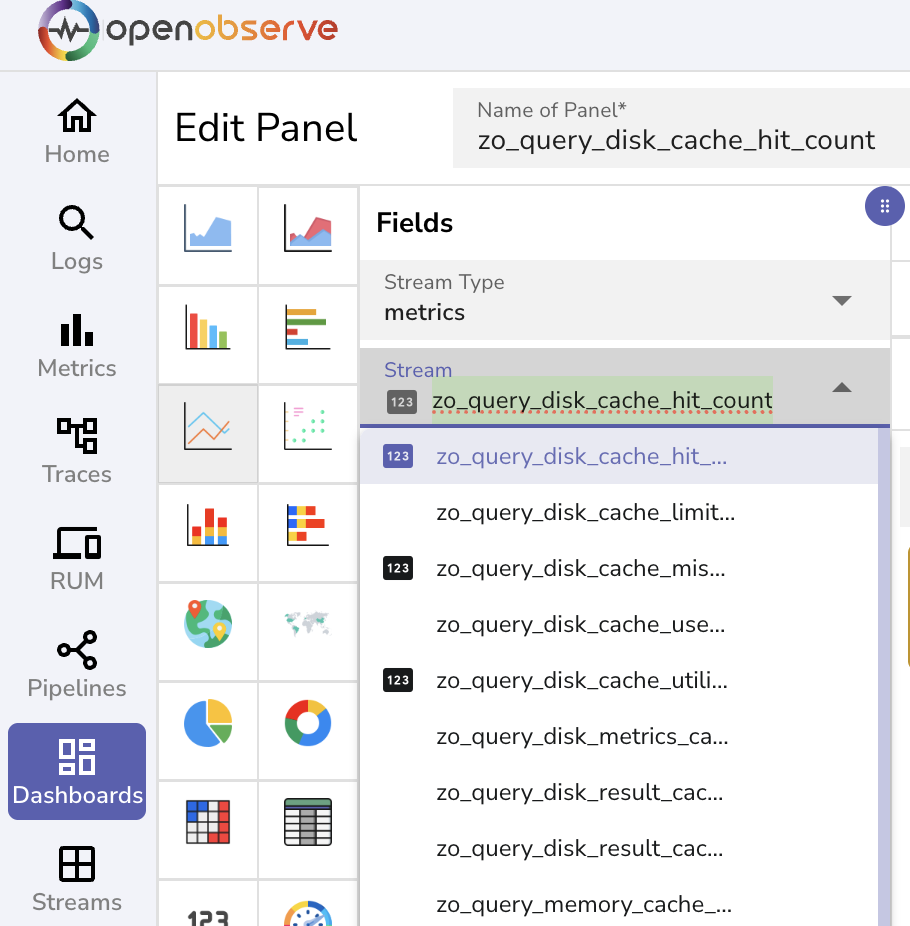

Step 4: Select the Metric
From the metrics dropdown, select the one you want to plot. For example, zo_query_disk_cache_hit_count
.
Step 5: Configure the Axes
Configure the X-Axis:
- In the Fields section, locate the
timestamp
field. - Click the +X button to assign it to the x-axis.
This sets the time progression for the chart.

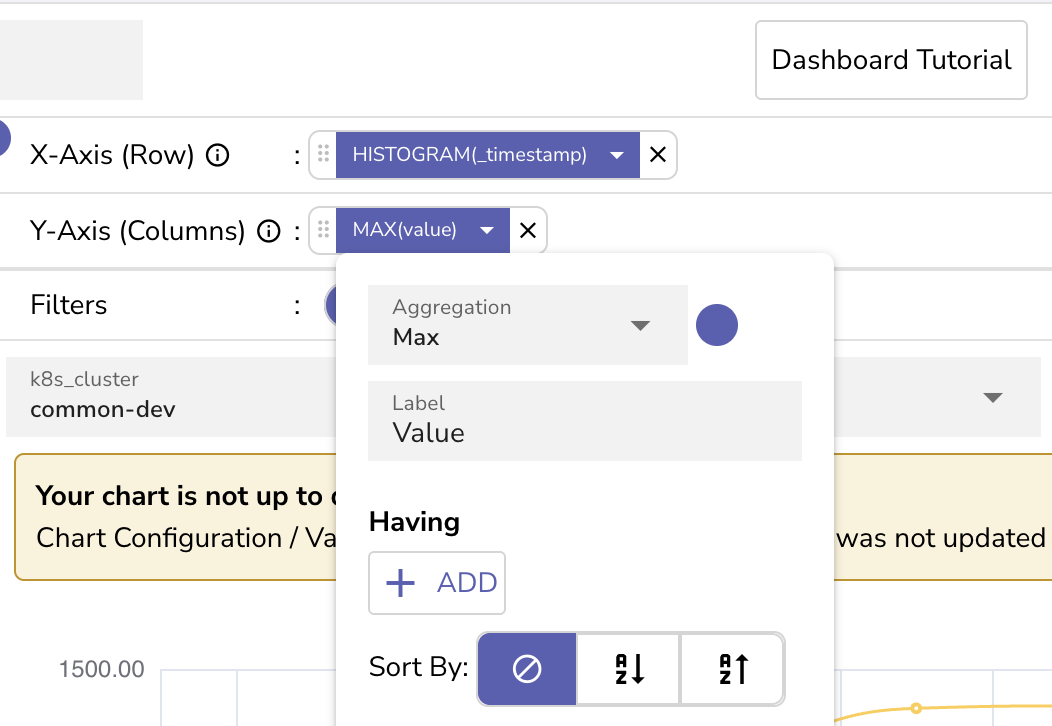

Configure the Y-Axis:
- In the Fields section, locate the value field.
- Click the +Y button to assign it to the y-axis.
- Use the Aggregation dropdown and select Max to show the highest value per interval.
Using the Max aggregation highlights the highest cache hit value observed in each interval.
Step 6: Add Filters
Filters narrow the data to a specific cluster and namespace, ensuring the chart reflects the intended environment. In this example, we need to add two filters:
- Filter for cluster to isolate the specific Kubernetes cluster. For example,
common-dev
which is ingested as value in thek8s_cluster
field. - Filter for namespace to filter down to the environment namespace. For example,
main
which is ingested as value in thek8s_namespace_name
field.

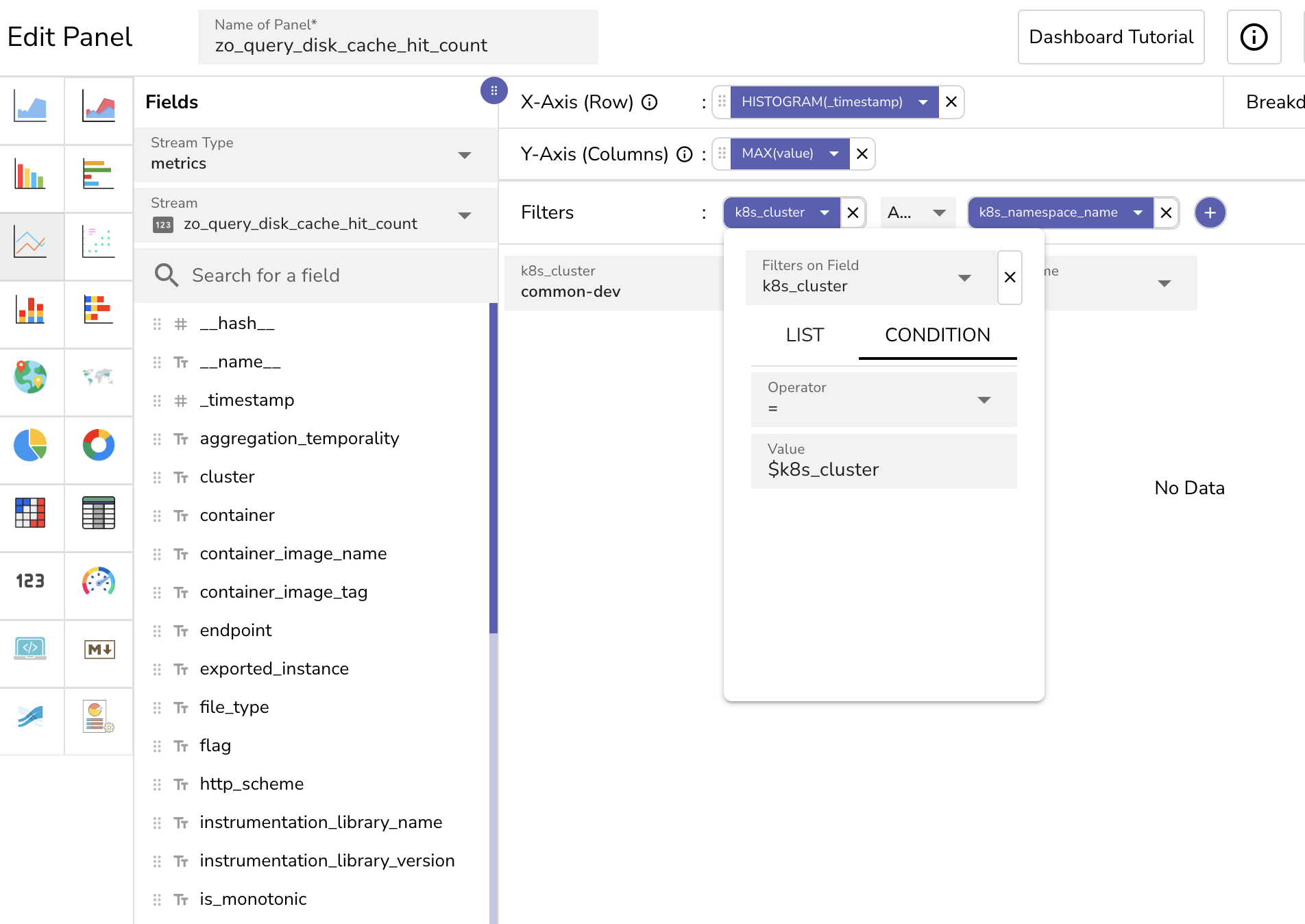

Add Filter for Cluster:
- Click the + icon next to Filters.
- Select Add Condition.
- Click the Filters on Field dropdown and select the cluster field. For example,
k8s_cluster
. - Under Condition, select operator as
=
and value as$k8s_cluster
.
Add Filter for Namespace:
Repeat the steps above to add a filter for the namespace field. For example, k8s_namespace_name
.
Note
Ensure both filters are connected using the AND operator.

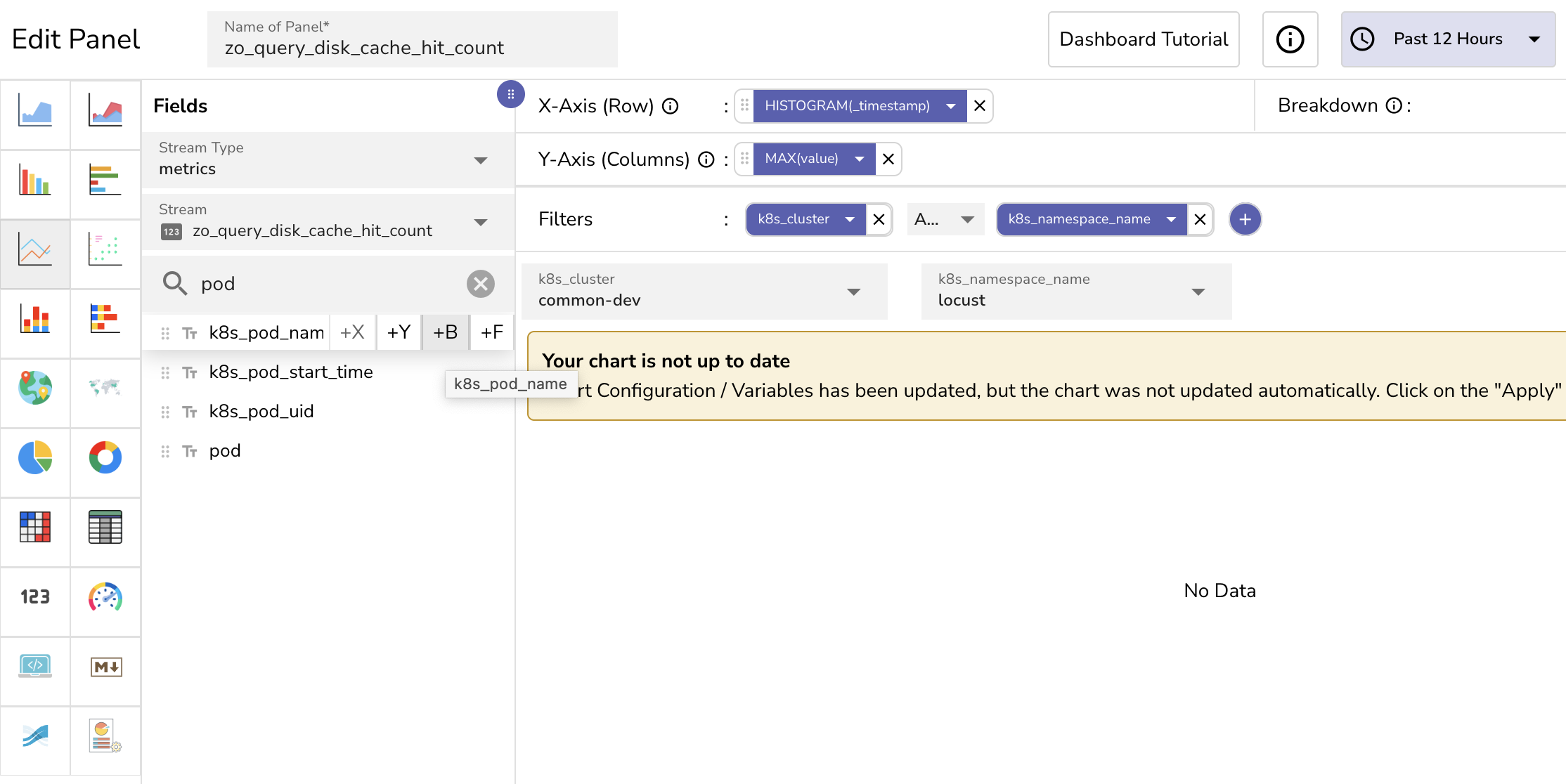

Step 7: Add a Breakdown
To visualize the cache hit count on each pod, add a breakdown for pods.
- In the Fields section, locate the field that has the pod name values, for example,
k8s_pod_name
. - Click +B, next to the pod name field to add it to the Breakdown section.
This configuration allows the chart to display a separate line for each pod. It helps you compare cache hit behavior across pods in the same namespace.
Step 8: Select the Time Range
Use the time range selector at the top of the panel editor to define the period you want to analyze. For example, select Last 6 hours or Last 12 hours to examine recent trends.

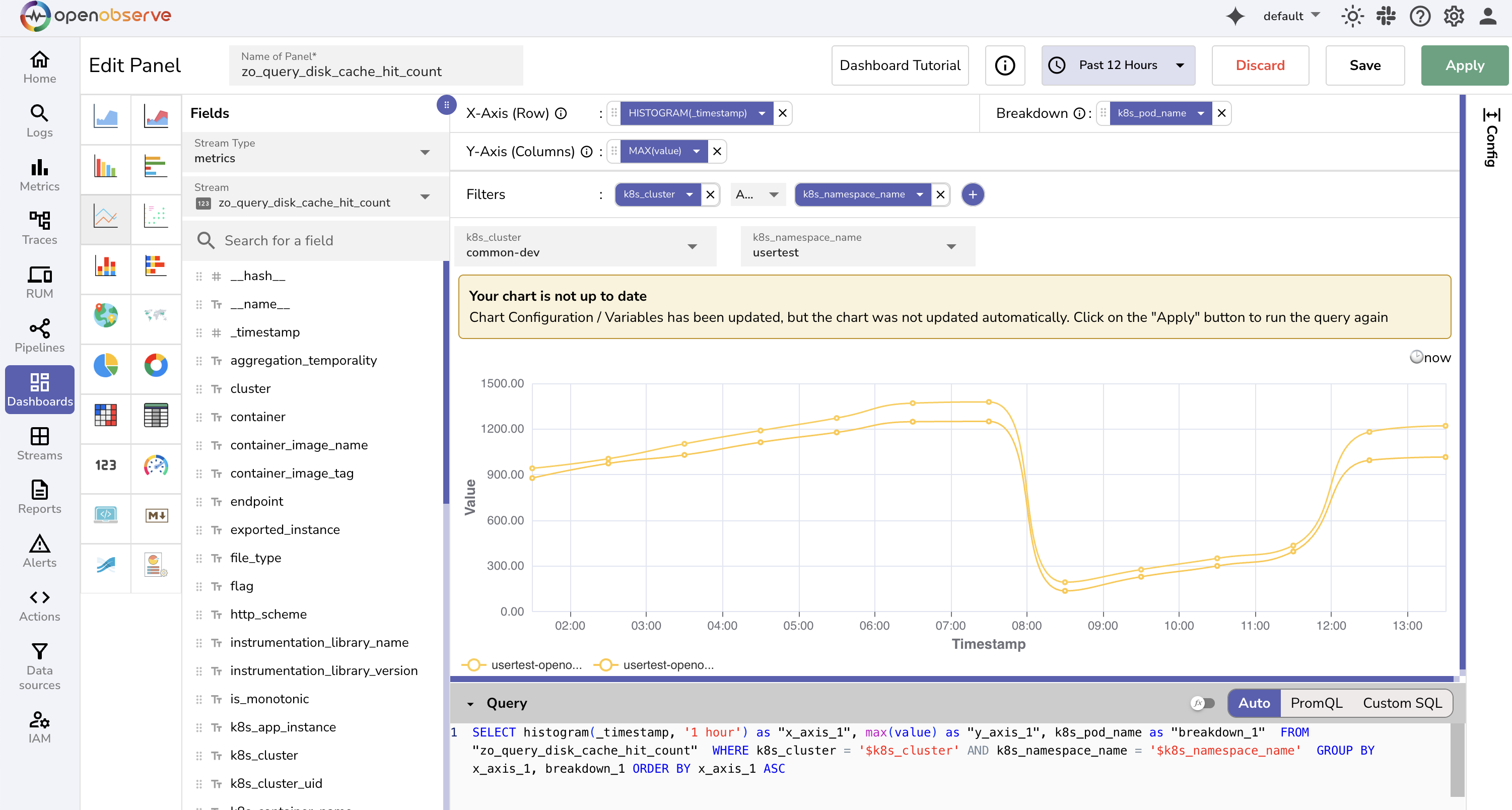

Step 9: Click Apply
Click Apply to generate the chart using your selected configuration.
Plot Additional Metrics
To complete cache performance analysis and monitor the download queue, repeat Steps 1 through 9, however, select zo_query_disk_cache_miss_count
, zo_file_downloader_normal_queue_size
, and zo_file_downloader_priority_queue_size
in Step 4. Use the same filters, time range, and breakdown by pod.
After Plotting the Chart
With both zo_query_disk_cache_hit_count
and zo_query_disk_cache_miss_count
charts available, you can calculate cache efficiency for each pod.
Cache Hit Ratio
You can measure cache performance using a simple ratio:
Where:hit_count
is the value ofzo_query_disk_cache_hit_count
miss_count
is the value ofzo_query_disk_cache_miss_count
Example
If:
Then: This means 90 percent of required files were already on disk at the time of query execution.Note
A high cache hit ratio indicates efficient cache usage and reduced query latency.
Troubleshooting
If the metrics do not appear:
- Verify that
ZO_SELF_METRIC_CONSUMPTION_ENABLED
is set to true. - Check that
ZO_SELF_METRIC_CONSUMPTION_ACCEPTLIST
includes all the relevant metric names. - Confirm that your dashboard filters match the environment where metrics are enabled (e.g.,
main
,usertest
, etc.)
