Alert Conditions and Filters

This guide explains how to define alert conditions in OpenObserve using the condition sentence builder and filter system.

Condition sentence

The condition sentence is the core of the alert configuration. It reads as natural language, making the alert logic immediately clear. The sentence structure changes based on the selected function.

Count mode

When the function is set to total events (the default for logs and traces), the condition counts matching records:

"Alert if total events >= 3 matching logs found"

• The operator and threshold control when the alert fires
• No column selection is needed — the alert counts all records matching the filters
• Group-by is not available in count mode

Measure mode

When you select an aggregation function (avg, min, max, sum, etc.), the condition evaluates a specific field:

"Alert if avg of cpu_usage is >= 80"

• A column selector appears — choose the field to aggregate
• Group by becomes available — evaluate the condition per dimension
• The operator and threshold now apply to the aggregated value

Metrics streams

For metrics stream types, count mode (total events) is not available. The condition always uses measure mode with an aggregation function.

---

Aggregation functions

The function dropdown determines how data is evaluated. Each function includes a tooltip describing what it computes.

---

Group by

In measure mode, click + next to Group by to add one or more fields. When group-by is configured:

• The alert evaluates the condition independently for each unique combination of group-by field values
• If any group meets the condition, the alert triggers
• The notification includes which groups triggered the alert

For example, grouping by hostname with "Alert if avg of cpu_usage >= 80" evaluates CPU usage per host and alerts if any individual host exceeds the threshold.

Having groups

Having groups sets the minimum number of groups that must satisfy the condition for the alert to trigger. For example, with a value of 3, the alert fires only when at least 3 group-by combinations meet the condition.

---

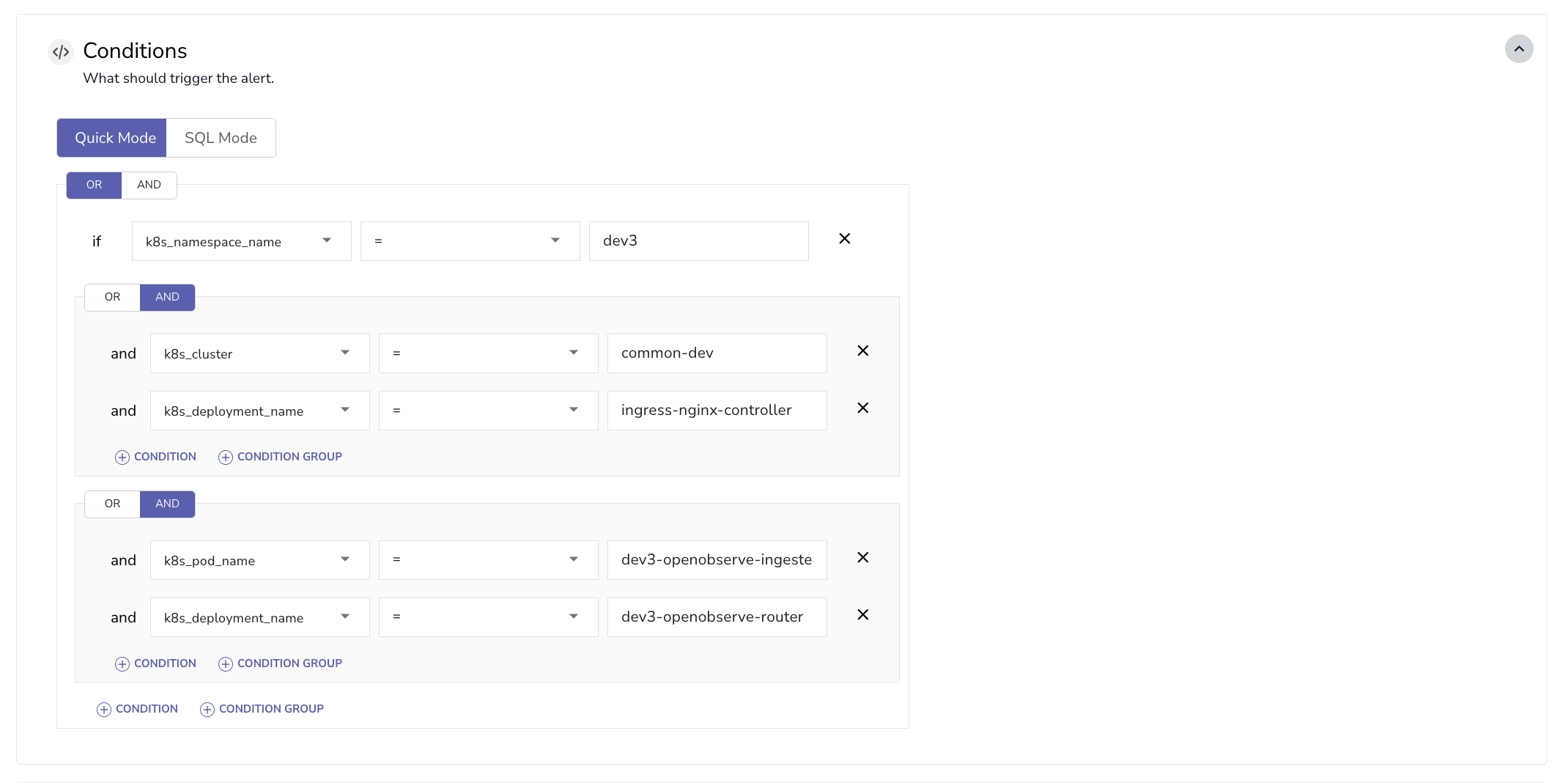

Filter conditions

Filters narrow which data the alert evaluates. Click the filters dropdown in the condition area to expand the filter section.

Add a filter

1. Click + Condition to add a new filter row.
2. Select a field from the stream's available columns.
3. Select an operator: =, !=, >=, <=, >, <, Contains, NotContains, Is Null, Is Not Null, Is Empty, or Is Not Empty.
4. Enter a value to match. The four null and empty operators take no value.

Multiple filters

• The first condition is labeled if.
• Additional conditions are joined with and by default, so all conditions must be true for a record to match. Click the toggle button next to the label to switch between and and or.
• Click the x button on any condition row to remove it.

Filter groups

Click + Condition Group to create a grouped block of conditions. Groups support their own logical operator, enabling nested logic such as:

(level = error AND service = api) OR (level = warn AND response_time > 5000)

SQL preview

A SQL preview of the generated query is always visible within the filter section. It updates automatically as you add or modify conditions. The preview is limited to two lines and scrolls for longer queries.

---

Query modes

Builder mode

The default mode. Use the condition sentence and filters to define alert logic without writing code. Suitable for most monitoring use cases.

SQL mode

Click the SQL tab to switch to SQL mode. The condition sentence is replaced with:

• An inline SQL editor with the generated query
• An Open Full Editor button for a full-screen editor with a field browser, AI assistance, and results preview
• Check every and Alert if No. of events controls below the editor

PromQL mode

Available for metrics stream types only. Click the PromQL tab to enter a Prometheus query expression. The condition sentence shows operator and value controls for the PromQL result.

Rule mode

Turn on the Rule mode switch below the PromQL editor to let the expression decide when the alert fires. In rule mode, the alert matches whenever the expression returns any series, so you write the threshold into the expression itself instead of setting separate Critical or Warning values.

To create a rule-mode alert:

1. Set the stream type to metrics and select the PromQL tab.
2. Turn on Rule mode.
3. Enter the full matching expression, for example rate(http_requests_total[5m]) > 4.
4. Optionally leave the stream name empty. OpenObserve infers it from the metrics streams the expression references.

Turning on rule mode clears and hides the value-threshold controls and the Having series count. Each evaluation runs the expression as an instant query at the scheduled time. The Preview panel shows how many series currently match, for example "10 returned series match now".

Alert aggregation controls how many alerts rule mode produces:

• Simple alert tracks one alert for the whole rule. It stays firing while any series is returned and clears when the expression returns no series.
• Multi alert (per series) tracks each returned series (each distinct label set) separately, so every series fires and recovers on its own.

When Hold for (the pending period, in the Settings section) is greater than zero, Multi alert is selected and locked, because each series keeps its own pending timer. A series must keep matching for the full period before it fires. If it stops matching, its timer resets and restarts when the series returns. Set Hold for to zero to choose between Simple alert and Multi alert again.

PromQL can return special values such as NaN, +Inf and -Inf. Rule mode treats any returned series as a match, including these values, and keeps them as-is in notifications and alert history.

---

Operators

The following comparison operators are available for both count and measure mode thresholds:

---

Switching between modes

When switching from measure mode back to count mode:

• The column selector and group-by fields are hidden.
• The aggregation configuration is cleared.
• The operator and threshold revert to controlling the event count.

When switching from count mode to measure mode:

• The column selector appears — select the field to aggregate.
• The group-by option becomes available.
• The operator and threshold now apply to the aggregated value.
