Configuration
Every check, browser or protocol, is configured from the same set of cards. This page is the reference for each one.
Browser tests reach these cards from the Configure step of the create wizard. Protocol checks show them on their single configuration page.

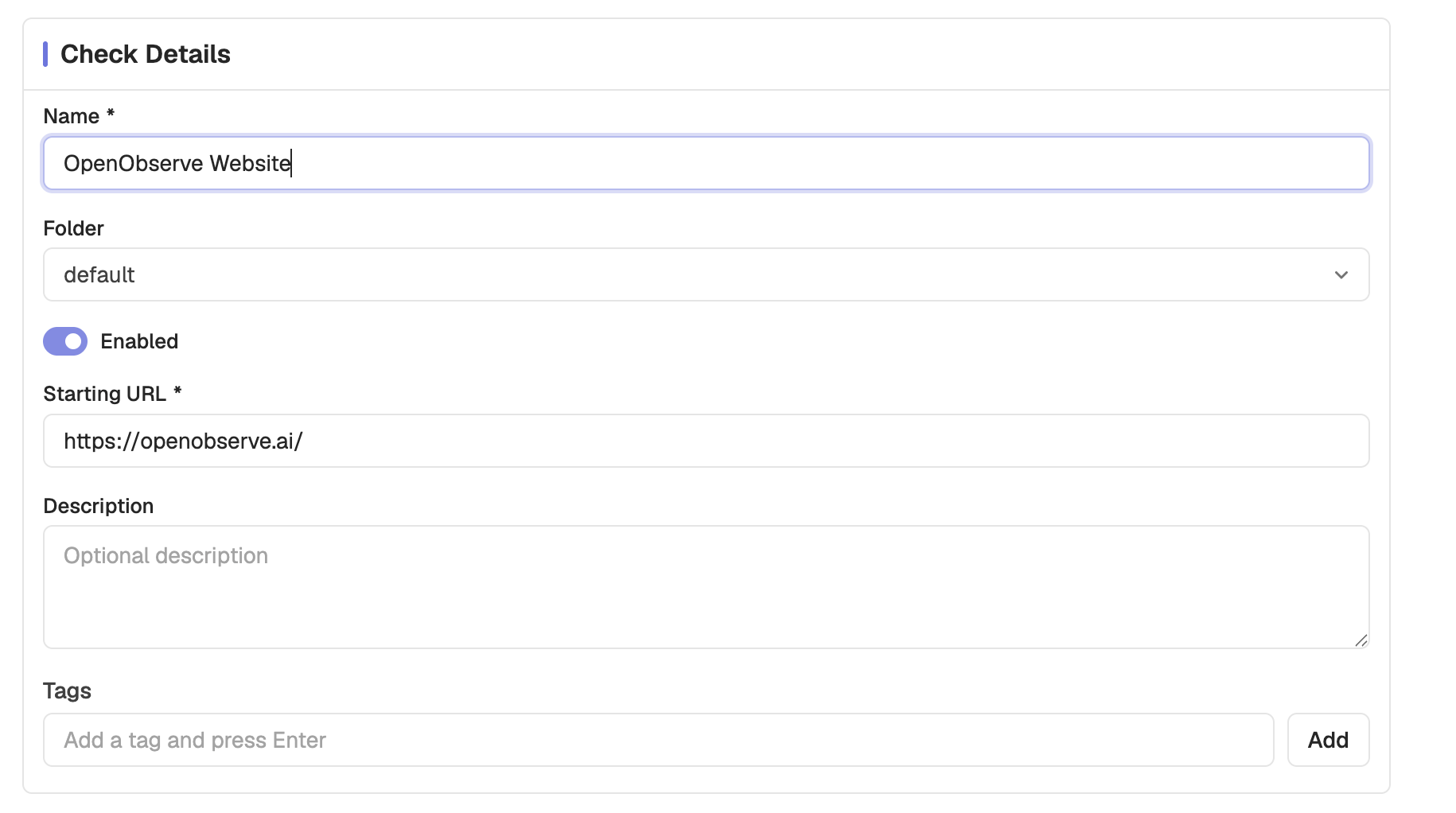

Check details
Identifies the check and says what it targets.
| Setting | Description | Default |
|---|---|---|
| Name | Identifies the check throughout the UI. Required. | N/A |
| Folder | The folder the check lives in. Also governs access. | default |
| Enabled | Whether the check runs on its schedule | On |
| Starting URL / URL / Host | What the check targets. Browser and HTTP take a URL; TCP, TLS, and SSH take a bare host. Required. | N/A |
| Description | Free text for your own reference | Empty |
| Tags | Labels for grouping and filtering | None |
Note: The folder is not only organizational. Access to a check is granted through its folder, so moving a check between folders changes who can see it.
Schedule
Controls how often the check runs and when it starts.
| Setting | Description | Default | Options |
|---|---|---|---|
| Frequency | How often the check runs | 5 min | 1 min, 5 min, 15 min, 30 min, 1 hour, Custom, Cron |
| Custom interval | Used when Frequency is Custom | N/A | Minutes, Hours, Days, Weeks, Months |
| Cron expression | Used when Frequency is Cron, with a timezone | N/A | Any valid cron expression |
| Start | When the check becomes active | Schedule now | Schedule now, Schedule later |
Schedule later takes a date and time and activates the check then. The start time must be in the future, so a duplicated check whose original start has passed reverts to Schedule now.
Retries
Controls how many times a failing run is retried before it is reported as failed.
| Setting | Description | Default | Limit |
|---|---|---|---|
| Retries on failure | Extra attempts before the run is called failed | 0 | 2 for browser checks, 3 for protocol checks |
| Wait between retries | Delay before the next attempt | 5 s | N/A |
Retries run inside the same job, so the whole sequence has to fit the check's run budget. If a configuration could exceed it, OpenObserve blocks the save and names the combination that is too large.
The browser limit is lower because each attempt reruns the whole journey on every selected browser and device combination. Three attempts across three combinations is nine journey executions in one job.
Tip: Retries hide flakiness rather than fix it. The Retry Rate and Flaky Rate tiles on the results page exist so you can see how often they are saving a run. A high retry rate is a signal to fix the journey, not to raise the retry count.

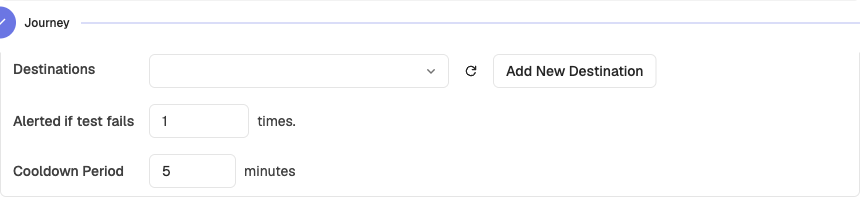

Alerts
Controls when a failing check notifies you.
| Setting | Description | Default |
|---|---|---|
| Alerted if test fails | Consecutive failures before notifying | 1 |
| Cooldown period | Minimum gap between notifications | 5 minutes |
| Destinations | Notification destinations to alert | None |
Destinations are the same ones used elsewhere in OpenObserve alerting, so a Synthetics check can notify the channels you already have configured.
Tip: Raise Alerted if test fails to 2 or 3 for checks that run every minute against a service with occasional blips. The cooldown then keeps a sustained outage from flooding the channel.

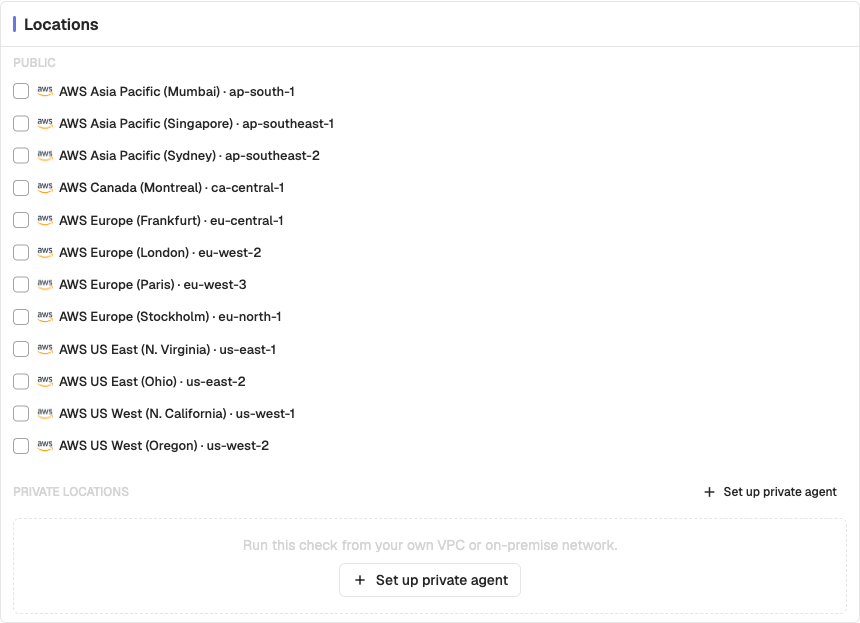

Locations
Select one or more probe locations. At least one is required.
Public locations cover twelve AWS regions on OpenObserve Cloud, the only deployment Synthetics currently supports:
| Area | Regions |
|---|---|
| North America | N. Virginia, Ohio, N. California, Oregon, Montreal |
| Europe | Frankfurt, London, Paris, Stockholm |
| Asia Pacific | Mumbai, Singapore, Sydney |
Private locations appear once their agents register. OpenObserve only offers a private location for checks its live agents can run, so a browser test does not list a location served only by network agents. See Private locations.
Note: Each location runs the check independently, so selecting three locations triples the runs. Choose locations that represent where your users actually are.
Browsers and devices
Browser checks only. Each selected combination runs as a separate execution, and at least one must be selected.
The browsers and devices offered are reported by your deployment, so the list can differ. Where no list is supplied, these three device profiles are used:
| Device | Viewport |
|---|---|
| Desktop | 1440 x 900 |
| Tablet | 768 x 1024 |
| Mobile | 375 x 667 |
Tip: Every combination multiplies the work in a run, and combines with retries and locations. A matrix that is too wide can push the check past its run budget and be rejected at save time.
Capture
Browser checks only. Controls which artifacts each run keeps.
| Setting | Description | Default | Options |
|---|---|---|---|
| Screenshot | When to capture step screenshots | On fail | Always, On fail, Off |
Always captures a screenshot at every step, which is what makes the run detail timeline fully visual. On fail keeps only the failing step's screenshot.
Note: Evidence (console errors, page errors, and network events) is retained for failed runs only, independently of this setting.
Authentication and network
Available on browser and HTTP checks.
| Setting | Description |
|---|---|
| HTTP Basic auth | Username and password sent with requests |
| Variables | Reusable values referenced as {{name}}, optionally masked as sensitive |
| Custom headers | Headers added to every request |
| Pre-set cookies | Cookies set before the journey starts |
Variables are referenced anywhere the check accepts one, including the starting URL and step values. Mark a variable as secure to mask its value in the UI.
Warning: Pre-set cookies and basic auth credentials are stored with the check. Use dedicated test accounts rather than real user credentials.
