Self-hosted setup

This page explains how to run Synthetics on your own OpenObserve deployment. It applies to the Open Source edition and the Enterprise edition. The steps are the same on both. Where a capability exists only in one edition, the page says so.

By the end, you will have HTTP and browser checks that run on a schedule, with results in the UI.

What you get in each edition

Synthetics ships in the Open Source edition. A small part of it stays Enterprise.

Today, public locations run on AWS Lambda only. A public location is an AWS region where you deploy the two probe functions. There is no probe for another cloud yet. On Open Source, checks run from public locations only. If you need checks that run inside a private network, you need Enterprise and Private locations.

On Open Source, a failing check records the failure and shows it in the UI. It does not send a notification to a destination. The alert fields on a check are accepted but have no effect.

How it works

A check runs in a probe. A probe is a function or an agent that performs the check and reports the result. On a self-hosted deployment, public locations use two AWS Lambda functions that you deploy in your own AWS account.

  OpenObserve                                    AWS
  -----------                                    ---
  scheduler   -- creates one job per
                 (check x location) --+
                                      v
  dispatcher  -- lambda:InvokeFunction ---->  o2-synthetics-net-probe      (http, tcp, tls, ssh)
                 region comes from the        o2-synthetics-browser-probe  (browser journeys)
                 location id                          |
                                                      | runs the check
                                                      v
                                                 your target
                                                      |
        <------ POST /api/{org}/synthetics/jobs/resolve --+  auth: o2syn_ probe token
        <------ POST /api/{org}/synthetics/jobs/ack     --+  auth: o2syn_ probe token
        <------ POST /api/{org}/synthetics_results/_json --+  auth: o2oi_ ingest token

Traffic flows in both directions. Both directions must work.

1. OpenObserve calls AWS Lambda. The scheduler node needs AWS credentials. The function must exist in the region named by the location id. A location id of aws-us-west-1 invokes the function in us-west-1.
2. The probe calls OpenObserve. The probe fetches its job and reports the result over HTTPS. Your OpenObserve API must be reachable from AWS. If it is not, the failure shows up as a lease timeout about 15 minutes later, not as an immediate error.

The probe holds no configuration of its own. The endpoint, the probe token, and the ingest token arrive in the invoke payload for each job.

Enterprise deployments can also run agents inside their own network. Those agents pull work from OpenObserve. They do not need AWS. See Private locations.

Prerequisites

• OpenObserve v1.0.1 or later, with a node that runs the scheduler role. Single-node and local mode both qualify.
• An AWS account where you can create ECR repositories, an IAM role, and Lambda functions.
• Docker and the AWS CLI v2, signed in to that account.
• A public HTTPS URL for your OpenObserve API. A tunnel is fine for a trial.
• Root user credentials for OpenObserve. Only the root user can register a location.

Decide which AWS regions the checks run from. Each region is a separate deployment. Start with one. The first region takes about 30 minutes.

Step 1: Get the probe images

The probe images are public on GitHub Container Registry (GHCR):

AWS Lambda pulls container images from Amazon ECR only. It rejects any other registry. Private ECR repositories are also scoped to one region. So you copy each image into an ECR repository in every region where you run the function.

Pin a release tag. Do not use latest in production. Release tags look like v0.0.12.

export AWS_REGION=us-west-1
export ACCT=<your-aws-account-id>
export PROBE_VERSION=v0.0.12
export ECR=$ACCT.dkr.ecr.$AWS_REGION.amazonaws.com

aws ecr get-login-password --region $AWS_REGION \
  | docker login --username AWS --password-stdin $ECR

aws ecr create-repository --region $AWS_REGION --repository-name o2-synthetics-net-probe
aws ecr create-repository --region $AWS_REGION --repository-name o2-synthetics-browser-probe

Browser probe

The browser image runs on Lambda as published. Pull the amd64 image, tag it, and push it:

docker pull --platform linux/amd64 ghcr.io/openobserve/openobserve-synthetics-browser-probe:$PROBE_VERSION
docker tag ghcr.io/openobserve/openobserve-synthetics-browser-probe:$PROBE_VERSION $ECR/o2-synthetics-browser-probe:$PROBE_VERSION
docker push $ECR/o2-synthetics-browser-probe:$PROBE_VERSION

Protocol probe

The published net image is the agent build. It runs as a non-root user with a private home directory, and Lambda refuses to start it. Wrap the binary in the official Lambda base image instead. Create a file named Dockerfile with this content:

ARG PROBE_VERSION=v0.0.12
FROM ghcr.io/openobserve/openobserve-synthetic-net-probe:${PROBE_VERSION} AS probe
FROM public.ecr.aws/lambda/provided:al2023
COPY --from=probe /usr/local/bin/probe ${LAMBDA_RUNTIME_DIR}/bootstrap
CMD ["bootstrap"]

Build it for arm64 and push it. Keep both --provenance=false and --sbom=false. Without them, BuildKit adds an attestation manifest, and Lambda rejects the image with The image manifest, config or layer media type for the source image ... is not supported.

docker buildx build --platform linux/arm64 --provenance=false --sbom=false \
  --build-arg PROBE_VERSION=$PROBE_VERSION \
  -t $ECR/o2-synthetics-net-probe:$PROBE_VERSION --load .
docker push $ECR/o2-synthetics-net-probe:$PROBE_VERSION

Make sure that both images are in ECR:

aws ecr describe-images --region $AWS_REGION \
  --repository-name o2-synthetics-net-probe --query 'imageDetails[].imageTags'
aws ecr describe-images --region $AWS_REGION \
  --repository-name o2-synthetics-browser-probe --query 'imageDetails[].imageTags'

Both probes detect Lambda mode at start, from the AWS_LAMBDA_FUNCTION_NAME variable that Lambda sets. The same GHCR images also run as private agents on Enterprise.

Step 2: Create the Lambda functions

Execution role

Create the role once per account. The probes make no AWS API calls of their own, so the role only needs CloudWatch Logs. If the role already exists, the first command fails with EntityAlreadyExists. Skip it and run the second one.

aws iam create-role --role-name o2-synthetics-probe-role \
  --assume-role-policy-document '{
    "Version":"2012-10-17",
    "Statement":[{"Effect":"Allow",
                  "Principal":{"Service":"lambda.amazonaws.com"},
                  "Action":"sts:AssumeRole"}]}'

aws iam attach-role-policy --role-name o2-synthetics-probe-role \
  --policy-arn arn:aws:iam::aws:policy/service-role/AWSLambdaBasicExecutionRole

Let Lambda pull from ECR

Lambda pulls the image with its own service identity. Attach a pull policy to each repository, once per region.

cat > /tmp/lambda-pull.json <<EOF
{"Version":"2012-10-17","Statement":[{"Sid":"LambdaECRImageRetrievalPolicy",
  "Effect":"Allow","Principal":{"Service":"lambda.amazonaws.com"},
  "Action":["ecr:BatchGetImage","ecr:GetDownloadUrlForLayer"]}]}
EOF
aws ecr set-repository-policy --region $AWS_REGION \
  --repository-name o2-synthetics-net-probe --policy-text file:///tmp/lambda-pull.json
aws ecr set-repository-policy --region $AWS_REGION \
  --repository-name o2-synthetics-browser-probe --policy-text file:///tmp/lambda-pull.json

Functions

Create the functions once per region. The two probes use different CPU architectures. If you set --architectures wrong, the function is created but fails at invoke time with an exec format error.

# Protocol probe: arm64, 256 MB
aws lambda create-function \
  --region $AWS_REGION \
  --function-name o2-synthetics-net-probe \
  --package-type Image \
  --code ImageUri=$ECR/o2-synthetics-net-probe:$PROBE_VERSION \
  --role arn:aws:iam::$ACCT:role/o2-synthetics-probe-role \
  --architectures arm64 \
  --timeout 840 \
  --memory-size 256

# Browser probe: x86_64, 2048 MB (Chromium needs the memory)
aws lambda create-function \
  --region $AWS_REGION \
  --function-name o2-synthetics-browser-probe \
  --package-type Image \
  --code ImageUri=$ECR/o2-synthetics-browser-probe:$PROBE_VERSION \
  --role arn:aws:iam::$ACCT:role/o2-synthetics-probe-role \
  --architectures x86_64 \
  --timeout 840 \
  --memory-size 2048 \
  --image-config Command=index.handler

The browser function needs --image-config Command=index.handler. Lambda turns it into the _HANDLER variable that the Node runtime client reads. Without it, every invoke fails at init with _HANDLER environment variable is not set.

These are the values that OpenObserve Cloud runs:

Warning: Keep --timeout 840. OpenObserve compares every check against ZO_SYNTHETICS_MAX_CHECK_BUDGET_SECS, which defaults to 840. If the function timeout is lower, AWS kills a check that OpenObserve accepted, and the run reports a failure that your target never had. See The timeout budget.

The function names must match your OpenObserve configuration exactly. They must also be the same in every region. The dispatcher invokes one configured name in whichever region a job resolves to.

Networking

Leave the functions outside a VPC unless you have a specific reason. A Lambda function inside a VPC has no internet route without a NAT gateway. Then the probe can reach neither your targets nor your OpenObserve API, and both directions fail without a clear error.

Make sure that the function has the expected values:

aws lambda get-function-configuration --region $AWS_REGION \
  --function-name o2-synthetics-net-probe \
  --query '{Timeout:Timeout,Memory:MemorySize,Arch:Architectures}'
# -> {"Timeout": 840, "Memory": 256, "Arch": ["arm64"]}

Update a function later

To move to a new probe release, push the new tag to ECR as in Step 1, then point the function at it:

aws lambda update-function-code --region $AWS_REGION \
  --function-name o2-synthetics-net-probe \
  --image-uri $ECR/o2-synthetics-net-probe:$PROBE_VERSION

An image update keeps the function timeout and the image command. Make sure that they are still 840 and index.handler after any change in the AWS console.

Step 3: Let OpenObserve invoke the functions

Attach this policy to the identity that your scheduler node runs as:

{
  "Version": "2012-10-17",
  "Statement": [{
    "Effect": "Allow",
    "Action": "lambda:InvokeFunction",
    "Resource": [
      "arn:aws:lambda:*:<your-aws-account-id>:function:o2-synthetics-net-probe",
      "arn:aws:lambda:*:<your-aws-account-id>:function:o2-synthetics-browser-probe"
    ]
  }]
}

The * in the region position matters once you serve more than one region.

OpenObserve resolves credentials through the standard AWS SDK chain. Any of these work:

• Environment variables: AWS_ACCESS_KEY_ID, AWS_SECRET_ACCESS_KEY, and AWS_SESSION_TOKEN for a temporary key.
• A shared profile under ~/.aws.
• EC2 instance metadata.
• IRSA or EKS Pod Identity on Kubernetes. Attach the policy to the service account and set no credential variables at all.

Note: AWS_DEFAULT_REGION does not select the invoke region. The region comes from the location id, as described in Step 6. AWS_DEFAULT_REGION only seeds the SDK default.

Temporary STS credentials expire. When they do, every dispatch fails with ExpiredTokenException. Refresh them before you continue.

Step 4: Configure OpenObserve

Set these variables on every OpenObserve node:

ZO_SYNTHETICS_ENABLED=true
ZO_SYNTHETICS_LAMBDA_NET=o2-synthetics-net-probe
ZO_SYNTHETICS_LAMBDA_BROWSER=o2-synthetics-browser-probe
ZO_SYNTHETICS_API_ENDPOINT=https://openobserve.example.com

Then restart OpenObserve. ZO_SYNTHETICS_ENABLED controls both the background workers and the HTTP routes. A configuration reload cannot turn it on or off. Every other ZO_SYNTHETICS_* variable can change through POST /config/reload without a restart.

Two variables need attention:

• ZO_SYNTHETICS_LAMBDA_NET is empty by default. Empty means that public locations are served by agents, which is an Enterprise path. If you leave it empty on Open Source, protocol checks are scheduled, queued, and never dispatched, and the log does not say why. Set it.
• ZO_SYNTHETICS_LAMBDA_BROWSER already defaults to o2-synthetics-browser-probe. Browser checks work as soon as a function exists under that name.

The full list is in Environment variables.

On the Helm chart, put the variables under config: in values.yaml. The chart sets no ZO_SYNTHETICS_* key by default.

Make sure that the server picked up the change. The flags are on the organization route /api/{org}/config, which needs a sign-in:

curl -s -u "$ROOT_USER:$ROOT_PASS" https://openobserve.example.com/api/default/config \
  | jq '{build_type, synthetics_enabled, synthetics_private_locations_enabled}'

Expected on Open Source:

{ "build_type": "opensource", "synthetics_enabled": true, "synthetics_private_locations_enabled": false }

If synthetics_enabled is false, the restart did not pick up the variable. The unauthenticated /config route returns only the fields that the login page needs, so it does not show these flags.

Step 5: Make your API reachable from AWS

The probe calls your API back. An address such as http://localhost:5080 is not reachable from Lambda.

In production, point ZO_SYNTHETICS_API_ENDPOINT at your public HTTPS endpoint. If you leave it empty, OpenObserve uses ZO_WEB_URL.

For a trial on a laptop, a tunnel works:

ngrok http 5080
# then
ZO_SYNTHETICS_API_ENDPOINT=https://<generated>.ngrok-free.dev

This variable is reloadable. Tunnel URLs change on every restart, so update the variable and call POST /config/reload instead of a restart.

Make sure that the endpoint answers from outside your network:

curl -s -u "$ROOT_USER:$ROOT_PASS" https://openobserve.example.com/api/default/config | jq .synthetics_enabled

If this fails from a machine on the public internet, it also fails from Lambda.

Step 6: Register a location

A location is a place that a check runs from. OpenObserve ships with no locations. Until you add one, there is nowhere for a check to run, and the check editor offers no choice.

In the UI

1. Switch to the _meta organization.

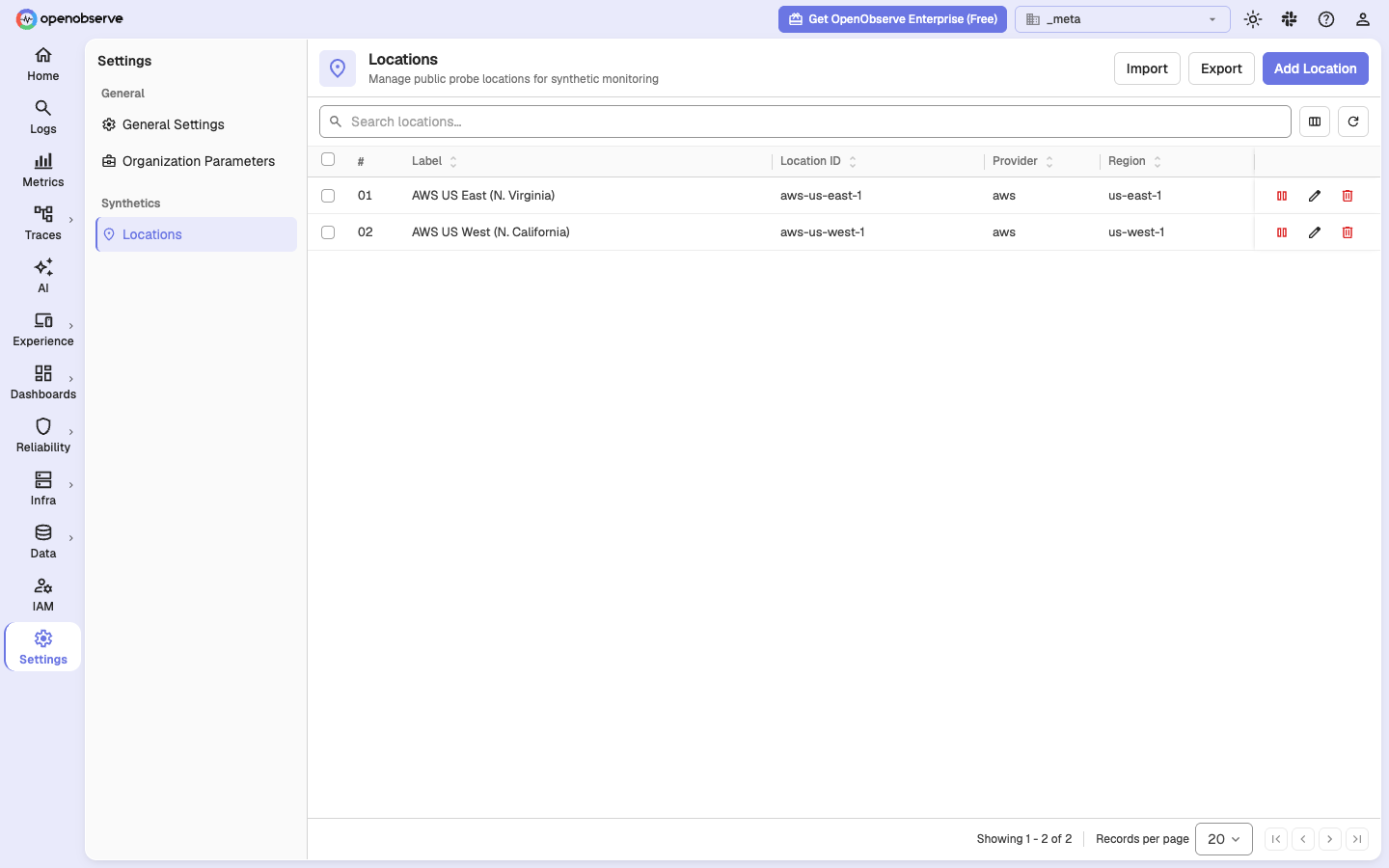

2. Open Settings, then Locations under Synthetics.

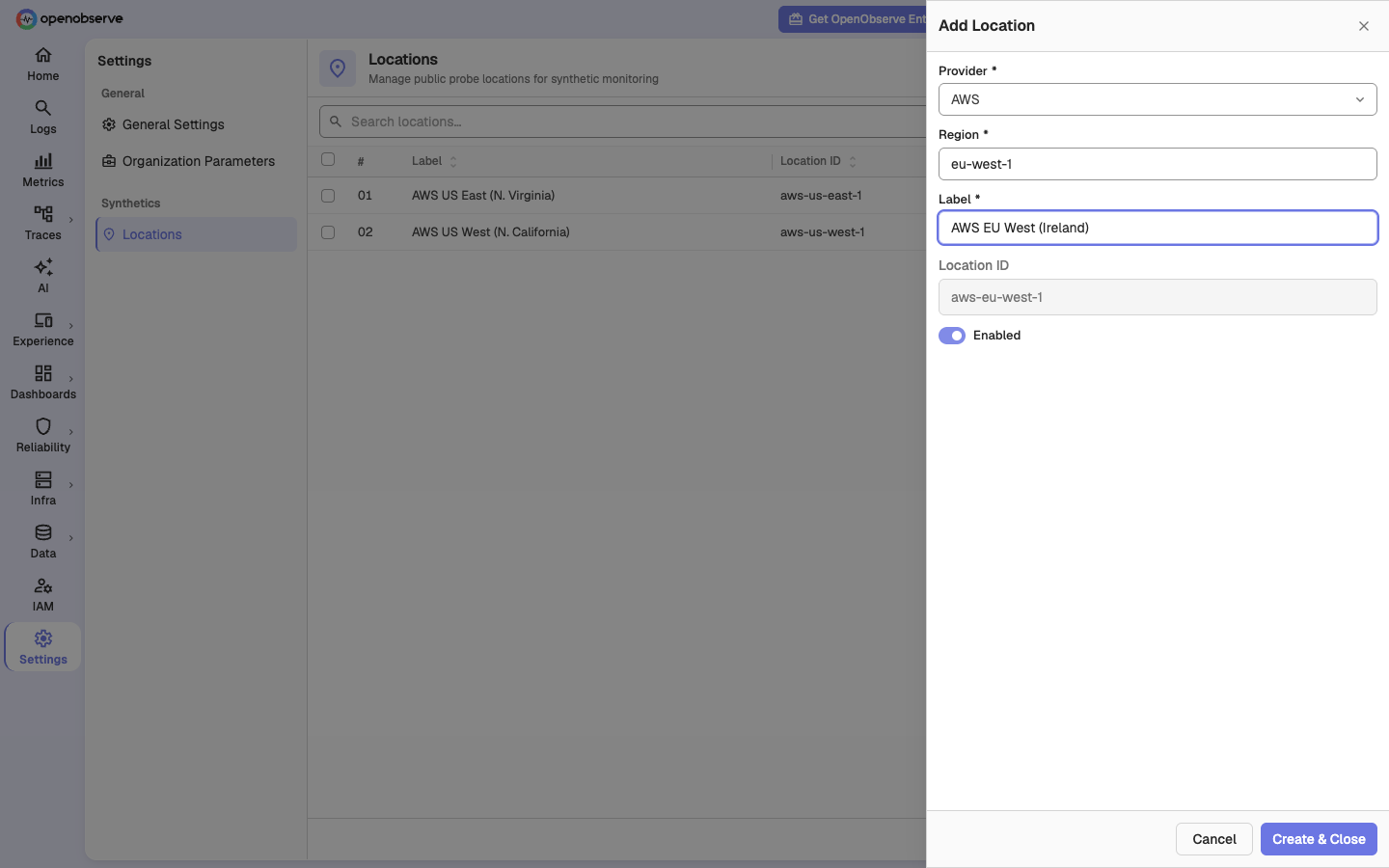

3. Click Add Location. Leave Provider as AWS, set Region to the AWS region where you created the functions, for example us-west-1, and enter a Label such as AWS US West (N. California). All three are required.
4. Keep Enabled on and click Create & Close.

The Location ID fills in as aws-<region>, for example aws-us-west-1. The dispatcher reads the region from this id, so choosing AWS as the provider is what makes routing work. The form also offers GCP, Azure, and Other, but no probe exists for them yet. A location with one of those providers accepts checks that never run.

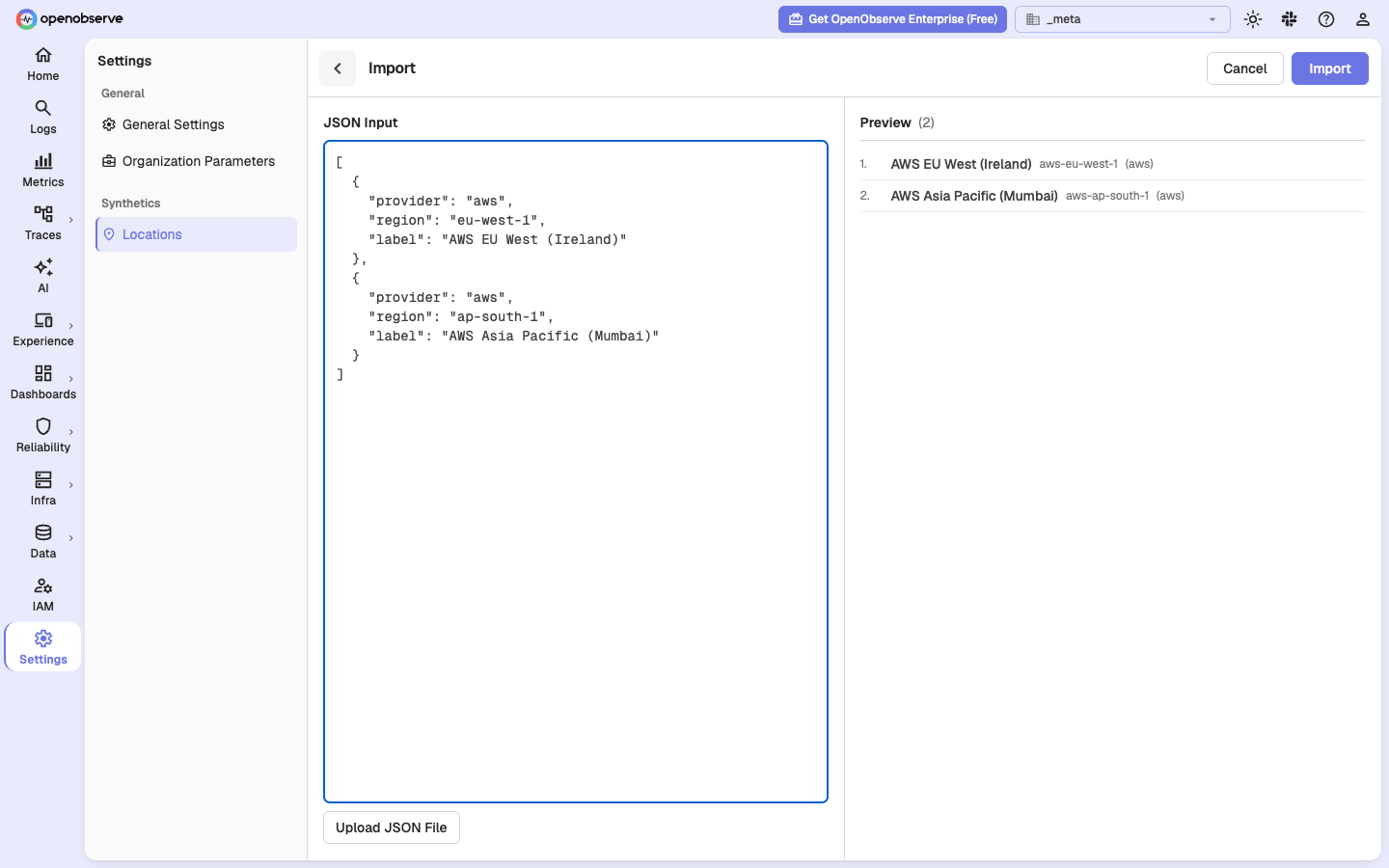

To add several regions at once, click Import and paste a JSON array, or upload it as a file. Each entry needs provider, region, and label. The preview shows the location ID each entry gets before you import.

[
  { "provider": "aws", "region": "eu-west-1", "label": "AWS EU West (Ireland)" },
  { "provider": "aws", "region": "ap-south-1", "label": "AWS Asia Pacific (Mumbai)" }
]

With the API

The root user can register a location directly:

O2=https://openobserve.example.com
AUTH="$ROOT_USER:$ROOT_PASS"

curl -u "$AUTH" -X POST "$O2/api/default/synthetics/locations" \
  -H 'Content-Type: application/json' \
  -d '{"kind":"public",
       "provider":"aws",
       "region":"us-west-1",
       "id":"aws-us-west-1",
       "label":"AWS US West 1",
       "enabled":true}'

Set kind to public. It defaults to private, which Open Source refuses. To register several regions in one request, send {"locations": [ ... ]} with one such object per region.

One location serves both probes. Protocol checks use a pool named net-<location id>. Browser checks always use the aws-browser pool. You do not set the pool by hand.

Make sure that the location exists:

curl -s -u "$AUTH" "$O2/api/default/synthetics/locations" \
  | jq '.locations[] | {id, pool, enabled}'

Note: On Open Source, a request with "kind":"private" is refused with HTTP 400. Private locations are served by agents inside your network, which is an Enterprise capability.

Step 7: Create the first checks

Open Experience, then Synthetics, and click New Check. An HTTP check against a health endpoint is the fastest way to see a result. The Protocol checks and Browser tests pages explain each type.

To exercise both functions from the command line, create one check of each family:

LOC=aws-us-west-1

# HTTP: protocol probe
curl -s -u "$AUTH" -X POST "$O2/api/default/synthetics" \
  -H 'Content-Type: application/json' -d '{
  "name":"first-http","type":"http","target":"https://example.com",
  "config":{"method":"GET","timeout_ms":10000,
            "assertions":[{"field":"status_code","operator":"eq","value":200}]},
  "frequency":{"type":"minutes","interval":5},
  "locations":["'"$LOC"'"],"enabled":true,"retries":0}'

# Browser: browser probe
curl -s -u "$AUTH" -X POST "$O2/api/default/synthetics" \
  -H 'Content-Type: application/json' -d '{
  "name":"first-browser","type":"browser","target":"https://example.com",
  "config":{"browser_devices":[{"browser":"chromium","device":"desktop"}],
            "timeout_ms":30000,"journey_budget_ms":120000,
            "steps":[{"id":"s1","action":"navigate","name":"open",
                      "url":"https://example.com"}]},
  "frequency":{"type":"minutes","interval":5},
  "locations":["'"$LOC"'"],"enabled":true,"retries":0}'

Two schema rules reject an otherwise sensible payload:

• Assertion operators are eq, ne, lt, gt, contains, and not_contains. The value equals is rejected.
• Browser step actions are navigate, click, hover, fill, press, select, check, uncheck, upload, and assert. The value goto is rejected.

Step 8: Make sure that checks run

Wait one scheduling interval. Then list the checks:

curl -s -u "$AUTH" "$O2/api/default/synthetics" \
  | jq -r '.checks[] | "\(.name)\t\(.type)\t\(.status)\t\(.last_response_ms)"'

A working setup looks like this. These are the numbers from the run that tested this page, on OpenObserve v1.1.0 Open Source with the v0.0.12 probes in us-west-2:

first-browser   browser  passed   3354
first-http      http     passed   27

The server log shows the whole path in four lines:

[synthetics scheduler]  firing synthetic synthetics_id=... run_id=... job_count=1
[synthetics scheduler]  job enqueued job_id=... location=aws-us-west-1
[synthetics dispatcher] attempting Lambda invoke: job_id=... fn=o2-synthetics-net-probe region=us-west-1
[synthetics dispatcher] Lambda invoked job_id=... synthetics_name=first-http pool=net-aws-us-west-1 region=us-west-1 fn_name=o2-synthetics-net-probe status_code=200

Between the last two lines, the access log shows the probe calling back: POST /api/default/synthetics/jobs/resolve, POST /api/default/synthetics_results/_json, and POST /api/default/synthetics/jobs/ack, each with status 200.

If status stays unknown, or a check fails, go to Troubleshooting. Every abandoned dispatch records why, in both the run detail and the synthetics_results stream.

Add more regions

For each additional region:

1. Push both images to that region's ECR, as in Step 1.
2. Attach the pull policy and create both functions with the same names, as in Step 2.
3. Register a location with id aws-<region>, as in Step 6.

OpenObserve needs no configuration change. The function names are already set, and the region comes from the location id. A check can list several locations and runs from each.

Enterprise: private locations

An Enterprise deployment can also run agents inside its own network. An agent is a long-running process that pulls jobs from OpenObserve, runs them, and reports the result. It needs outbound HTTPS to OpenObserve and nothing from AWS.

The UI composes the install command for you. Open Experience, then Synthetics, then the Private Locations tab, and click Set up an agent. The command downloads a public install script from ZO_SYNTHETICS_INSTALL_SCRIPT_URL and runs the agent on Docker, Kubernetes, Linux, or Windows. See Private locations for the full procedure and the token management.

Two more variables apply to agents:

• ZO_SYNTHETICS_INSTALL_SCRIPT_URL points at the install script that the setup drawer shows. If you mirror the script, change it.
• ZO_SYNTHETICS_AGENT_STALE_SECS is the number of seconds without a lease or heartbeat after which an agent counts as stale.

On Open Source, these two variables are read but have no effect. The agent routes under /api/{org}/synthetics/jobs/lease, /agent/register, /agent/heartbeat, and /agent-setup return HTTP 404.

Environment variables

"Hot" means that POST /config/reload applies the change. "Restart" means that you must restart the process.

The timeout budget

Three limits sit inside each other:

check worst case  <=  MAX_CHECK_BUDGET_SECS  <=  Lambda timeout  <  JOB_LEASE_SECS
   (enforced)               840                     840                900

If the function timeout is below the budget, OpenObserve accepts a check that AWS then kills mid-run. The run reports a failure that your target never had.

If the lease is at or below the budget, a run that finishes at the budget has no time left to acknowledge. The reaper queues the job again, and the check runs a second time. You get duplicate results, double browser cost, and an alert caused by the duplicate.

For browser checks, the budget is multiplied by the number of browser and device combinations. The probe runs them one after another inside one job. A desktop + mobile configuration with retries can exceed a 900 second lease from values that look small. OpenObserve rejects such a check at save time and shows the arithmetic.

OpenObserve cannot read your function timeout. Nothing checks these numbers for you. If you change one side, change the other.

Artifacts and object storage

Browser checks produce screenshots and traces. Where they go depends on your storage configuration.

• Local disk. The probe uploads them back through POST /api/{org}/synthetics/jobs/upload, the same endpoint as in Step 5. Nothing extra to configure.
• S3 or another object store. OpenObserve hands the probe presigned PUT URLs. A presigned URL is a URL that carries its own authorization. The probe must be able to reach that URL. A MinIO on localhost:9000 is not reachable from Lambda. This is the usual cause of "the check passes but there are no screenshots" during a local trial. Use local storage on a laptop.

No extra IAM is needed in either case.

Troubleshooting

Failures are recorded, not guessed. Look in three places: the run detail in the UI, the synthetics_results stream (fields error and error_source), and the server log under [synthetics dispatcher].

Tokens

Two credentials ride in the invoke payload. OpenObserve mints both. An o2syn_ probe token authenticates the resolve and ack calls. An o2oi_ ingest token authenticates the result write. A missing probe token is minted on the fly at dispatch. A missing ingest token is not. If an organization predates ingestion tokens, create one:

curl -u "$AUTH" "$O2/api/default/ingestion-tokens"
curl -u "$AUTH" -X POST "$O2/api/default/ingestion-tokens" \
  -H 'Content-Type: application/json' -d '{"name":"default"}'

Probe tokens are managed under IAM, then Synthetics Tokens. See Managing agent tokens.

Need help:

Community Slack

GitHub issues
