Integration with Apache Airflow

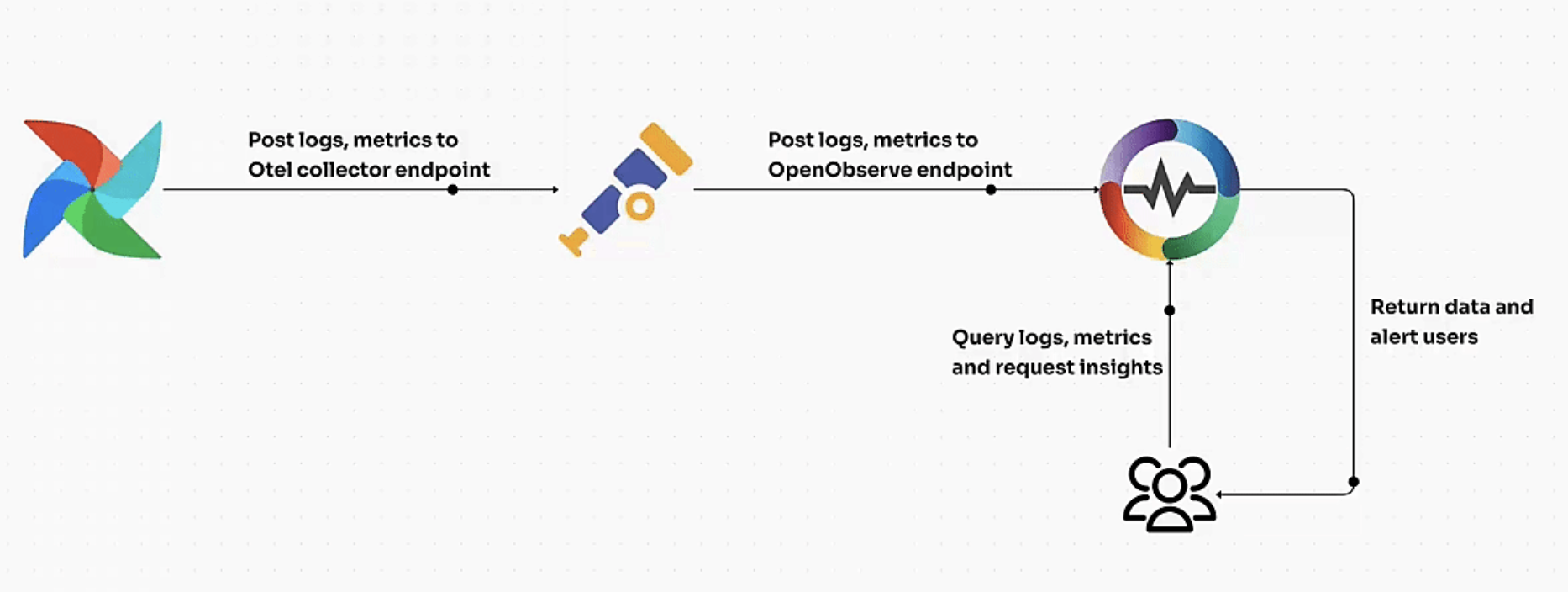

This guide explains how to monitor Apache Airflow using the OpenTelemetry Collector (otelcol) and export logs, metrics, and traces to OpenObserve for visualization.

Overview

Apache Airflow is a workflow automation and orchestration tool widely used for ETL pipelines, ML workflows, and data engineering tasks. Monitoring Airflow is critical for ensuring workflow reliability, debugging issues, and tracking system performance.

With OpenTelemetry and OpenObserve, you gain real-time observability into Airflow DAG runs, task execution, scheduler activity, and worker performance.

Steps to Integrate

Prerequisites

• OpenObserve account (Cloud or Self-Hosted)
• Apache Airflow installed and running
• Basic understanding of Airflow configs (airflow.cfg)
• OpenTelemetry Collector installed

Step 1: Configure Airflow for OpenTelemetry

Edit airflow.cfg to enable OTel metrics:

[metrics]
otel_on = True
otel_host = localhost
otel_port = 4318

Restart Airflow services after updating config:

airflow db migrate
airflow scheduler -D
airflow webserver -D

Step 2: Install OpenTelemetry Collector

1. Download and install the OTel Collector:

   wget https://github.com/open-telemetry/opentelemetry-collector-releases/releases/latest/download/otelcol-linux-amd64
   chmod +x otelcol-linux-amd64
   sudo mv otelcol-linux-amd64 /usr/local/bin/otelcol


2. Verify installation:

   otelcol --version


Step 3: Get OpenObserve Endpoint and Token

1. In OpenObserve: go to Data Sources → Otel Collector
2. Copy the Ingestion URL and Access Token


Step 4: Configure OpenTelemetry Collector

1. Create/edit config file:

   sudo vi /etc/otel-config.yaml


2. Add Airflow configuration:

   receivers:
     filelog/std:
       include:
         - /airflow/logs/*/*.log
         - /airflow/logs/scheduler/*/*/*/*.log
       start_at: beginning
     otlp:
       protocols:
         grpc:
         http:

   processors:
     batch:

   exporters:
     otlphttp/openobserve:
       endpoint: OPENOBSERVE_ENDPOINT
       headers:
         Authorization: "OPENOBSERVE_TOKEN"
         stream-name: airflow

   service:
     pipelines:
       metrics:
         receivers: [otlp]
         processors: [batch]
         exporters: [otlphttp/openobserve]
       logs:
         receivers: [filelog/std, otlp]
         processors: [batch]
         exporters: [otlphttp/openobserve]
       traces:
         receivers: [otlp]
         processors: [batch]
         exporters: [otlphttp/openobserve]


Replace placeholders with your OpenObserve details:

• OPENOBSERVE_ENDPOINT → API endpoint (e.g., https://api.openobserve.ai)
• OPENOBSERVE_TOKEN → Access token

Step 5: Start OpenTelemetry Collector

sudo systemctl start otel-collector
sudo systemctl status otel-collector
journalctl -u otel-collector -f

Check logs to confirm data is being sent to OpenObserve.

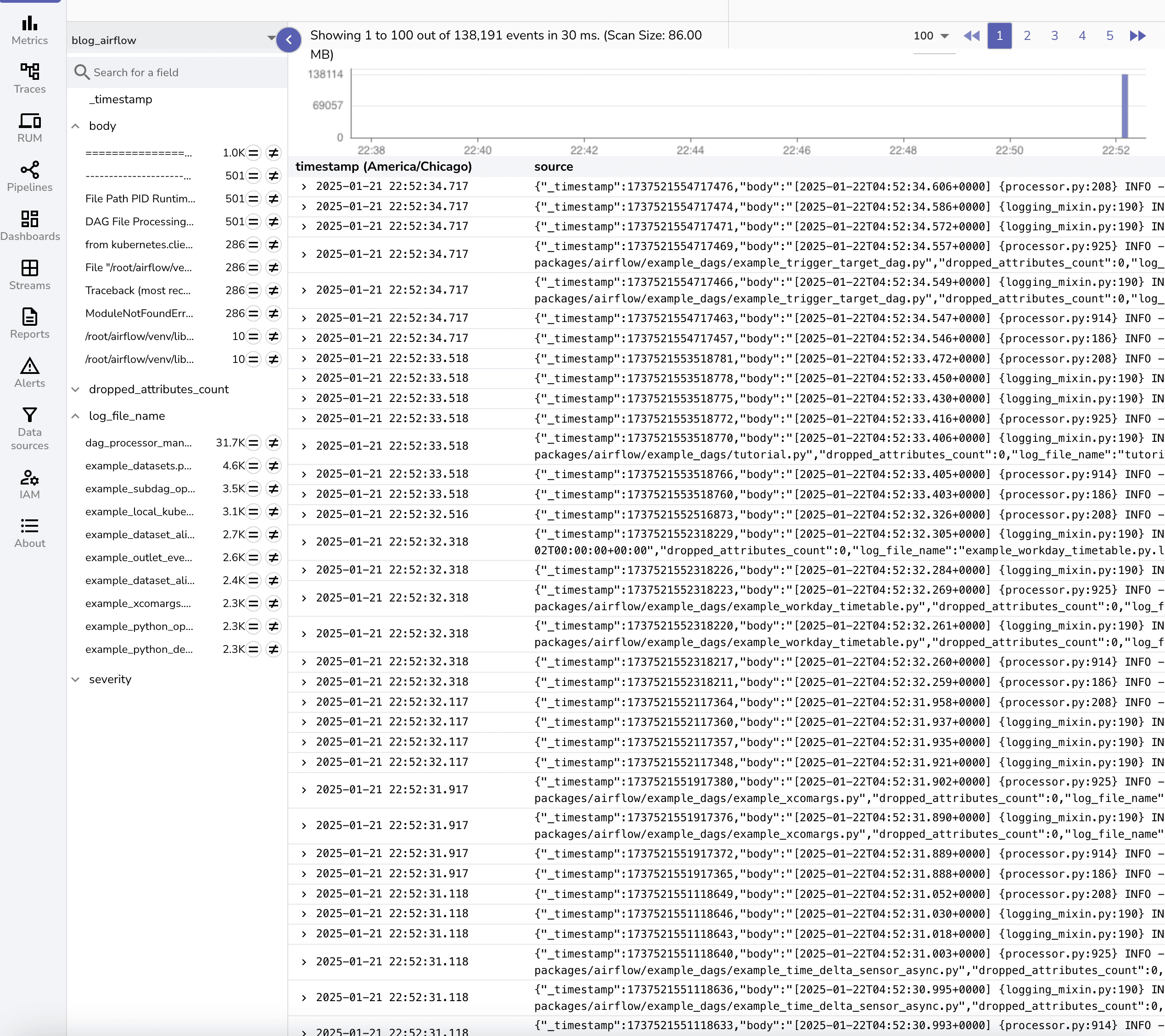

Step 6: Visualize Logs in OpenObserve

1. Go to Streams → airflow in OpenObserve to query logs.Airflow logs collected include: DAG execution logs, Scheduler logs, Worker logs and Task execution logs

Prebuilt Dashboards

Prebuilt Airflow dashboards are available. You can download the JSON file and import it.

Troubleshooting

• No Logs in OpenObserve

  • Ensure filelog receiver paths match your Airflow log directory.
  • Verify Collector service is running.

• Metrics Not Visible

  • Check otel_on = True in airflow.cfg.
  • Confirm Airflow is sending metrics to localhost:4318.

• Collector Fails to Start

  • Run dry check:

    otelcol --config /etc/otel-config.yaml --dry-run


  • Fix syntax or missing receivers.
