Ingest logs from Amazon ECS using AWS firelens

This guide provides step-by-step instructions to integrate Amazon Elastic Container Service (ECS) with OpenObserve for log ingestion using AWS FireLens.

Introduction

To send logs from ECS tasks (Fargate or EC2, Linux) to OpenObserve, use AWS FireLens with a Fluent Bit sidecar. FireLens routes container logs in ECS tasks to Fluent Bit, which then forwards them to OpenObserve.

We recommend Fluent Bit over Fluentd due to its lower resource usage. For existing tasks, update the task definition to include the Fluent Bit sidecar.

A sidecar is just an extra container that runs in the same ECS task (or Kubernetes pod) as your main application container, but it provides a supporting service rather than running the main app.

Steps to Integrate

Prerequisites
  1. An OpenObserve Cloud account or OpenObserve self hosted setup.
  2. A running ECS cluster that supports fargate. If you don't already have one, create one by following the documentation.

We will run our tasks using fargate for this demonstration.

Get OpenObserve Credentials

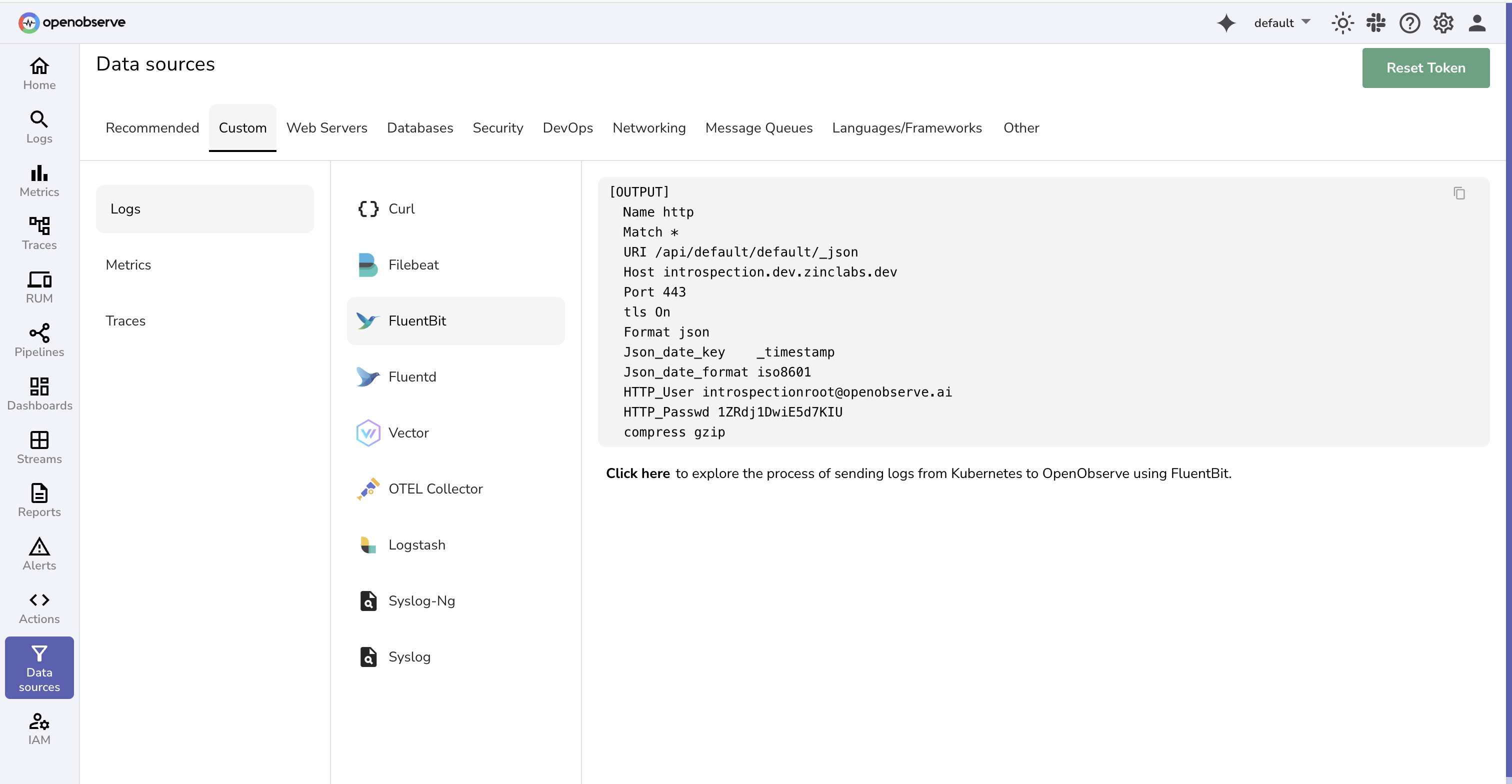

You can find the config details under Data sources -> fluentbit

Ingestion config

You can use the configuration details from this section in your task definition

Create ECS task definition

  1. Create the following file and save it as "nginx_firelens_zo_task_def.json"

    ECS task definition - nginx_firelens_zo_task_def.json
     1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
    {
  "family": "nginx_firelens_zo1",
  "taskRoleArn": "arn:aws:iam::058694856476:role/ecsTaskBasicRole",
  "executionRoleArn": "arn:aws:iam::058694856476:role/ecsTaskExecutionRole",
  "cpu": "512",
  "memory": "1024",
  "requiresCompatibilities": ["FARGATE"],
  "networkMode": "awsvpc",
  "containerDefinitions": [
    {
      "name": "log_router",
      "image": "docker.io/amazon/aws-for-fluent-bit:latest",
      "essential": true,
      "firelensConfiguration": {
        "type": "fluentbit",
        "options": {
          "enable-ecs-log-metadata": "true"
        }
      },
      "logConfiguration": {
        "logDriver": "awslogs",
        "options": {
          "awslogs-create-group": "true",
          "awslogs-group": "firelens-container",
          "awslogs-region": "us-west-2",
          "awslogs-stream-prefix": "firelens"
        }
      }
    },
    {
      "name": "nginx",
      "image": "nginx",
      "portMappings": [
        {
          "containerPort": 80
        }
      ],
      "essential": true,
      "environment": [],
      "logConfiguration": {
        "logDriver": "awsfirelens",
        "secretOptions": [],
        "options": {
          "Name": "http",
          "Match": "*",
          "uri": "/api/default/ecs_firelens1/_json",
          "host": "api.openobserve.ai",
          "Port": "443",
          "Format": "json",
          "tls": "on",
          "Json_date_key": "_timestamp",
          "Json_date_format": "iso8601",
          "http_User": "userid@domain.com",
          "http_Passwd": "67qlgdw673R2905"
        }
      }
    }
  ]
}

    • logDriver in this case is awsfirelens. All the logs for nginx container will be sent to fluentbit using awsfirelens.
    • options section has http output plugin configuration for fluentbit. Configure this section with the values you got from OpenObserve.

  2. Register the task definition using the below command:

    aws ecs register-task-definition --cli-input-json file://nginx_firelens_zo_task_def.json
    We will also need to provide network configuration when using networkMode as awsvpc during service creation. Let's create a json file for that:
    Network configuration - network_config.json
    1
2
3
4
5
6
7
    {
  "awsvpcConfiguration": {
    "subnets": ["subnet-12345678", "subnet-23456789"],
    "securityGroups": ["sg-12345678"],
    "assignPublicIp": "ENABLED"
  }
}

Note: Do not set assignPublicIp on line 10 as ENABLED for real world scenarios. You do not want to access tasks directly. We are doing this now only for demonstration. You should always either front the services with a load balancer or AWS Cloud Map.

Create ECS service

Now let's create an ECS service that will use this task definition.

Assuming the name of your cluster - ecs1_fargate_cluster1 run below command:

aws ecs create-service --cluster ecs1_fargate_cluster1 \
    --service-name nginx_zo1 \
    --task-definition nginx_firelens_zo1 \
    --network-configuration file://network_config.json \
    --desired-count 1 \
    --launch-type "FARGATE"
Verify result

  1. If all goes well, you should see a running service on ECS console: ECS service

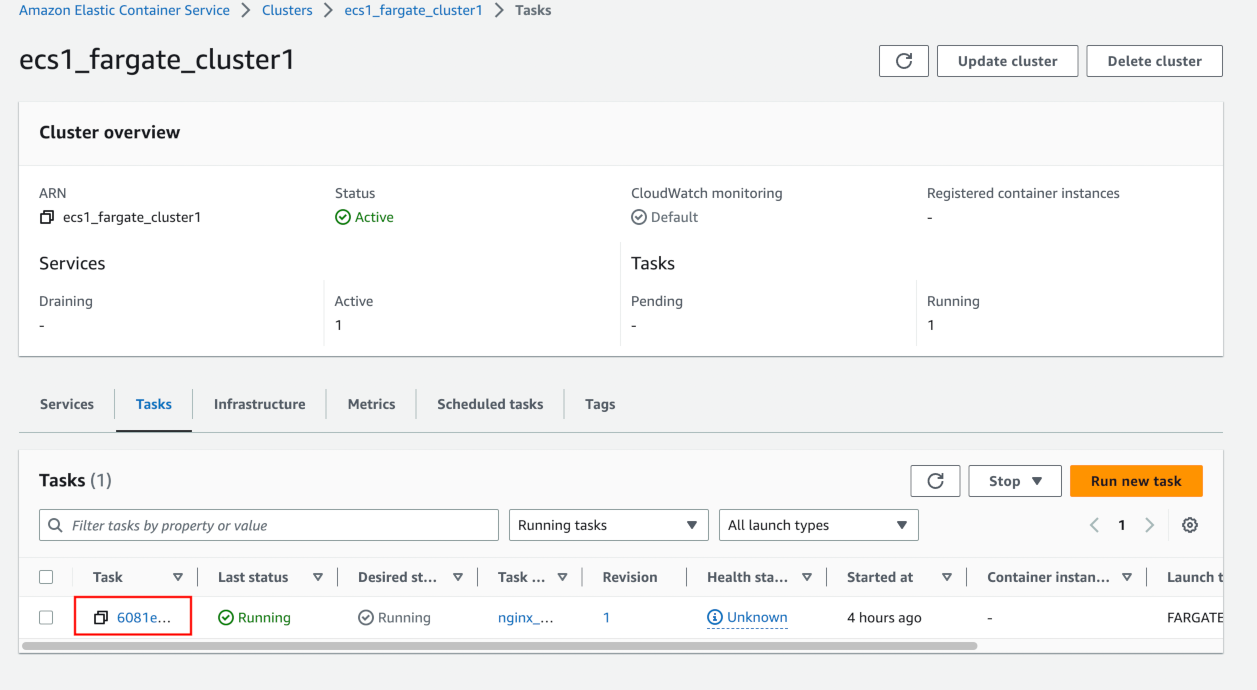

  2. Now click on the tasks tab. You should see a task running as part of the service: ECS task

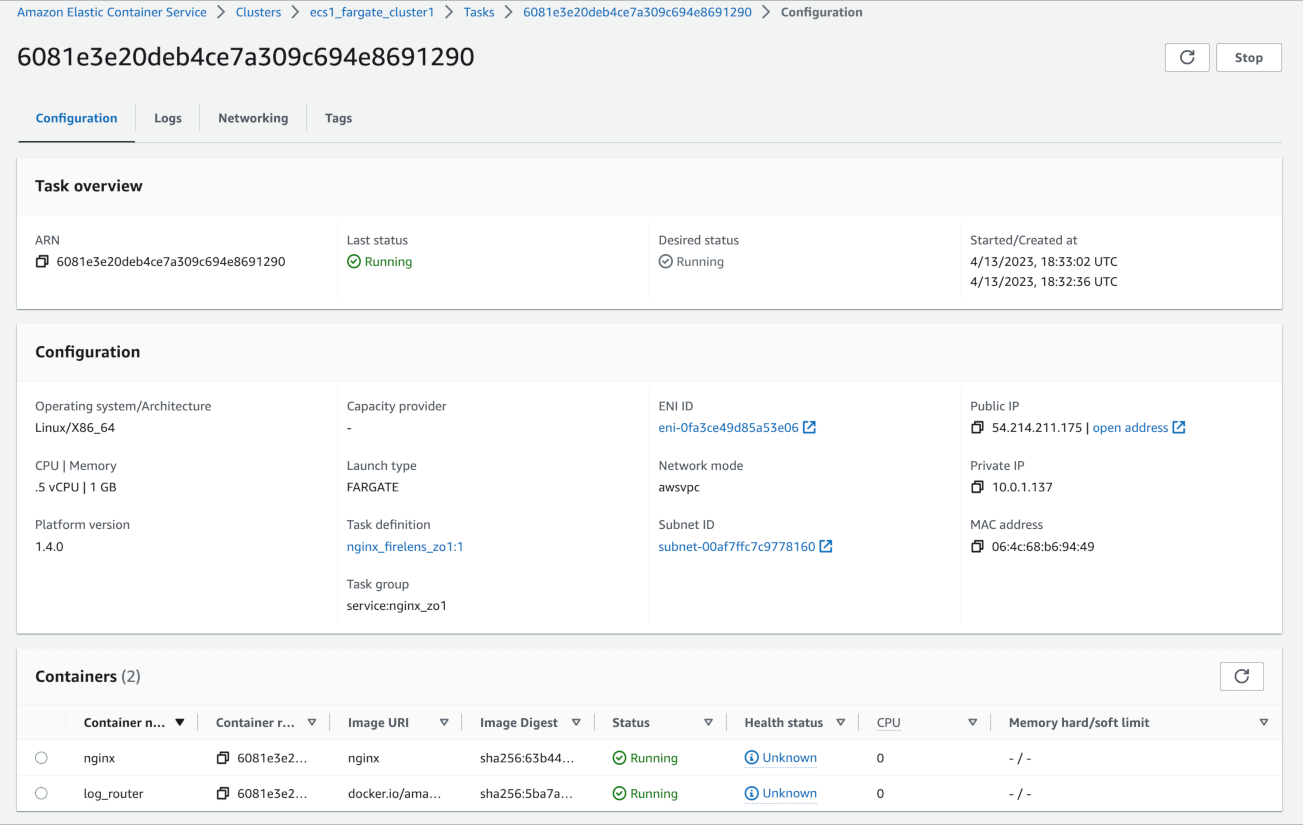

  3. Now click on the task: Task details

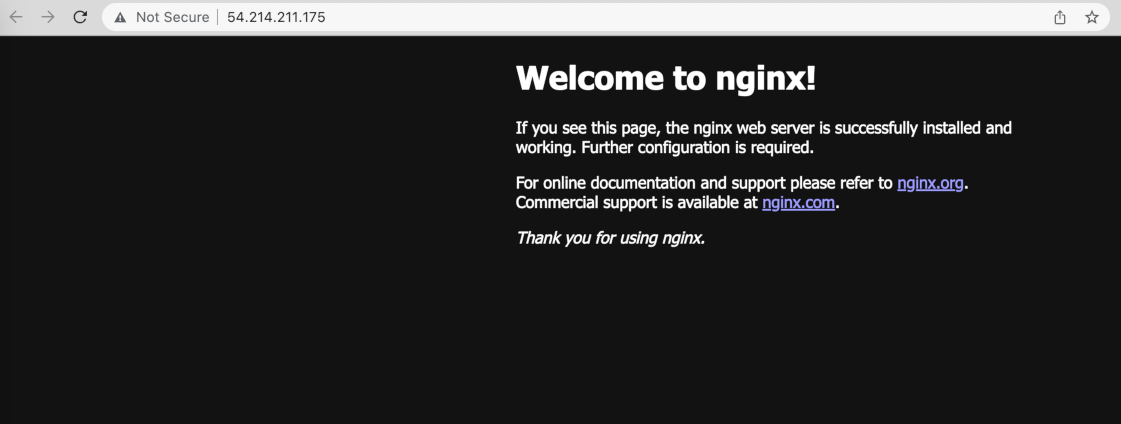

  4. You should see the Public IP for the task. Click open address. You should see the following page: Nginx page

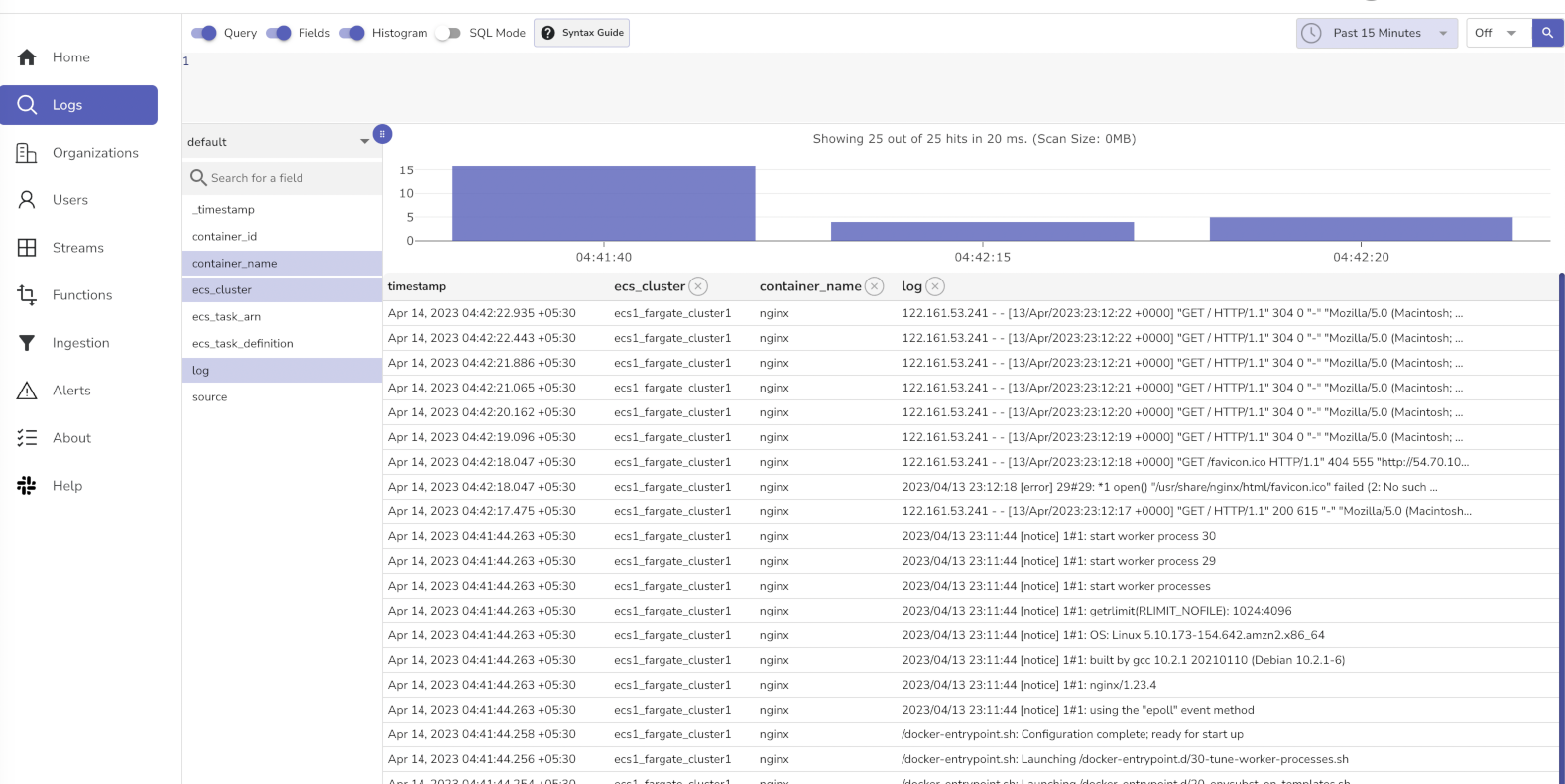

  5. Now head on the OpenObserve / OpenObserve Cloud and see the logs flowing in there. ECS logs in OpenObserve

Conclusion

AWS firelens provides an easy way to send ECS container logs to OpenObserve. We configured AWS firelens in few steps to send logs to OpenObserve / OpenObserve Cloud. to easily view and analyze logs.
