Oracle Database Integration with OpenObserve

This guide provides step-by-step instructions to collect and monitor Oracle Database metrics and logs using the OpenTelemetry Collector and forward them to OpenObserve.

Overview

Oracle Database is the backbone of many enterprise applications, handling mission-critical workloads. Monitoring Oracle is essential for:

• Identifying performance bottlenecks (CPU, I/O, slow queries).
• Tracking resource usage (sessions, locks, tablespaces).
• Analyzing logs for troubleshooting, auditing, and compliance.

With the OpenTelemetry Collector and OpenObserve, you can ingest Oracle Database metrics and logs, build dashboards, and set up alerts for proactive monitoring.

Steps to Integrate

Prerequisites

• A running Oracle Database instance (local via Docker or remote).
• OpenObserve account (Cloud or Self-Hosted).

Step 1: Configure Oracle Database

Once database is ready to use:

1. Connect via SQL*Plus:

   sqlplus system/password123@localhost:1521/XE


2. Create a monitoring user:

   CREATE USER otel IDENTIFIED BY password123;
   GRANT CONNECT, RESOURCE TO otel;
   GRANT SELECT ON V_$SESSION TO otel;
   GRANT SELECT ON V_$SYSSTAT TO otel;
   GRANT SELECT ON V_$RESOURCE_LIMIT TO otel;
   GRANT SELECT ON DBA_TABLESPACES TO otel;
   GRANT SELECT ON DBA_DATA_FILES TO otel;
   GRANT SELECT ON DBA_TABLESPACE_USAGE_METRICS TO otel;
   EXIT;


Step 2: Install OpenTelemetry Collector Contrib

Download the latest release:

curl --proto '=https' --tlsv1.2 -fOL \
  https://github.com/open-telemetry/opentelemetry-collector-releases/releases/download/v0.115.1/otelcol-contrib_0.115.1_darwin_arm64.tar.gz
tar -xvf otelcol-contrib_0.115.1_darwin_arm64.tar.gz
sudo mv otelcol-contrib /usr/local/bin/
otelcol-contrib --version

Replace v0.115.1 with the latest release for your OS/architecture.

Step 3: Configure the Collector

Create a file named config.yaml:

receivers:
  oracledb:
    endpoint: localhost:1521
    username: otel
    password: password123
    service: XE
    collection_interval: 30s
    timeout: 10s

  filelog:
    include:
      - /var/log/oracle/*.log  # Adjust based on your Oracle setup

processors:
  batch:
    send_batch_size: 10000
    timeout: 10s

exporters:
  otlphttp/openobserve:
    endpoint: https://<your-openobserve-endpoint>/api/default
    headers:
      Authorization: Basic <your_auth_token>
      stream-name: default

service:
  pipelines:
    metrics:
      receivers: [oracledb]
      processors: [batch]
      exporters: [otlphttp/openobserve]

    logs:
      receivers: [filelog]
      processors: [batch]
      exporters: [otlphttp/openobserve]

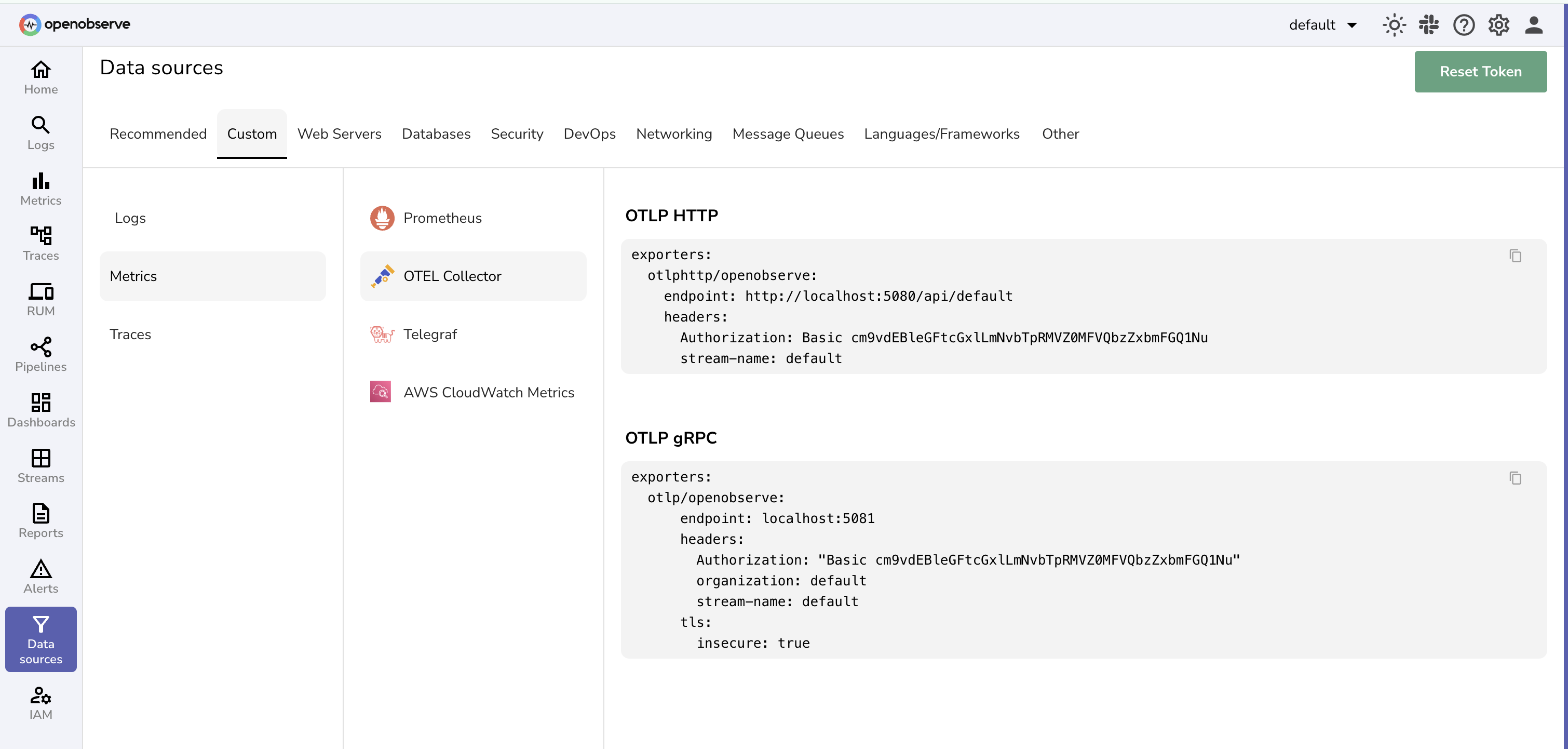

Replace <your-openobserve-endpoint> and <your_auth_token> with your OpenObserve details.

Step 4: Run the Collector

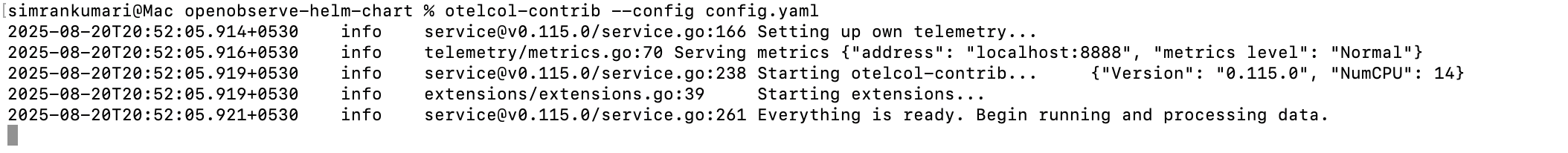

Start the Collector:

otelcol-contrib --config /path/to/config.yaml

Step 5: Visualize in OpenObserve

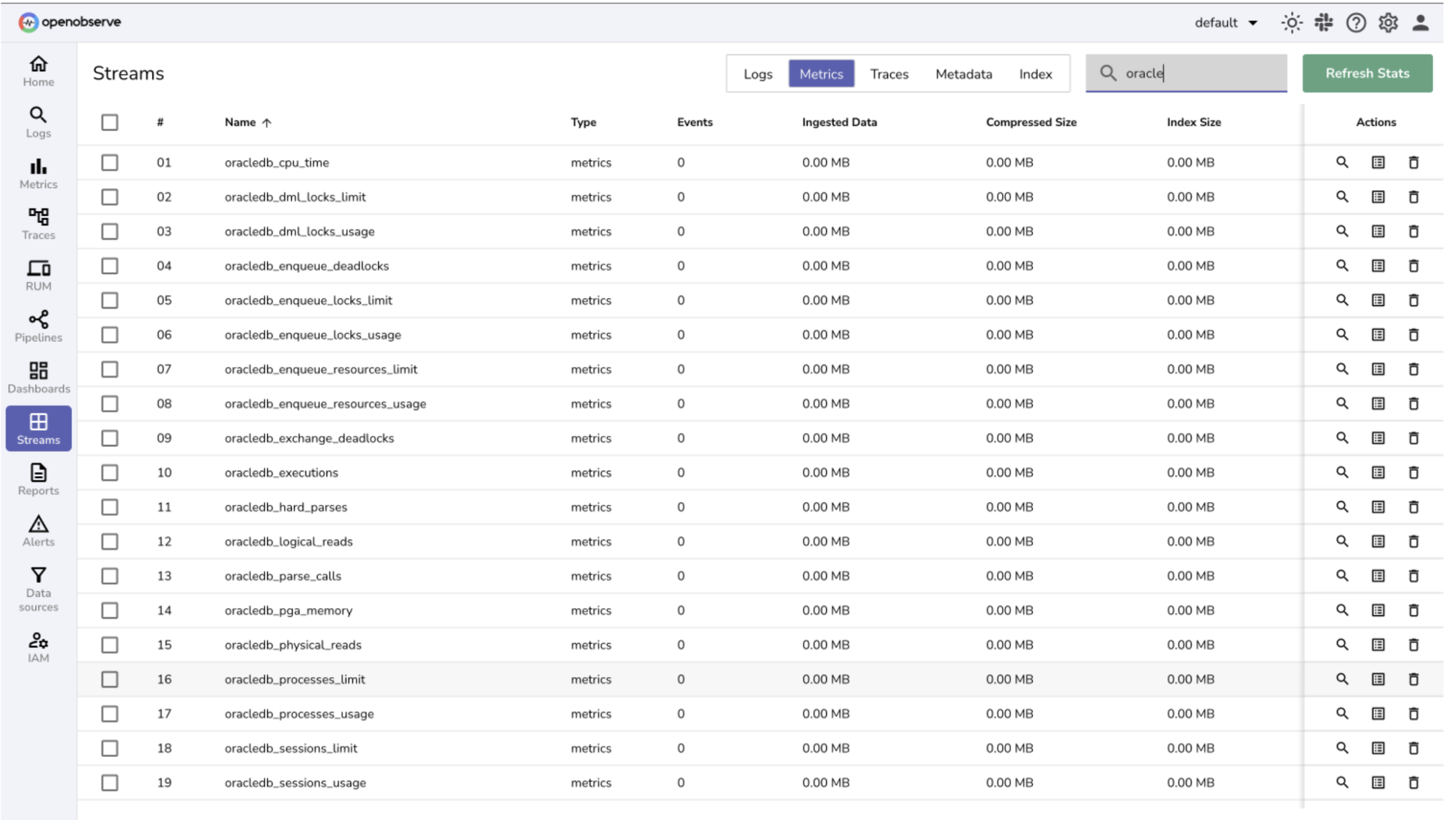

1. Open OpenObserve → Streams and select your Oracle metrics/logs stream.

2. Create dashboards to track:
   • Active sessions
   • Tablespace usage
   • Query executions & rollbacks
   • CPU and I/O utilization

You can make use of pre-built dashboards here.

Troubleshooting

Common issues and fixes:

Database Connectivity

• Verify Oracle is running: docker ps | grep oracle-xe
• Test port: telnet localhost 1521
• SQL*Plus login: sqlplus otel/password123@localhost:1521/XE

Authentication Issues

• Check user grants and password.
• Ensure correct service name (XE).

Logs Not Flowing

• Verify log file paths (docker exec -it oracle-xe ls /opt/oracle/diag/...).
• Adjust filelog.include paths.

Collector Errors

• Check startup logs: otelcol-contrib --config config.yaml.
• Increase timeout if queries are slow.
