Integration with NATS

This guide explains how to monitor NATS using the OpenTelemetry Collector (otelcol) and export both logs and metrics to OpenObserve for visualization.

Overview

NATS is a high-performance, cloud-native messaging system widely used in microservices, IoT, and distributed applications. Monitoring NATS is critical to ensure seamless communication, security, and performance. With OpenTelemetry and OpenObserve, you gain real-time visibility into NATS logs, message throughput, errors, and system resource usage.

Steps to Integrate

Prerequisites

• Docker installed
• OpenObserve account (Cloud or Self-Hosted)
• Basic understanding of Prometheus exporters

Step 1: Install NATS

1. Install dependencies:

   sudo apt update && sudo apt upgrade -y
   sudo apt install -y wget unzip


2. Download and install NATS server:

   wget https://github.com/nats-io/nats-server/releases/download/v2.10.26/nats-server-v2.10.26-linux-amd64.zip
   unzip nats-server-v2.10.26-linux-amd64.zip
   cd nats-server-v2.10.26-linux-amd64
   sudo mv nats-server /usr/local/bin/


3. Start NATS with JetStream enabled:

   nats-server -js


Step 2: Configure NATS Logging and Metrics

1. Create a configuration file:

   sudo mkdir -p /etc/nats
   sudo nano /etc/nats/nats.conf


   Add:

   pid_file: "/var/run/nats-server.pid"
   http: 8222

   log_file: "/var/log/nats-server.log"
   logtime: true
   debug: true
   trace: true


2. Start NATS with config file:

   nats-server -c /etc/nats/nats.conf


3. Verify logs:

   tail -f /var/log/nats-server.log


4. Start NATS Prometheus exporter:

   docker run -p 7777:7777 natsio/prometheus-nats-exporter:latest \
     -D -jsz=all -accstatz -connz_detailed -gatewayz -healthz \
     -connz -varz -subz \
     http://<NATS_SERVER_IP>:8222


   Metrics are now exposed on port 7777.

Step 3: Install OpenTelemetry Collector

Download and install the latest otelcol-contrib.

wget https://github.com/open-telemetry/opentelemetry-collector-releases/releases/download/v0.116.1/otelcol-contrib_0.116.1_linux_amd64.deb
sudo dpkg -i otelcol-contrib_0.116.1_linux_amd64.deb

Note: Replace version numbers in download links if a newer release is available. Always check the GitHub Releases page.

Step 4: Configure OpenTelemetry Collector

1. Edit config file:

   sudo vi /etc/otelcol-config.yaml


2. Add configuration:

   receivers:
     filelog/std:
       include: [ /var/log/nats-server.log ]
       start_at: beginning
     prometheus:
       config:
         scrape_configs:
           - job_name: 'nats'
             scrape_interval: 5s
             static_configs:
               - targets: ['localhost:7777']

   processors:
     batch:
       timeout: 5s

   exporters:
     otlphttp/openobserve:
       endpoint: OPENOBSERVE_ENDPOINT
       headers:
         Authorization: "OPENOBSERVE_TOKEN"
         stream-name: nats

   service:
     pipelines:
       metrics:
         receivers: [prometheus]
         processors: [batch]
         exporters: [otlphttp/openobserve]
       logs:
         receivers: [filelog/std]
         processors: [batch]
         exporters: [otlphttp/openobserve]


Replace placeholders:

• OPENOBSERVE_ENDPOINT → API endpoint (e.g., https://api.openobserve.ai)
• OPENOBSERVE_TOKEN → Access token from data sources page

Step 5: Restart OpenTelemetry Collector

sudo systemctl restart otel-collector
journalctl -u otel-collector -f

Check logs to verify NATS logs and metrics are flowing.

Step 6: Load Testing NATS (Optional)

Use nats bench to generate load:

In Terminal 1:

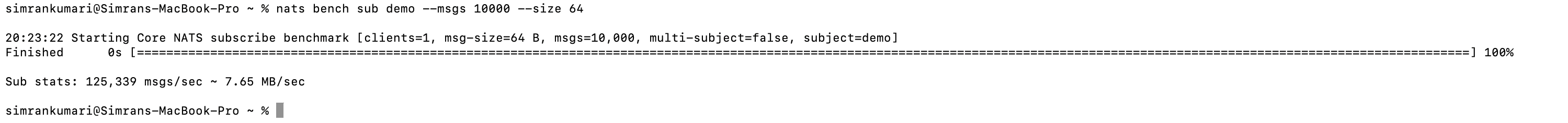

nats bench sub demo --msgs 10000 --size 64

In Terminal 2:

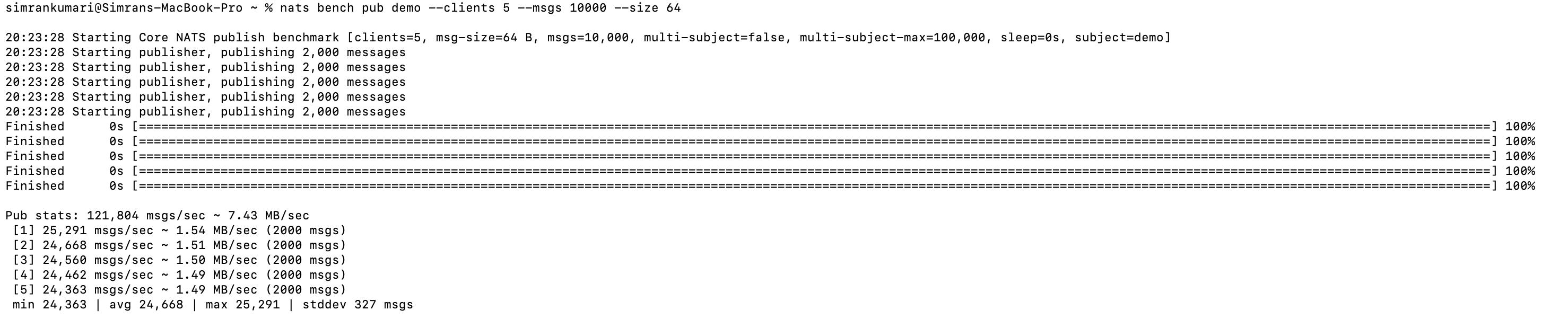

nats bench pub demo --clients 5 --msgs 10000 --size 64

Step 7: Visualize in OpenObserve

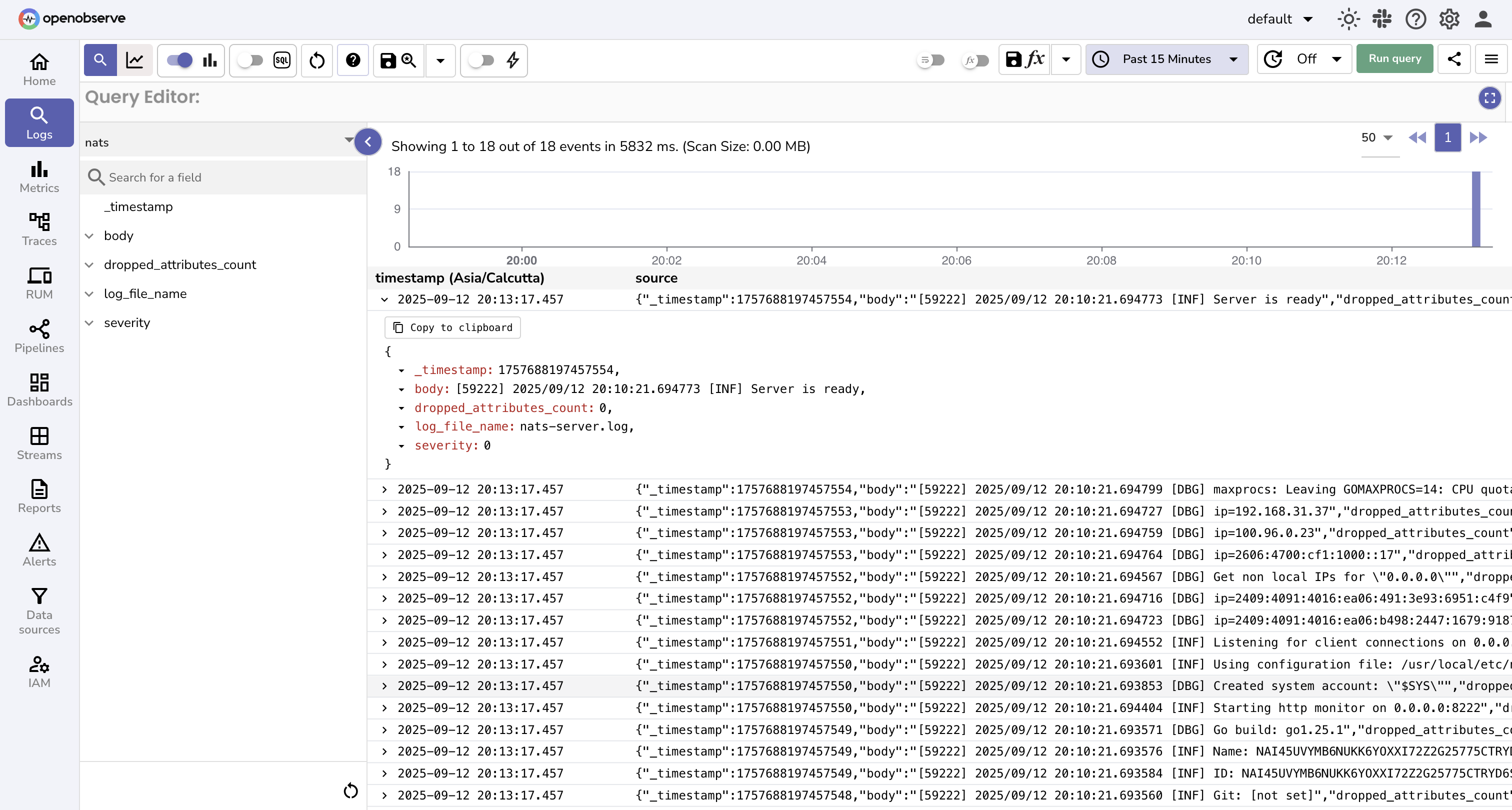

1. Log in to OpenObserve and explore the NATS stream under Logs.

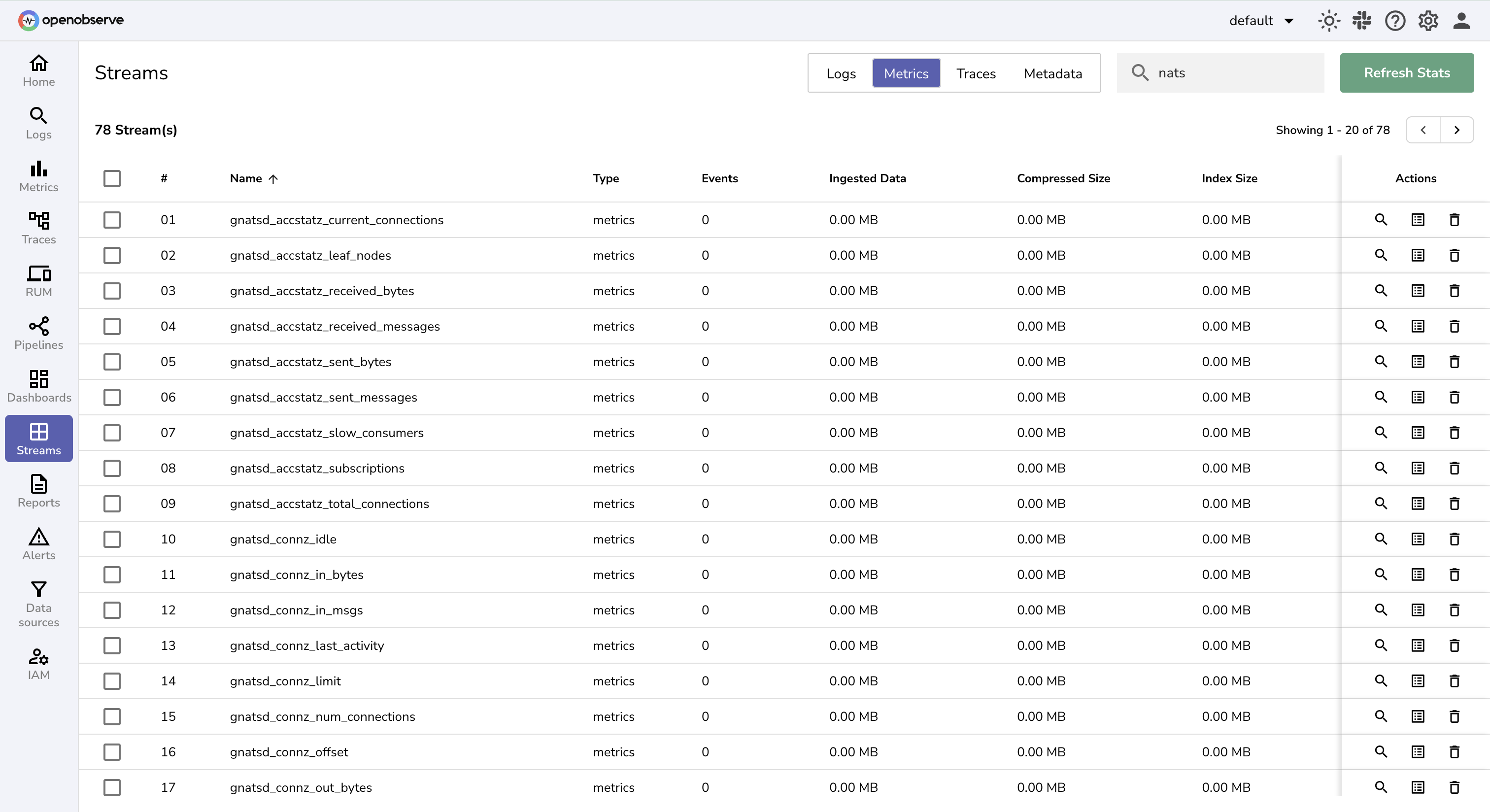

2. Explore the NATS stream under Metrics.

Tip

You can use preconfigured Dashboard in OpenObserve to to visualize real-time logs and metrics.

Troubleshooting

• No Logs in OpenObserve

  • Ensure filelog receiver points to /var/log/nats-server.log.
  • Verify OpenTelemetry Collector is running with correct config.

• Metrics Not Visible

  • Check that Prometheus exporter is running on localhost:7777.
  • Confirm scrape target matches the exporter port.

• Collector Fails to Start

• Check config file syntax with:

  otelcol --config /etc/otelcol-config.yaml --dry-run
