Integrating MuleSoft AMC Logs with OpenObserve

Introduction

MuleSoft’s Anypoint Monitoring Console (AMC) provides runtime logs for deployed Mule applications. While useful in the Anypoint platform, teams often want to centralize logs in an observability platform for better search, dashboards, and alerting.

Overview

This guide shows how to stream MuleSoft AMC logs into OpenObserve using a small Python script. The script authenticates to Anypoint with a username/password, fetches logs from AMC, and pushes them into OpenObserve.

Steps to Integrate

Prerequisites

A running MuleSoft CloudHub deployment (or Runtime Manager application).
Python 3.8+ installed.
OpenObserve account (Cloud or Self-Hosted)

Step 1: Create the Script

Save the following script as mulesoft_logs_to_openobserve.py:

import datetime
import requests
import time
import os, json

# ------------------------------
# Configuration
# ------------------------------
ANYPOINT_USERNAME = "YOUR_USERNAME"
ANYPOINT_PASSWORD = "YOUR_PASSWORD"
OPENOBSERVE_ENDPOINT = "https://<your-openobserve-endpoint>/api/default/mulesoft/_json"
OPENOBSERVE_API_TOKEN = "BASE64_ENCODED_USER:PASSWORD"
ANYPOINT_ORG_NAME = "<ANYPOINT_ORG_NAME>"
ANYPOINT_ENV_NAME = "<ANYPOINT_ENV_NAME>"
ANYPOINT_APP_NAME = "<ANYPOINT_APP_NAME>"
STATE_FILE = "last_log_time.json"

# ------------------------------
# Authentication
# ------------------------------
def get_anypoint_token(username, password):
    url = "https://anypoint.mulesoft.com/accounts/login"
    headers = {"Content-Type": "application/json"}
    payload = {"username": username, "password": password}
    resp = requests.post(url, headers=headers, json=payload)
    resp.raise_for_status()
    return resp.json().get("access_token")

# ------------------------------
# Helpers to resolve Org/Env/Deployment
# ------------------------------
def get_org_id(token, org_name):
    url = "https://anypoint.mulesoft.com/accounts/api/me"
    resp = requests.get(url, headers={"Authorization": f"Bearer {token}"})
    resp.raise_for_status()
    orgs = resp.json()["user"]["memberOfOrganizations"]
    return next(o["id"] for o in orgs if o["name"] == org_name)

def get_env_id(token, org_id, env_name):
    url = f"https://anypoint.mulesoft.com/accounts/api/organizations/{org_id}/environments"
    resp = requests.get(url, headers={"Authorization": f"Bearer {token}"})
    resp.raise_for_status()
    envs = resp.json()["data"]
    return next(e["id"] for e in envs if e["name"].lower() == env_name.lower())

def get_deployment_id(token, org_id, env_id, app_name):
    url = f"https://anypoint.mulesoft.com/amc/application-manager/api/v2/organizations/{org_id}/environments/{env_id}/deployments"
    resp = requests.get(url, headers={"Authorization": f"Bearer {token}"})
    resp.raise_for_status()
    deps = resp.json()["items"]
    return next(d["id"] for d in deps if d["name"] == app_name)

def get_spec_id(token, org_id, env_id, dep_id):
    url = f"https://anypoint.mulesoft.com/amc/application-manager/api/v2/organizations/{org_id}/environments/{env_id}/deployments/{dep_id}/specs"
    resp = requests.get(url, headers={"Authorization": f"Bearer {token}"})
    resp.raise_for_status()
    specs = resp.json()
    return specs[0].get("id") or specs[0].get("version")
# ------------------------------
# Log fetch + dedup state
# ------------------------------
def load_last_time():
    if os.path.exists(STATE_FILE):
        return json.load(open(STATE_FILE)).get("last_time")
    return None

def save_last_time(ts):
    json.dump({"last_time": ts}, open(STATE_FILE, "w"))

def fetch_amc_logs(access_token, org_id, env_id, dep_id, spec_id, start_time=None):
    headers = {"Authorization": f"Bearer {access_token}"}
    all_logs = []
    offset = 0
    size = 50  # fetch 50 logs per request

    while True:
        params = {"descending": "false", "size": size, "offset": offset}
        if start_time:
            params["startTime"] = start_time

        resp = requests.get(
            f"https://anypoint.mulesoft.com/amc/application-manager/api/v2/"
            f"organizations/{org_id}/environments/{env_id}/deployments/{dep_id}/specs/{spec_id}/logs",
            headers=headers,
            params=params
        )
        resp.raise_for_status()
        resp_json = resp.json()
        # print("DEBUG log response:", resp_json)  # 👈 check what’s coming back

        logs = resp_json

        if not logs:
            break

        all_logs.extend(logs)

        if len(logs) < size:
            break
        offset += size

    return all_logs



def parse_log(log):
    if isinstance(log, dict):
        return {
            "timestamp": log.get("timestamp", ""),
            "level": log.get("level", "INFO"),
            "message": log.get("message", "")
        }
    else:
        parts = log.split(" ", 2)
        return {
            "timestamp": parts[0] + " " + parts[1],
            "level": parts[2].split(" ", 1)[0],
            "message": parts[2].split(" ", 1)[1] if len(parts) >= 3 else log
        }

# ------------------------------
# Push to OpenObserve
# ------------------------------
def push_to_openobserve(logs, api_token, endpoint):
    headers = {"Authorization": f"Basic {api_token}", "Content-Type": "application/json"}
    for log_item in logs:
        log = parse_log(log_item)
        try:
            dt = datetime.datetime.strptime(log["timestamp"], "%Y-%m-%d %H:%M:%S")
            time_ns = int(dt.timestamp() * 1e9)
            time_ms = int(dt.timestamp() * 1000)
        except:
            now = time.time()
            time_ns = int(now * 1e9)
            time_ms = int(now * 1000)
        payload = {
            "timeUnixNano": time_ns,
            "severityText": log["level"],
            "name": "MuleApp",
            "body": log["message"],
            "app_name": ANYPOINT_APP_NAME
        }
        resp = requests.post(endpoint, headers=headers, json=payload)
        resp.raise_for_status()
    # return last timestamp in epoch millis
    return time_ms

# ------------------------------
# Main Flow
# ------------------------------
def main():
    print("Authenticating...")
    token = get_anypoint_token(ANYPOINT_USERNAME, ANYPOINT_PASSWORD)

    print("Resolving Org / Env / Deployment / Spec IDs...")
    org_id = get_org_id(token, ANYPOINT_ORG_NAME)
    env_id = get_env_id(token, org_id, ANYPOINT_ENV_NAME)
    dep_id = get_deployment_id(token, org_id, env_id, ANYPOINT_APP_NAME)
    spec_id = get_spec_id(token, org_id, env_id, dep_id)

    last_time = load_last_time()

    print("Fetching logs...")
    logs = fetch_amc_logs(token, org_id, env_id, dep_id, spec_id, start_time=last_time)

    if logs:
        print(f"Pushing {len(logs)} logs to OpenObserve...")
        latest_ts = push_to_openobserve(logs, OPENOBSERVE_API_TOKEN, OPENOBSERVE_ENDPOINT)
        save_last_time(latest_ts)
    else:
        print("No new logs.")

    print("Done ✅")

if __name__ == "__main__":
    main()

Install Dependencies"

python3 -m venv venv
source venv/bin/activate
pip install requests

Edit the script and set:
- ANYPOINT_USERNAME / ANYPOINT_PASSWORD → your MuleSoft account.
- ANYPOINT_ORG_NAME, ANYPOINT_ENV_NAME, ANYPOINT_APP_NAME.
- OPENOBSERVE_ENDPOINT → your OpenObserve API _json ingestion URL.
- OPENOBSERVE_API_TOKEN → base64-encoded user\:password.
Run Once
```
python mulesoft_logs_to_openobserve.py
```

Step 2: Verify Logs in OpenObserve

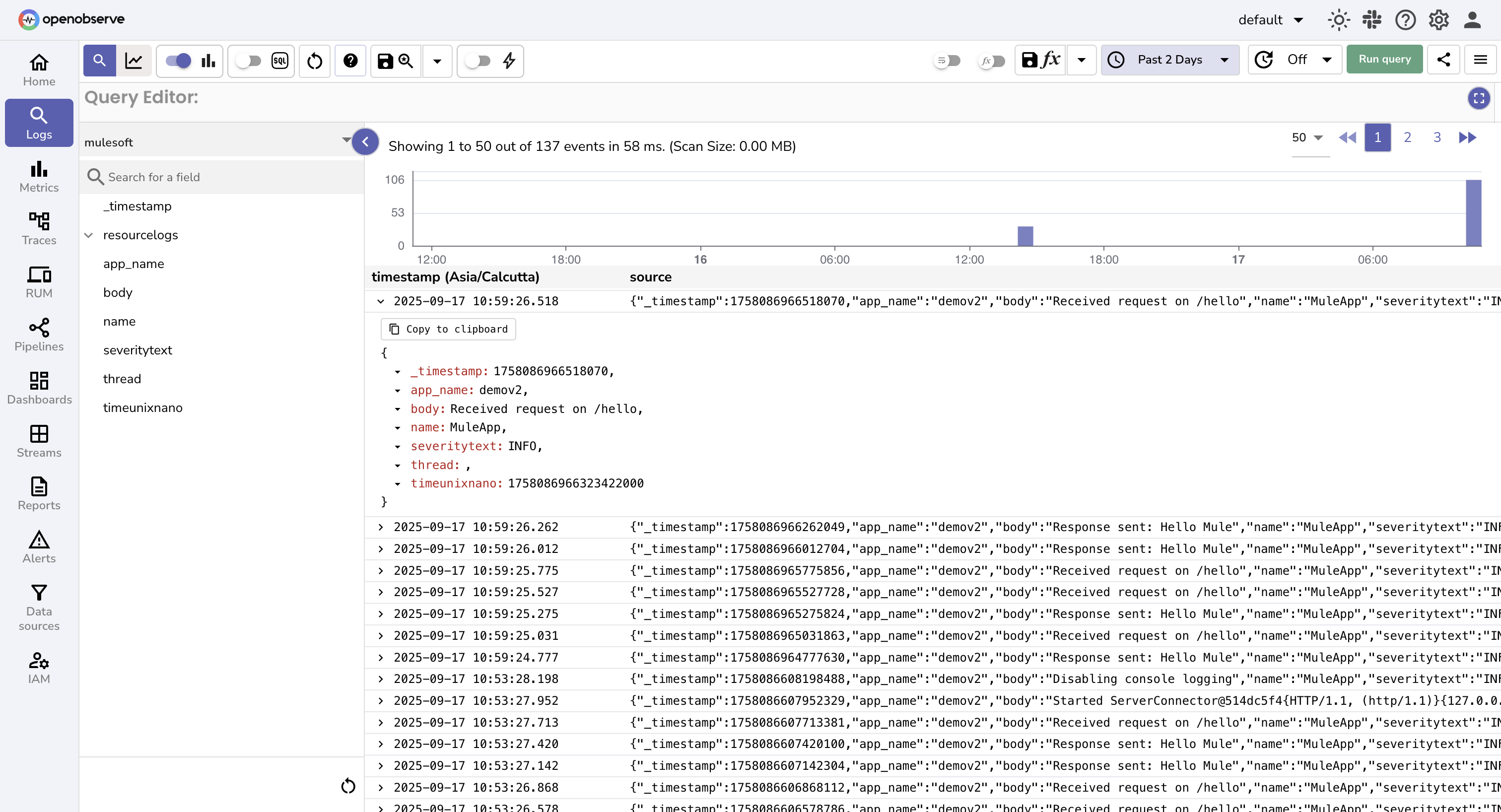

Go to Streams → mulesoft in OpenObserve to query logs.

Step 3: Automate

Run every 5 minutes with cron:

*/5 * * * * /path/to/venv/bin/python /path/to/mulesoft_logs_to_openobserve.py >> mule_logs.log 2>&1

Because the script saves the last log timestamp in last_log_time.json, it only pushes new logs each run.

Tip

CloudHub Logs: If your organization has enabled CloudHub, you can explore the CloudHub API to fetch instance logs programmatically.
Custom Log Appenders: For more reliable log extraction, consider using Mule Custom Log Appenders instead of relying on the API. This allows you to push logs directly to OpenObserve or other observability platforms with minimal loss.
Pagination & Limits: Always use pagination (offset + limit) when fetching logs to avoid missing older logs.

Troubleshooting

No logs fetched
- Verify AnyPoint credentials, org/env/app/spec names, and that the app is running. Use debug prints to check IDs.
Duplicate logs
- Ensure last_log_time.json is updated and start_time is passed when fetching logs.
Cron job not running
- Check syntax (/5 * * *) and Python path (which python3). Redirect output to a log file for debugging.
Python not found
- Use the full virtualenv Python path in cron.
API errors
- Print API responses to debug 401/404 issues.
