Integration with Oracle WebLogic

This guide explains how to forward Oracle WebLogic Server logs to OpenObserve using Fluent Bit.

Overview

Oracle WebLogic Server is a Java EE application server for enterprise-scale apps, offering clustering, load balancing, and high availability. It generates logs such as server logs (<server_name>.log) for runtime events and access logs (access.log) for HTTP traffic. These logs are plain text, rotated locally, and often look like:

####<2025-08-04T09:00:00.123+0530> <Error> <Thread-12> <weblogic.servlet.internal.WebAppServletContext> <BEA-000000> <Failed to load class com.example.MyClass>

While rich in detail, native WebLogic logging was built for manual inspection, not observability. Logs remain scattered across servers, lack real-time streaming, use unstructured formats that are hard to parse, and offer limited alerting through WLDF.


By combining Fluent Bit for collection with OpenObserve VRL pipelines for parsing, you can transform these raw logs into structured, searchable, and actionable data.

Prerequisites
  • An OpenObserve account (self-hosted or cloud)
  • A running Oracle WebLogic Server (AdminServer or ManagedServer)
  • Access to log files (AdminServer.log, access.log, etc.)
  • Fluent Bit installed on the WebLogic host (installation guide)
Step 1: Collect OpenObserve Credentials
  1. Move to Data Sources page.
  2. Under Custom tab → Logs → Fluentbit

  3. Copy the entire output section snippet for Fluent Bit.

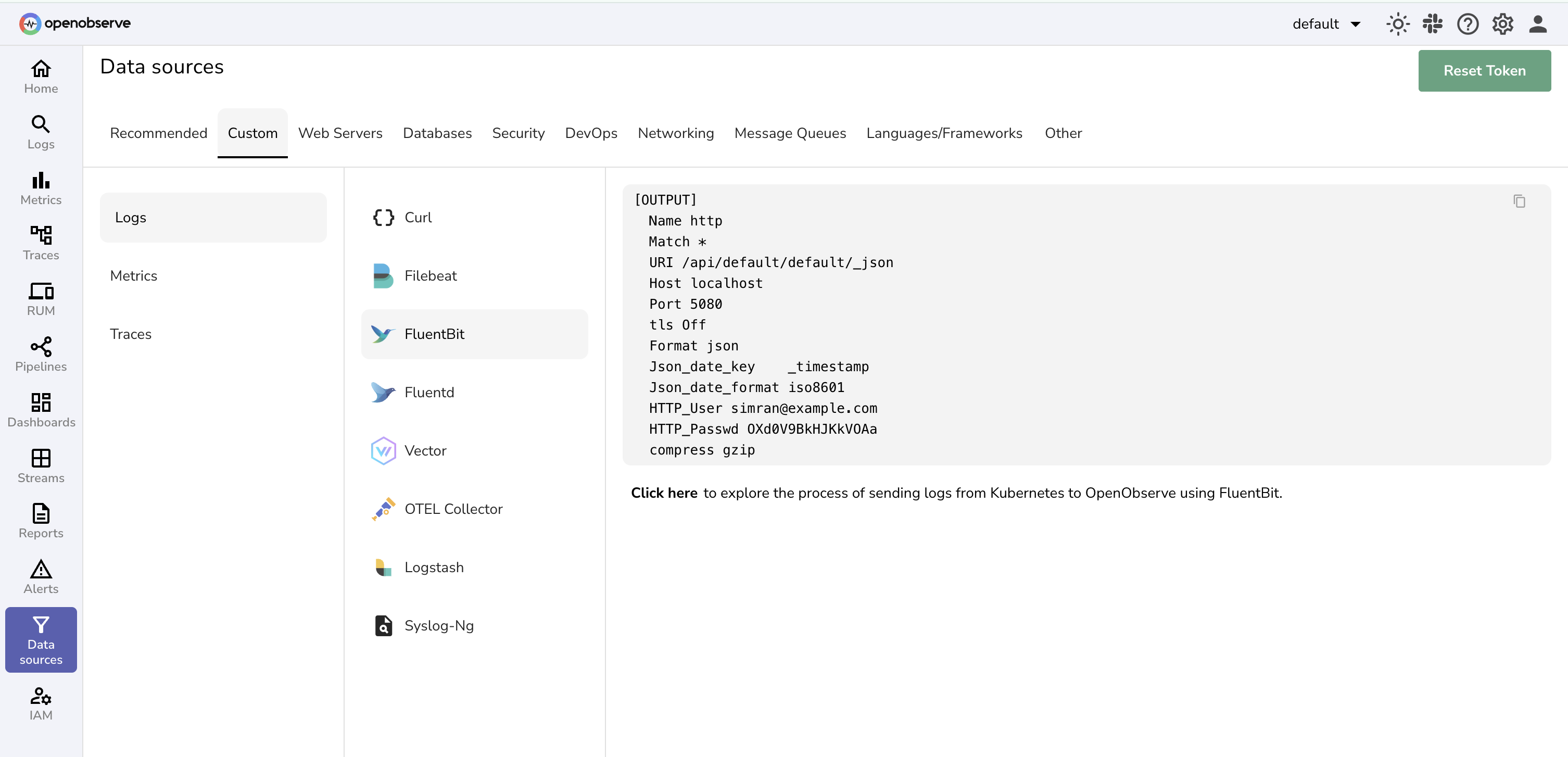

    Collect OpenObserve Credentials

Step 2: Configure Fluent Bit

  1. Create or edit /etc/fluent-bit/fluent-bit.conf:

    [SERVICE]
    Flush        5
    Log_Level    info

[INPUT]
    Name         tail
    Path         /opt/weblogic/user_projects/domains/base_domain/servers/AdminServer/logs/AdminServer.log
    Tag          weblogic
    DB           /var/log/flb_adminserver.db

[OUTPUT]
    Name http
    Match *
    URI /api/<org_name>/<stream_name>/_json
    Host <host>
    Port 5080
    tls Off
    Format json
    Json_date_key    _timestamp
    Json_date_format iso8601
    HTTP_User <openobserve_username>
    HTTP_Passwd <openobserve_password>
    compress gzip

    Replace:

    • <org_name> → your OpenObserve organization
    • <stream_name> → stream name (e.g. weblogic-logs)
    • <host> → OpenObserve hostname
    • <openobserve_username>/<openobserve_password> → your credentials

  2. Start Fluent Bit:

fluent-bit -c /etc/fluent-bit/fluent-bit.conf

Trigger WebLogic events (restart server, deploy app, etc.) to generate logs.

Step 3: Verify Logs in OpenObserve
  1. Navigate to Streams → weblogic-logs in OpenObserve.

  2. You should see raw entries like:

    {
"_timestamp": "2025-08-04T09:00:00.123+0530",
"log": "####<2025-08-04T09:00:00.123+0530> <Error> <Thread-12> <weblogic.servlet.internal.WebAppServletContext> <BEA-000000> <Failed to load class com.example.MyClass>"
}

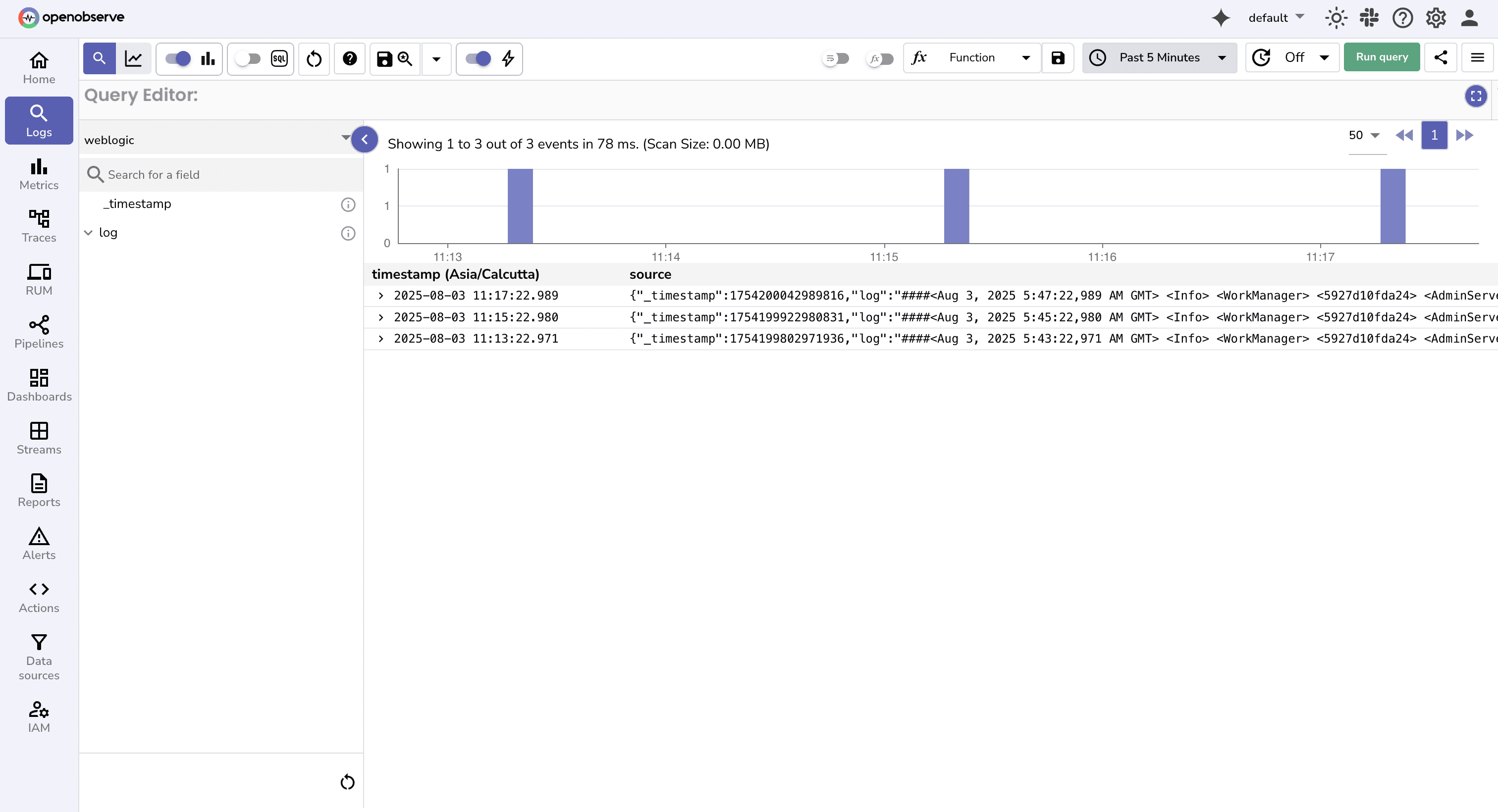

Verify Logs in OpenObserve

Step 4: Parse Logs with VRL

To make logs searchable, parse them using VRL (Vector Remap Language):

  1. Go to Streams → weblogic-logs → VRL Function Editor

  2. Add the following VRL mapping:

    .match = parse_regex!(
.log,
r'^####<(?P<timestamp>[^>]+)>\s+<(?P<level>[^>]+)>\s+<(?P<component>[^>]+)>\s+(?P<message>.*)$'
)

.level = .match.level
.component = .match.component
.timestamp = .match.timestamp
.message = .match.message
del(.match)

Example

  • Input:

    ####<2025-08-04T09:00:00.123+0530> <Error> <Thread-12> <Failed to load class com.example.MyClass>

  • Parsed Output:

    {
"timestamp": "2025-08-04T09:00:00.123+0530",
"level": "Error",
"component": "Thread-12",
"message": "Failed to load class com.example.MyClass"
}

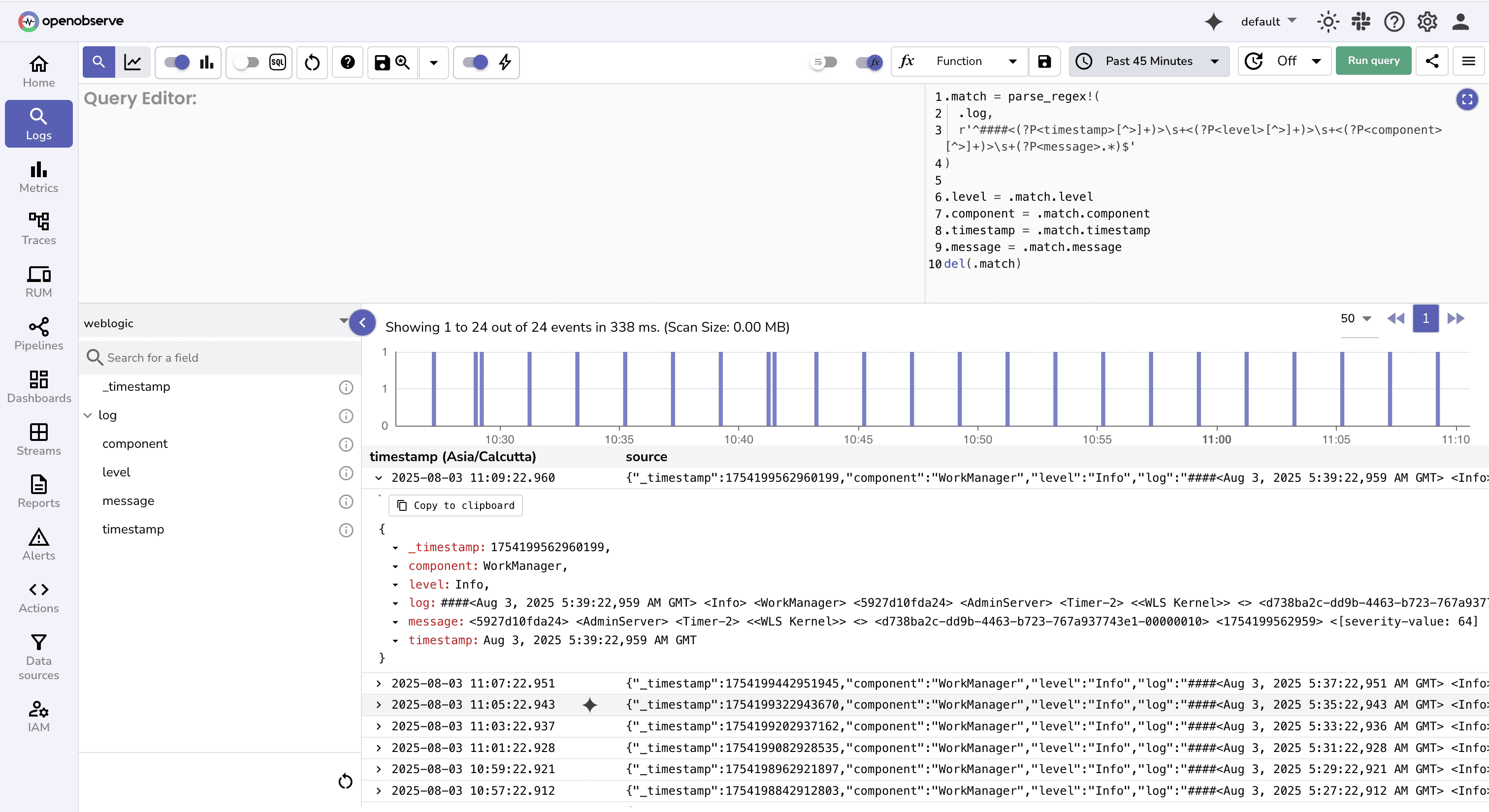

Parse Logs with VRL Next you can:

  • Search by level, component, or message
  • Build dashboards (e.g., error rates, slow components)
  • Configure alerts (e.g., trigger on Error in specific component)

Troubleshooting

  • No logs in OpenObserve

    • Check Fluent Bit logs for errors
    • Ensure URI follows /api/<org>/<stream>/_json pattern
    • Verify credentials and org/stream names (case-sensitive)

  • Logs appear but fields missing

    • Regex mismatch in VRL script — adjust for your log format

  • Test ingestion manually

curl -X POST \
  -H "Authorization: Basic <AUTH_KEY>" \
  -H "Content-Type: application/json" \
  -d '[{"log": "test log"}]' \
  https://<OPENOBSERVE_HOST>/api/<ORG>/<STREAM>/_json
