End-to-End Guide: Configuring and Monitoring Zookeeper with OpenTelemetry Receiver
Chaitanya Sistla
December 24, 2024
3 min read
Don’t forget to share!

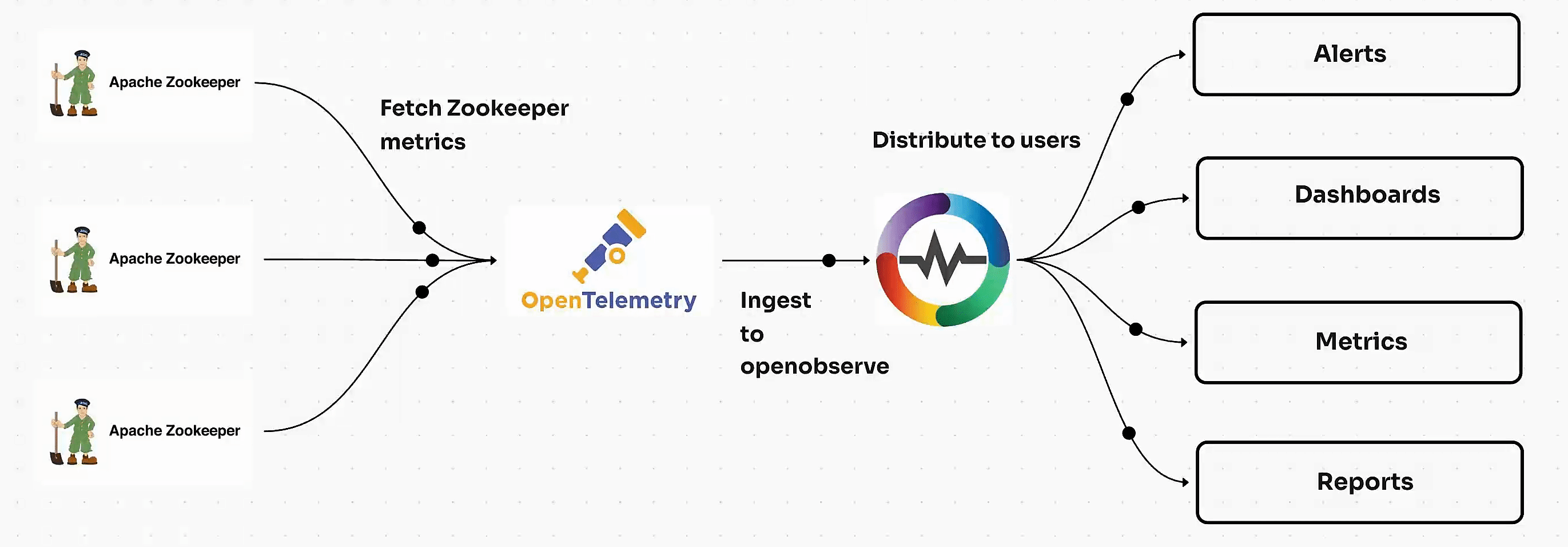

Apache Zookeeper is a centralized service for maintaining configuration information, naming, providing distributed synchronization, and group services. Monitoring Zookeeper is critical to ensure its availability and performance. In this guide, we will install Zookeeper on Ubuntu, configure the OpenTelemetry (OTel) Contrib Receiver for Zookeeper metrics, and visualize the metrics in OpenObserve by creating meaningful dashboards.
Why Monitor Zookeeper?
Monitoring Zookeeper is crucial for the following reasons:
- Ensure High Availability: Zookeeper plays a central role in distributed systems, and any downtime can disrupt dependent services.
- Track Performance Metrics: Monitoring CPU, memory, and connection metrics helps identify bottlenecks and optimize resource usage.
- Detect Anomalies: Observing trends and metrics enables early detection of issues like increased latency, excessive connections, or other failures.
- Audit Usage: Understanding the number of active clients and their interactions ensures proper resource allocation and usage.
Prerequisites
- Ubuntu server (20.04 or later recommended)
- Basic understanding of Zookeeper
Step 1: Installing Apache Zookeeper on Ubuntu
Installation Steps
- Update the package index:
sudo apt update && sudo apt upgrade -y
- Install Java:
sudo apt install openjdk-11-jdk -y
- Verify the Java installation:
java -version
- Download Zookeeper:
wget https://dlcdn.apache.org/zookeeper/zookeeper-3.9.3/apache-zookeeper-3.9.3-bin.tar.gz
- Extract and move to the installation directory:
tar -xvzf apache-zookeeper-3.9.3-bin.tar.gz
sudo mv apache-zookeeper-3.9.3-bin /usr/local/zookeeper
- Create a configuration file: Navigate to the configuration directory and create
zoo.cfg:
sudo touch /usr/local/zookeeper/conf/zoo.cfg
- Add the following content:
tickTime=2000
dataDir=/opt/zookeeper/data
clientPort=2181
maxClientCnxns=60
4lw.commands.whitelist=mntr,ruok,conf,envi,stat
- Create the data directory:
sudo mkdir -p /var/lib/zookeeper
- Start Zookeeper:
/opt/zookeeper/bin/zkServer.sh start
- Verify it is running:
/opt/zookeeper/bin/zkServer.sh status
Step 2: Configuring OpenTelemetry Contrib Receiver for Zookeeper
Installation Steps
- Install OpenTelemetry Collector: Follow the official OpenTelemetry Collector installation guide:
wget https://github.com/open-telemetry/opentelemetry-collector-releases/releases/download/v0.116.1/otelcol-contrib_0.116.1_linux_amd64.deb
sudo dpkg -i otelcol-contrib_0.116.1_linux_amd64.deb
- Configure the Zookeeper Receiver: Edit the Collector configuration file:
sudo vi /etc/otelcol-contrib/config.yaml
Add the following configuration:

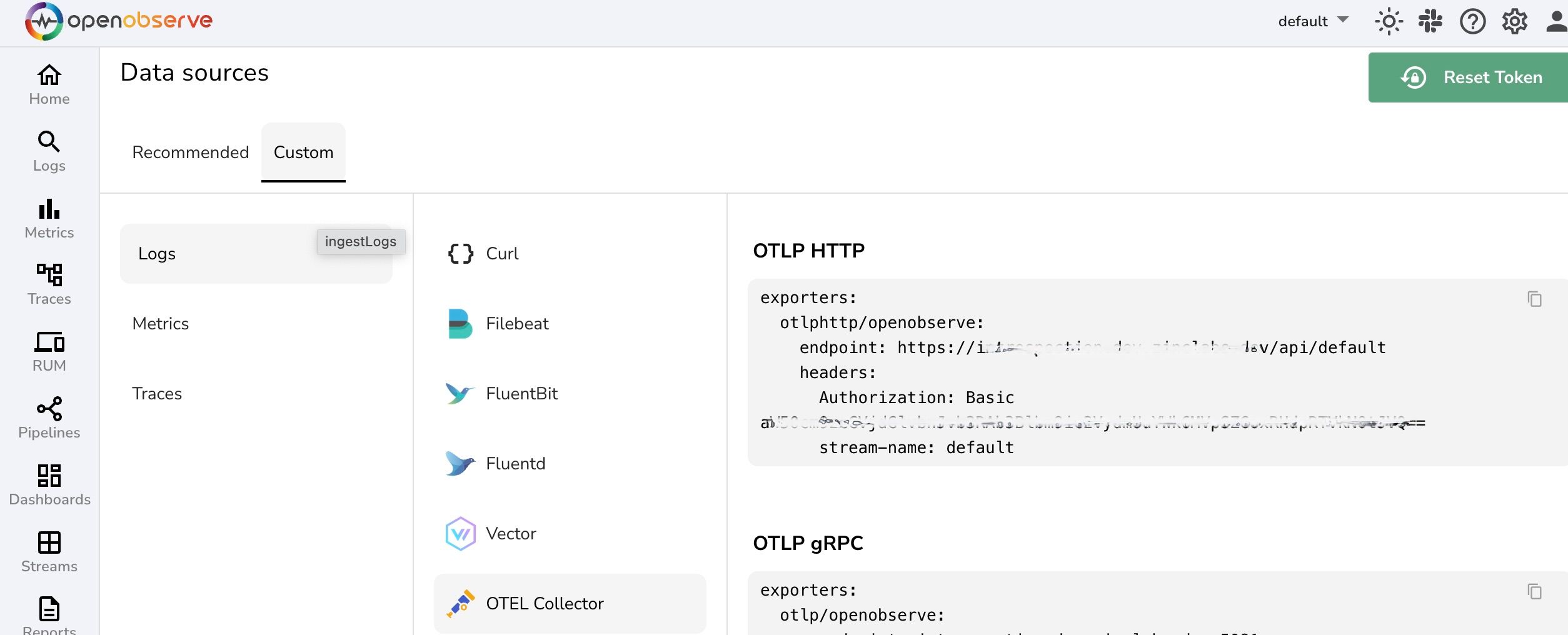

Make sure to replace OPENOBSERVE_ENDPOINT, OPENOBSERVE_TOKEN and OPENOBSERVE_STREAM with your platform's details that are found within OpenObserve data sources section.
receivers:
zookeeper:
endpoint: "localhost:2181"
exporters:
otlphttp/openobserve:
endpoint: OPENOBSERVE_ENDPOINT
headers:
Authorization: OPENOBSERVE_TOKEN
stream-name: OPENOBSERVE_STREAM
service:
pipelines:
metrics:
receivers: [zookeeper]
exporters: [otlphttp/openobserve]
- Start the OpenTelemetry Collector:
sudo systemctl start otelcol-contrib
- Check the service status:
sudo systemctl status otelcol-contrib

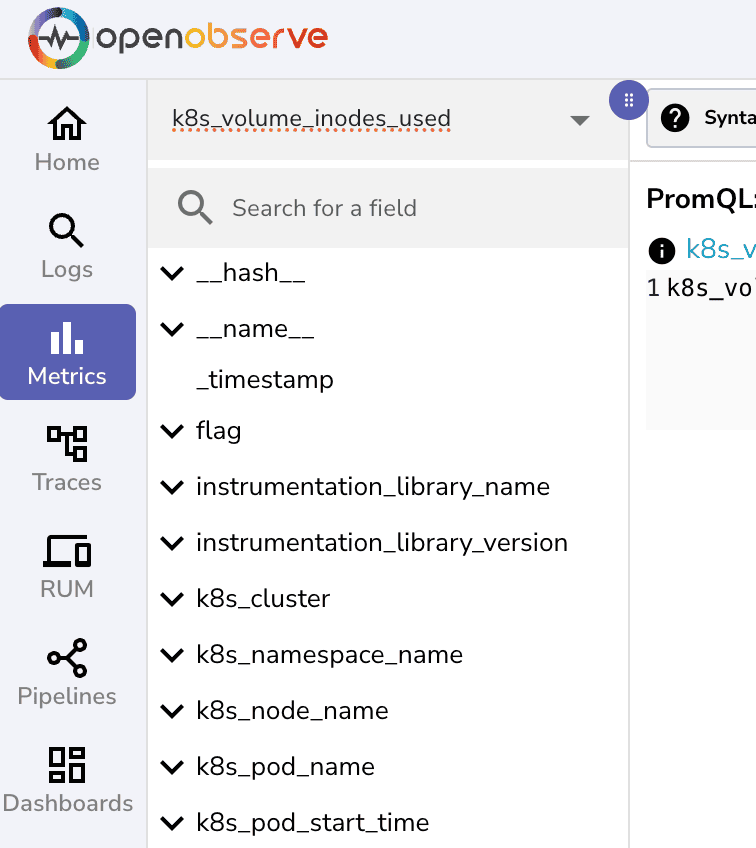

- Verify the metrics in OpenObserve
Go to OpenObserve dashboard -> metrics and search for zookeeper
Step 3: Building Dashboards in OpenObserve
Steps to Create Dashboards
- Log in to OpenObserve: Open your OpenObserve instance in a browser and log in.
- Create a new dashboard: Navigate to the dashboards section and click "+ New Dashboard."

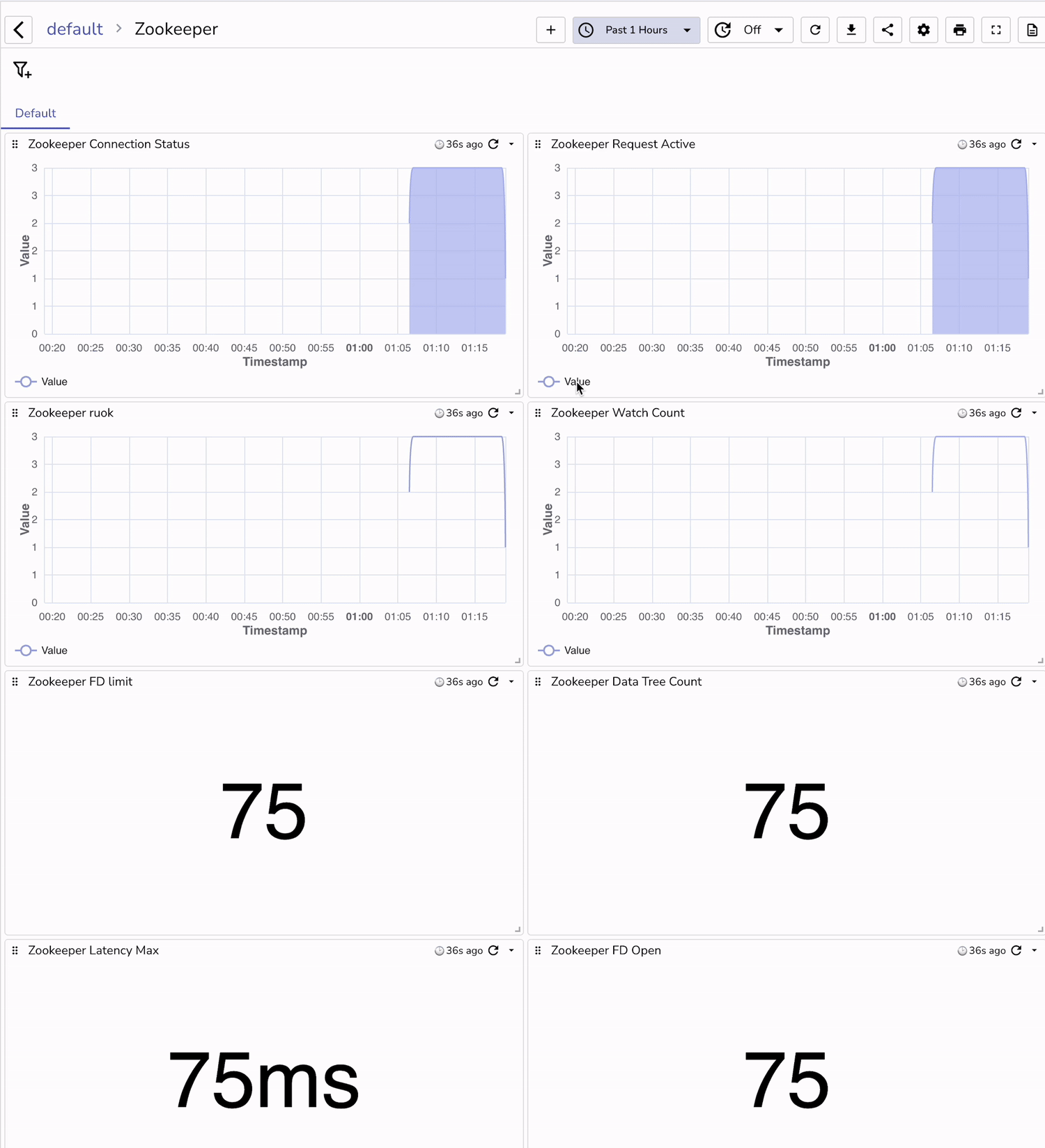

- To make it easy, we have a prebuilt zookeeper dashboard that should help you get started with the metrics monitoring which can be found here.
Conclusion
By following this guide, you’ve successfully set up Apache Zookeeper on Ubuntu, configured the OpenTelemetry Contrib Receiver for metrics ingestion, and built insightful dashboards in OpenObserve. These steps provide a robust monitoring solution for your Zookeeper cluster, ensuring better observability and reliability.
For additional customizations, you can expand the dashboards to include latency, disk I/O, and other critical metrics using OpenTelemetry and OpenObserve.
