Integration with Linux

This guide explains how to integrate Linux systems with OpenObserve to collect and analyze system logs and performance metrics.

Overview

Linux systems generate two primary types of monitoring data: system logs and performance metrics. Collecting and analyzing these data is essential for maintaining system health, performance, and security.


Installation Options

OpenObserve provides two approaches to monitor Linux systems:

  • OpenObserve Collector: A simple, one-command installation recommended for most users.
  • OpenTelemetry Collector: A flexible option for advanced or customized environments.

Steps to integrate

Prerequisites

  • A Linux machine such as Ubuntu, Debian, CentOS, or RHEL
  • Root or sudo access to install and configure services
  • Access to an OpenObserve instance, either cloud or self-hosted

Steps

  1. Log in to your OpenObserve instance.
  2. Navigate to Data Sources > Recommended > Linux.
  3. Copy the provided installation command. The command includes your endpoint and API key.
  4. Run the command in your terminal:
    curl -O https://raw.githubusercontent.com/openobserve/agents/main/linux/install.sh && chmod +x install.sh && sudo ./install.sh https://your-openobserve-instance.com/api/default/ YOUR_API_KEY

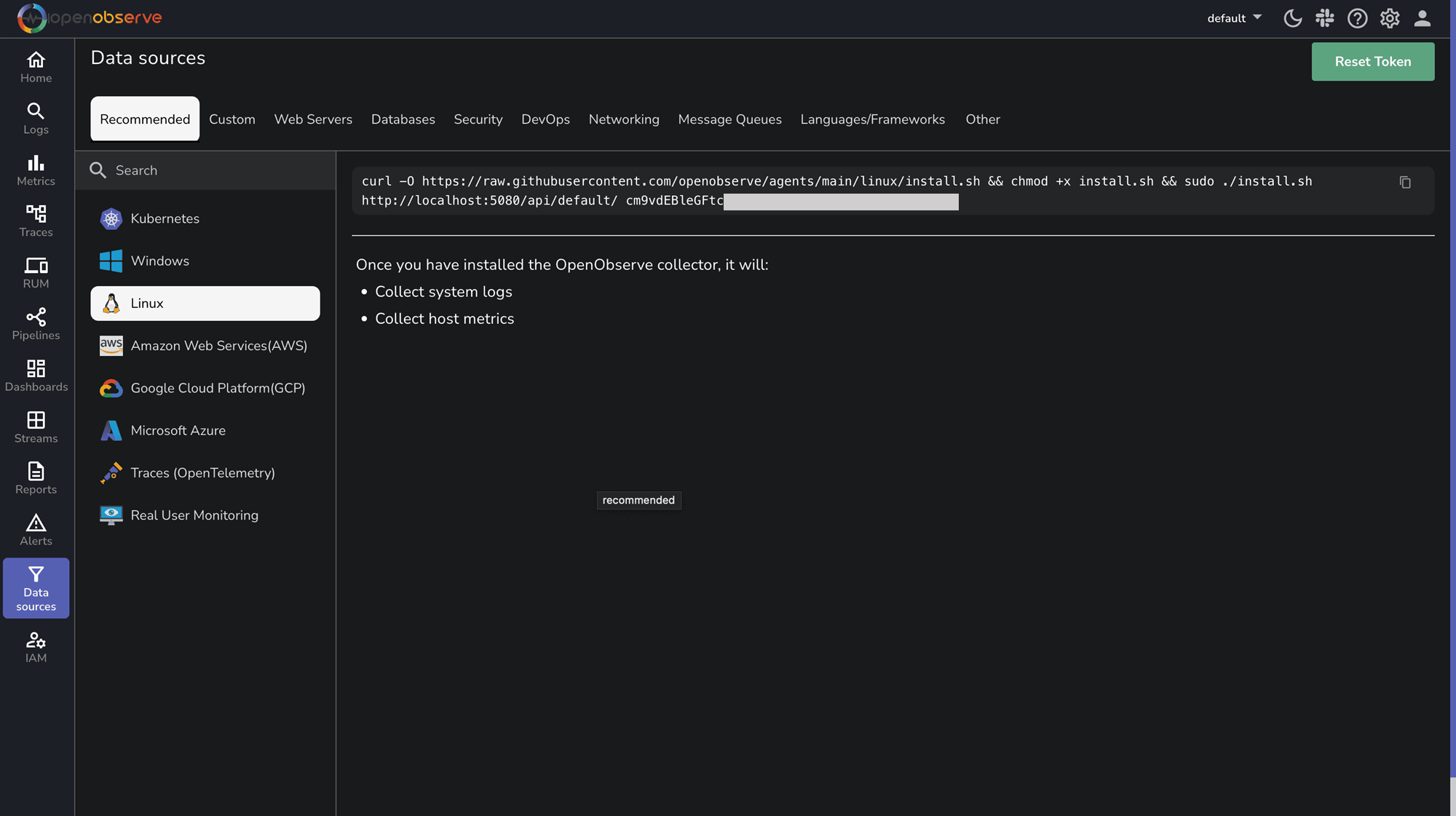

    linux integration

What the OpenObserve Collector Does:

  • Installs as a systemd service
  • Collects system logs from journald or syslog
  • Collects host metrics including CPU, memory, disk, network, and process-level usage
  • Forwards all collected data to OpenObserve

Steps

  1. Set Up the OpenTelemetry Collector Check for the latest version of the OpenTelemetry Collector on the official releases page.
    1
    2
    3
    4
    sudo mkdir -p /opt/otel-collector
    cd /opt/otel-collector
    curl -L https://github.com/open-telemetry/opentelemetry-collector-releases/releases/download/v0.115.0/otelcol-contrib_0.115.0_linux_amd64.tar.gz -o otelcol-contrib.tar.gz
    tar -xzf otelcol-contrib.tar.gz

  2. Configure the OpenTelemetry Collector Create a file named config.yaml in the /opt/otel-collector directory with the following content:
    receivers:
    filelog:
        include:
        - /var/log/syslog
        - /var/log/auth.log
        - /var/log/kern.log
        - /var/log/messages
        - /var/log/secure
        start_at: end
        include_file_path: true
        include_file_name: true
        operators:
        - type: regex_parser
            regex: '^(?P<time>[A-Z][a-z]{2}\s+\d{1,2}\s+\d{2}:\d{2}:\d{2})\s+(?P<host>[^\s]+)\s+(?P<service>[^\s\[]+)(\[(?P<pid>\d+)\])?:\s+(?P<message>.*)$'
            timestamp:
            parse_from: time
            layout: Jan 02 15:04:05

    hostmetrics:
        collection_interval: 30s
        scrapers:
        cpu:
            metrics:
            system.cpu.utilization:
                enabled: true
        memory:
            metrics:
            system.memory.utilization:
                enabled: true
        disk:
        filesystem:
        network:
        load:
        paging:
        process:
            mute_process_name_error: true
            metrics:
            process.cpu.utilization:
                enabled: true
            process.memory.utilization:
                enabled: true

    processors:
    batch:
        send_batch_size: 1024
        timeout: 10s
    resourcedetection:
        detectors: [system, env]
        system:
        hostname_sources: ["os"]

    exporters:
    otlphttp/openobserve:
        endpoint: "https://your-openobserve-instance.com/api/default"
        headers:
        Authorization: "Basic YOUR_API_KEY"
        stream-name: "linux-logs"
    debug:
        verbosity: detailed

    service:
    pipelines:
        logs:
        receivers: [filelog]
        processors: [resourcedetection, batch]
        exporters: [otlphttp/openobserve, debug]
        metrics:
        receivers: [hostmetrics]
        processors: [resourcedetection, batch]
        exporters: [otlphttp/openobserve, debug]
    telemetry:
        logs:
        level: "info"

    Replace https://your-openobserve-instance.com/api/default with your OpenObserve endpoint and YOUR_API_KEY with your actual API key.
  3. Run the Collector
sudo ./otelcol-contrib --config config.yaml

Advanced Configuration Options

Here are some essential configurations to enhance your Linux monitoring:

Security-Focused Monitoring

For enhanced security monitoring:

filelog:
include:
    - /var/log/auth.log
    - /var/log/secure
    - /var/log/audit/audit.log
operators:
    # For SSH authentication events
    - type: router
    routes:
        - expr: 'includes(file.name, "auth.log") or includes(file.name, "secure")'
        output: auth-parser
    - type: regex_parser
    id: auth-parser
    regex: '(?P<time>[A-Z][a-z]{2}\s+\d{1,2}\s+\d{2}:\d{2}:\d{2})\s+(?P<host>[^\s]+)\s+sshd\[(?P<pid>\d+)\]:\s+(?P<message>.*)'
    timestamp:
        parse_from: time
        layout: Jan 02 15:04:05
This configuration focuses on authentication logs to help detect unauthorized access attempts and potential security breaches.

Using Journald Receiver

If you prefer to collect logs directly from journald instead of log files:

1
2
3
4
5
journald:
units:
    - ssh.service
    - systemd-logind.service
priority: info
The journald receiver requires systemd and only works on Linux systems using systemd as their init system.

Troubleshooting

OpenObserve Collector Installation Issues
  • Permission Denied: Run the installation command with sudo.
  • Service Not Starting: Check status with sudo systemctl status openobserve-agent and look for error messages.
  • Network Issues: Verify connectivity with curl -v https://your-openobserve-instance.com.
Log Collection Issues
  • Missing Logs: Check file permissions and ensure the OpenObserve Collector has read access to log files.
  • Journald Access: For systemd-based systems, ensure the OpenObserve Collector has proper journal access.
  • Log Format Problems: If logs appear malformed, check timezone settings and log formats.
Metrics Collection Issues
  • Missing Metrics: Verify the OpenObserve Collector has permissions to access system metrics.
  • Performance Impact: If the OpenObserve Collector uses too many resources, adjust collection intervals.
OpenTelemetry Collector Issues
  • Configuration Errors: Validate your config.yaml syntax and check OpenTelemetry Collector logs.
  • Export Failures: Verify your endpoint URL and API key are correct.
  • Resource Constraints: Adjust batch settings if the OpenTelemetry Collector terminates unexpectedly.
