Create and Use Enrichment Tables

This page explains how to enrich incoming or queried log data in OpenObserve using enrichment tables.

What Is an Enrichment Table

An enrichment table in OpenObserve is a reference table used to enhance your log data with additional context. It is typically a CSV file that maps the fields from your logs to descriptive values.

You can use enrichment tables during:

  • Ingestion: To add context as data is ingested.
  • Query time: To enrich data dynamically while querying.

Enrichment is performed using Vector Remap Language or VRL functions.

Where to find

To access the enrichment table interface:

  1. Select the appropriate organization from the dropdown in the top-right corner.
  2. Navigate to the left-hand menu.
  3. Select Pipelines > Enrichment Tables.

This opens the enrichment table management interface, where you can view, create, and manage enrichment tables available to the selected organization.

Who can access

Access to enrichment tables is controlled via the Enrichment Tables module in the IAM settings, using role-based access control (RBAC).

  • Root users have full access by default.
  • Other users must be assigned access through Roles in IAM.
  • You can assign access to the entire Enrichment Tables module.
  • You can also assign permissions to individual enrichment tables. This allows fine-grained control over who can use or modify specific enrichment tables.

Common Use Cases for Enrichment

Enrichment tables are often used to add human-readable context or derived values to logs. Examples include:

  • Country code to country name: Add a new field that maps IN to India, US to United States, etc.

  • Status code to status label: Add a new field that maps status 1 to success, 2 to failure, and 3 to unknown.

  • Internal vs external IP: Add a new field that classifies the IP address as internal or external based on private IP ranges.

  • Protocol number to protocol name: Add a new field that maps 6 to TCP and 17 to UDP using a protocol lookup table.

How to Create and Use an Enrichment Table

Step 1: Identify the Field to Enrich

Review your log data and identify a field that contains codes or labels with limited context.
Example
The log_iostream field in the logs has values such as:

"log_iostream": "stdout"
"log_iostream": "stderr"

The goal is to create a new field, for example stream_type_description, that provides a readable explanation like:

"log_iostream": "stderr"
"stream_type_description": "Standard Error – error or diagnostic logs"

Step 2: Prepare the Enrichment Table

Create a CSV file containing the original values and their corresponding descriptive meanings. Use clear and consistent column headers. Example CSV (enrichment_reference.csv)

log_iostream,stream_type_description
stdout,Standard Output – application logs
stderr,Standard Error – error or diagnostic logs

Step 3: Upload the Enrichment Table

  1. Go to Pipelines > Enrichment Tables in the OpenObserve UI.
  2. Click Add Enrichment Table.
  3. Set a name such as log_stream_labels.
  4. Upload your CSV file.
  5. Click Save.
    Upload the Enrichment Table

The enrichment table is now available for use in VRL.

Step 4: Use the Enrichment Table in a VRL Function

  1. Go to the Logs page.
  2. Select the relevant log stream.
  3. In the VRL Function Editor, enter the following:
1
2
3
record, err = get_enrichment_table_record("log_stream_labels", {"log_iostream": .log_iostream})
.stream_type_description = record.stream_type_description
.

Explanation:

Line 1:

record, err = get_enrichment_table_record("log_stream_labels", { "log_iostream": .log_iostream }):

  • This line searches the enrichment table named log_stream_labels.
  • It matches the field log_iostream in your log event with the log_iostream column in the enrichment table.
  • If a match is found, the corresponding row from the table is returned as record.
  • If no match is found or an error occurs, record will be empty and err will contain the error.

Line 2:
.stream_type_description = record.stream_type_description:

  • This creates a new field called stream_type_description in your log event.
  • The value is taken from the stream_type_description column in the enrichment table row returned above.
  • If the enrichment table did not contain a matching entry, this field may not be added.

Line 3:
.

  • This tells OpenObserve to return the modified log event, including the newly added field.

Optional
If you prefer to replace the original value instead of adding a new field, you can do:

1
2
3
record, err = get_enrichment_table_record("log_stream_labels", {"log_iostream": .log_iostream})
.log_iostream = record.stream_type_description
.

Step 5: Run the Query and View the Results

Click Run Query. A new field (such as stream_type_description) will appear in the results, containing the enriched meaning of the original value.

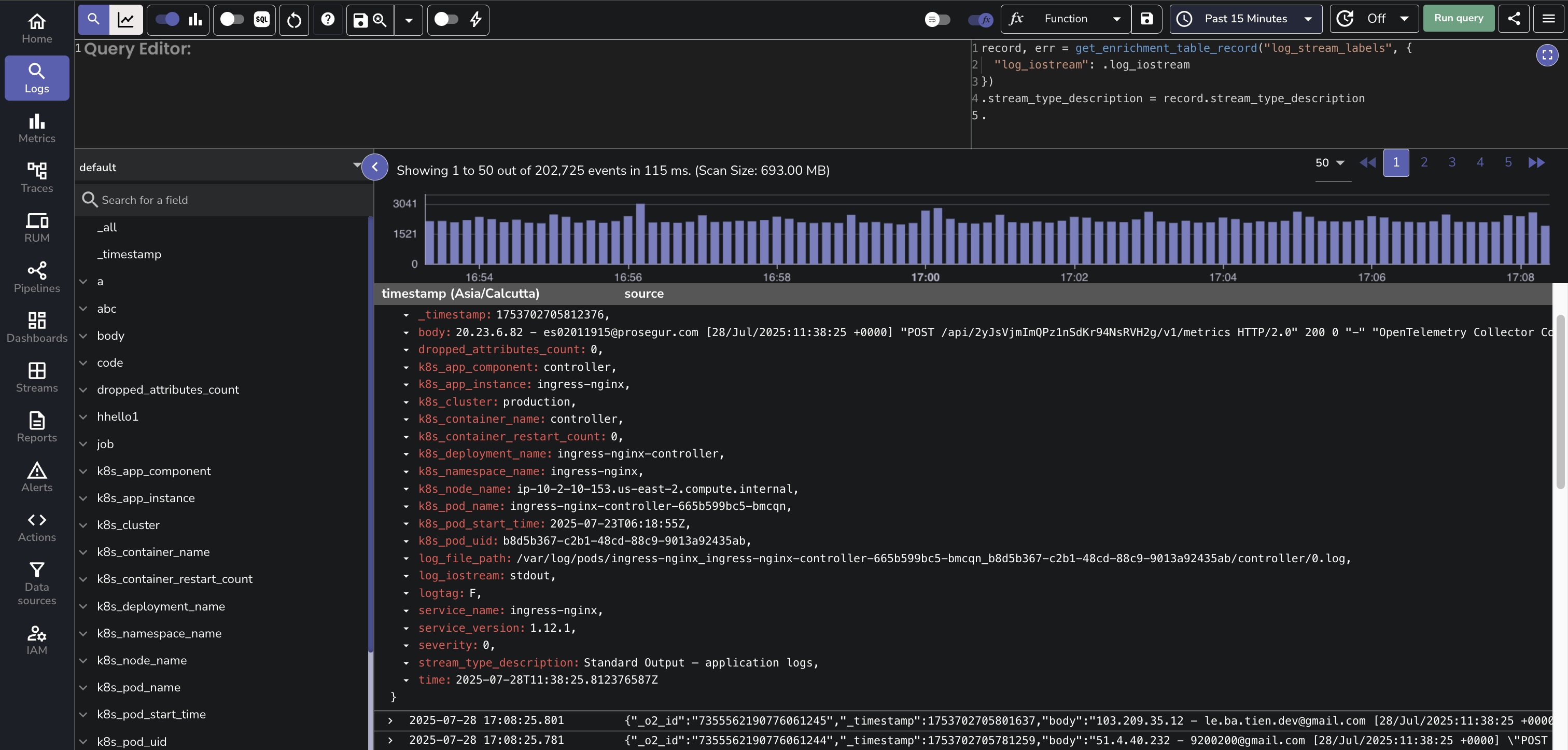

Use the Enrichment Table

Use Enrichment Tables in Pipelines

In addition to enriching data at query time, you can apply the same enrichment logic during ingestion using Pipelines. This allows you to permanently transform log records as they arrive, ensuring that enriched fields are stored along with the original data.

How it works

  • You define a pipeline with a Transform step that uses a VRL function.
  • The VRL function reads from an enrichment table, just like in the Logs UI.
  • The enriched field is added before the data is written to storage.

Note

Use query-time enrichment when you want flexibility. Use ingestion-time enrichment when you want consistency and speed.

Append Data to an Existing Table

To add more data to an existing enrichment table, enable the Append data to existing Enrichment Table option before uploading your new CSV file:

  1. In the left-hand navigation menu, select Pipelines > Enrichment Tables.
  2. Select the table you want to update.
  3. In the Update Enrichment Table view, select the new CSV file that contains the additional data.
  4. Turn on the Append data to existing Enrichment Table toggle.
  5. Select Save to upload and append the new data to the existing table.

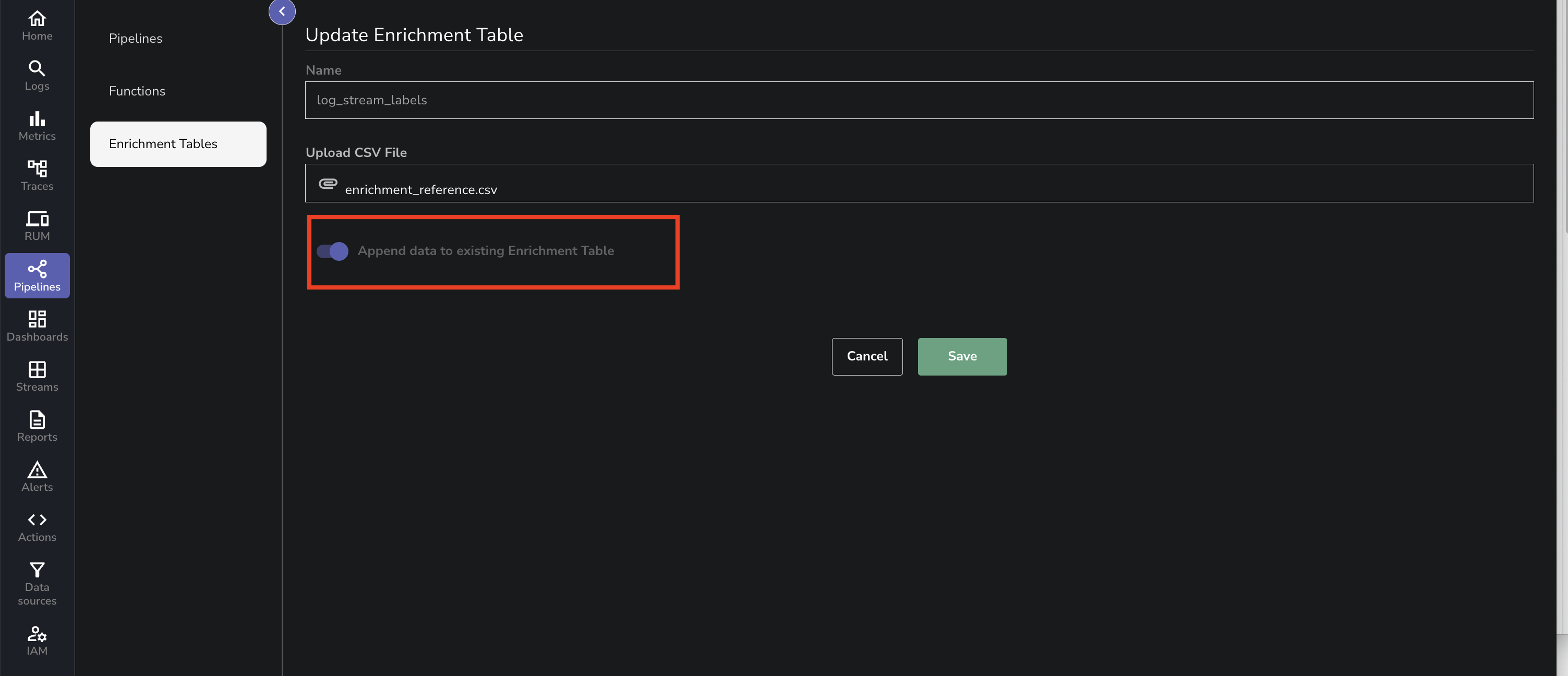

    Append Data to an Existing Table

Storage Limit

The maximum size of an enrichment table is controlled by the environment variable ZO_ENRICHMENT_TABLE_LIMIT.

  • Default value: 256 (in MB)
  • If the enrichment table exceeds this limit, you cannot append additional records. OpenObserve returns an error when the size threshold is reached.

Upload Size Limit

The maximum size of the data payload that can be uploaded at one time is controlled by the environment variable ZO_PAYLOAD_LIMIT.

  • Default value:209715200(approximately 210 MB)
  • If you attempt to upload a payload larger than the configured limit, OpenObserve returns an error.

Troubleshooting

  • Field not enriched: Ensure the enrichment table column name matches the log field and that the data types are compatible.
  • No result added: Check that the enrichment table was uploaded and saved correctly, and that a matching row exists.
  • Permission denied: Ensure the user has the correct permissions in the IAM role to access the enrichment table.
