Aggregation Cache

This page explains what streaming aggregation is and shows how to use it to improve query performance with aggregation cache in OpenObserve.

This is an enterprise feature.

What is streaming aggregation?

Streaming aggregation in OpenObserve enables aggregation cache. When streaming aggregation is enabled, OpenObserve begins caching the factors required to compute aggregates for each time partition during query execution. These cached values can then be reused for later queries that cover the same or overlapping time ranges.

Why aggregation cache matters

Aggregation queries often scan large volumes of historical data. Without caching, every query recomputes all partitions of the requested time range, even if the results were already computed before. Aggregation cache works by:

  • Caching the factors required to compute aggregates, such as sums and counts, rather than the final aggregate values.
  • Reusing these stored values when a later query requests the same partitions.
  • Computing only the missing partitions and combining them with cached results.

This approach reduces repeated computation and lowers dashboard latency while preserving accuracy.

Relationship between streaming aggregation and aggregation cache
  • Streaming aggregation is the feature toggle in Enterprise settings.
  • Aggregation cache is the mechanism that becomes active when streaming aggregation is enabled.

Who can use it

All Enterprise users.

Where to find it

To enable aggregation cache:

  1. Go to Management > General Settings.
  2. Turn on the Enable Streaming Aggregation toggle.
  3. Select Save.

Environment variables

Environment Variable Description Default Value
ZO_FEATURE_QUERY_STREAMING_AGGS Enables or disables streaming aggregation. When set to true, aggregation queries use the aggregation cache. true
ZO_DATAFUSION_STREAMING_AGGS_CACHE_MAX_ENTRIES Defines the maximum number of cache entries stored for streaming aggregations. Controls how many partition results are retained. 10000
ZO_DISK_AGGREGATION_CACHE_MAX_SIZE Sets the maximum size for record batch cache on disk. By default, it is 10 percent of the local volume space, capped at 20 GB. 10 percent of volume, up to 20 GB
ZO_CACHE_DELAY_SECS Defines the number of seconds to wait before aggregation results become eligible to cache. 300 secs
ZO_AGGREGATION_TOPK_ENABLED Enables the approx_topk function. true

How does it work?

First run: partitioning and caching aggregate factors
When an aggregation query runs for the first time, OpenObserve divides the requested time range into fixed-size partitions. Each partition is processed separately. Instead of storing the final aggregates, OpenObserve caches the factors required to compute the aggregate. For example, it caches sums and counts, which can later be combined to produce averages.

These results are cached on disk. This creates the initial aggregation cache for the query stream.

Later runs: reuse of cached partitions
When another query runs with the same stream, filters, and grouping, OpenObserve checks the cache. If the requested time range overlaps with existing partitions, it reuses the cached results and computes only the missing partitions. Results remain accurate because cached sums, counts, and other stored values can be combined with new results to compute the final aggregates.

How does it handle late-arriving data?

To handle late-arriving data, OpenObserve applies a delay window before marking aggregation results as eligible to cache.
The system compares the query time with the end of the selected time range. If the end of the range falls within the delay window, the result is not cached. This ensures that results include all delayed records before being stored.
The delay window is configured through the environment variable ZO_CACHE_DELAY_SECS. The default value is 300 secs. You can adjust this value to match the ingestion delay in your environment. For example, if logs typically arrive with up to 10 minutes of delay, set the variable to 600 secs.

Query Behavior

When aggregation cache is enabled, OpenObserve writes intermediate results into disk as Arrow IPC files. These files store values that can be safely combined later instead of full raw logs. Example query

SELECT avg(response_time), sum(bytes), count(*)
FROM access_logs
WHERE status = 200

First run
Suppose the query time range covers two partitions, A and B. The system scans both partitions fully. It caches sums and counts for each partition.

Partition SUM(bytes) COUNT(*) SUM(response_time) AVG(response_time)
A 3000 30 1500 50
B 5000 50 2500 50

Later runs

  • When you run the same query again for the same or overlapping range, the system fetches results from cached partitions.
  • If there is a new partition C, only C is scanned. Cached results for A and B are reused.
  • Results are then merged safely.
Partition SUM(bytes) COUNT(*) SUM(response_time)
A 3000 30 1500
B 5000 50 2500
C 4000 40 1600
Final 12000 120 5600

How averages are calculated

  • SUM(bytes) is computed as 3000 + 5000 + 4000 = 12000.
  • COUNT(*) is computed as 30 + 50 + 40 = 120.
  • AVG(response_time) is computed from merged sums and counts: 5600 ÷ 120 = 46.67.

Cached file names

Cached file names reflect the start and end timestamps of the partition. For example:

/data/openobserve/cache/aggregations/default/logs/oly/
    13018130667245808899_30/
        1756116000000000_1756117800000000.arrow

Guarantee of accuracy

Accuracy is guaranteed by Apache Arrow DataFusion. OpenObserve caches DataFusion’s internal intermediate representation on disk and DataFusion later combines and finalizes it, producing the same results as a fresh run over the same stream, filters, grouping, and time range.

Cacheability of Queries

Not all queries can benefit from aggregation cache. For a query to be cacheable, OpenObserve must be able to store and safely merge intermediate results across partitions.

Supported aggregate functions

The following aggregates are directly supported for caching:

How to use streaming aggregation

Example query

SELECT
    k8s_deployment_name as "x_axis_1",
    count(_timestamp) as "y_axis_1"
FROM "default"
GROUP BY x_axis_1

You can apply the aggregation query in any place where queries are executed, such as Logs or Dashboards. To measure load time, check cacheability, and verify cache usage, use your browser’s developer tools. Right-click the browser, select Inspect, open the Network tab, and filter by Fetch/XHR.

The following example is performed with Streaming Search enabled. Aggregation cache works the same when Streaming Search is disabled.

Step 1: Run the aggregation query

  1. Go to the Logs page.
  2. In the SQL query editor, enter the aggregation query.
  3. Select a time range, for example Past 6 days.

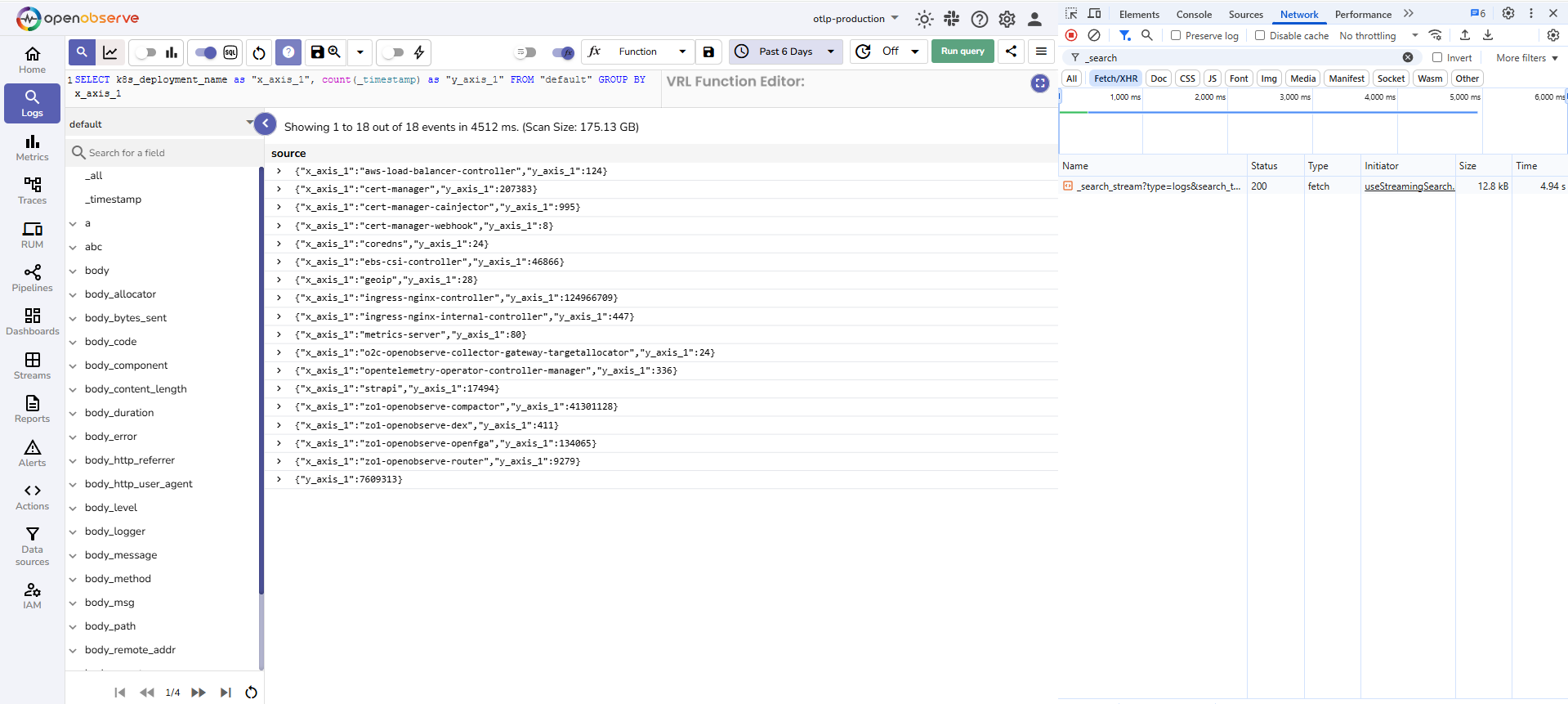

  4. Select Run Query. The results show event counts per deployment. Logs page first run

Step 2: Check if the query is eligible for caching

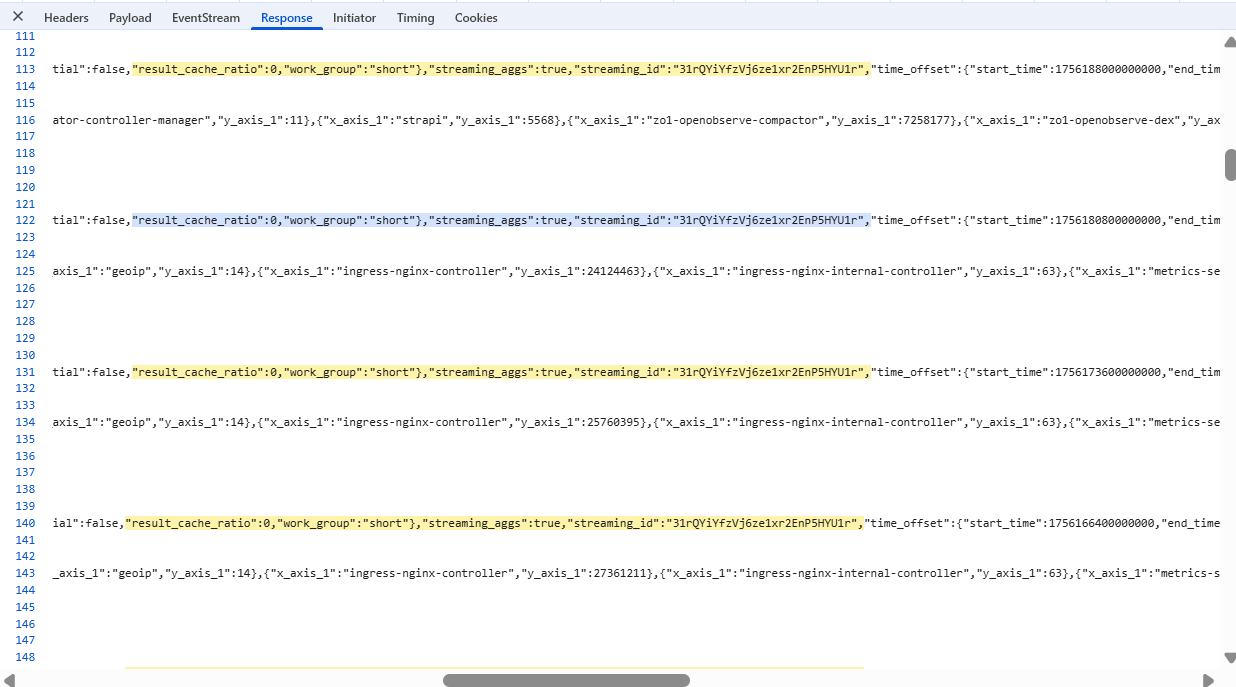

After the first run, if streaming_aggs is true and streaming_id has a value, the query is eligible for caching. You can check these fields in the query response by using your browser developer tools. Open Network, select the _search_partition entry, and view the Response tab to confirm the values.

Check if the query is eligible for caching

Step 3: Run the query again with overlapping time

Select a time window that overlaps with the earlier run, for example Past 6 days or Past 1 week, and run the query again. Cached partitions are reused and only new partitions are computed, which reduces execution time.

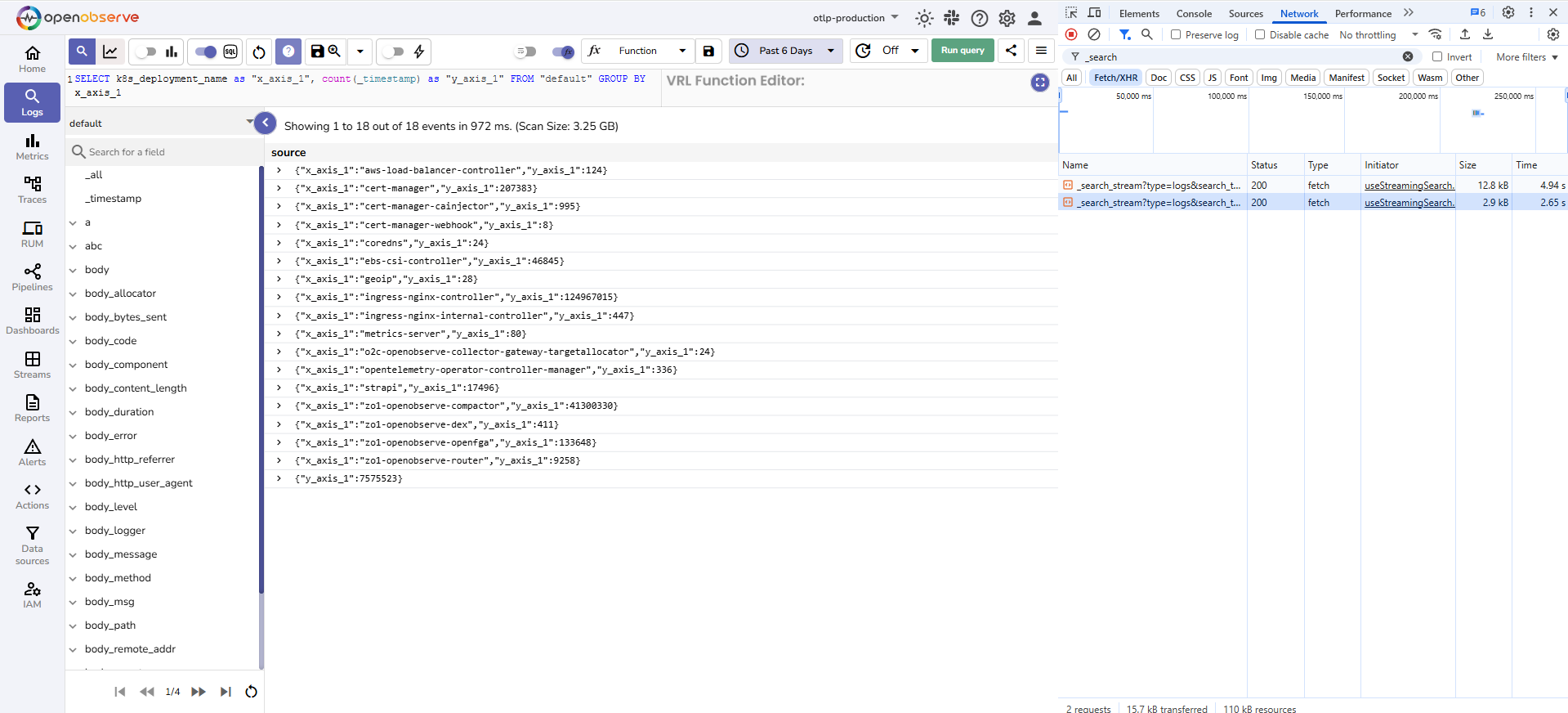

Second run shows the result for the Past 6 days. Second run

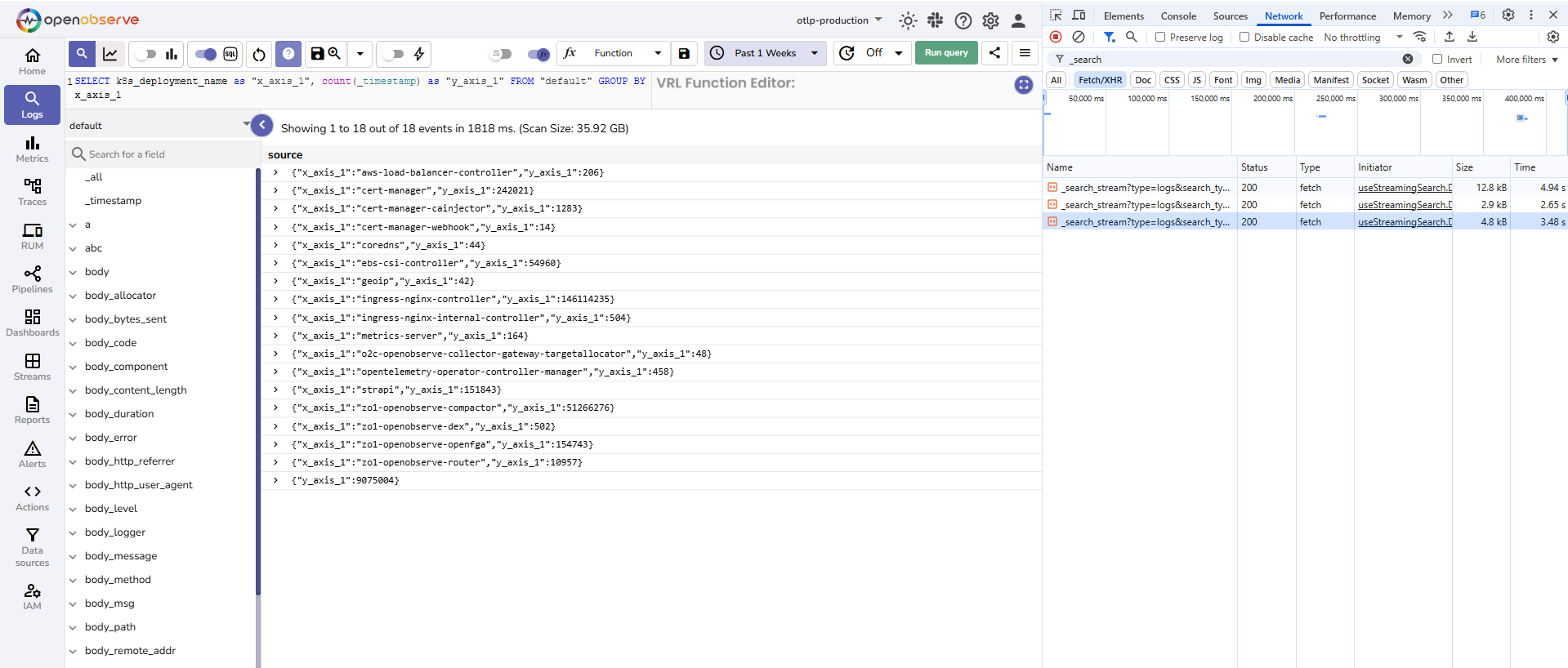

Third run shows the result for the Past 1 week. Third run

Step 4: Confirm cache reuse on later runs

Use your browser developer tools.

  1. In the Network tab of your developer tool, select one of the later runs.
  2. Open Response.

  3. Capture the following details:

  4. streaming_aggs must be true

  5. streaming_id must have a value
  6. streaming_output must be true

  7. result_cache_ratio per partition:

    • 100 means the partition came from aggregation cache.
    • 0 means the partition was computed on this run.

Notes:

  • The first successful run does not reuse aggregation cache because nothing has been stored yet.
  • Ratios other than 0 or 100 indicate general result caching, not aggregation cache.

Performance benefits

Streaming aggregation is enabled in all the following test runs:

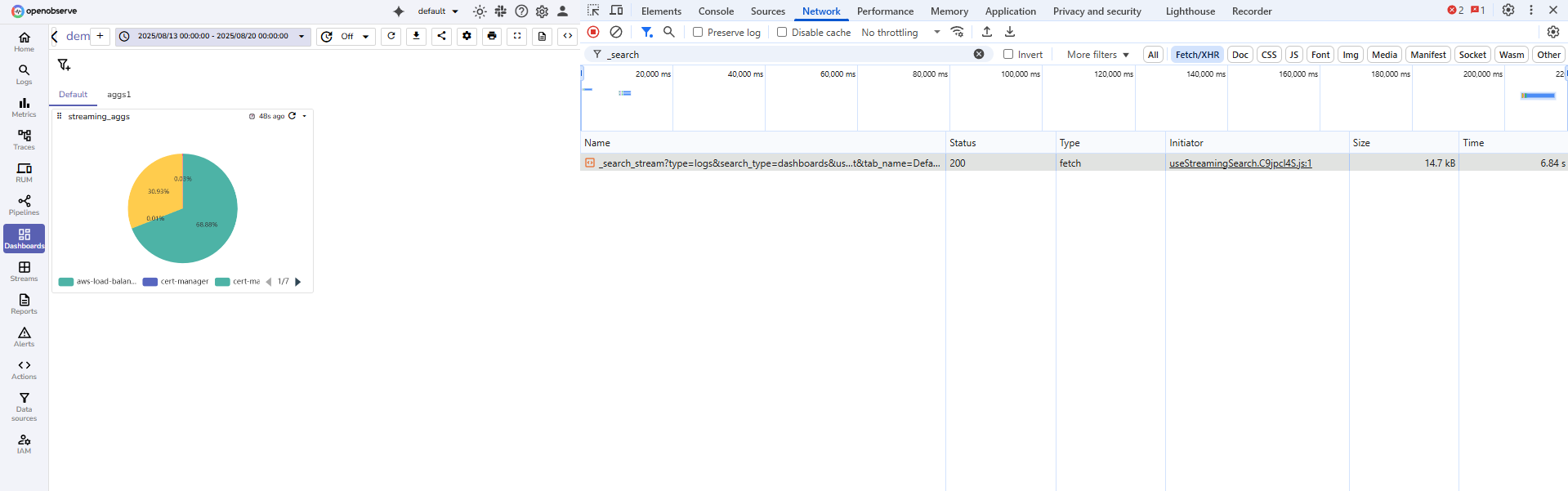

Test run 1:

  • Time range: 2025-08-13 00:00:00 - 2025-08-20 00:00:00
  • Time taken to load the dashboard: 6.84 s
  • result_cache_ratio is 0 in all partitions test run 1

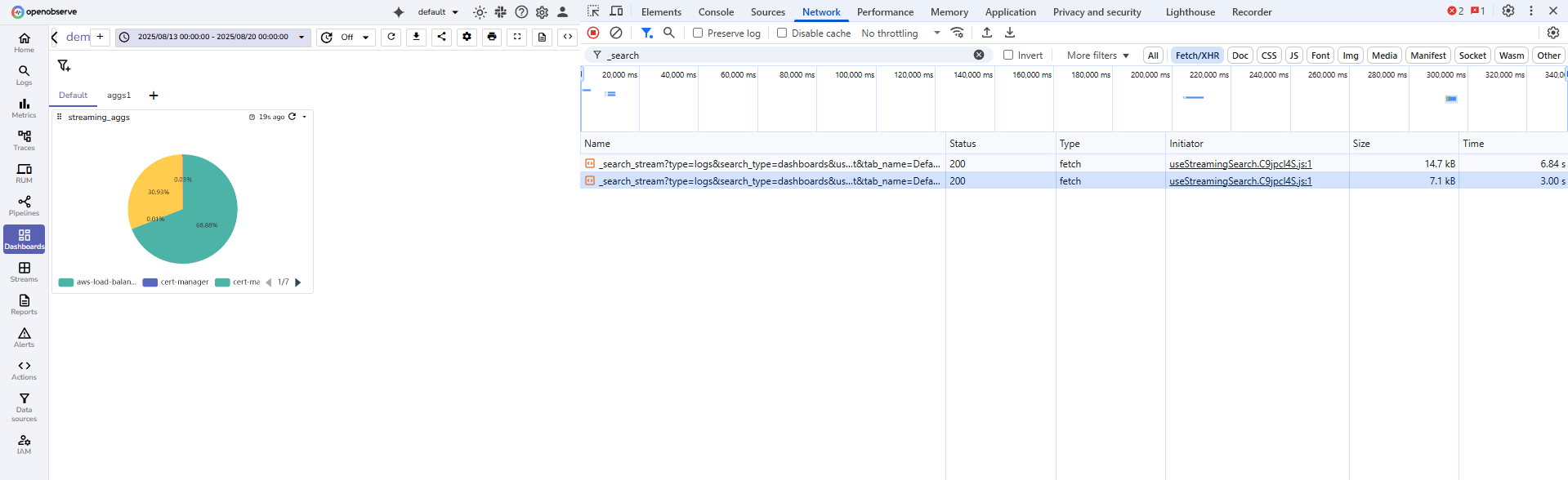

Test run 2:

  • Time range: 2025-08-13 00:00:00 - 2025-08-20 00:00:00
  • Time taken to load the dashboard: 3.00 s
  • result_cache_ratio is 100 in all partitions test run 2

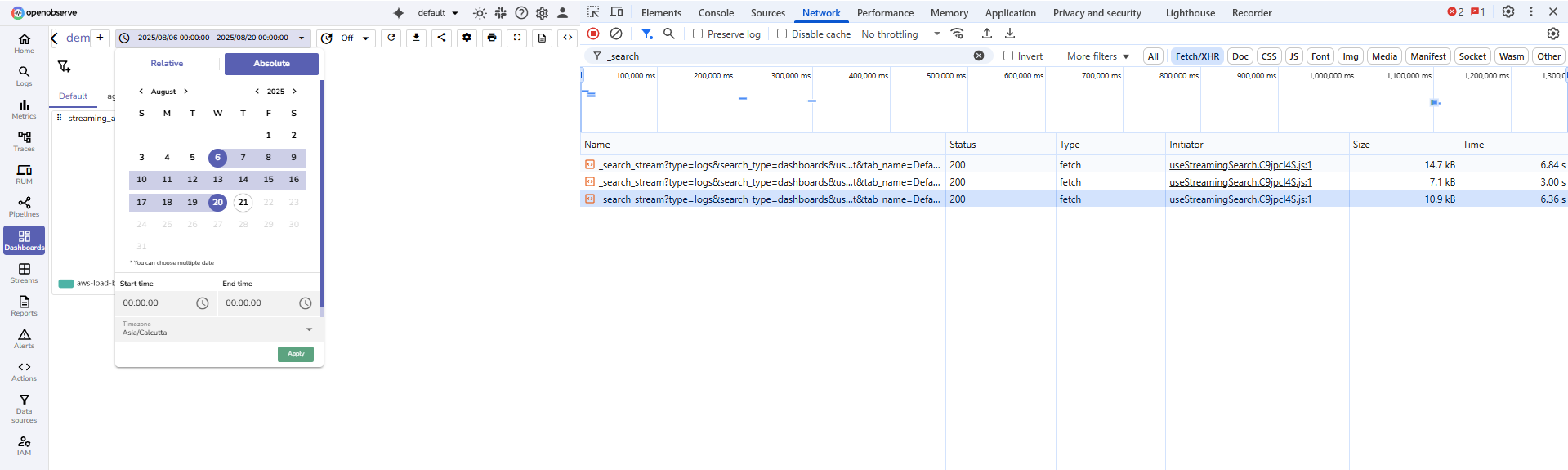

Test run 3:

  • Time range: 2025-08-6 00:00:00 - 2025-08-20 00:00:00
  • Time taken to load the dashboard: 6.36 s
  • result_cache_ratio is 100 for partitions that cover the time range 2025-08-13 00:00:00 → 2025-08-20 00:00:00 and result_cache_ratio is 0 for the rest of the partitions test run 3

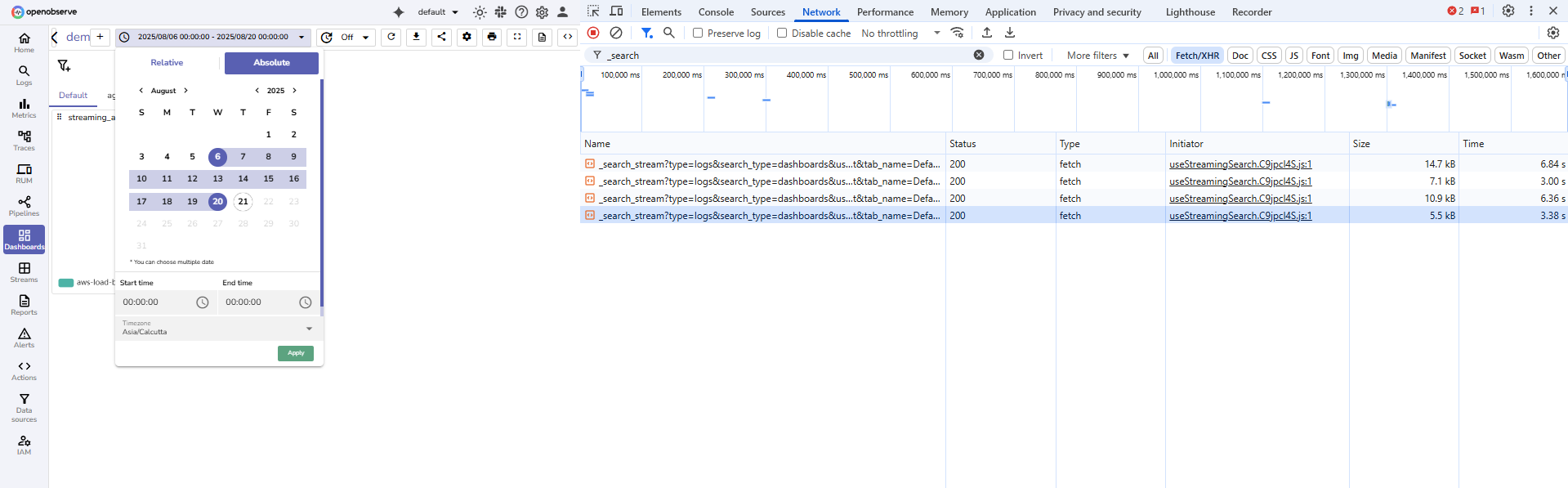

Test run 4:

  • Time range: 2025-08-6 00:00:00 - 2025-08-20 00:00:00
  • Time taken to load the dashboard: 3.38 s
  • result_cache_ratio is 100 for all partitions test run 4

Limitations

  • Very complex queries may not be eligible for cache reuse yet. Examples include joins, nested subqueries, heavy window functions, and large unions.
  • The first run pays full computation cost to populate the cache.
  • Reuse depends on partition availability. Eviction due to capacity limits can reduce reuse.

Troubleshooting

  • Issue: Second run is not faster
  • Cause: The query was not cacheable or the first run did not complete.
  • Fix: Align time windows and filters with the first run. Verify streaming_aggs and streaming_id. After a successful first run, confirm result_cache_ratio equals 100 on some partitions.
