Migrating Traces

Overview

This section walks you through migrating distributed traces from Tempo to OpenObserve. You will:

1. Assess how traces currently reach Tempo
2. Identify the migration path for each source type
3. Update configs to point at OpenObserve
4. Validate that traces are flowing correctly

Trace migration is typically the easiest signal to migrate. Most modern setups already use OTLP to send traces to Tempo, so migration is often just changing the endpoint URL.

Step 1: Assess Your Current Trace Sources

Check how traces currently reach Tempo. Common setups:

• OTel Collector forwarding OTLP spans to Tempo
• Application SDKs (OpenTelemetry SDK for Go, Java, Python, Node.js, etc.) sending directly via OTLP
• Jaeger Agent or Jaeger Collector → Tempo
• Zipkin → Tempo via the OTel Collector

To see what's sending traces, query Tempo or look at your collector config for exporters pointing to port 4317 (OTLP gRPC) or 4318 (OTLP HTTP).

Step 2: Categorize Your Sources

Source Type	Migration Path
OTel Collector with otlp exporter to Tempo	Update OTLP exporter endpoint
Application SDK sending OTLP directly to Tempo	Update SDK endpoint config
Jaeger Agent / Jaeger Collector	See dedicated guide
Zipkin	See dedicated guide

Step 3: Migrate Each Source

From OTel Collector

This is the most common setup. The OTel Collector receives traces and forwards them to Tempo using the otlp exporter.

Current config:

exporters:
  otlp:
    endpoint: tempo:4317
    tls:
      insecure: true

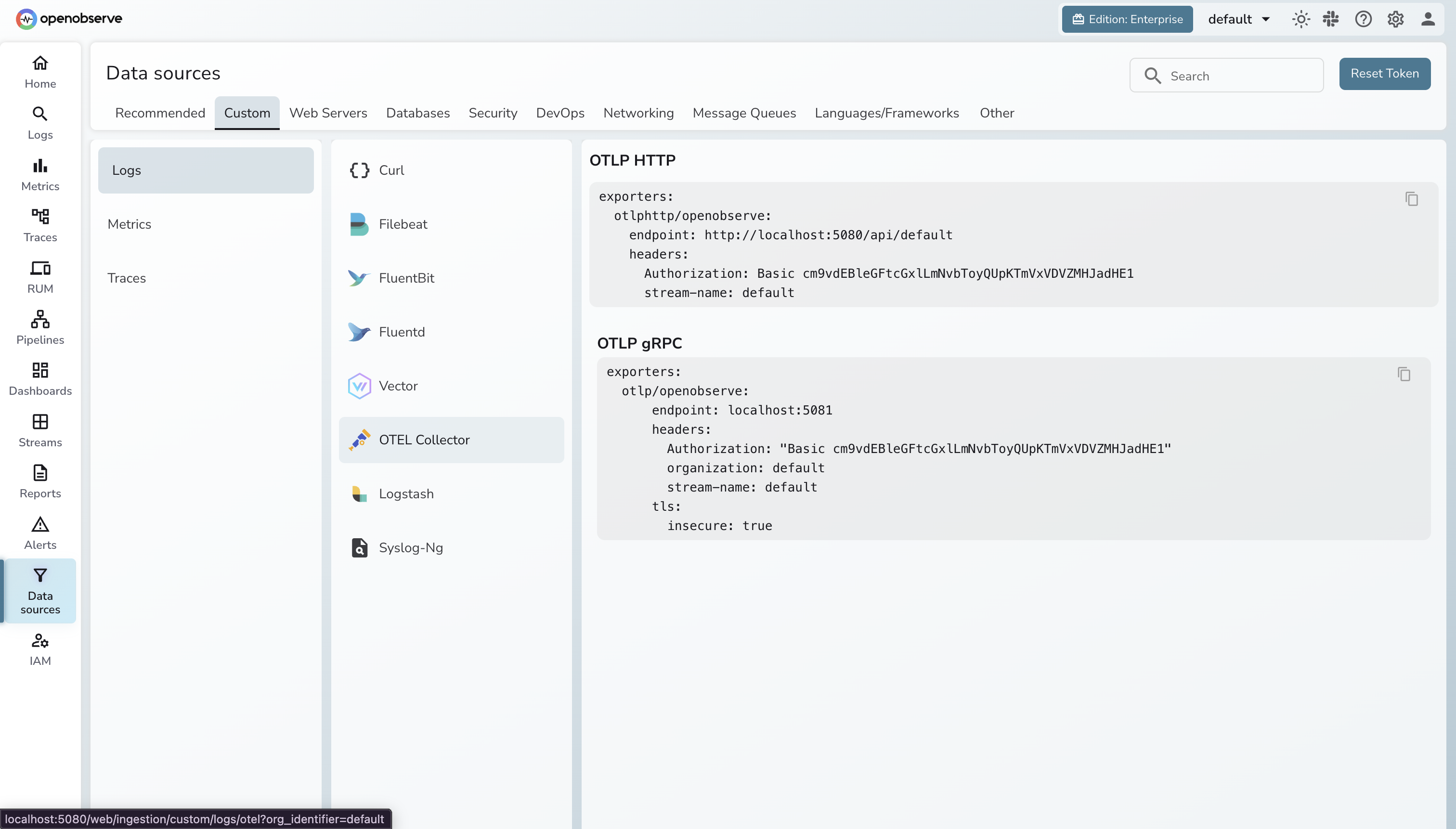

Copy the exact updated configuration from the Data Sources UI in OpenObserve.

Send all signals through one exporter

If you're already migrating metrics or logs, you can consolidate all signals (metrics, logs, traces) into a single otlphttp/openobserve exporter — one endpoint, one auth header, all signals.

---

From Application SDKs

If your application sends traces directly to Tempo using an OpenTelemetry SDK, only the endpoint URL needs to change — no code changes required. See the dedicated guides for complete configuration examples per language:

• Go traces ingestion guide
• Node.js traces ingestion guide
• Python traces ingestion guide
• Rust traces ingestion guide

---

From Jaeger

For detailed steps on migrating from Jaeger to OpenObserve, see the dedicated guide:

Dedicated guide: Jaeger → OpenObserve

---

From Zipkin

If applications use older Zipkin SDKs, use the OTel Collector as a protocol translation layer - no application code changes needed:

receivers:
  zipkin:
    endpoint: 0.0.0.0:9411

exporters:
  otlphttp/openobserve:
    endpoint: http://openobserve:5080/api/default
    headers:
      Authorization: "Basic <base64-creds>"

service:
  pipelines:
    traces:
      receivers: [zipkin]
      processors: [batch]
      exporters: [otlphttp/openobserve]

When you're ready, consider switching the SDKs themselves to OpenTelemetry - the Jaeger project itself recommends this.

---

Step 4: How to Verify

Check in the UI

1. Open the OpenObserve UI → Traces in the left sidebar.
2. Select a trace stream and set a time range
3. Filter by service.name to find your services.
4. Click into a trace to verify spans, durations, and attributes are intact.

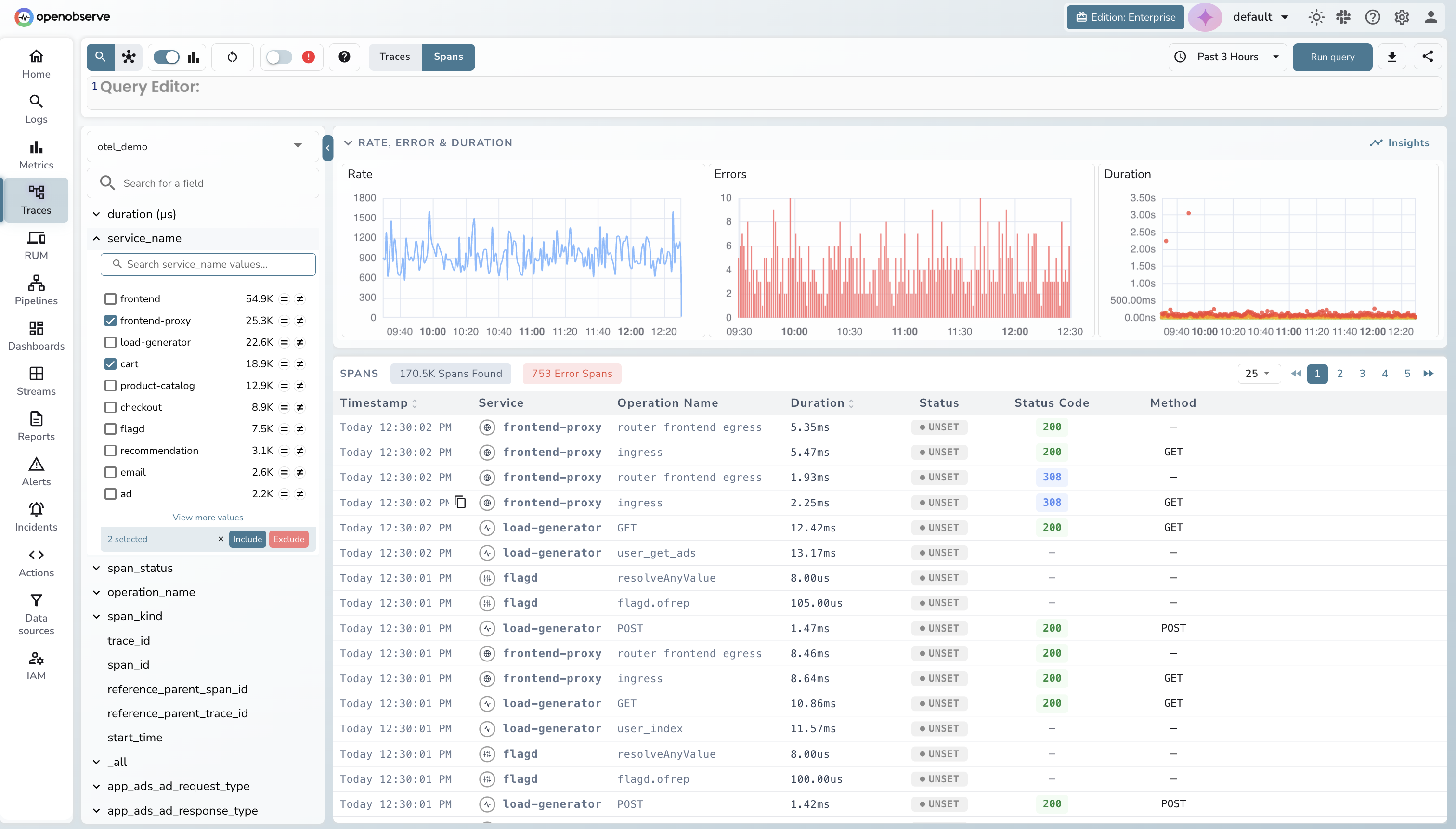

OpenObserve Traces Explorer — verify traces are flowing after migration

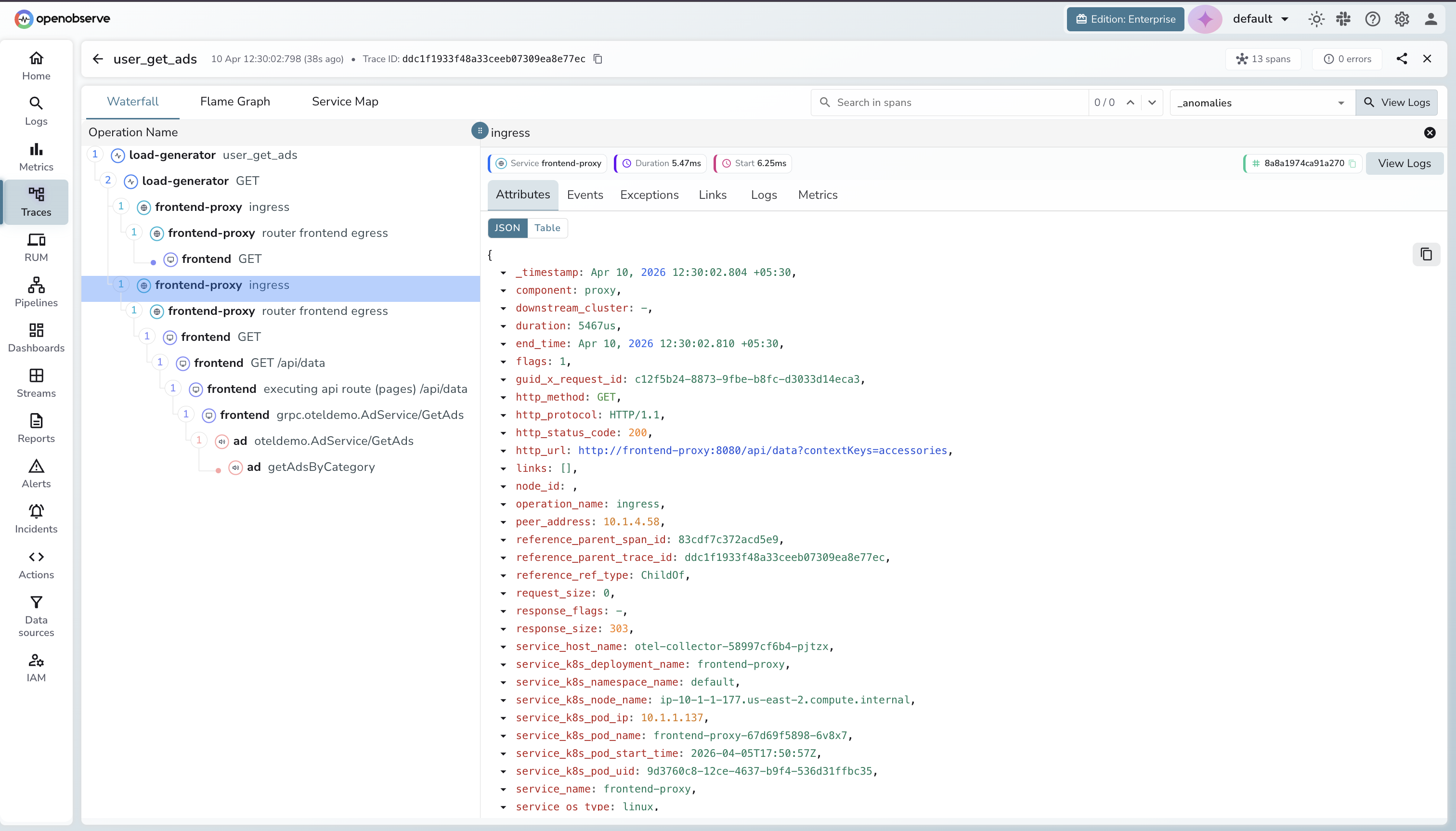

OpenObserve trace detail view showing spans and timing

Troubleshooting

• No traces visible: Check that the OTel Collector is running and the exporter shows no errors in its logs. Confirm the endpoint URL and auth header are correct.
• Spans missing attributes: If you switched from gRPC to HTTP, confirm you're using the correct port (5081 for gRPC, 5080 for HTTP).
• Service not appearing: Ensure your spans have the service.name resource attribute set — this is required for traces to appear in the service list.
• Auth errors (401): Regenerate the Base64 credential string.
