Go (Golang) Distributed Tracing - OpenTelemetry APM

Updated View MarkdownOpen in ChatGPTOpen in Claude

Setup distributed tracing for your Go application using OpenTelemetry for Go application performance monitoring (APM) and trace ingestion. Check sample configuration on how to setup OpenTelemetry traces for Golang applications.

Clone


git clone https://github.com/openobserve/sample-tracing-golang

If you don't have Go installed, please install it and then follow below steps.

Open pkg/tel/otel_helper_http.go file from that repository. and make changes to the highlighted lines below


package tel

import (
	"context"
	"fmt"
	"os"

	"go.opentelemetry.io/otel"
	"go.opentelemetry.io/otel/attribute"
	"go.opentelemetry.io/otel/exporters/otlp/otlptrace/otlptracehttp"
	"go.opentelemetry.io/otel/propagation"
	"go.opentelemetry.io/otel/sdk/resource"
	sdktrace "go.opentelemetry.io/otel/sdk/trace"
	semconv "go.opentelemetry.io/otel/semconv/v1.4.0"
)

func InitTracerHTTP() *sdktrace.TracerProvider {
	otel.SetTextMapPropagator(propagation.NewCompositeTextMapPropagator(
		propagation.TraceContext{},
		propagation.Baggage{},
	))

	OTEL_OTLP_HTTP_ENDPOINT := os.Getenv("OTEL_OTLP_HTTP_ENDPOINT")

	if OTEL_OTLP_HTTP_ENDPOINT == "" {
		OTEL_OTLP_HTTP_ENDPOINT = "<host>:<port>" //without trailing slash
	}

	OTEL_OTLP_HTTP_ENDPOINT = "api.openobserve.ai"

	otlptracehttp.NewClient()

	otlpHTTPExporter, err := otlptracehttp.New(context.TODO(),
		// otlptracehttp.WithInsecure(), // use http & not https
		otlptracehttp.WithEndpoint(OTEL_OTLP_HTTP_ENDPOINT),
		otlptracehttp.WithURLPath("/api/default/v1/traces"),
		otlptracehttp.WithHeaders(map[string]string{
			"Authorization": "Authorization",
		}),
	)

	if err != nil {
		fmt.Println("Error creating HTTP OTLP exporter: ", err)
	}

	res := resource.NewWithAttributes(
		semconv.SchemaURL,
		// the service name used to display traces in backends
		semconv.ServiceNameKey.String("otel1-gin-gonic"),
		semconv.ServiceVersionKey.String("0.0.1"),
		attribute.String("environment", "test"),
	)

	tp := sdktrace.NewTracerProvider(
		sdktrace.WithSampler(sdktrace.AlwaysSample()),
		sdktrace.WithResource(res),
		sdktrace.WithBatcher(otlpHTTPExporter),
		// sdktrace.WithBatcher(stdExporter),
	)
	otel.SetTracerProvider(tp)

	return tp
}

Set up credentials

  • You will get url and Authorization key from the trace ingestion settings.
  • Replace the url and Authorization key in the pkg/tel/otel_helper_http.go file.

Set up the service/application

Follow the steps given in the sample-tracing-golang readme and then start server

go run .

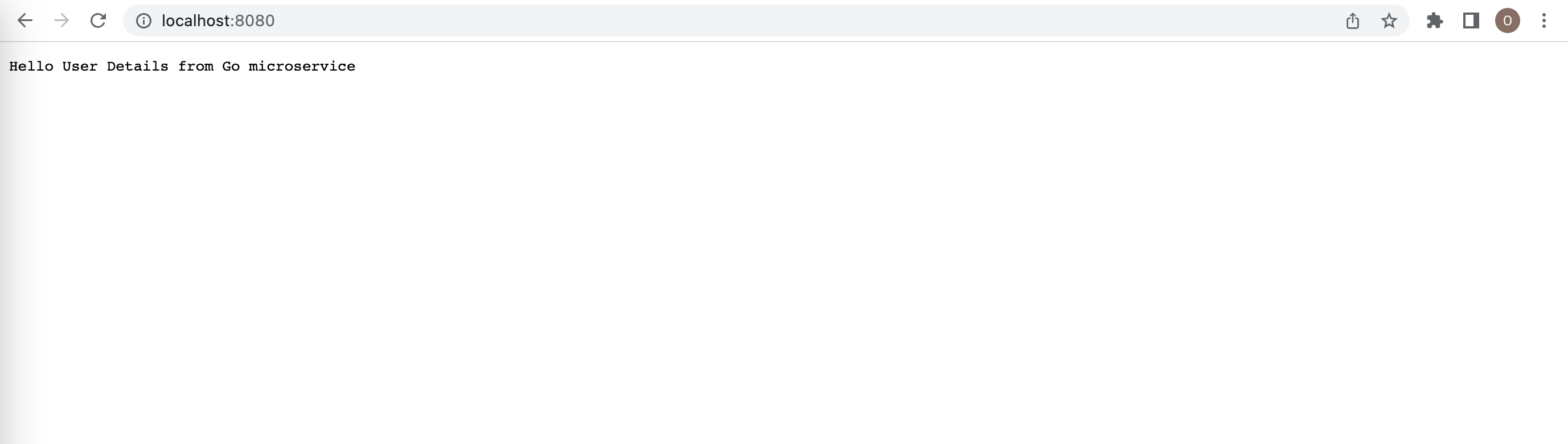

The server is now running, navigate to http://localhost:8080/

Refresh page couple of times to get more traces exported.

Traces Sample Configration

Traces are captured, you can check these captured traces in the Traces view.

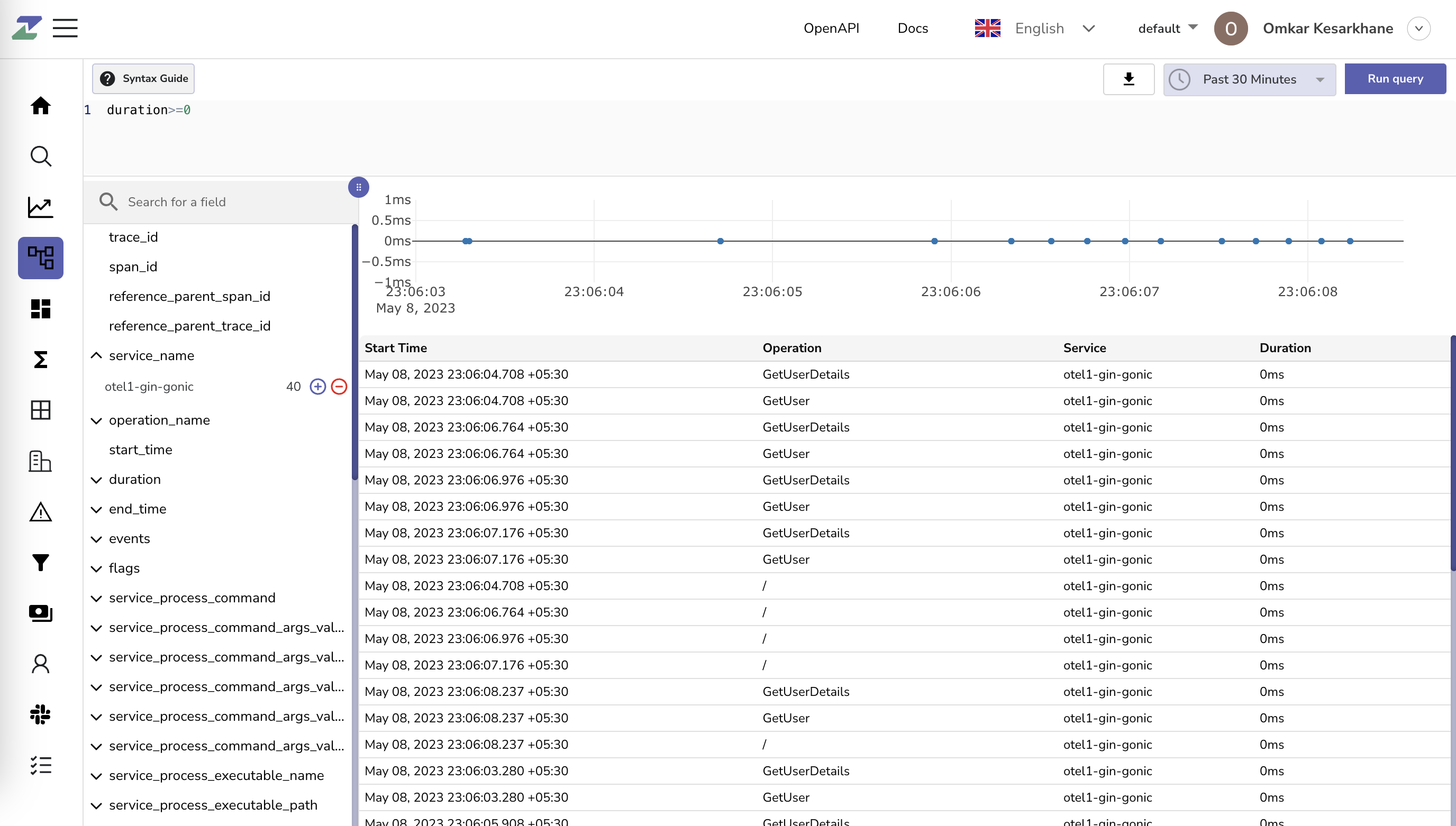

Traces page with spans from the sample services

Filter traces with your service name otel1-gin-gonic

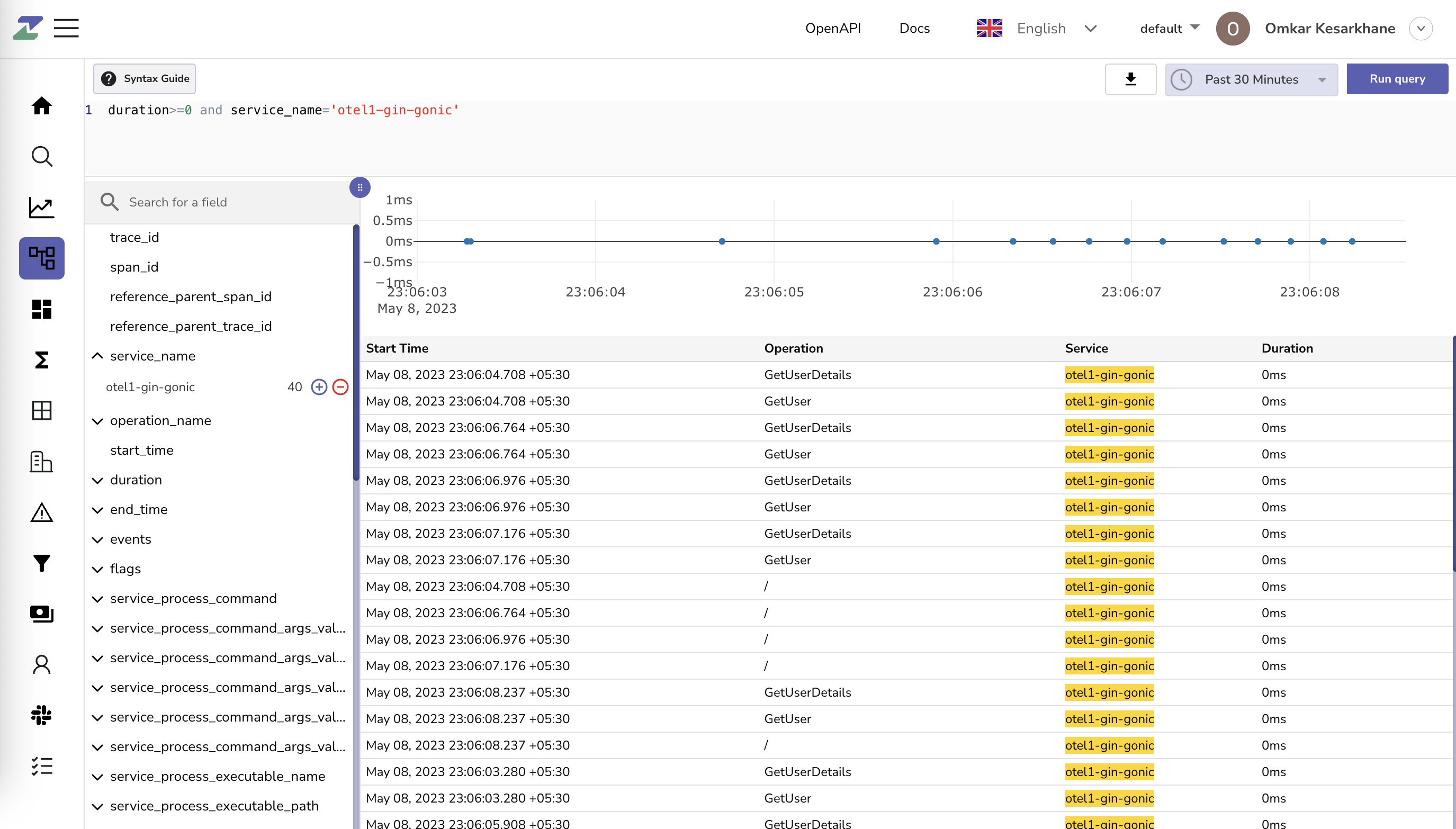

Spans filtered by service_name otel1-gin-gonic

Click on any trace to check trace data

Trace details in the Waterfall view

Trace can have multiple spans, each span represents single operation or task within that trace. Click on any span to check span details.

Span details panel with the span attributes
