Monitoring Caddy, MinIO, NATS, and ScyllaDB with OpenObserve Dashboards

When running distributed infrastructure, visibility is everything. You need to know when a backend goes unhealthy, when storage is filling up, or when message queues are backing up ideally before your users notice.

This guide documents how I built four production monitoring dashboards for OpenObserve, covering the full integration pipeline from metrics collection to dashboard visualization. Whether you're monitoring these specific services or building dashboards for something else entirely, the patterns and techniques here apply universally.

What Are These Services?

Before diving into metrics and dashboards, it helps to understand what each component does and why it’s commonly used in production systems.

Caddy

Caddy is a modern web server and reverse proxy.

It’s often used as:

• An edge proxy in front of backend services
• A TLS termination layer with automatic HTTPS
• A lightweight alternative to Nginx or Apache

Caddy is popular because it has sane defaults, automatic certificate management, and strong observability support through Prometheus metrics—making it ideal for production environments.

MinIO

MinIO is a high-performance, S3-compatible object storage system.

It’s commonly used for:

• Storing application assets, backups, and artifacts
• Data lakes and analytics pipelines
• Cloud-native and on-prem object storage

In distributed mode, MinIO runs as a cluster of nodes and exposes detailed metrics around storage capacity, request rates, drive health, and latency, which are critical to monitor as data grows.

NATS

NATS is a lightweight, high-throughput messaging system.

It’s typically used for:

• Event-driven architectures
• Microservice communication
• Streaming data (via JetStream)

NATS is designed to be fast and simple, but issues like slow consumers, connection saturation, and message backlogs can silently degrade systems—making observability essential in production setups.

ScyllaDB

ScyllaDB is a distributed, NoSQL database designed for high throughput and low latency.

It is API-compatible with Apache Cassandra but built in C++ with a shard-per-core architecture, allowing it to fully utilize modern hardware.

Because of this architecture:

• Metrics are exposed per CPU core (shard)
• Aggregation is required to understand host-level health
• Monitoring compactions, cache behaviour, and latency is critical to performance

Why These Together?

These four components often appear together in modern systems:

• Caddy at the edge
• NATS for internal messaging
• MinIO for durable object storage
• ScyllaDB for low-latency data access

Monitoring them together provides visibility across the request path, messaging layer, storage backend, and database, which is exactly what production observability should enable.

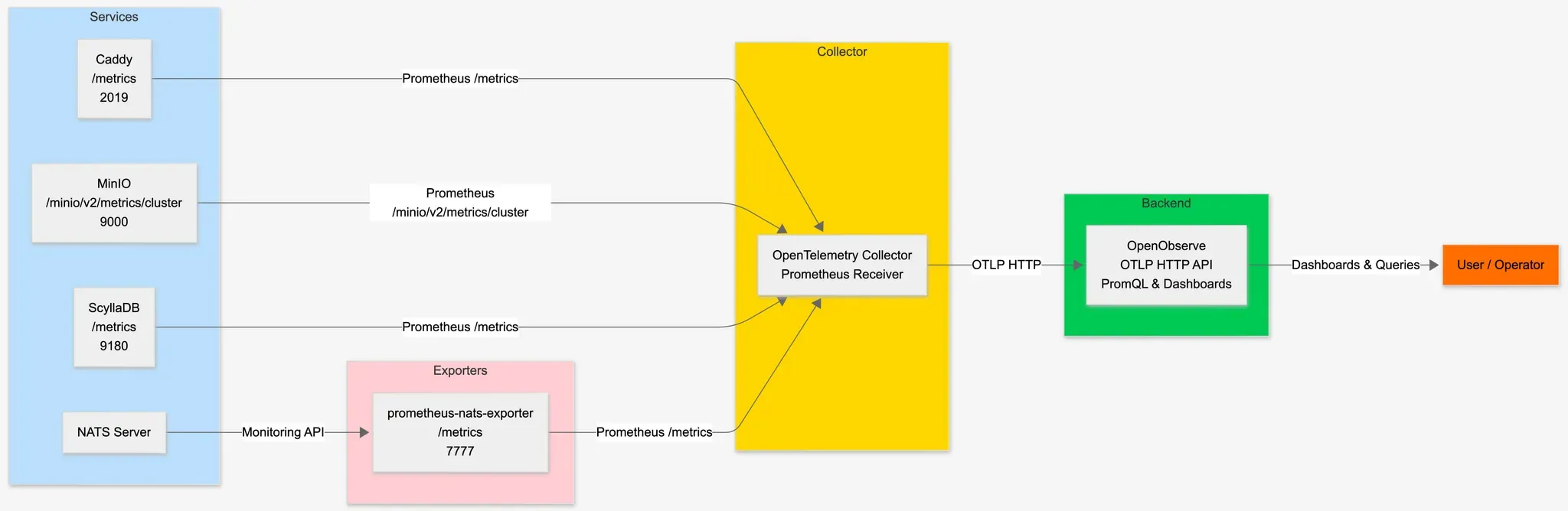

The Integration Pipeline

Before any dashboard can display data, you need to establish the flow of metrics from your services into OpenObserve. The architecture follows a standard observability pattern:

Each service exposes a Prometheus-compatible /metrics endpoint. The OpenTelemetry Collector scrapes these endpoints at regular intervals and forwards the data to OpenObserve via OTLP. This decoupled architecture means you can add new scrape targets without modifying your observability backend.

Prometheus Endpoints

Most modern infrastructure components expose Prometheus metrics natively. Here are the endpoints I configured:

Service	Endpoint	Port
Caddy	/metrics	2019
MinIO	/minio/v2/metrics/cluster	9000
NATS	/metrics (prometheus-nats-exporter)	7777
ScyllaDB	/metrics	9180

Note that NATS requires a separate exporter (prometheus-nats-exporter) since the NATS server doesn't expose Prometheus metrics directly. It queries the NATS monitoring endpoints and converts them to Prometheus format.

OpenTelemetry Collector Configuration

The collector configuration defines which endpoints to scrape and where to send the data. Here's a complete working configuration:

receivers:
  prometheus:
    config:
      scrape_configs:
        - job_name: 'caddy'
          scrape_interval: 15s
          static_configs:
            - targets: ['caddy:2019']

        - job_name: 'minio'
          scrape_interval: 15s
          metrics_path: /minio/v2/metrics/cluster
          static_configs:
            - targets: ['minio-1:9000', 'minio-2:9000', 'minio-3:9000', 'minio-4:9000']

        - job_name: 'nats'
          scrape_interval: 15s
          static_configs:
            - targets: ['prometheus-nats-exporter:7777']

        - job_name: 'scylladb'
          scrape_interval: 15s
          static_configs:
            - targets: ['scylla-1:9180', 'scylla-2:9180', 'scylla-3:9180']

exporters:
  otlphttp:
    endpoint: "<https://openobserve.example.com:5080/api/default>"
    headers:
      Authorization: "Basic <base64-encoded-credentials>"

service:
  pipelines:
    metrics:
      receivers: [prometheus]
      exporters: [otlphttp]

The scrape_interval of 15 seconds provides a good balance between resolution and overhead. For high-cardinality metrics or resource-constrained environments, you might increase this to 30s or 60s.

Understanding Dashboard JSON Structure

OpenObserve dashboards are stored as JSON documents. Understanding this structure is essential for programmatic dashboard creation or bulk modifications. Here's the top-level schema:

{
  "version": 5,
  "dashboardId": "unique_id",
  "title": "Dashboard Name",
  "description": "What this monitors",
  "tabs": [...],
  "variables": {...},
  "defaultDatetimeDuration": {...}
}

The version field indicates the dashboard schema version—currently 5 is the latest. The dashboardId must be unique within your organization.

Tabs and Panels

Dashboards are organized into tabs, each containing multiple panels. This structure helps organize related metrics together—for example, separating "Cluster Health" from "Storage" from "Performance" metrics:

"tabs": [
  {
    "tabId": "cluster_health",
    "name": "Cluster Health",
    "panels": [...]
  },
  {
    "tabId": "storage",
    "name": "Storage",
    "panels": [...]
  }
]

Panel Structure

Panels are where the actual visualization happens. Each panel needs several components: identity, visualization type, configuration, query, and layout position. Here's a complete panel definition:

{
  "id": "Panel_001",
  "type": "line",
  "title": "Request Rate",
  "description": "HTTP requests per second across all endpoints. Normal range: 100-1000/s. Sudden drops may indicate upstream failures.",
  "config": {
    "show_legends": true,
    "legends_position": null,
    "unit": "ops",
    "decimals": 0,
    "top_results_others": false,
    "axis_border_show": false,
    "legend_width": {"unit": "px"},
    "base_map": {"type": "osm"},
    "map_view": {"zoom": 1, "lat": 0, "lng": 0},
    "map_symbol_style": {"size": "by Value", "size_by_value": {"min": 1, "max": 100}, "size_fixed": 2},
    "drilldown": [],
    "mark_line": [],
    "connect_nulls": false,
    "no_value_replacement": "",
    "wrap_table_cells": false,
    "table_transpose": false,
    "table_dynamic_columns": false
  },
  "queryType": "promql",
  "queries": [{
    "query": "sum by (host) (rate(http_requests_total{host=~\\"$host\\"}[5m]))",
    "customQuery": true,
    "vrlFunctionQuery": "",
    "fields": {
      "stream": "http_requests_total",
      "stream_type": "metrics",
      "x": [], "y": [], "z": [], "breakdown": [],
      "filter": {"filterType": "group", "logicalOperator": "AND", "conditions": []}
    },
    "config": {
      "promql_legend": "{host}"
    }
  }],
  "layout": {"x": 0, "y": 0, "w": 24, "h": 9, "i": 1},
  "htmlContent": "",
  "markdownContent": ""
}

Important: The config object must include ALL fields shown above, even if you're using defaults. Missing fields cause HTTP 400 errors during import. This is a common pitfall when creating dashboards programmatically.

The description field is often overlooked but extremely valuable—it's displayed when users hover over the panel title. Use it to explain what normal values look like and what anomalies might indicate.

Choosing Panel Types and Units

Selecting the right visualization makes the difference between a dashboard that's glanced at and one that's actually useful for debugging.

Panel Types

OpenObserve supports several panel types, each suited for different kinds of data:

Panel Type	Best For	Visual Style
gauge	Binary states, percentages with thresholds	Circular gauge with color zones
metric	Single current values	Large number display
line	Time-series trends, rates	Line chart over time
area	Cumulative values, stacked data	Filled area chart
table	Text data, multi-value displays	Tabular format
bar	Comparisons, distributions	Horizontal/vertical bars
pie	Proportional breakdowns	Pie/donut chart

Decision framework:

• Is it a rate or trend? → Use line
• Is it memory, disk, or cumulative? → Use area (the filled area conveys "fullness")
• Is it a percentage or health status? → Use gauge (visual threshold indicators)
• Is it a current count or single value? → Use metric (large, scannable)
• Is it version info or text labels? → Use table

Units

Proper units make values instantly interpretable. OpenObserve automatically formats values based on the unit:

Unit	Input Value	Displayed As	Use Case
short	1500	1,500	Generic counts
ops	1500	1.5K/s	Operations per second
bytes	1073741824	1 GB	Memory, disk space
Bps	104857600	100 MB/s	Throughput
percent	75.5	75.5%	Percentages
ms	150	150ms	Latency (milliseconds)
µs	150	150µs	Latency (microseconds)
dtdurations	86400	1d 0h 0m	Uptime, durations

For latency metrics, choose the unit that keeps displayed values in a readable range (1-1000). If your latencies are typically microseconds, use µs; if they're typically tens of milliseconds, use ms.

Dynamic Filters with Variables

Static dashboards only get you so far. In production, you need to filter by host, datacenter, service instance, or other dimensions. OpenObserve variables make this possible.

Defining Variables

Variables are defined in the variables section and populate filter dropdowns. The query_values type automatically discovers values from your actual metrics:

"variables": {
  "list": [
    {
      "type": "query_values",
      "name": "host_name",
      "label": "Host",
      "query_data": {
        "stream_type": "metrics",
        "stream": "your_metric_name",
        "field": "host_name",
        "max_record_size": 100
      },
      "value": "",
      "options": [],
      "multiSelect": true,
      "hideOnDashboard": false,
      "selectAllValueForMultiSelect": "all"
    }
  ],
  "showDynamicFilters": true
}

The query_data.stream should be a metric that exists on all the hosts/instances you want to filter by. The query_data.field is the label name in Prometheus format (e.g., host_name, instance, job).

Setting multiSelect: true allows users to select multiple values simultaneously, which is useful for comparing hosts or showing aggregate views.

Using Variables in Queries

Reference variables in PromQL queries using the $variable_name syntax with regex matching:

# Single variable
your_metric{host_name=~"$host_name"}

# Multiple variables
your_metric{host_name=~"$host_name", datacenter=~"$dc", environment=~"$env"}

The =~ operator performs regex matching, which is necessary for multiSelect variables where the value might be host1|host2|host3.

Query Patterns for Production Metrics

Writing effective PromQL queries requires understanding how Prometheus metric types work.

Counters vs Gauges

Prometheus has distinct metric types that require different query approaches:

Counters only increase (e.g., total requests, total bytes sent). Always wrap counters with rate() or increase():

# Rate of requests per second
rate(http_requests_total[5m])

# Total requests in the last hour
increase(http_requests_total[1h])

The [5m] range vector tells Prometheus to calculate the rate over the last 5 minutes of data points. Shorter ranges are more responsive but noisier; longer ranges are smoother but less responsive.

Gauges can go up or down (e.g., current memory usage, active connections). Use directly:

# Current memory usage
process_resident_memory_bytes

# Current connection count
database_connections_active

Aggregating Per-Instance Metrics

Many services expose metrics per-shard, per-worker, or per-thread. ScyllaDB, for example, has one set of metrics per CPU shard. For a 16-core machine, that's 16 series per metric—too granular for most dashboards.

Aggregate using sum by or avg by:

# Total reads across all shards, grouped by host
sum by (host_name) (rate(scylla_storage_proxy_coordinator_reads{host_name=~"$host_name"}[5m]))

# Average CPU utilization per host
avg by (host_name) (scylla_reactor_utilization{host_name=~"$host_name"})

This reduces cardinality and makes visualizations actionable at the host level while still allowing per-host comparison.

Legend Templates

The legend identifies each line in multi-series charts. Use single braces with label names:

"config": {
  "promql_legend": "{host_name}"
}

For multiple labels:

"promql_legend": "{host_name} - {api}"

Warning: Double braces {{host_name}} will not render correctly. This is a common migration issue when converting Grafana dashboards.

Layout System

OpenObserve uses a 48-column grid system for panel positioning. Understanding this system is essential for creating well-organized dashboards.

Grid Basics

• Width (w): Columns occupied. 48 = full width, 24 = half, 16 = third.
• Position (x): Starting column. 0 = left edge, 24 = middle, 32 = two-thirds.
• Position (y): Row position. Panels flow downward.
• Height (h): Row height. 9 is standard for charts, 7 for single-value metrics.
• Index (i): Unique panel index within the dashboard.

Common Layout Patterns

Two columns:

{"x": 0,  "y": 0, "w": 24, "h": 9, "i": 1}  // Left half
{"x": 24, "y": 0, "w": 24, "h": 9, "i": 2}  // Right half

Three columns:

{"x": 0,  "y": 0, "w": 16, "h": 7, "i": 1}  // Left third
{"x": 16, "y": 0, "w": 16, "h": 7, "i": 2}  // Middle third
{"x": 32, "y": 0, "w": 16, "h": 7, "i": 3}  // Right third

KPI row + detail chart:

// Row of 4 KPIs
{"x": 0,  "y": 0, "w": 12, "h": 7, "i": 1}
{"x": 12, "y": 0, "w": 12, "h": 7, "i": 2}
{"x": 24, "y": 0, "w": 12, "h": 7, "i": 3}
{"x": 36, "y": 0, "w": 12, "h": 7, "i": 4}

// Full-width detail chart below
{"x": 0, "y": 7, "w": 48, "h": 9, "i": 5}

---

Dashboard Implementations

Here's a summary of key metrics and queries from each dashboard.

Caddy Web Server

Panels: 33 | Tabs: 4

Caddy is a modern web server often used as a reverse proxy. The critical metrics focus on upstream health and configuration state:

# Upstream health status (1=healthy per backend)
caddy_reverse_proxy_upstreams_healthy{upstream=~"$upstream"}

# Count of unhealthy upstreams (should be 0)
count(caddy_reverse_proxy_upstreams_healthy == 0) or vector(0)

# Configuration reload status (1=success)
caddy_config_last_reload_successful

# Admin API request rate
sum by (path, code) (rate(caddy_admin_http_requests_total[5m]))

The or vector(0) pattern handles the edge case where all upstreams are healthy (no series match == 0), preventing "No Data" errors.

MinIO Object Storage

Panels: 81 | Tabs: 10

MinIO provides S3-compatible object storage. In distributed mode, you need visibility into cluster health, storage capacity, and request patterns:

# Cluster health (1=healthy)
minio_cluster_health_status

# Storage utilization percentage
(1 - (minio_cluster_capacity_usable_free_bytes / minio_cluster_capacity_usable_total_bytes)) * 100

# S3 request rate by API operation
sum by (api) (rate(minio_s3_requests_total[5m]))

# Drive latency for read operations (microseconds)
minio_node_drive_latency_us{api="storage.ReadXL"}

# Offline drives (should be 0)
minio_cluster_drive_offline_total

The storage utilization query calculates used percentage from free/total, which is more reliable than trying to query used bytes directly.

NATS Messaging

Panels: 54 | Tabs: 6

NATS is a high-performance message broker. The most critical operational metric is slow consumers—clients that can't keep up with message flow:

# Slow consumers (non-zero = problem)
gnatsd_varz_slow_consumers

# Connection utilization
(gnatsd_varz_connections / gnatsd_varz_max_connections) * 100

# Message throughput
rate(gnatsd_varz_in_msgs[5m])
rate(gnatsd_varz_out_msgs[5m])

# JetStream storage usage
gnatsd_varz_jetstream_stats_storage

If slow_consumers goes non-zero, clients are receiving messages slower than publishers are sending them. This leads to message buffering and potential drops.

ScyllaDB

Panels: 94 | Tabs: 7

ScyllaDB exposes per-shard metrics due to its shard-per-core architecture. Aggregation is essential:

# Read latency aggregated to host level
sum by (host_name) (rate(scylla_storage_proxy_coordinator_read_latency{host_name=~"$host_name"}[5m]))

# Cache hit rate
sum(rate(scylla_cache_row_hits[5m])) / (sum(rate(scylla_cache_row_hits[5m])) + sum(rate(scylla_cache_row_misses[5m]))) * 100

# Pending compactions (high = backlogged)
scylla_compaction_manager_pending_compactions

# Per-keyspace storage
sum by (ks) (scylla_column_family_live_disk_space)

---

Troubleshooting Common Issues

Import Fails with 400 Error

The most common cause is missing fields in the panel config object. OpenObserve requires ALL config fields, even with default values:

"config": {
  "show_legends": true,
  "legends_position": null,
  "unit": "short",
  "decimals": 0,
  "drilldown": [],
  "mark_line": [],
  "connect_nulls": false,
  "no_value_replacement": "",
  "wrap_table_cells": false,
  "table_transpose": false,
  "table_dynamic_columns": false
  // ... include ALL fields
}

Duplicate Panel ID Error

Panel IDs must be globally unique across all tabs. When generating dashboards programmatically, use a structured naming scheme:

Panel_[tab_index]_[panel_index]
Panel_00_01, Panel_00_02, Panel_01_01, ...

Panel Shows "No Data"

1. Metric doesn't exist: Verify in OpenObserve's Metrics explorer
2. Filter mismatch: Check that variable values match actual label values (case-sensitive)
3. Time range: Ensure data exists in the selected time window
4. Query syntax: Test the query in Stream > Metrics first

Version Panels Empty

Table panels expecting label values (like software versions) need the metric to have the version as a label:

# This works if version is a label
minio_software_version_info{version=~".+"}

# Display format in legend
"promql_legend": "Version: {version}"

Building effective monitoring dashboards is part science, part craft. The technical structure is JSON schema, query syntax, layout grid provides the foundation. But the real value comes from understanding which metrics matter for each service and how to present them for quick interpretation.

These dashboards are available in the OpenObserve Dashboards repository. Contributions and improvements are welcome.

Open-source community contribution This blog is authored by a guest contributor who built and shared these dashboards as part of the OpenObserve open-source ecosystem. We welcome similar contributions from the community.
