How to redact sensitive / PII data in your logs
Prabhat Sharma
December 17, 2024
5 min read
Don’t forget to share!
How to Redact Sensitive Data in Your Logs
As you collect and store increasingly large amounts of log data, the risk of sensitive information being exposed grows. Sensitive data, such as email addresses, credit card numbers, and API keys, can be inadvertently logged, posing a significant security risk. Redacting sensitive data from logs is crucial to protect user privacy and prevent data breaches.
In this blog, we'll explore the importance of redacting sensitive data from logs and provide examples of how to do so using Vector Remap Language (VRL). We'll cover redacting email addresses, credit card numbers, and AWS keys. You will be able to do it for other scenarios as well from what you learn here.
Why Redact Sensitive Data?
Logging sensitive data can have severe consequences, including:
- Data breaches: Exposed sensitive data can lead to identity theft, financial loss, and reputational damage.
- Compliance issues: Failing to protect sensitive data can result in non-compliance with regulations, such as GDPR, HIPAA, and PCI-DSS.
- Security risks: Logged sensitive data can be used by attackers to gain unauthorized access to systems and data.
Redacting Sensitive Data with VRL
Vector VRL is a powerful language for processing and transforming log data. It's redact function allows you to remove sensitive data from logs.
Syntax of the redact function is:
redact(value: <string | object | array> , filters: <array> , [redactor: <string | object> ])
:: <string | object | array>
value can be either string, object or an array.
redacting single field
In order to redact a single field you can use:
email_pattern = r'\b[A-Za-z0-9._%+-]+@[A-Za-z0-9.-]+\.[A-Z|a-z]{2,}\b'
.message = redact!(.message, filters: [ email_pattern ], redactor: "full")
redacting whole log record
In order to configure you the whole record you can use:
email_pattern = r'\b[A-Za-z0-9._%+-]+@[A-Za-z0-9.-]+\.[A-Z|a-z]{2,}\b'
. = redact(., filters: [ email_pattern ], redactor: "full")
Doing this for the whole record as opposed to a single field, would require more compute during ingestion. Hence plan accordingly.

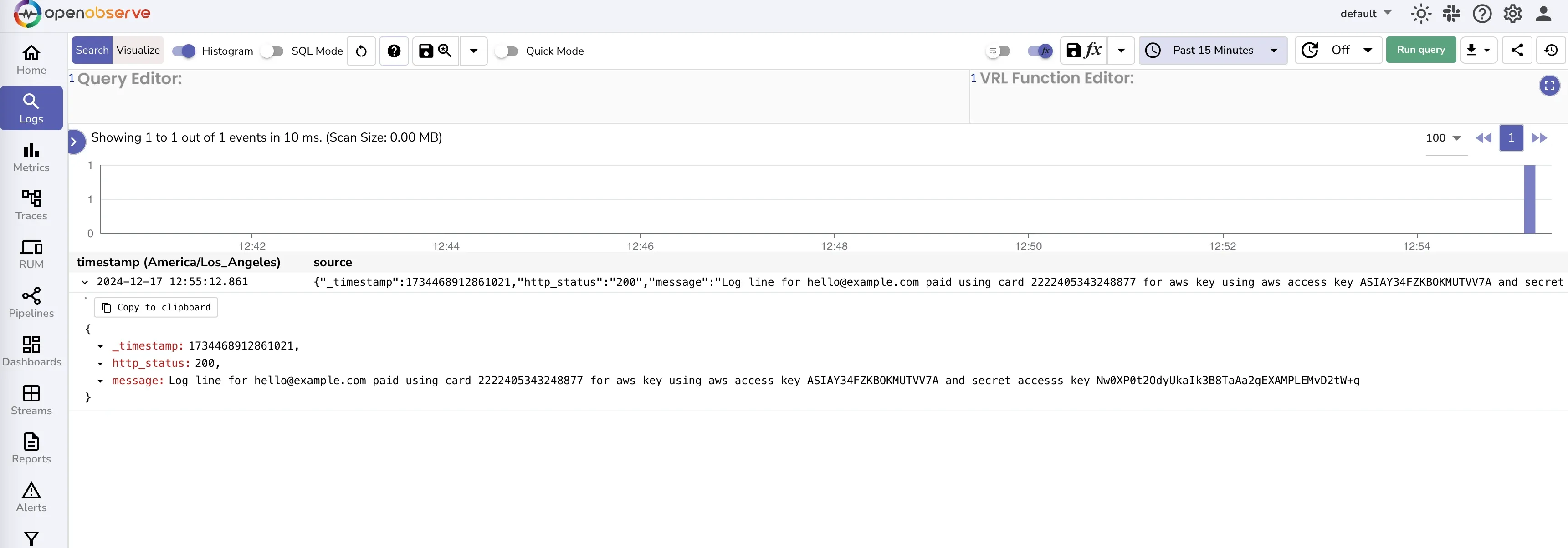

Ingest sample data
Let's take an example log record:
{
"message": "Log line for hello@example.com paid using card 2222405343248877 for aws key using aws access key ASIAY34FZKBOKMUTVV7A and secret accesss key Nw0XP0t2OdyUkaIk3B8TaAa2gEXAMPLEMvD2tW+g",
"http_status": "200"
}
You can ingest this data in your environment using:
curl --request POST -u "root@example.com:Complexpass#123" \
--url http://localhost:5080/api/default/default/_json \
--header 'content-type: application/json' \
--data '[
{
"message": "Log line for hello@example.com paid using card 2222405343248877 for aws key using aws access key ASIAY34FZKBOKMUTVV7A and secret accesss key Nw0XP0t2OdyUkaIk3B8TaAa2gEXAMPLEMvD2tW+g",
"http_status": "200"
}
]'
Make sure to replace the credentials

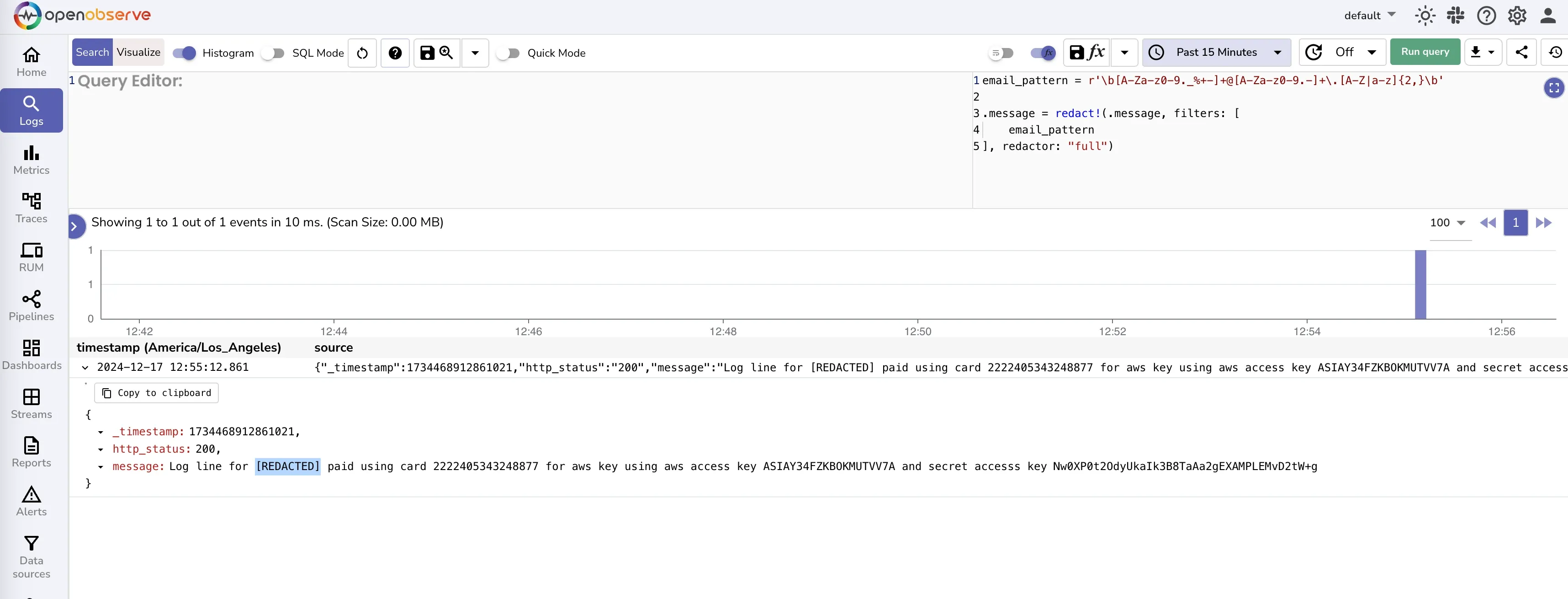

Redacting Email Addresses
To redact email addresse, you can use the following VRL script:
email_pattern = r'\b[A-Za-z0-9._%+-]+@[A-Za-z0-9.-]+\.[A-Z|a-z]{2,}\b'
.message = redact!(.message, filters: [
email_pattern
], redactor: "full")
This script uses a regular expression to match email addresses in the message field and replaces them with [REDACTED].
You should see below.

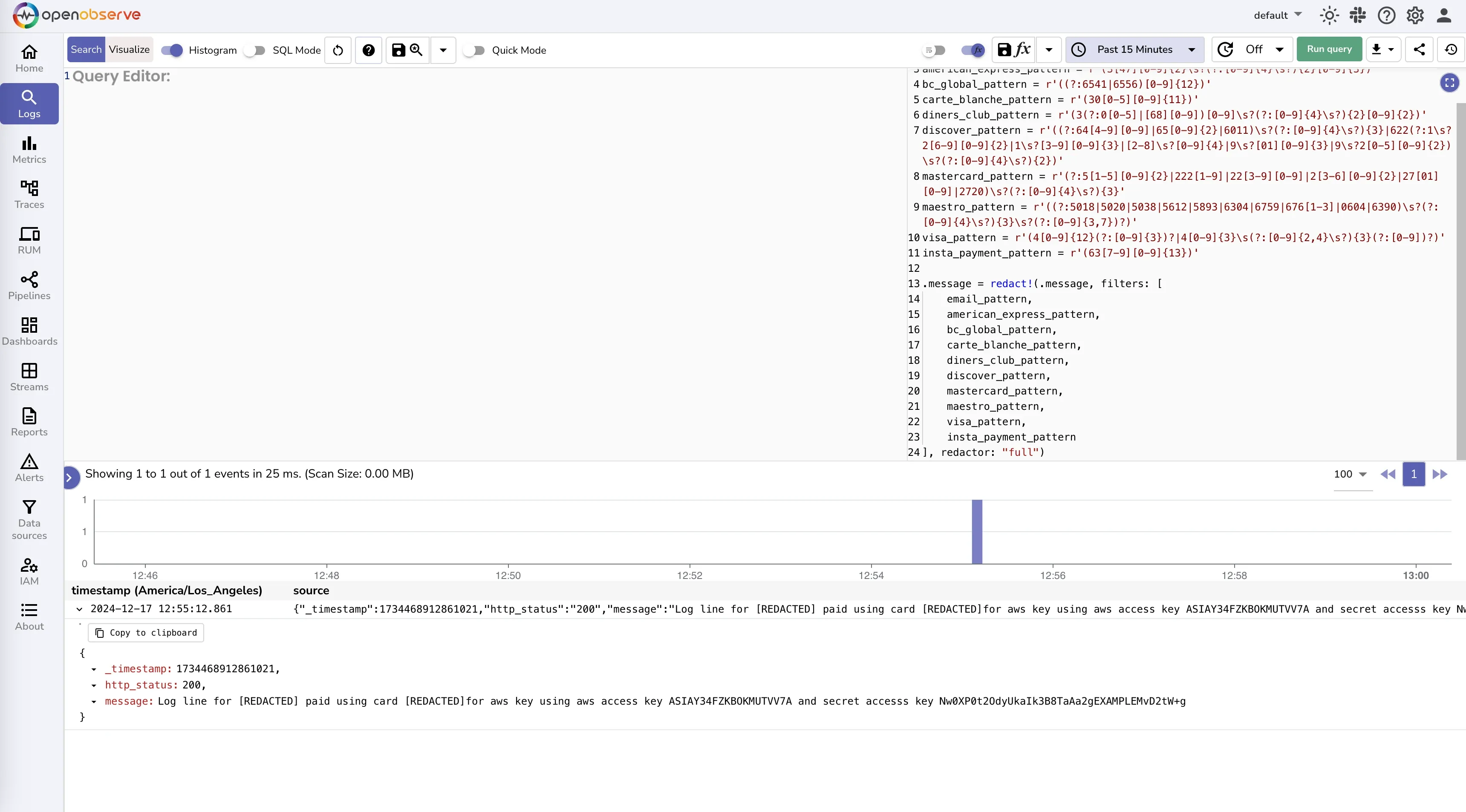

Redacting Credit Card Numbers
To redact credit card numbers,you must understand that there are various credit card number formats. We have collected various credit card number formats that you can use:
email_pattern = r'\b[A-Za-z0-9._%+-]+@[A-Za-z0-9.-]+\.[A-Z|a-z]{2,}\b'
american_express_pattern = r'(3[47][0-9]{2}\s?(?:[0-9]{4}\s?){2}[0-9]{3})'
bc_global_pattern = r'((?:6541|6556)[0-9]{12})'
carte_blanche_pattern = r'(30[0-5][0-9]{11})'
diners_club_pattern = r'(3(?:0[0-5]|[68][0-9])[0-9]\s?(?:[0-9]{4}\s?){2}[0-9]{2})'
discover_pattern = r'((?:64[4-9][0-9]|65[0-9]{2}|6011)\s?(?:[0-9]{4}\s?){3}|622(?:1\s?2[6-9][0-9]{2}|1\s?[3-9][0-9]{3}|[2-8]\s?[0-9]{4}|9\s?[01][0-9]{3}|9\s?2[0-5][0-9]{2})\s?(?:[0-9]{4}\s?){2})'
mastercard_pattern = r'(?:5[1-5][0-9]{2}|222[1-9]|22[3-9][0-9]|2[3-6][0-9]{2}|27[01][0-9]|2720)\s?(?:[0-9]{4}\s?){3}'
maestro_pattern = r'((?:5018|5020|5038|5612|5893|6304|6759|676[1-3]|0604|6390)\s?(?:[0-9]{4}\s?){3}\s?(?:[0-9]{3,7})?)'
visa_pattern = r'(4[0-9]{12}(?:[0-9]{3})?|4[0-9]{3}\s(?:[0-9]{2,4}\s?){3}(?:[0-9])?)'
insta_payment_pattern = r'(63[7-9][0-9]{13})'
.message = redact!(.message, filters: [
email_pattern,
american_express_pattern,
bc_global_pattern,
carte_blanche_pattern,
diners_club_pattern,
discover_pattern,
mastercard_pattern,
maestro_pattern,
visa_pattern,
insta_payment_pattern
], redactor: "full")
This script uses regular expressions to match credit card numbers in the message field and replaces them with [REDACTED].
Now you have both email and credit card redacted.

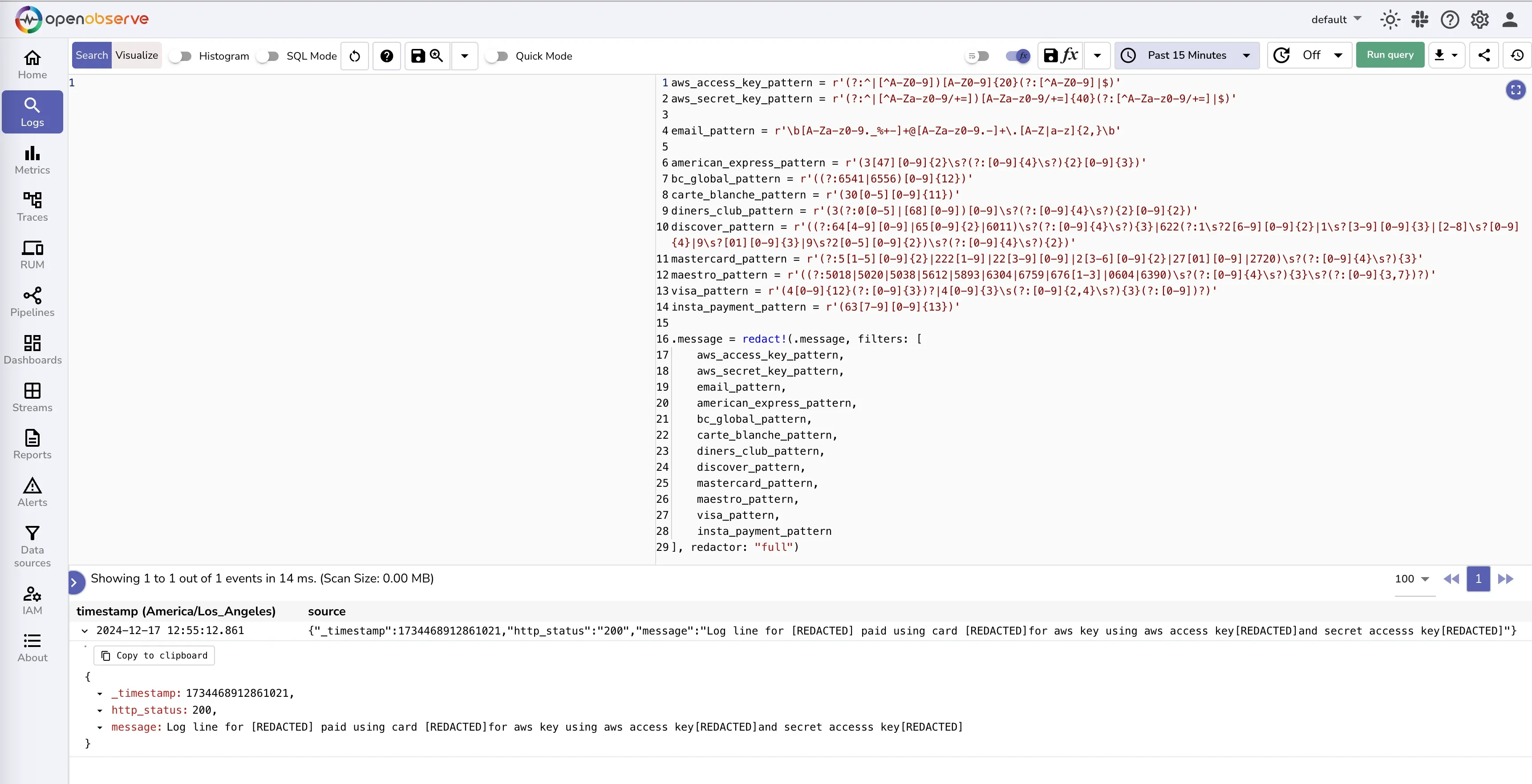

Redacting AWS Keys
To redact AWS keys, you can use the following VRL script:
aws_access_key_pattern = r'(?:^|[^A-Z0-9])[A-Z0-9]{20}(?:[^A-Z0-9]|$)'
aws_secret_key_pattern = r'(?:^|[^A-Za-z0-9/+=])[A-Za-z0-9/+=]{40}(?:[^A-Za-z0-9/+=]|$)'
email_pattern = r'\b[A-Za-z0-9._%+-]+@[A-Za-z0-9.-]+\.[A-Z|a-z]{2,}\b'
american_express_pattern = r'(3[47][0-9]{2}\s?(?:[0-9]{4}\s?){2}[0-9]{3})'
bc_global_pattern = r'((?:6541|6556)[0-9]{12})'
carte_blanche_pattern = r'(30[0-5][0-9]{11})'
diners_club_pattern = r'(3(?:0[0-5]|[68][0-9])[0-9]\s?(?:[0-9]{4}\s?){2}[0-9]{2})'
discover_pattern = r'((?:64[4-9][0-9]|65[0-9]{2}|6011)\s?(?:[0-9]{4}\s?){3}|622(?:1\s?2[6-9][0-9]{2}|1\s?[3-9][0-9]{3}|[2-8]\s?[0-9]{4}|9\s?[01][0-9]{3}|9\s?2[0-5][0-9]{2})\s?(?:[0-9]{4}\s?){2})'
mastercard_pattern = r'(?:5[1-5][0-9]{2}|222[1-9]|22[3-9][0-9]|2[3-6][0-9]{2}|27[01][0-9]|2720)\s?(?:[0-9]{4}\s?){3}'
maestro_pattern = r'((?:5018|5020|5038|5612|5893|6304|6759|676[1-3]|0604|6390)\s?(?:[0-9]{4}\s?){3}\s?(?:[0-9]{3,7})?)'
visa_pattern = r'(4[0-9]{12}(?:[0-9]{3})?|4[0-9]{3}\s(?:[0-9]{2,4}\s?){3}(?:[0-9])?)'
insta_payment_pattern = r'(63[7-9][0-9]{13})'
.message = redact!(.message, filters: [
aws_access_key_pattern,
aws_secret_key_pattern,
email_pattern,
american_express_pattern,
bc_global_pattern,
carte_blanche_pattern,
diners_club_pattern,
discover_pattern,
mastercard_pattern,
maestro_pattern,
visa_pattern,
insta_payment_pattern
], redactor: "full")
This script uses a regular expression to match AWS keys in the message field and replaces them with [REDACTED].

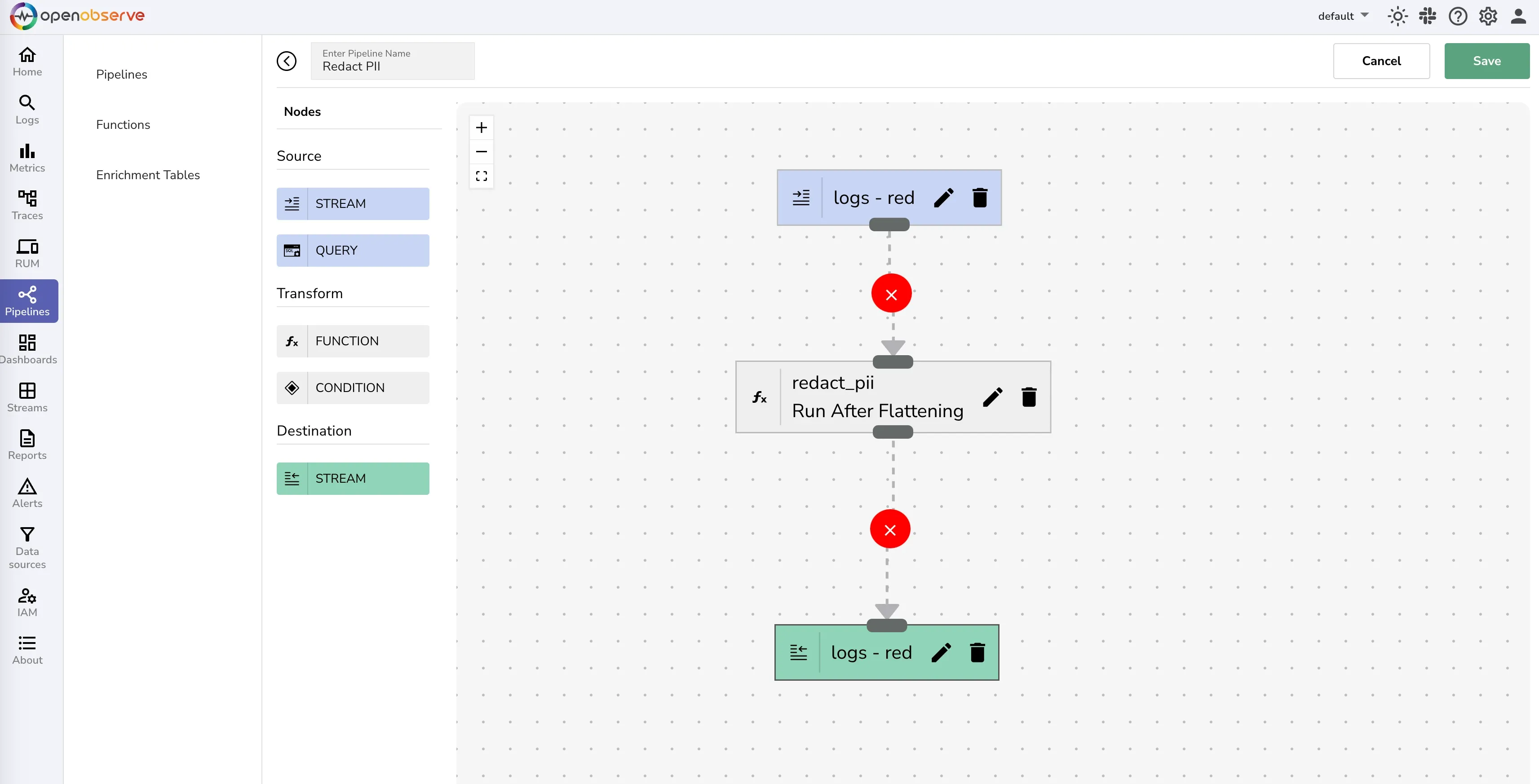

Save function and create the pipeline
Now that you have been able to test the function that works well, let's build a pipeline.
This will now redact any sensitive or PII data before your log data is ingested and stored.
Best Practices for Redacting Sensitive Data
When redacting sensitive data, keep the following best practices in mind:
- Use specific regular expressions: Avoid using broad regular expressions that may match non-sensitive data.
- Test your scripts: Verify that your redaction scripts are working correctly to avoid false positives or negatives.
- Monitor and update: Continuously monitor your logs and update your redaction scripts as needed to ensure sensitive data is protected.
How do I build or find regular expressions for other sensitive data
Check the open source pyWhat project at https://github.com/bee-san/pyWhat/tree/main/pywhat/Data
Conclusion
Redacting sensitive data from logs is essential to protect user privacy and prevent data breaches. By using Vector VRL and following best practices, you can effectively remove sensitive data from your logs and ensure compliance with regulations. Remember to regularly review and update your redaction scripts to stay ahead of evolving security threats.
