Create and Use Scheduled Pipeline

Use this guide to create and run scheduled pipelines. Scheduled pipelines run at a fixed interval. They query existing data from a stream using SQL or PromQL, apply optional transformations, and write the results to a destination stream or external system.

Visit the Pipelines overview page before starting.

Prerequisites

Your OpenObserve Cloud or self-hosted instance is running.
You have permissions to work with pipelines. Access is controlled from IAM > Roles > Permissions.

Steps to create a scheduled pipeline

Step 1: Open the pipeline editor

Log in to OpenObserve.
In the left navigation panel, select Pipelines. By default, the system opens the Pipelines tab.
Click Add Pipeline at the top-right corner.

Step 2: Enter a pipeline name

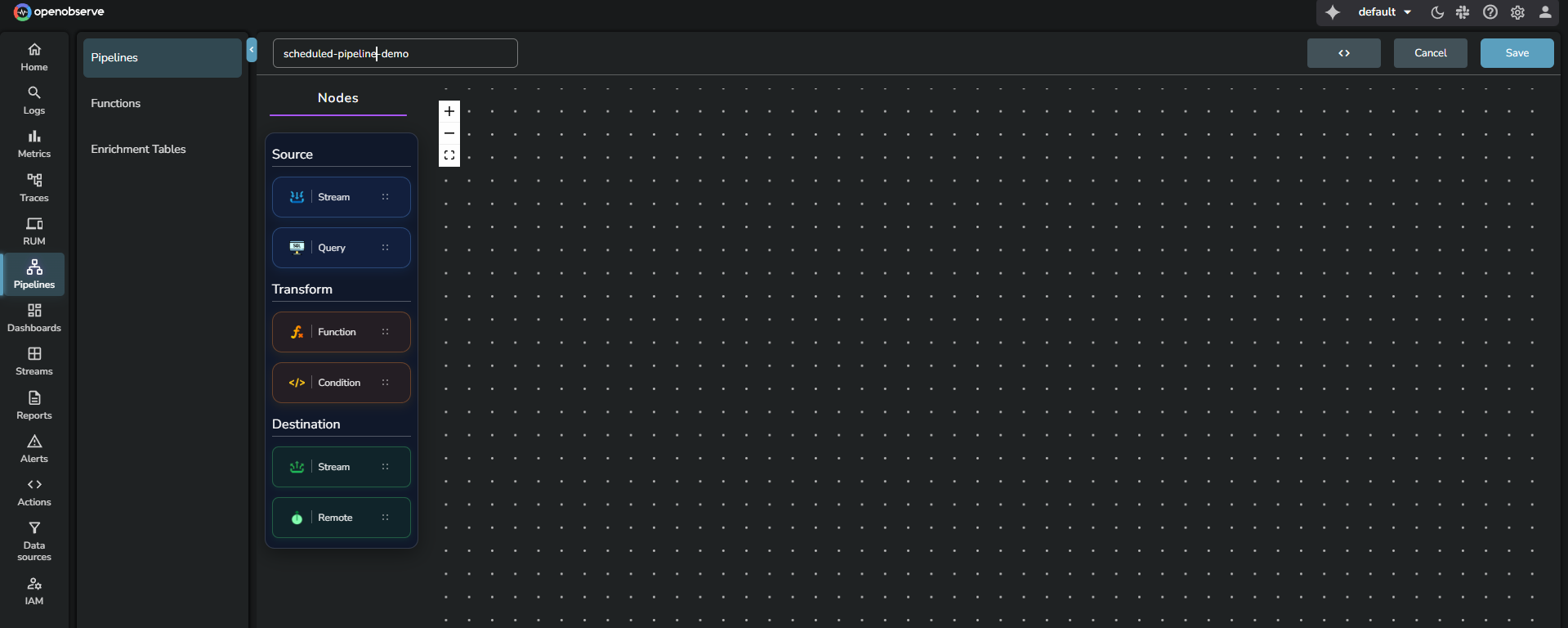

Enter a unique name in the input box at the top of the editor. scheduled-pipeline-name

Step 3: Configure the Source node (Query)

Scheduled pipelines do not use a Stream node as the source. They always begin with a Query node.

From the Source section, drag the Query node into the editor.

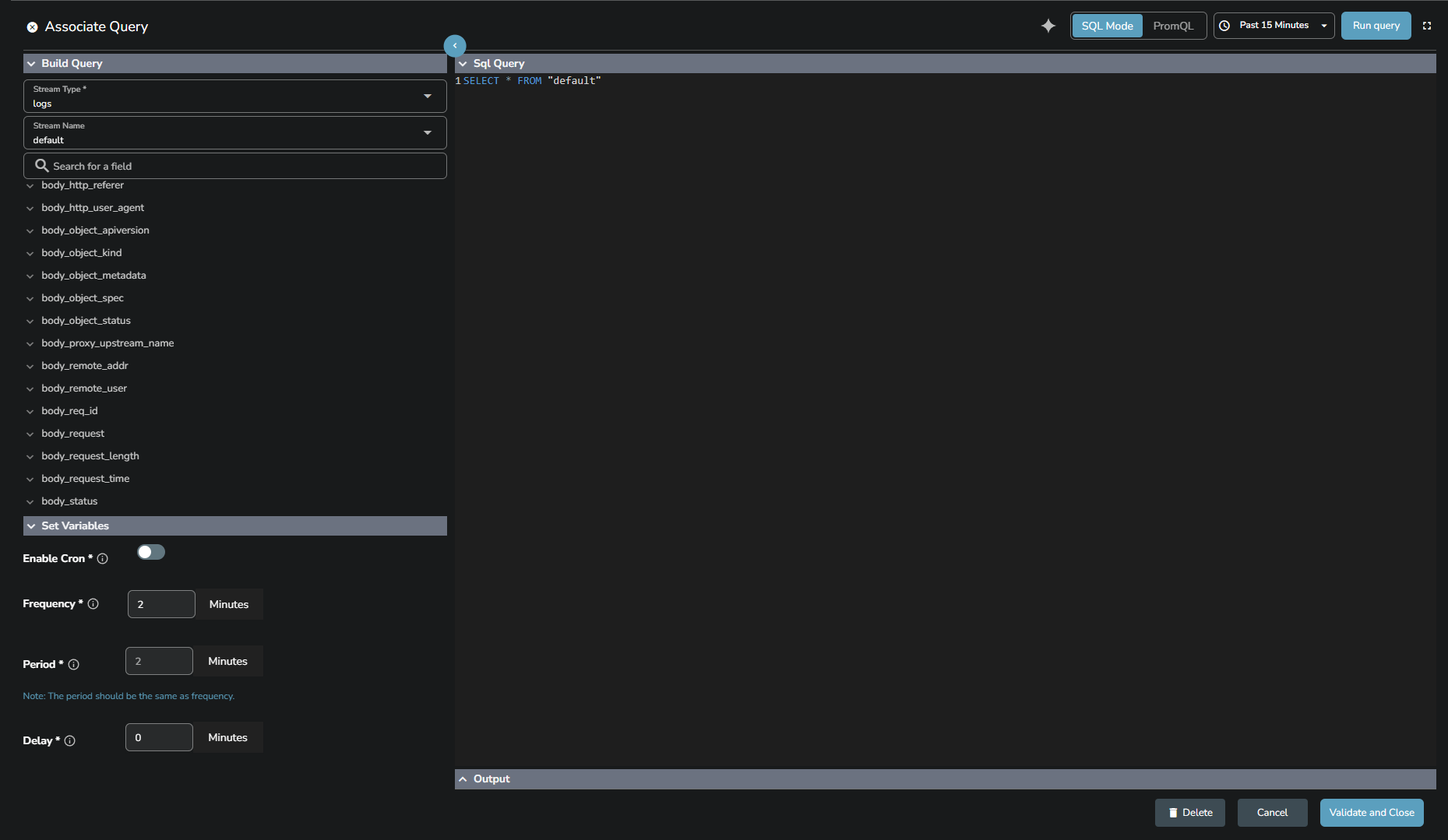

The Associate Query panel opens. The panel contains the following sections, Build Query, SQL Query editor, Output, Set Variables.
In the Build Query section:
1. Select the Stream Type.
2. Select the Stream Name.
Edit or write your SQL query in the SQL query editor.
Select the time range from the time range selector at the top-right corner.

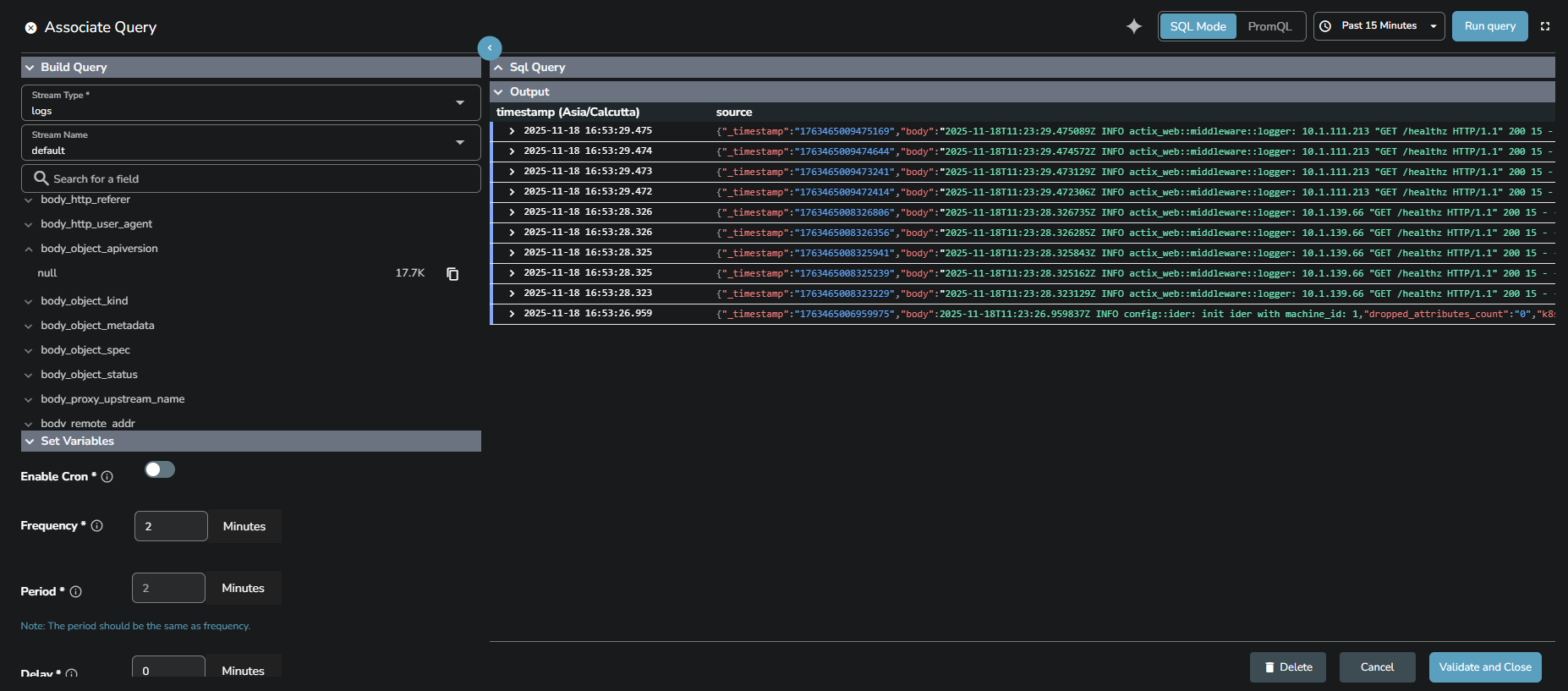

Click Run query to preview data in the Output panel.

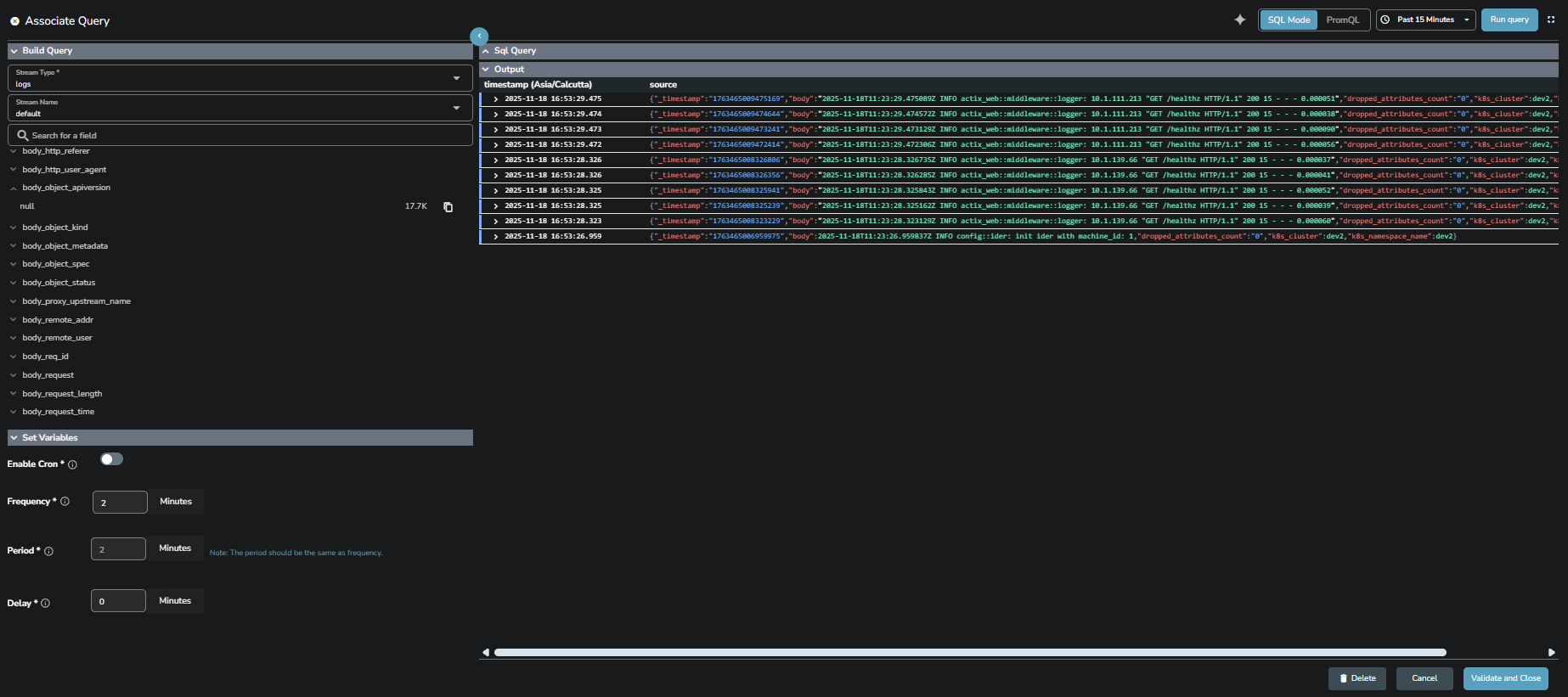

In the Set Variables section configures how the pipeline runs using the following settings:
- Enable Cron: Switch from interval-based scheduling to cron-based scheduling.
- Frequency: How often the pipeline runs.
- Period: The data window to process. Period must equal Frequency.
- Delay: How many minutes the pipeline waits after the scheduled time before execution.
See the Pipelines overview page to learn more about frequency, period, and cron. See the Configurable Delay in Scheduled Pipelines page to learn how to configure delay in scheduled-pipelines.
After configuring the query and variables, click Validate and Close. This adds the Query node to the editor.

Step 4: Configure the Transform node

From the Transform section, drag either a Condition or Function node into the editor.

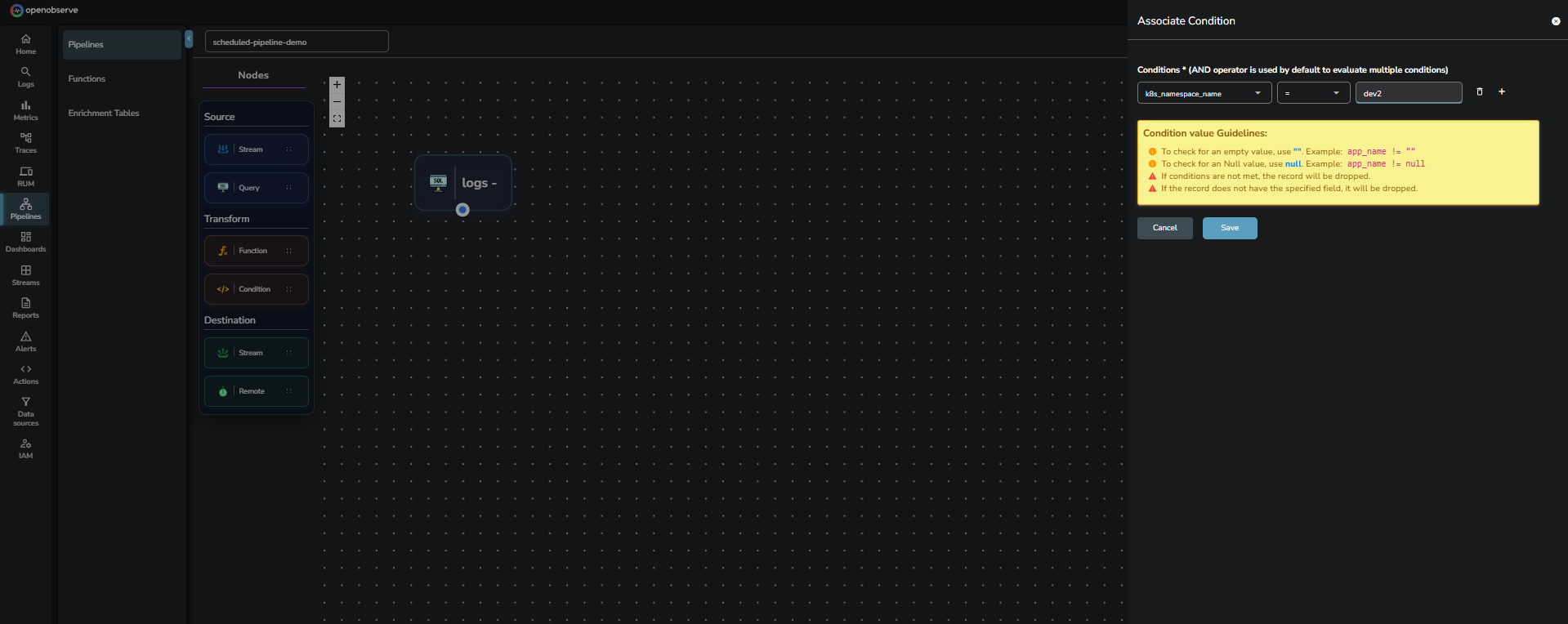

If you add a Condition node:
1. In the Associate Conditions screen, select the field name in the Column drop-down list. This list displays the fields detected in the source stream.
2. Select an operator from the Operator drop-down list.
3. Enter a value in the Value input box.
4. Add more conditions if needed.
Guidelines
- Use an empty string to check for empty values. For example, app_name != ""
- Use null to check for null values. For example, app_name != null
- If the condition does not match, the record is dropped.
- If the record does not contain the specified field, it is also dropped.
If you add a Function node:

Use a Function node to transform events using a VRL function.

A Function does not require predefined fields. You can use it even if the source stream has no schema.
To create a new function:
1. Enable Create new function toggle.
2. In the Associate Function tab, enter the function name.
3. Open the Query tab.
4. Select the stream type, stream name, and duration for which you want to query the data.
5. Click the Run Query option at the top-right corner of the Query tab.
6. In the Function tab, write a VRL function.
7. Click the Test Function button at the top-right corner of the screen.
8. Click Save to save the function.
The After Flattening toggle is enabled by default. It ensures the function processes normalized data. Disable this toggle only if you need the original structure.
Guidelines
- RBF (Run Before Flattening): Function executes before data structure is flattened.
- RAF (Run After Flattening): Function executes after data structure is flattened.
Click Save to confirm the transform node.

Step 5: Configure the Destination node

A destination defines where the processed events are written. You can forward data to another stream or to an external system.

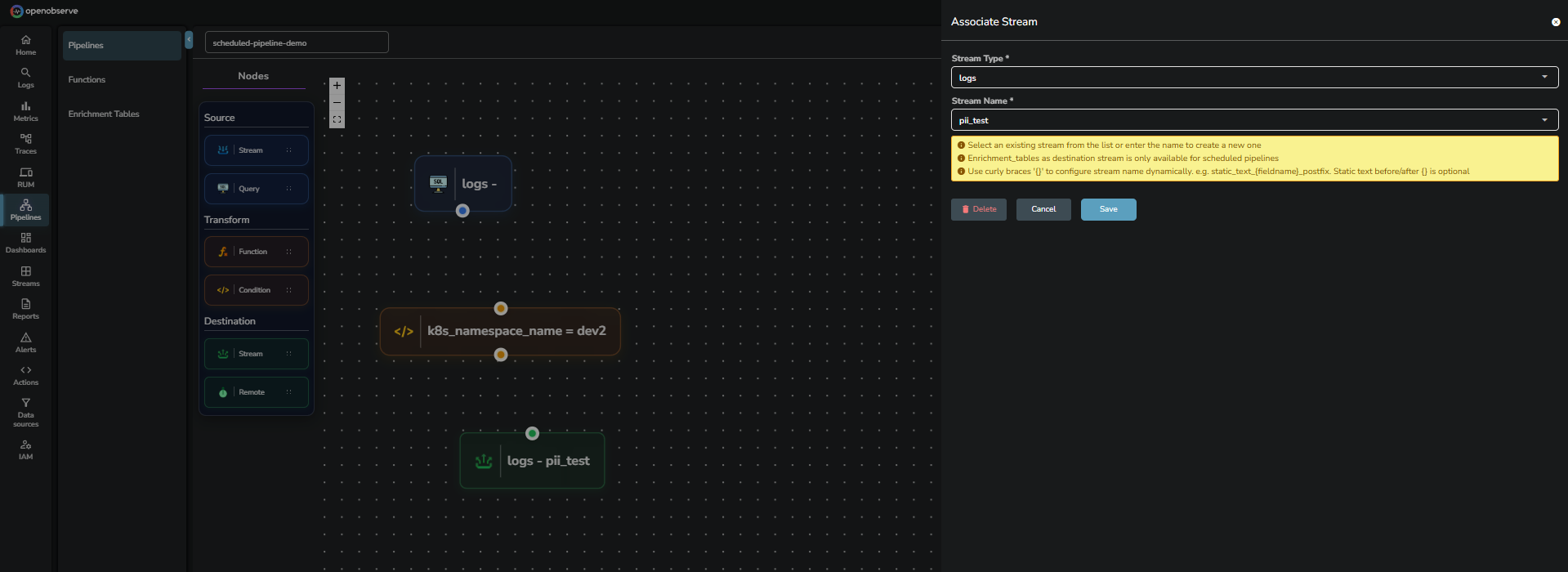

To add a stream destination: stream-destination

Drag a Stream node into the editor.
In the Associate Stream panel, configure the destination stream.
Select an existing stream or create a new one. Stream creation follows the same configuration as shown in Step 3.

Note

You can add Enrichment_tables as a destination stream for scheduled pipelines.

Dynamic stream names

You can configure the stream name dynamically with curly braces.
Example: static_text_{fieldname}_postfix
Static text before and after the braces is optional.

To add an external destination:

Drag a Remote node into the editor.
In the External Destination panel, either select an existing destination or enable Create new Destination and fill in the required details such as name, URL, method, output format, and headers.
Click Save.

For detailed steps on configuring external destinations, see the Remote Destination guide.

Step 6: Connect the nodes

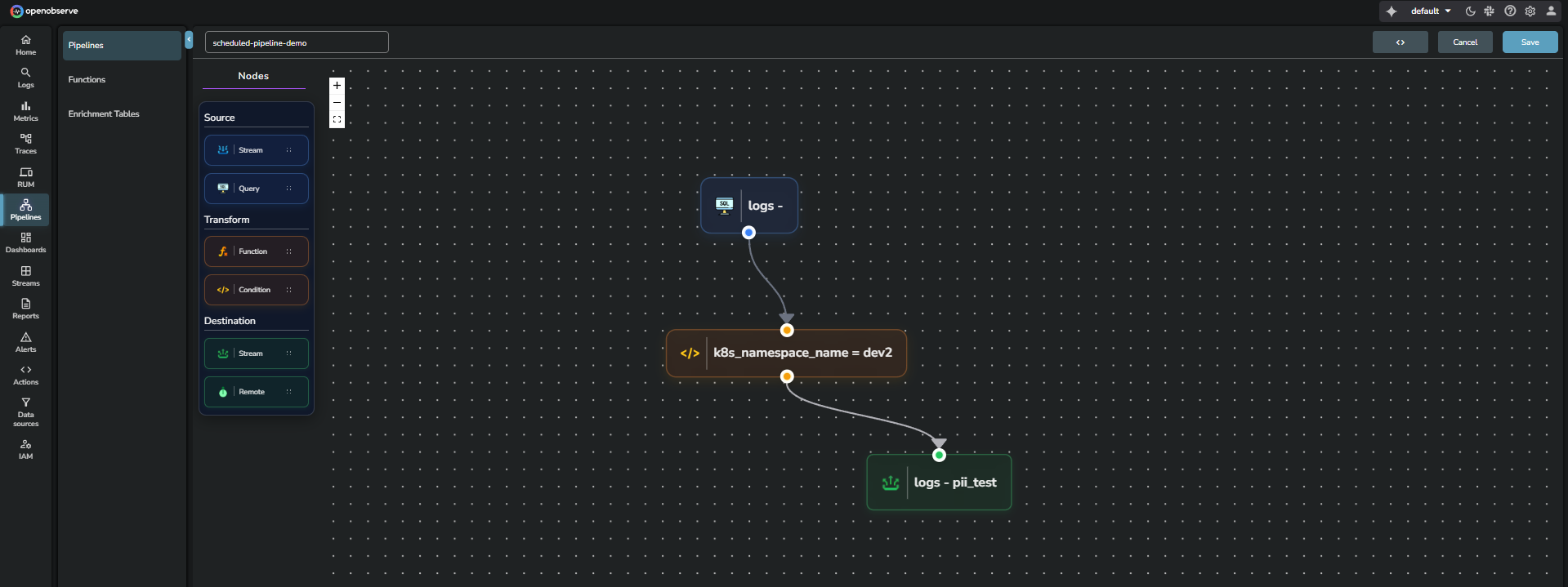

Use the connection icon to link Source > Transform > Destination. To remove a link, select the link and press delete on your keyboard. connect-nodes

Step 7: Save the pipeline

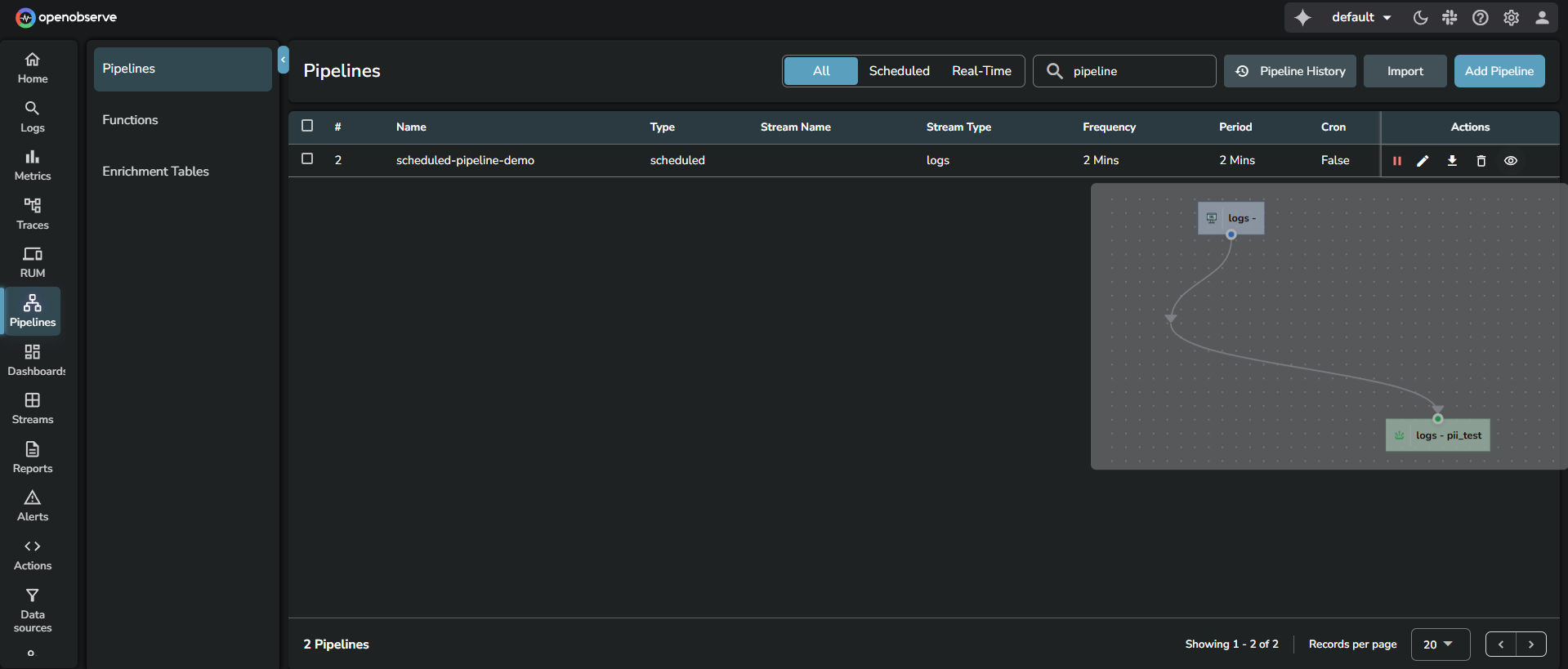

Click Save. The pipeline becomes active immediately. scheduled-pipeline-list-view

Use the scheduled pipeline

Step 1: Ingest data

Use curl or any supported ingestion method. To find the sample curl command, go to Data Sources > Custom > Logs > Curl. The scheduled pipeline does not run immediately when data is ingested.
It processes data only when the schedule triggers, using the configured frequency, period, and delay.

Step 2: Verify output

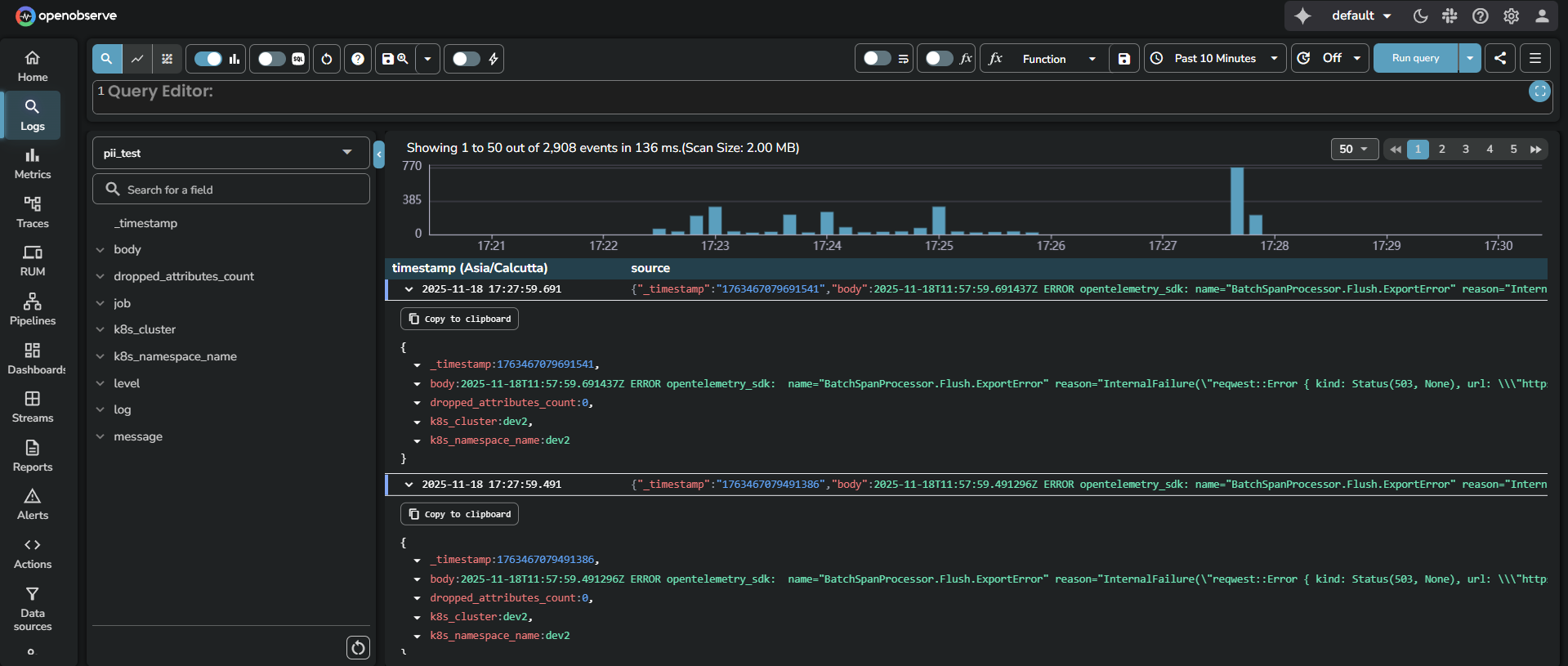

view-result

Go to Logs.
From the stream selection dropdown, select the stream you added as destination.
Select the time range from the time range selector.
Click Run query to view the result.
