OpenAI JS/TS → OpenObserve

Updated View MarkdownOpen in ChatGPTOpen in Claude

Capture LLM call latency, token usage, model name, and finish reason for every OpenAI API call made from a Node.js application. Instrumentation uses @arizeai/openinference-instrumentation-openai to automatically patch the OpenAI SDK and export spans to OpenObserve via OTLP.

Prerequisites

  • Node.js 18+
  • An OpenObserve account (cloud or self-hosted)
  • Your OpenObserve organisation ID and Base64-encoded auth token
  • An OpenAI API key

Installation

npm install openai @arizeai/openinference-instrumentation-openai \
  @opentelemetry/sdk-node @opentelemetry/exporter-trace-otlp-http \
  @opentelemetry/sdk-trace-base @opentelemetry/resources dotenv

Configuration

Create a .env file in your project root:

OPENAI_API_KEY=your-openai-api-key

Instrumentation

Initialise the OTel SDK with OpenAIInstrumentation before requiring the OpenAI SDK. The instrumentation patches the module at require() time, so OpenAI must be imported after sdk.start().

require('dotenv').config();

const { NodeSDK } = require('@opentelemetry/sdk-node');
const { OTLPTraceExporter } = require('@opentelemetry/exporter-trace-otlp-http');
const { SimpleSpanProcessor } = require('@opentelemetry/sdk-trace-base');
const { resourceFromAttributes } = require('@opentelemetry/resources');
const { OpenAIInstrumentation } = require('@arizeai/openinference-instrumentation-openai');

const sdk = new NodeSDK({
  resource: resourceFromAttributes({ 'service.name': 'my-openai-app' }),
  spanProcessors: [
    new SimpleSpanProcessor(
      new OTLPTraceExporter({
        url: 'https://api.openobserve.ai/api/your_org_id/v1/traces',
        headers: { Authorization: 'Basic <your_base64_token>' },
      })
    ),
  ],
  instrumentations: [new OpenAIInstrumentation()],
});
sdk.start();

const OpenAI = require('openai');

async function main() {
  const client = new OpenAI({ apiKey: process.env.OPENAI_API_KEY });

  const response = await client.chat.completions.create({
    model: 'gpt-4o-mini',
    messages: [{ role: 'user', content: 'What is distributed tracing?' }],
    max_tokens: 256,
  });

  console.log(response.choices[0].message.content);
  await sdk.shutdown();
}

main().catch(console.error);

For self-hosted OpenObserve, replace the URL with http://localhost:5080/api/default/v1/traces.

What Gets Captured

AttributeDescription
operation_nameOpenAI Chat Completions
llm_model_nameResolved model version (e.g. gpt-4o-mini-2024-07-18)
gen_ai_response_modelSame as llm_model_name
llm_systemopenai
llm_provideropenai
gen_ai_operation_namechat
openinference_span_kindLLM
llm_finish_reasonReason generation stopped (e.g. stop, length)
llm_invocation_parametersJSON-serialised request parameters
gen_ai_request_max_tokensmax_tokens from the request
llm_token_count_promptPrompt tokens consumed
llm_token_count_completionCompletion tokens generated
llm_token_count_totalTotal tokens consumed
gen_ai_usage_input_tokensInput tokens (mirrors llm_token_count_prompt)
gen_ai_usage_output_tokensOutput tokens (mirrors llm_token_count_completion)
gen_ai_usage_total_tokensTotal tokens
gen_ai_usage_cost_inputEstimated cost for input tokens
gen_ai_usage_cost_outputEstimated cost for output tokens
input_mime_typeapplication/json
output_mime_typeapplication/json
span_kindInternal
span_statusOK on success, ERROR on failure
durationEnd-to-end request latency

Viewing Traces

  1. Log in to OpenObserve and navigate to Traces
  2. Filter by service_name to find your application's spans
  3. Spans appear with operation_name: OpenAI Chat Completions
  4. Note that llm_invocation_parameters holds the alias you requested while llm_model_name shows the resolved version (e.g. gpt-4o-mini vs gpt-4o-mini-2024-07-18)
  5. Filter by span_status = ERROR to find failed calls
  6. Use llm_finish_reason = length to identify responses truncated by max_tokens

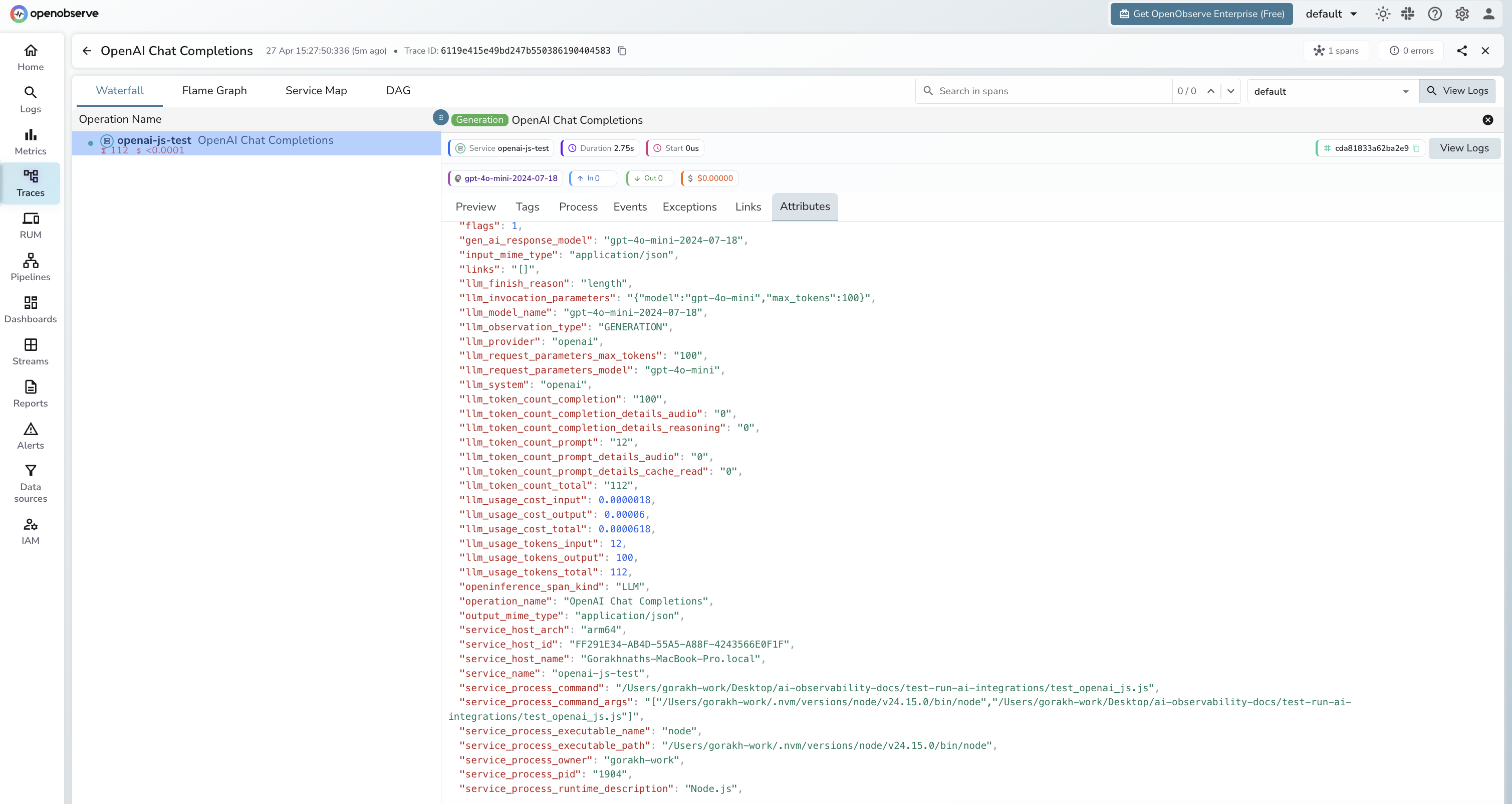

OpenAI JS trace in OpenObserve, Waterfall view with the OpenAI Chat Completions span attributes

Next Steps

With the OpenAI JS/TS SDK instrumented, every API call is recorded in OpenObserve. From here you can build dashboards tracking token consumption, compare response times across models, and alert on high error rates.
