Koog → OpenObserve

Capture agent invocation latency, LLM call details, and span trees for every Koog agent run. Koog is JetBrains' Kotlin-first AI agent framework with built-in OpenTelemetry support via its OpenTelemetry.Feature. Install the feature on each agent with an OTLP HTTP exporter and Koog emits a structured span tree for every run automatically.

Prerequisites

JDK 17+ and Kotlin 2.x
Maven 3.9+ (or Gradle 8+)
An OpenObserve account (cloud or self-hosted)
Your OpenObserve organisation ID and Base64-encoded auth token
An OpenAI API key

Installation

Add the following to your pom.xml (Maven):

<dependencies>
    <dependency>
        <groupId>ai.koog</groupId>
        <artifactId>koog-agents-jvm</artifactId>
        <version>0.7.1</version>
    </dependency>
    <dependency>
        <groupId>org.jetbrains.kotlinx</groupId>
        <artifactId>kotlinx-coroutines-core</artifactId>
        <version>1.10.2</version>
    </dependency>
    <dependency>
        <groupId>io.opentelemetry</groupId>
        <artifactId>opentelemetry-sdk</artifactId>
        <version>1.43.0</version>
    </dependency>
    <dependency>
        <groupId>io.opentelemetry</groupId>
        <artifactId>opentelemetry-exporter-otlp</artifactId>
        <version>1.43.0</version>
    </dependency>
    <dependency>
        <groupId>io.opentelemetry.semconv</groupId>
        <artifactId>opentelemetry-semconv</artifactId>
        <version>1.25.0-alpha</version>
    </dependency>
</dependencies>

Or in build.gradle.kts (Gradle):

dependencies {
    implementation("ai.koog:koog-agents:0.7.1")
    implementation("org.jetbrains.kotlinx:kotlinx-coroutines-core:1.10.2")
    implementation("io.opentelemetry:opentelemetry-sdk:1.43.0")
    implementation("io.opentelemetry:opentelemetry-exporter-otlp:1.43.0")
    implementation("io.opentelemetry.semconv:opentelemetry-semconv:1.25.0-alpha")
}

Configuration

Set environment variables before running:

export OPENAI_API_KEY=your-openai-api-key
export OPENOBSERVE_URL=https://api.openobserve.ai/
export OPENOBSERVE_ORG=your_org_id
export OPENOBSERVE_AUTH_TOKEN="Basic <your_base64_token>"

Instrumentation

Build an OTLP exporter and OpenTelemetrySdk, then install OpenTelemetry.Feature on each agent via the builder. Koog emits a span tree for every agent.run() call.

import ai.koog.agents.core.agent.AIAgent
import ai.koog.agents.features.opentelemetry.feature.OpenTelemetry
import ai.koog.prompt.executor.clients.openai.OpenAIModels
import ai.koog.prompt.executor.llms.all.simpleOpenAIExecutor
import io.opentelemetry.api.common.Attributes
import io.opentelemetry.exporter.otlp.http.trace.OtlpHttpSpanExporter
import io.opentelemetry.sdk.OpenTelemetrySdk
import io.opentelemetry.sdk.resources.Resource
import io.opentelemetry.sdk.trace.SdkTracerProvider
import io.opentelemetry.sdk.trace.export.SimpleSpanProcessor
import io.opentelemetry.semconv.ServiceAttributes
import kotlinx.coroutines.runBlocking

fun main(args: Array<String>) {
    runBlocking {
        val ooUrl = System.getenv("OPENOBSERVE_URL") ?: "http://localhost:5080/"
        val ooOrg = System.getenv("OPENOBSERVE_ORG") ?: "default"
        val ooAuth = System.getenv("OPENOBSERVE_AUTH_TOKEN") ?: ""

        val exporter = OtlpHttpSpanExporter.builder()
            .setEndpoint("${ooUrl}api/${ooOrg}/v1/traces")
            .addHeader("Authorization", ooAuth)
            .build()

        val tracerProvider = SdkTracerProvider.builder()
            .addSpanProcessor(SimpleSpanProcessor.create(exporter))
            .setResource(Resource.create(
                Attributes.of(ServiceAttributes.SERVICE_NAME, "koog-app")
            ))
            .build()

        val sdk = OpenTelemetrySdk.builder()
            .setTracerProvider(tracerProvider)
            .build()

        val executor = simpleOpenAIExecutor(System.getenv("OPENAI_API_KEY"))

        val agent = AIAgent.builder()
            .promptExecutor(executor)
            .llmModel(OpenAIModels.Chat.GPT4oMini)
            .systemPrompt("You are a helpful assistant. Answer concisely.")
            .install(OpenTelemetry.Feature) { config ->
                config.setSdk(sdk)
                config.setServiceInfo("koog-app", "1.0")
            }
            .build()

        val response = agent.run("What is distributed tracing?")
        println(response)

        tracerProvider.shutdown()
    }
}

Run with Maven:

mvn compile exec:java -Dexec.mainClass=MainKt

Or with Gradle:

./gradlew run

What Gets Captured

Each agent.run() produces a tree of spans. The root span covers the full agent lifecycle with child spans for each internal node.

Attribute	Span	Description
`gen_ai_operation_name`	all	`create_agent`, `invoke_agent`, or `node`
`gen_ai_agent_id`	`create_agent`, `invoke_agent`	Agent instance UUID
`gen_ai_provider_name`	`create_agent`, `invoke_agent`	LLM provider (e.g. `openai`)
`gen_ai_request_model`	`create_agent`, `invoke_agent`	Model name sent in the request
`gen_ai_response_model`	`invoke_agent`	Model name returned by the API
`gen_ai_conversation_id`	`invoke_agent`, `node`	Conversation UUID for this run
`gen_ai_usage_input_tokens`	`invoke_agent`	Prompt tokens consumed
`gen_ai_usage_output_tokens`	`invoke_agent`	Completion tokens returned
`koog_event_id`	all	Internal Koog event UUID
`koog_node_id`	`node`	Node name (e.g. `nodeCallLLM`, `__finish__`)
`operation_name`	all	Human-readable span name
`duration`	all	Span latency
`span_status`	all	`OK` on success, `ERROR` on failure

Viewing Traces

Log in to OpenObserve and navigate to Traces
Filter by service_name = koog-app to see all Koog traces
Expand any trace to see the full span tree: create_agent → invoke_agent → node spans
Use gen_ai_request_model to filter by model
Filter by span_status = ERROR to find failed agent runs

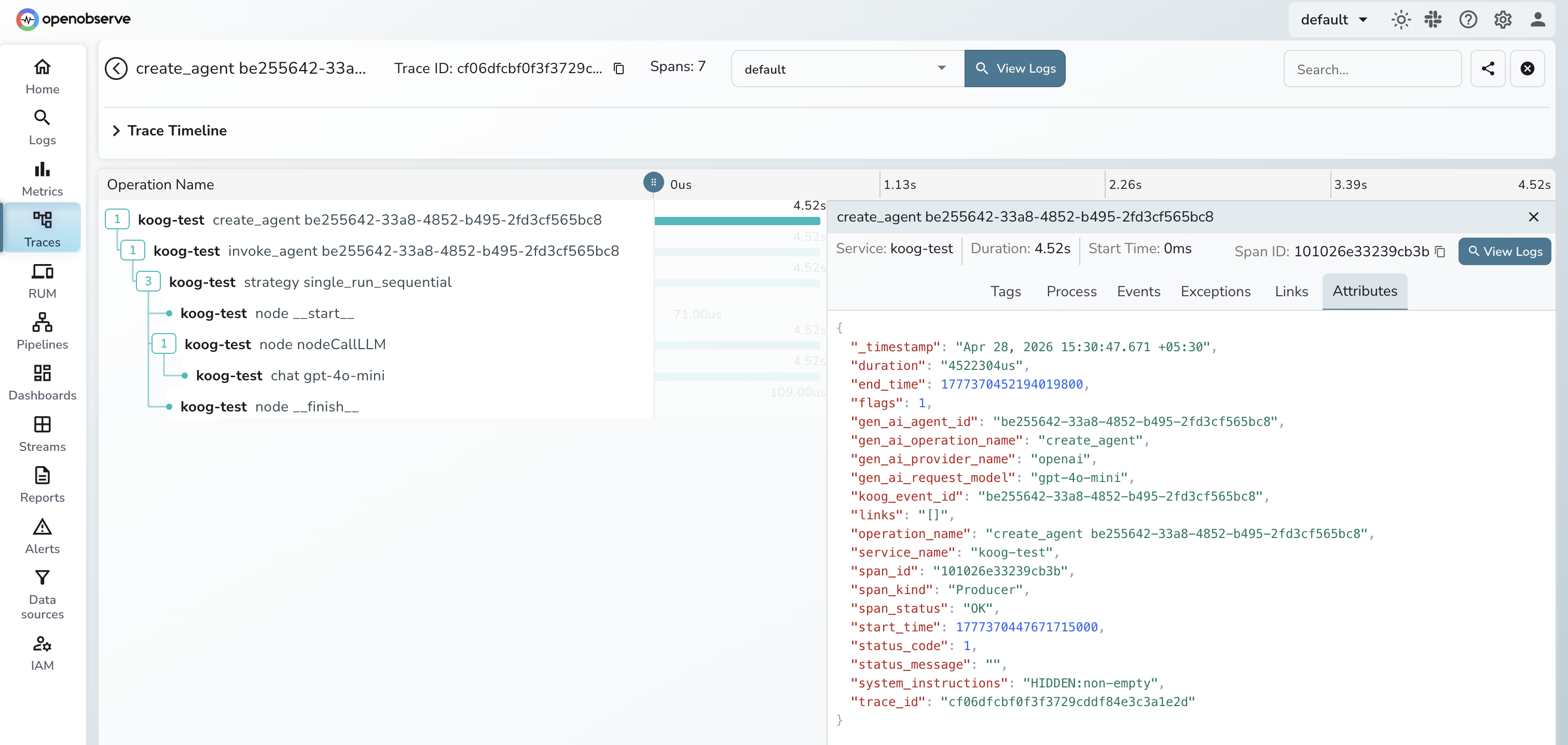

Koog traces in OpenObserve

Next Steps

With Koog instrumented, every agent run is recorded in OpenObserve. From here you can track end-to-end latency per agent, inspect node-level execution times, and alert on failed invocations.
